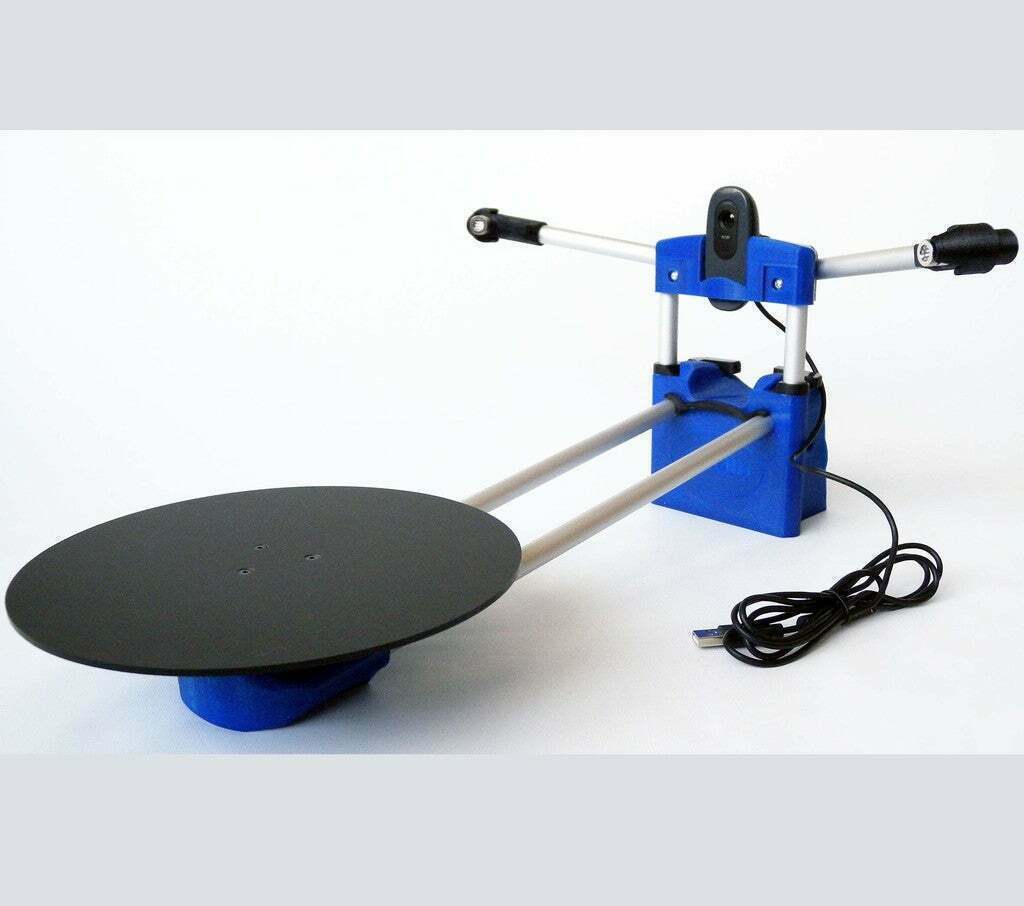

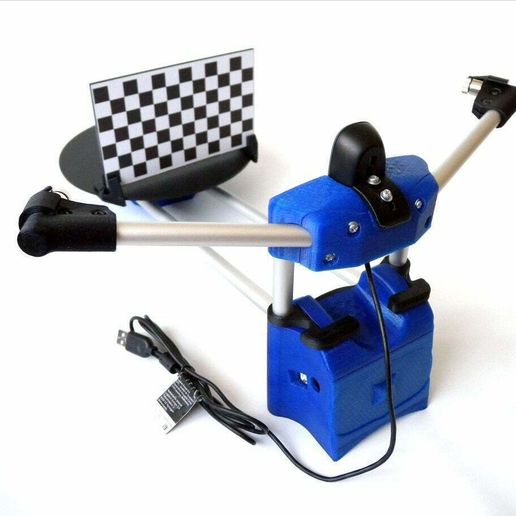

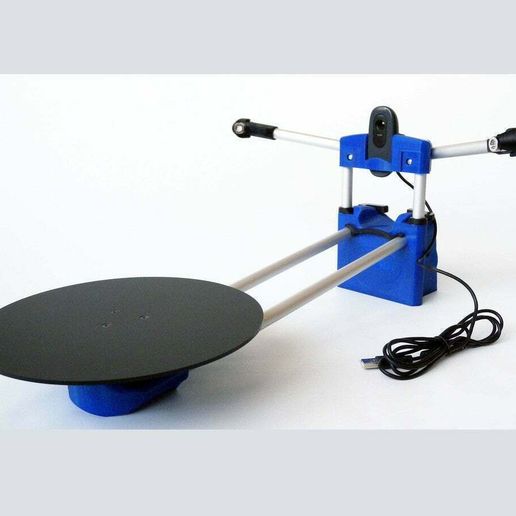

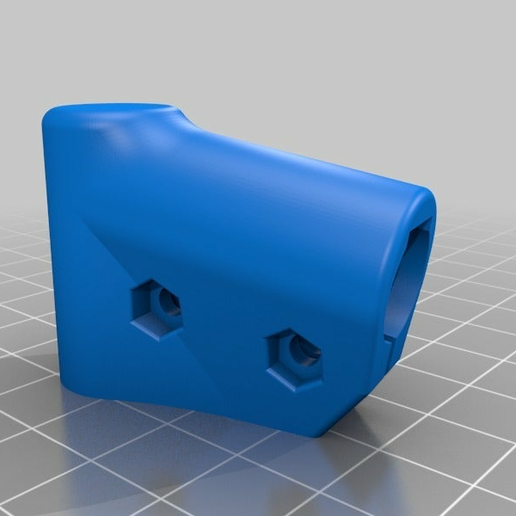

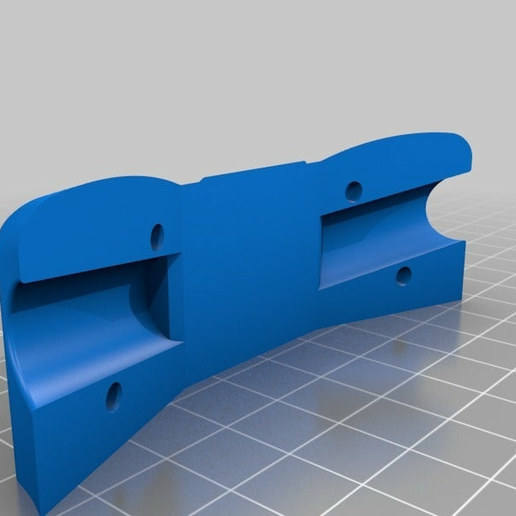

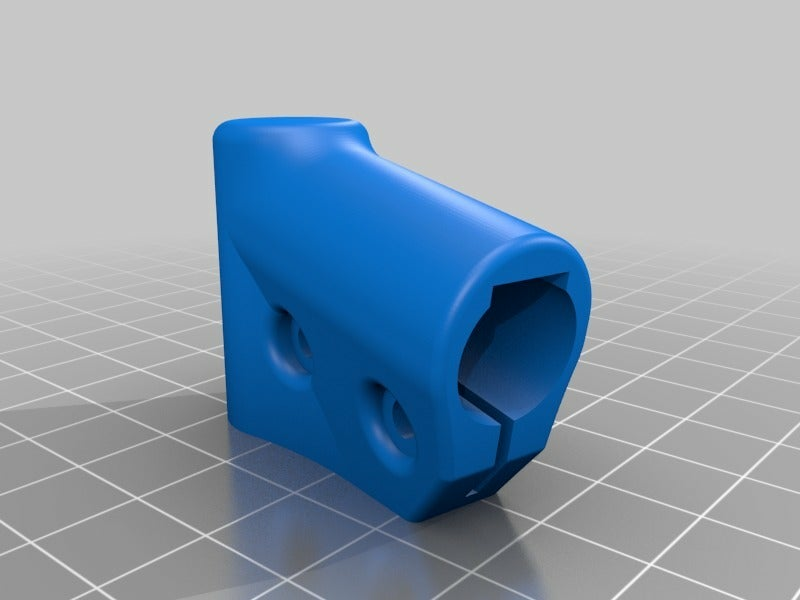

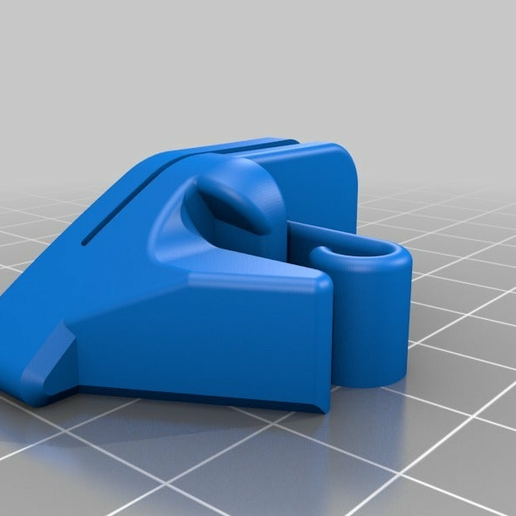

DIY GENIRIS Scanner

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 975 views
  • 2 likes
  • 19 downloads

3D model description

The purpose of this version is to provide increased adjustment possibilities, as well as to have a reduced manufacturing cost.
The electronic components and software used are the same as the Ciclop, which inspired us. Thank its designer for the quality of his work, as well as the community that supported him.

Features:
Adjustable camera height (65mm)
Adjustable camera tilt (20°)
Reduced printing volumes.
Few support material required
Platform supported by 3 (low cost) ball bearings.
Reduced NEMA 17 motor height (28 mm)
Easy assembly

Open source board ZUM
Open source firmware Horus-fw Horus-fw
Open source multi-platform software Horus Horus.

More free 3D files: www.genapart.com

https://youtu.be/CAHRlB5R4ng

Listing:
Aluminium tube Ø12 x 350 mm x2
Aluminium tube Ø12 x 105 mm x2
Aluminium tube Ø12 x 145 mm x2

Acrylic plateform Ø200 x 3 mm x1
Acrylic pattern holder 160 x 100 x 3 mm x1

Camera Logitech C270 x1
NEMA 17 Motor 28 mm height x1
UNO Board x1
ZUN Board x1
A4988 Stepper Motor Driver x1
DC 12V 3A Power Supply Adapteur x1
5mw red line laser module MXD1230 x2

623ZZ Bearing Ø3 x Ø10 x 4 mm x3
M3 Nut x8
Ø3,2 x Ø6,8 x 0,6 mm Washer x11
FHC M3 x 8 mm Screw x3
TBHC M3 x 6 mm Screw x4
TBHC M3 x 10 mm Screw x5
TCB POZI 3 x 16 mm Screw x1
TCB POZI 3 x 10 mm Screw x14

Dupont Wire 4 pins female to individual male 50 cm x1
Dupont Wire 2 pins female to male 40 cm x2
USB Wire A to B x1

3D printer file information

  • 3D design format: PDF and STL Folder details Close

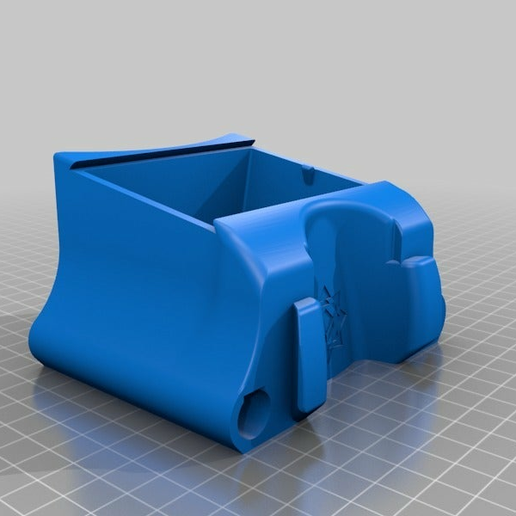

    • Box.stl
    • Box_Cover.stl
    • Camera_Holder.stl

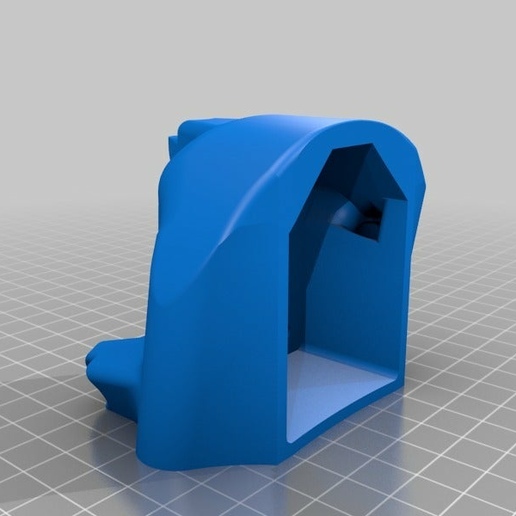

    • Camera_Housing.stl
    • Camera_Housing_Clamp.stl
    • Damier_13_x_13.pdf

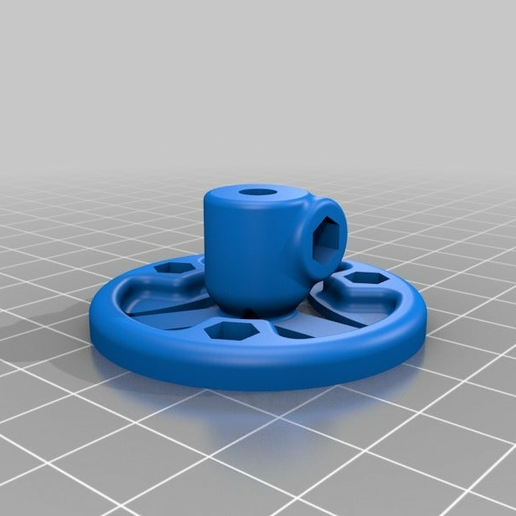

    • Disc_Holder.stl

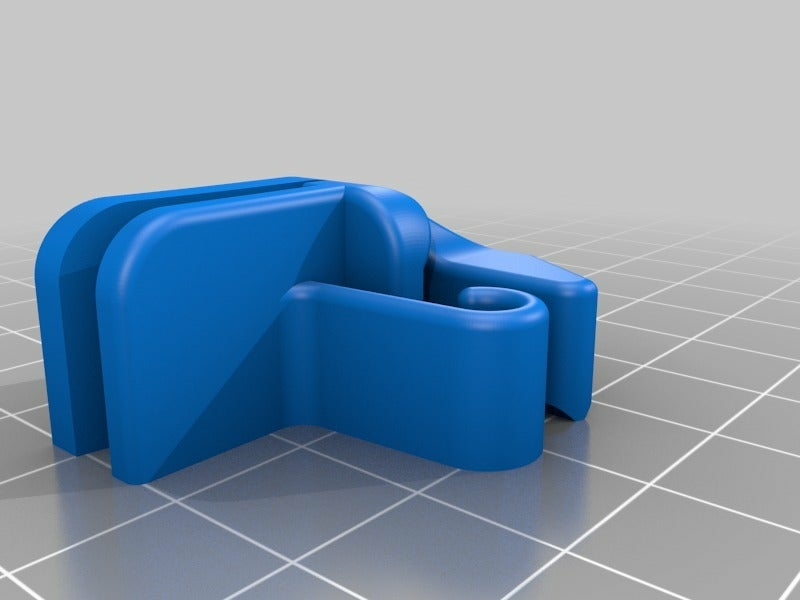

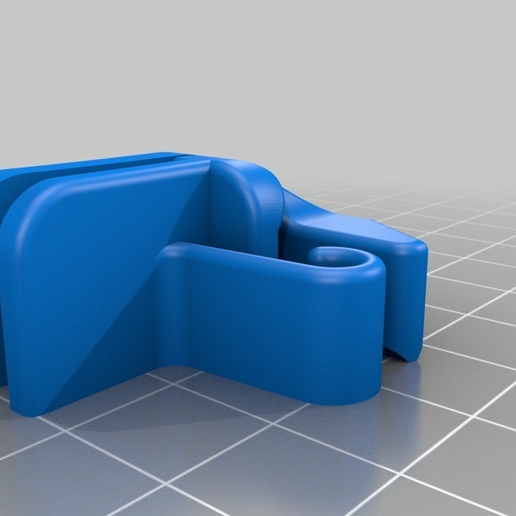

    • Laser_Clip.stl
    • Left_Laser_Holder.stl
    • Left_Pattern_holder.stl

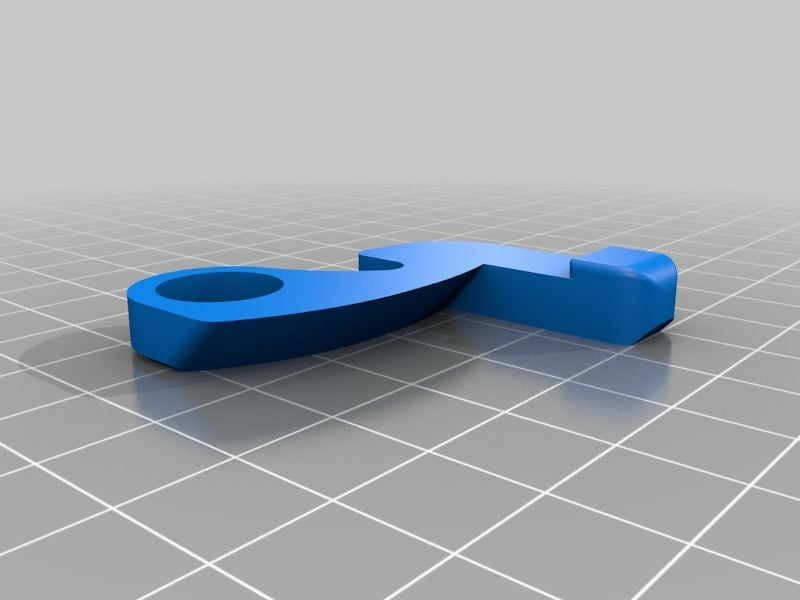

    • Left_Z_Clip.stl
    • Listing.pdf
    • Motor_Holder.stl
    • Right_Laser_Holder.stl
    • Right_Pattern_holder.stl
    • Right_Z_Clip.stl

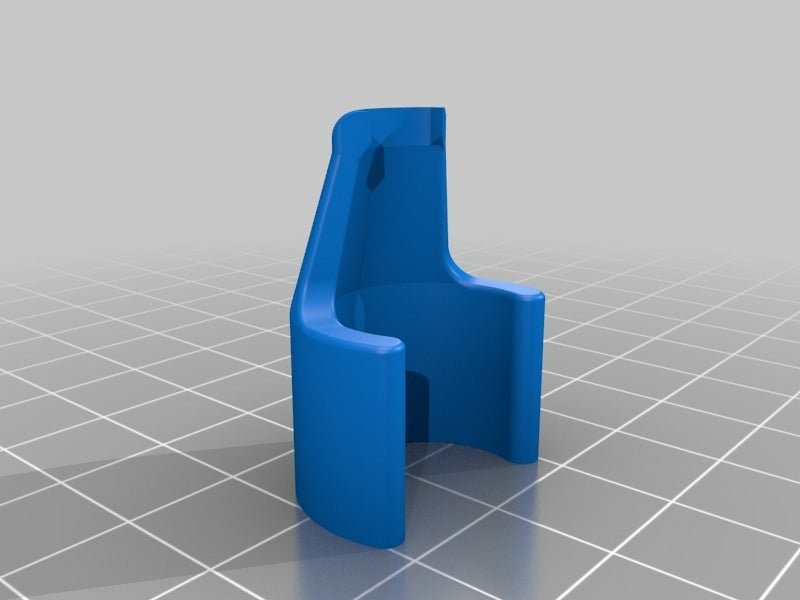

    • Tube_Clip.stl

    Learn more about the formats

  • Publication date: 2021/02/20 at 06:44

License

CC BY NC SA
