Filament tracking system

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 9.2k views
  • 23 likes
  • 13 downloads

3D model description

Système de contrôle d’alimentation du fil

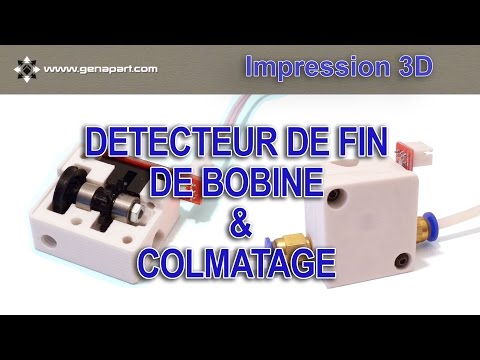

https://youtu.be/7Bhbh1mcsi8

More information: http://www.genapart.com/electronique/el1086/

Boitier / housing: PLA x 1
Couvercle / Cover: PLA x 1
Roue dentée / Toothed wheel: PLA x 1
Roue d’entrainement / Driven wheel: Filament caoutchouc / Rubber filament x 1
Capteur optique / Optimal sensor x 1
Roulements / Ball bearing 603ZZ x 2
Vis TBHC / TBHC Screw M3 x 25 x 1
Ecrou / Nut M3 x 1
Rondelles plate / Plain washer M3 x 2
Tubes PTFE / PTFE tube Ø4 x 12 (patins / Pads) x 2
Vis / Screw 3 x 8 x 1
Vis / Screw 3 x 10

3D printer file information

  • 3D design format: STL Folder details Close
    • Encoder_Sup.stl
    • Encoder_Sup_sym.stl
    • Encodeur_Inf.stl
    • Encodeur_Inf_sym.stl
    • Roue_d_entrainement.stl
    • Roue_dent_e_12_dts.stl

    Learn more about the formats

  • Publication date: 2016/08/06 at 15:24

Copyright

©

Tags

Creator

Designs 42
Downloads 9.8k
Sales US$175
Followers 68
Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Best sellers of the category Tools


Add a comment

One comment

Where can the optical sensor be purchased?
