8 inch e-drum pad with small 3d printer

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

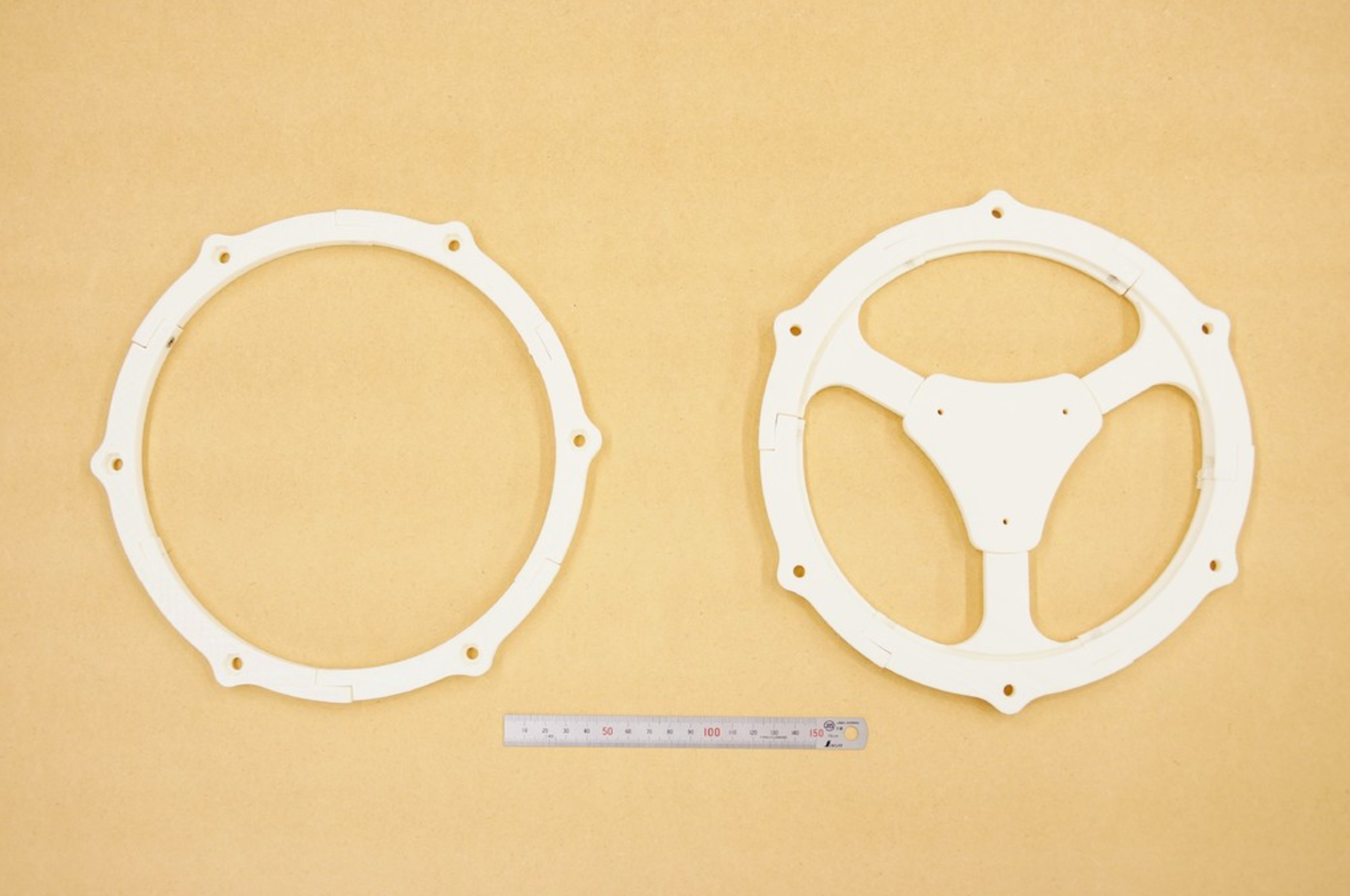

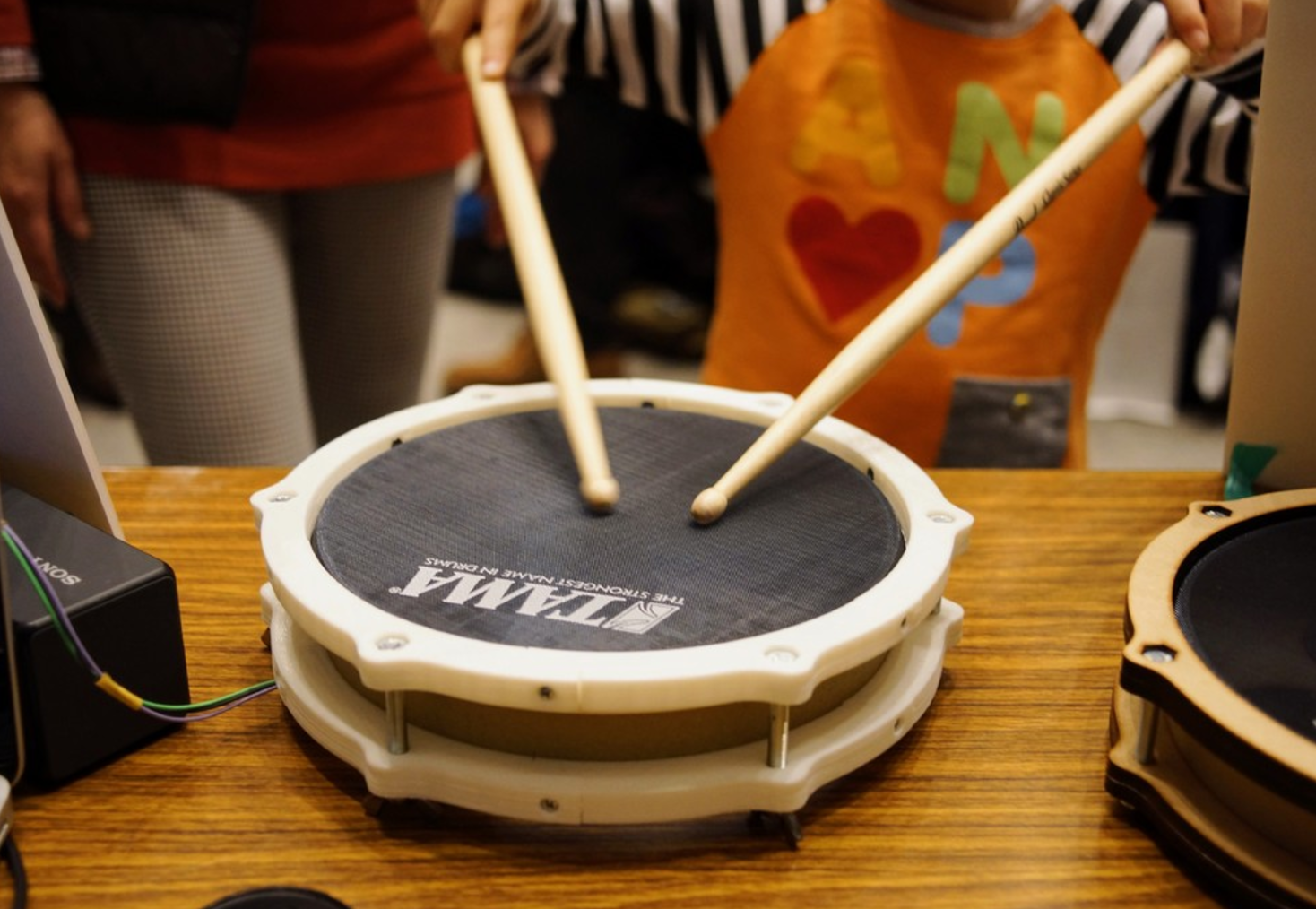

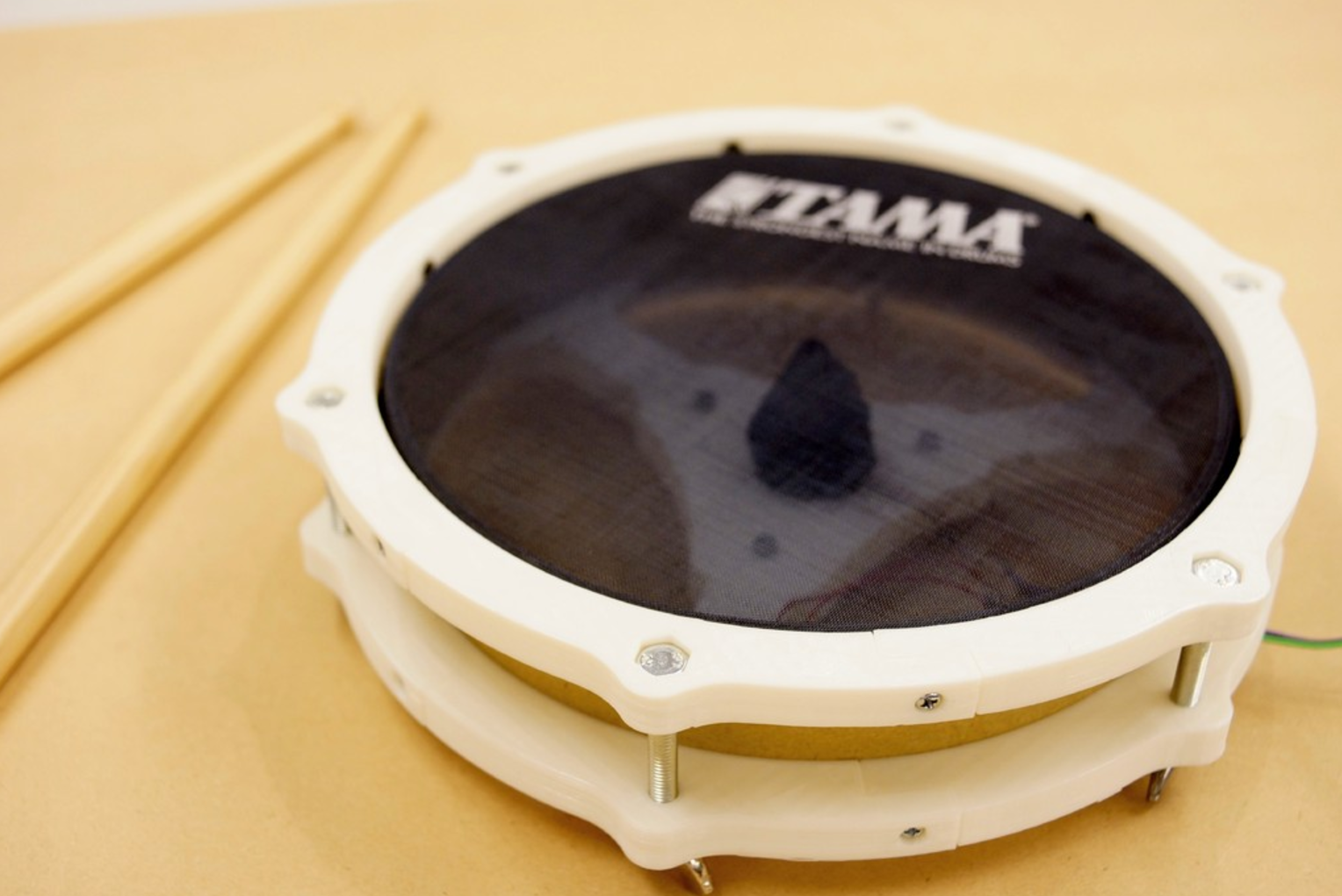

Prototype of 8 inch pad for e-drum with small 3d printer.
This project is under development. I will release the detailed production process on this blog.
https://open-e-drums.tumblr.com/

How to Make : http://www.instructables.com/id/E-drum-With-Small-3D-Printer-and-Thick-Paper/

https://www.youtube.com/watch?v=MbYpFizxAZQ
https://www.youtube.com/watch?v=qLMPvisr5Zk


3D printing settings

Printer:
PRN3D

Rafts:
Doesn't Matter

Supports:
Yes

Resolution:
0.2mm or 0.3mm

Infill:
20%-50%

Notes:
M3 10mm bolt
M3 nut

M6 50mm bolt
M6 nut

1mm thick paper

How to Make : http://www.instructables.com/id/E-drum-With-Small-3D-Printer-and-Thick-Paper/

3D printer file information

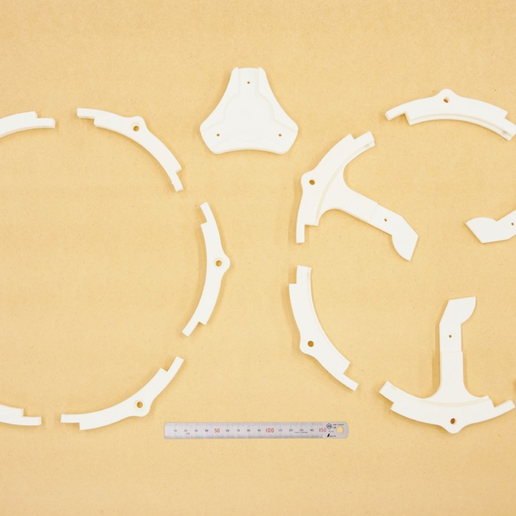

  • 3D design format: STL Folder details Close
    • bottom1.stl
    • bottom2.stl
    • bottom3.stl
    • rim.stl
    • tuningkey.stl

    Learn more about the formats

  • Last update: 2017-06-12 at 11:34
  • Publication date: 2017-06-09 at 11:36

License

CC BY SA

Tags

Creator

Designs 25
Downloads 1.4k
Followers 39

I am a designer, maker, engineer in Kyoto, Japan.

From June 2016, I began making electronic drums as a hobby.
https://open-e-drums.tumblr.com/
