12 inch e-drum pad with small 3d printer

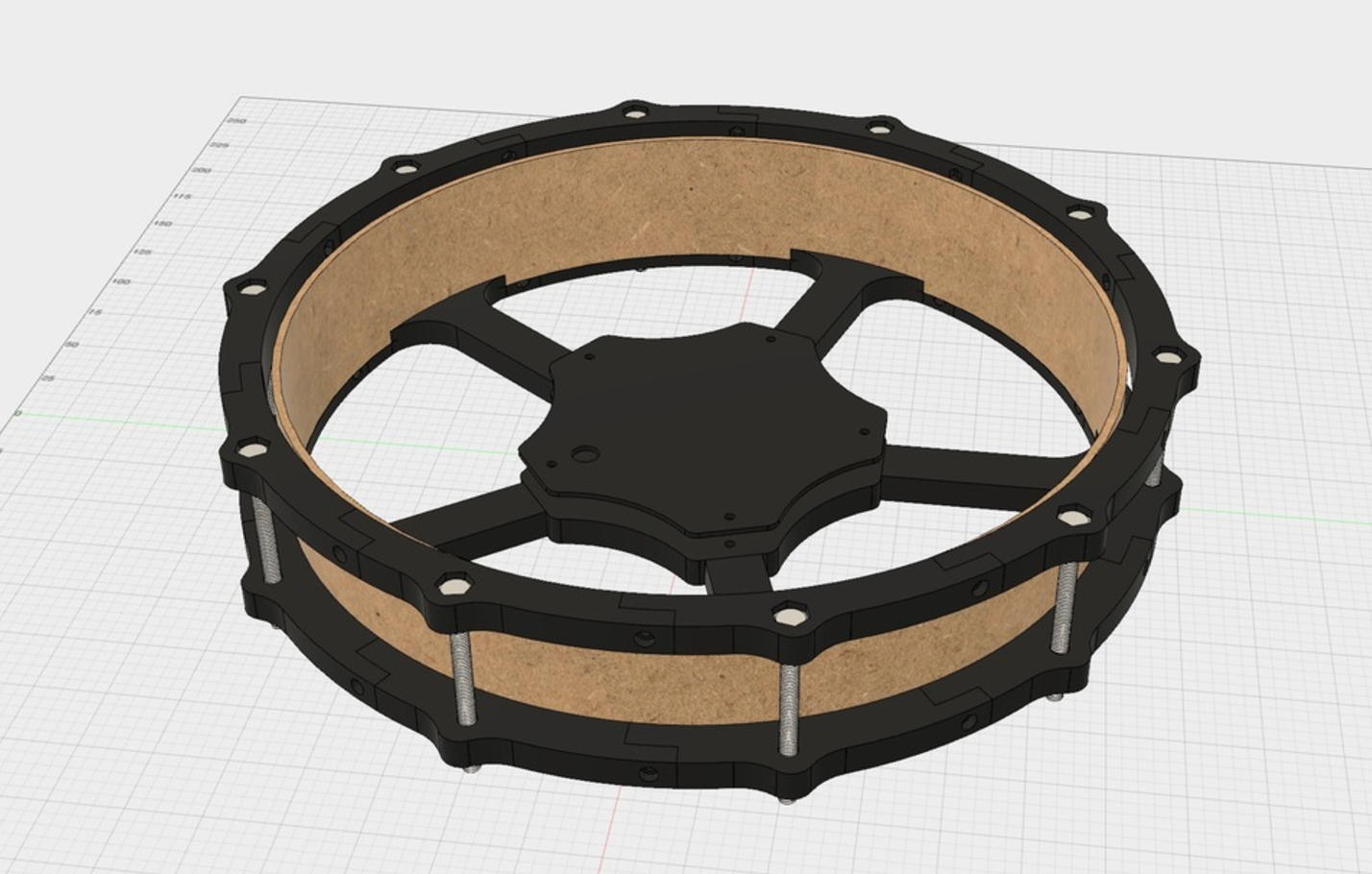

Capture d’écran 2017-08-21 à 10.56.59.png Free STL file 12 inch e-drum pad with small 3d printer・3D print model to download, RyoKosaka

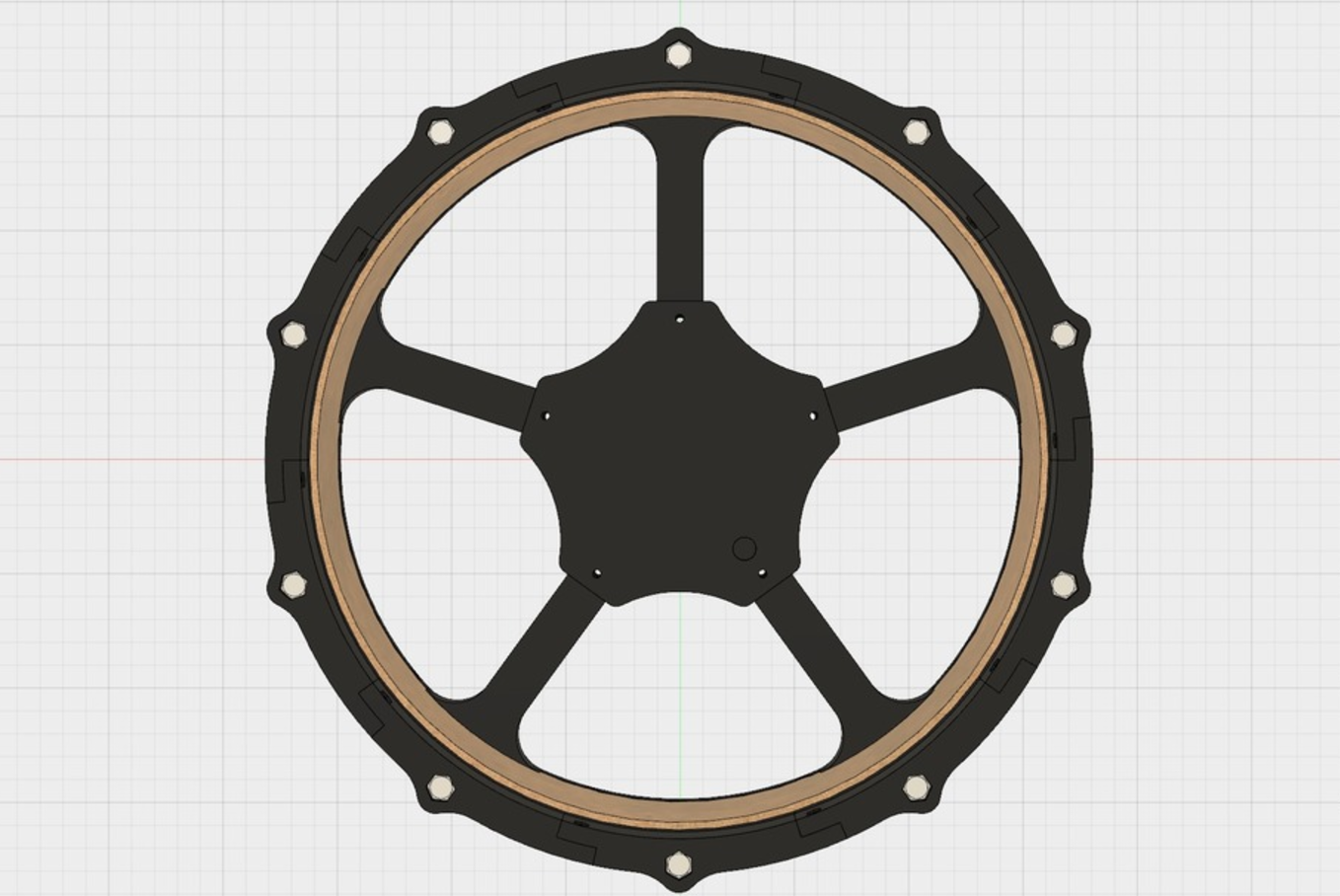

Capture d’écran 2017-08-21 à 10.57.04.png Free STL file 12 inch e-drum pad with small 3d printer・3D print model to download, RyoKosaka
bottom_joint.stl Free STL file 12 inch e-drum pad with small 3d printer・3D print model to download, RyoKosaka
bottom1.stl Free STL file 12 inch e-drum pad with small 3d printer・3D print model to download, RyoKosaka
bottom2.stl Free STL file 12 inch e-drum pad with small 3d printer・3D print model to download, RyoKosaka
rim1.stl Free STL file 12 inch e-drum pad with small 3d printer・3D print model to download, RyoKosaka
sensorplate.stl Free STL file 12 inch e-drum pad with small 3d printer・3D print model to download, RyoKosaka
tuningkey.stl Free STL file 12 inch e-drum pad with small 3d printer・3D print model to download, RyoKosaka
Share
Add to
Make
?
Creation quality: 4.3/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

12 inch version of this pad (https://www.thingiverse.com/thing:2030095)(http://www.instructables.com/id/E-drum-With-Small-3D-Printer-and-Thick-Paper/)

I just designed it and have not printed it yet. I will upload pictures as it is completed.

How to Make : https://www.instructables.com/id/Arduino-Minimal-Drum-Kit/

This project is under development. I will release the detailed production process on this blog.
https://open-e-drums.tumblr.com/

3D printing settings

Printer:
PRN3D

Rafts:
Doesn't Matter

Supports:
Yes

Resolution:
0.3mm

Infill:
20%

Notes:
M6-70mm bolt and nut 10
M3-10mm bolt and nut 20
M3-25mm bolt and nut * 5

1mm thick paper

[SHELL DIMENSION]
inner diameter : 303.5 mm
outer diameter : 297.5 mm
shell thickness : 3 mm ( 0.5 mm clearance )

3D printer file information

  • 3D design format: STL Folder details Close
    • bottom1.stl
    • bottom2.stl
    • bottom_joint.stl
    • rim1.stl
    • sensorplate.stl
    • tuningkey.stl

    Learn more about the formats

  • Publication date: 2017-08-21 at 11:32

License

CC BY SA

Tags

Creator

RyoKosaka RyoKosaka
Designs 25
Downloads 1.4k
Followers 38
Contact

I am a designer, maker, engineer in Kyoto, Japan.

From June 2016, I began making electronic drums as a hobby.
https://open-e-drums.tumblr.com/
