1991 Mazda 787B 3d Printed RC Car

?
Creation's quality: 4.8/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 15.7k views
  • 73 likes
  • 1.1k downloads

3D model description

https://www.youtube.com/watch?v=K222AvIWfGA

Whenever I build a car, I have to be inspired by something. The Mazda 787B, winner of 1991 24 Hours of Lemans and Group C car, has always captured my eye. With its low slung look, huge rear wing sitting far behind the car, the deep dish Volk rims, and the iconic Renown Livery, it's a sight to behold. Ever since I started making RC cars, I dreamed of making this car.

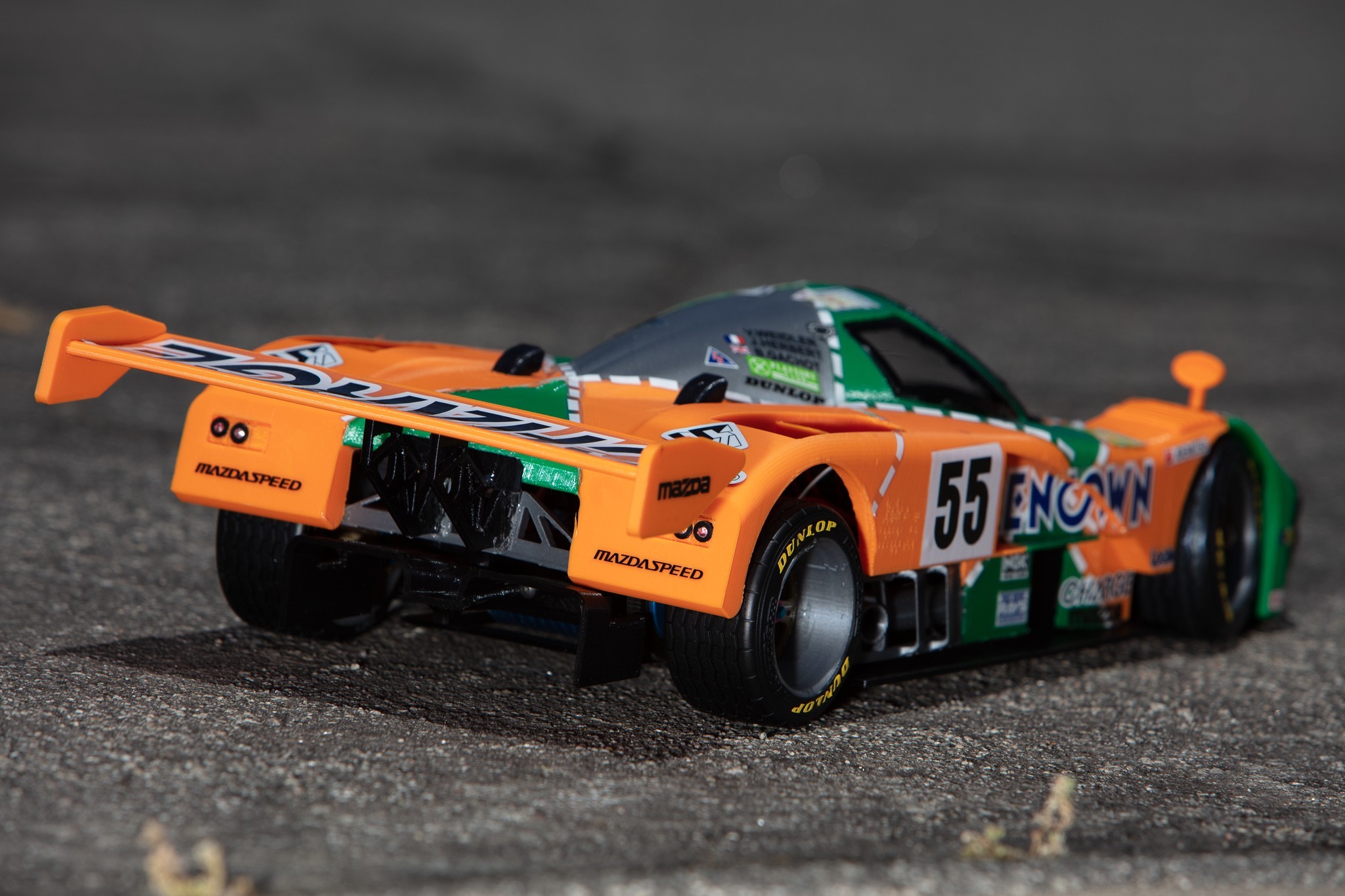

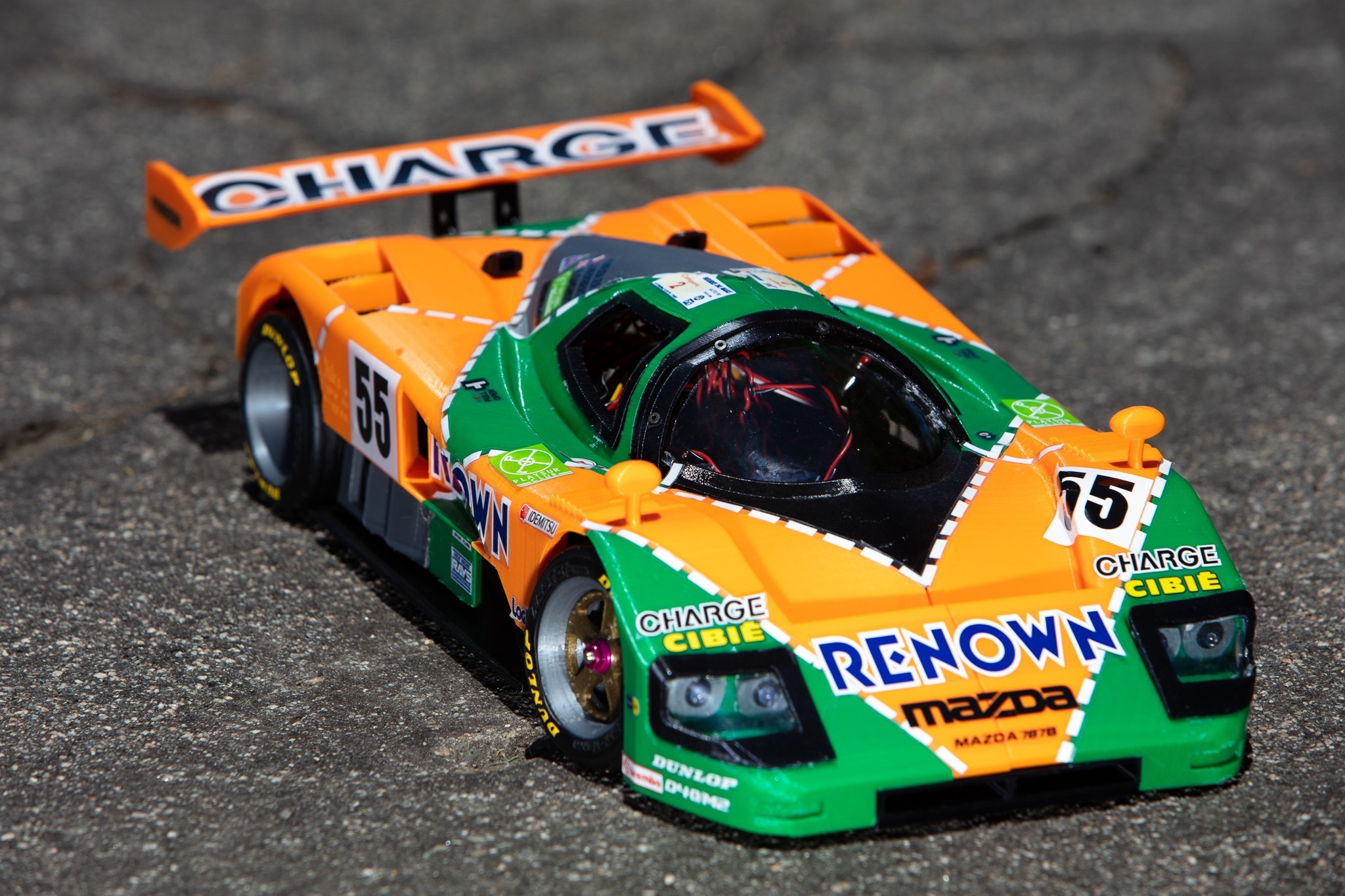

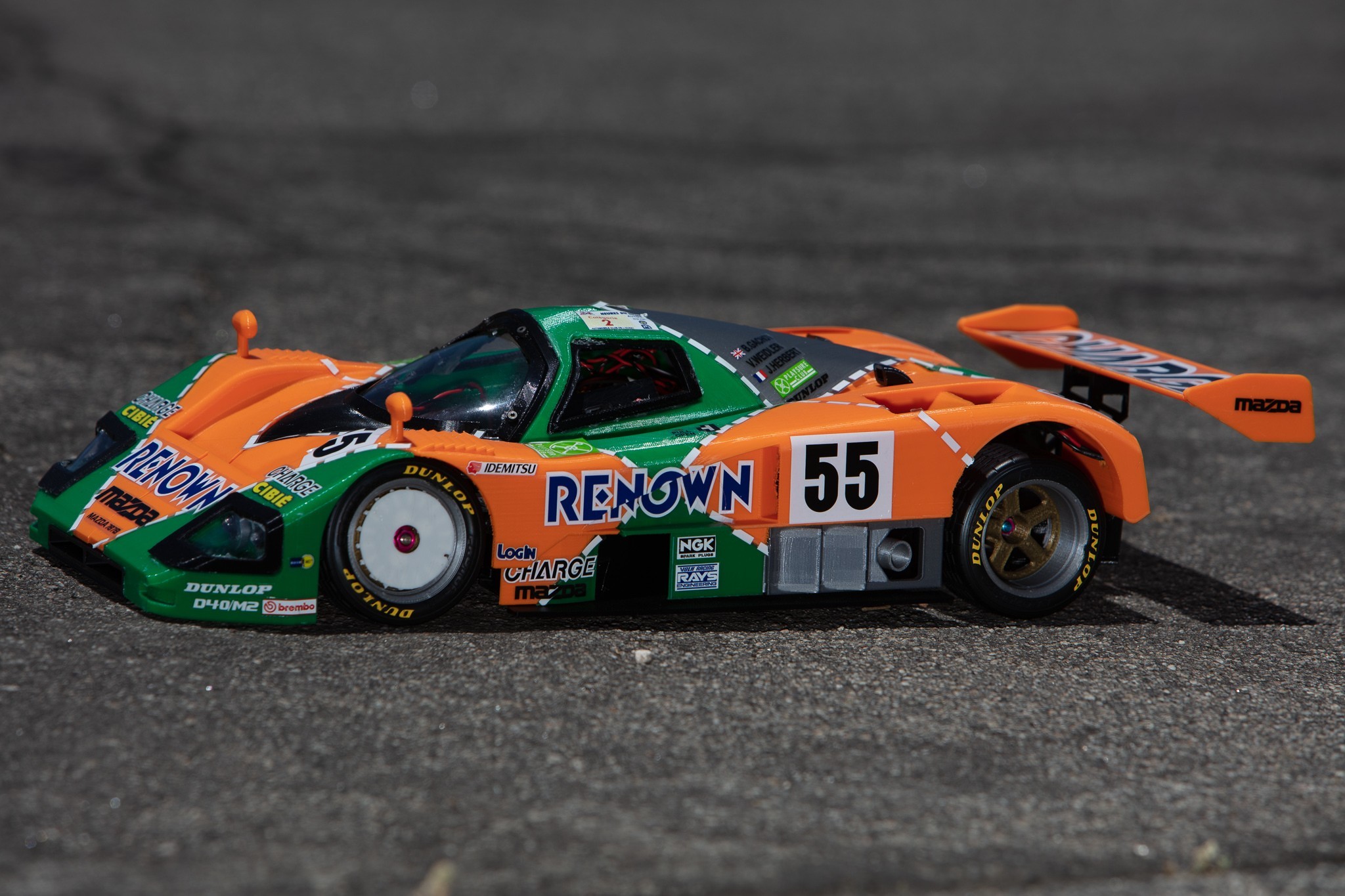

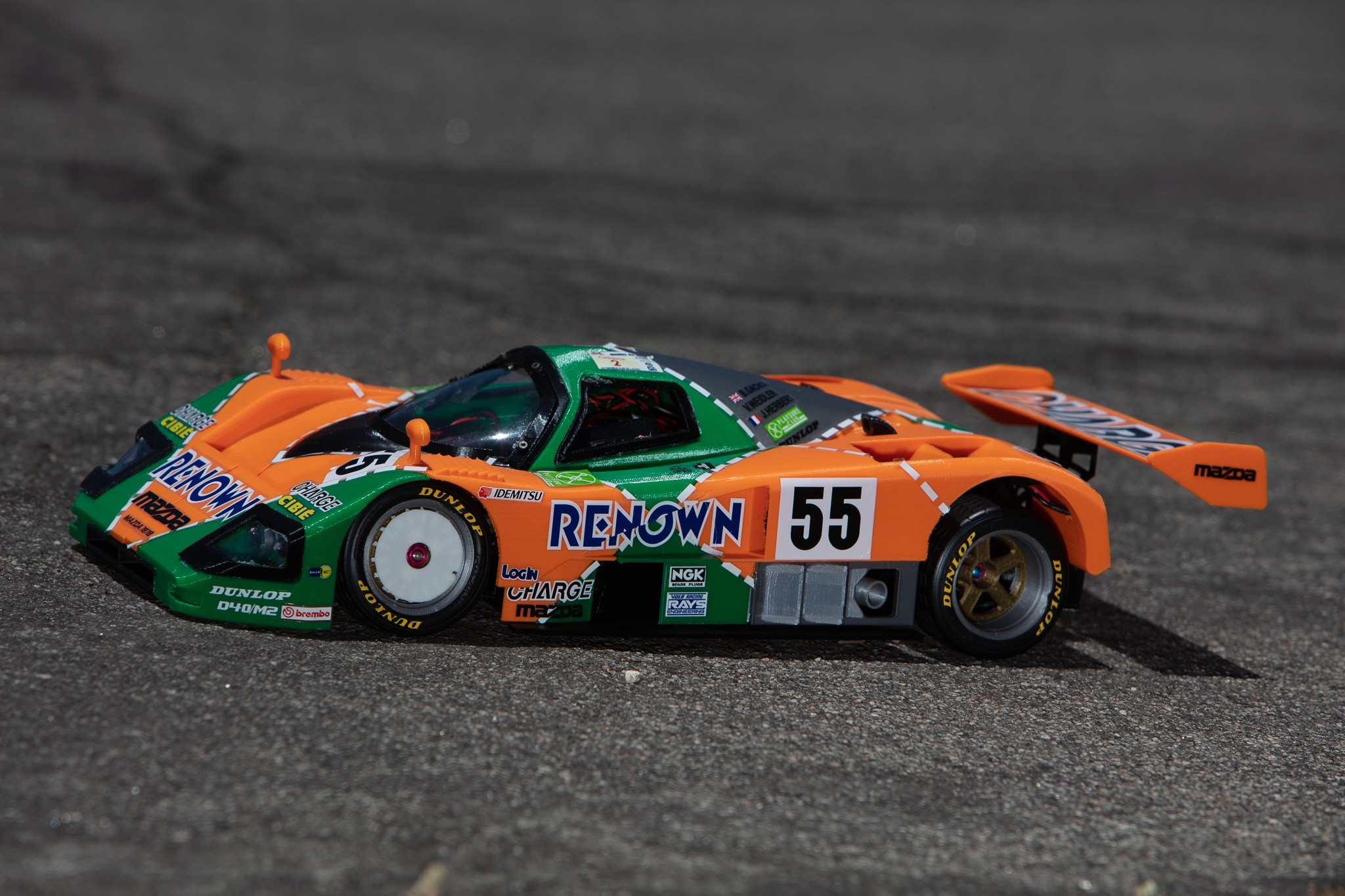

The 1:10 version, is 3d printed in Solutech PLA, shown in bare 3d printed finish and bolted together to form the multicolor paint scheme. The Rims are two piece rims with the front rims having the addition of the white cover that can be added to recreate the historic nature of the car. The Chassis uses a panhard style rear suspension with rear pod and Tamiya F104 rear axle.

I designed and tested the car in Fusion 360.

Manual and Parts List included.

I hope that this 3d RC car can inspire and encourage people to go out and push the limits.

Videos of the real car, so you can understand the stunning allure of the Mazda 787B.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 787B Manual.zip
    • Floor A.stl
    • Floor B.stl

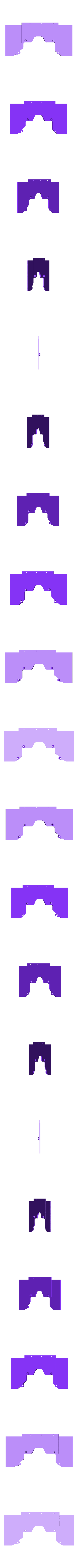

    • Floor C.stl
    • Floor.stl
    • battery brace.stl

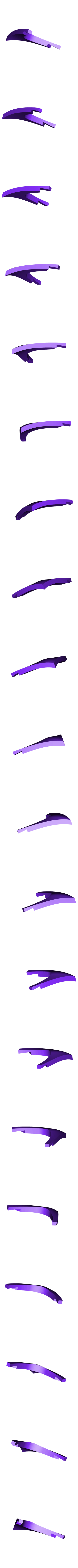

    • black nose.stl

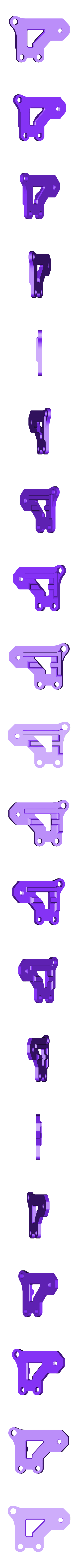

    • damper mount.stl
    • diffuser.stl
    • endplate (left).stl

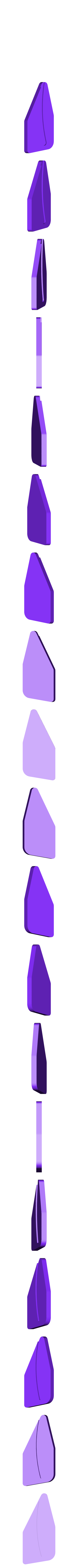

    • endplate (right).stl

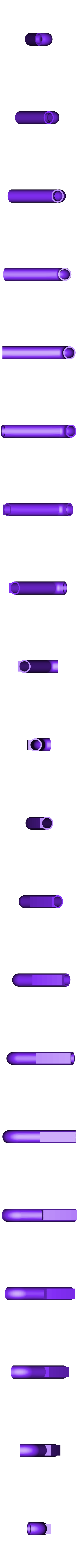

    • exhaust left.stl
    • exhaust right.stl
    • front rim cover.stl
    • front suspension stand.stl
    • green front left.stl

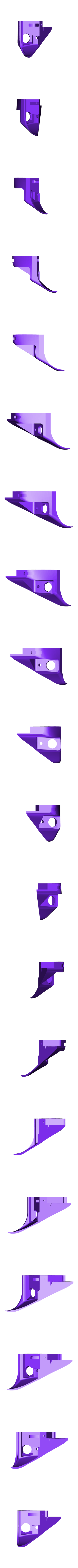

    • green front right.stl

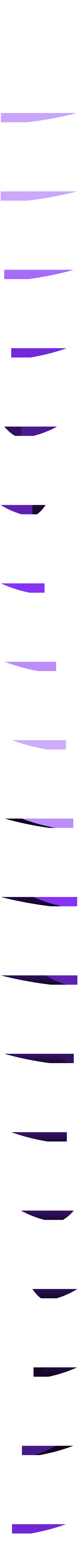

    • green left B.stl
    • green rear.stl
    • green right small.stl
    • green side left.stl
    • green side right.stl
    • headlight cover (left).stl
    • headlight cover (right).stl

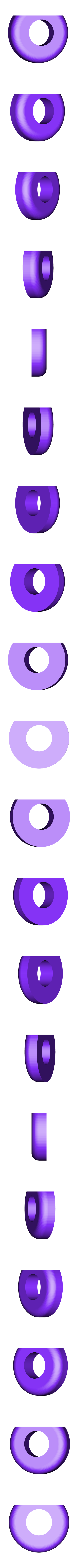

    • headlight for led.stl
    • headlight.stl
    • left dome green.stl
    • left window.stl

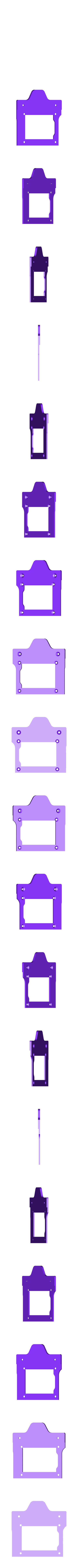

    • lower brace.stl

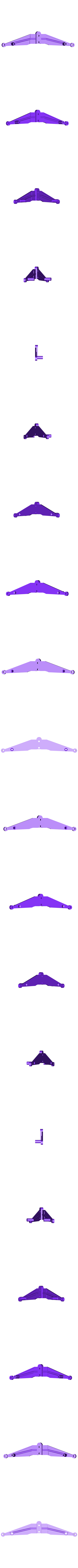

    • lower suspension arms.stl

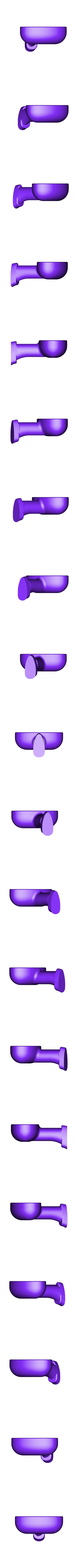

    • mirror.stl

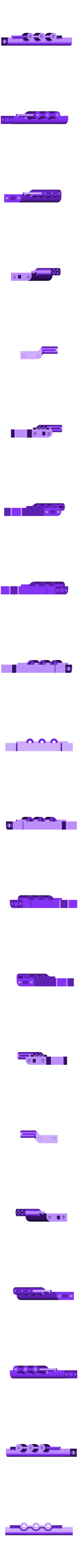

    • motor front brace.stl

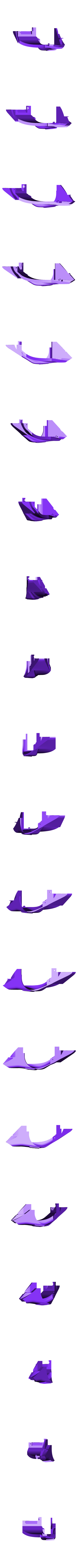

    • orange front left.stl

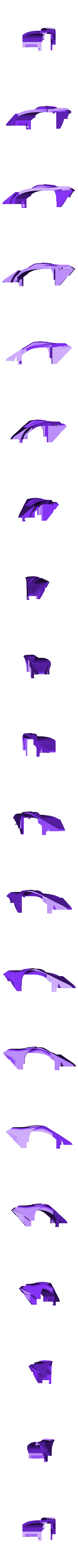

    • orange front right.stl

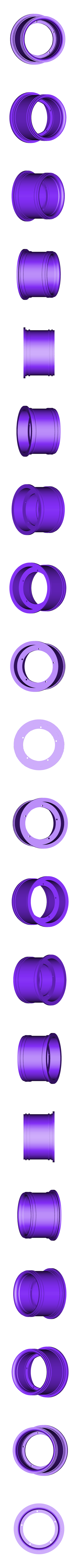

    • outer rim (rear).stl

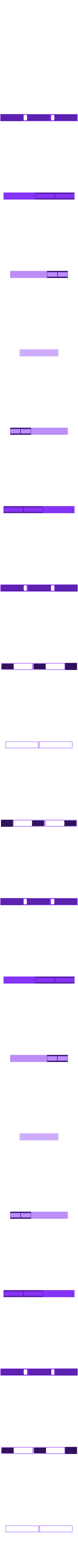

    • radiator.stl
    • rear duct.stl
    • rear fender left.stl

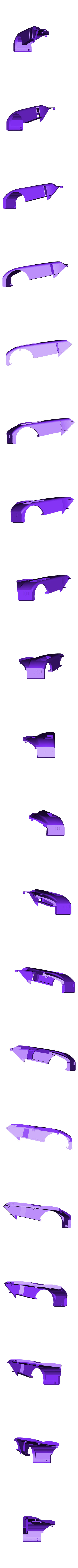

    • rear fender right.stl

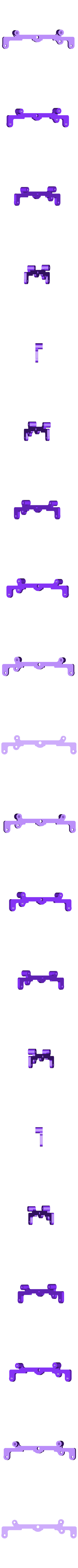

    • rear middle deck.stl
    • rear motor cage.stl
    • rear screw holder.stl

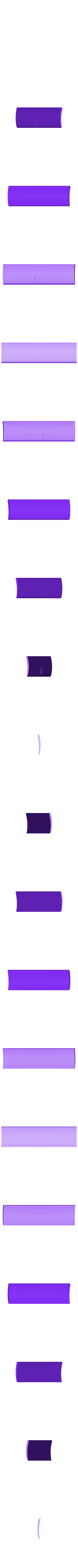

    • rear wing.stl
    • right dome green.stl

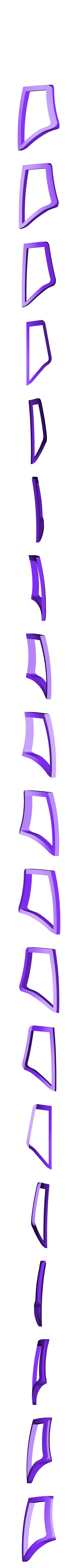

    • right window.stl
    • rim barrell (front).stl
    • rim face (front).stl

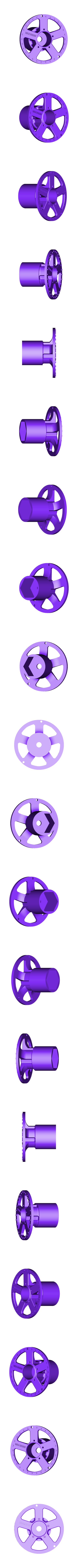

    • rim face (left rear).stl
    • rim face (rear right).stl
    • servo arm extension.stl
    • servo holder.stl
    • silver back.stl
    • silver outlet duct (left).stl
    • silver outlet duct (right).stl
    • steering rack.stl
    • switch holder.stl
    • taillight pattern.stl

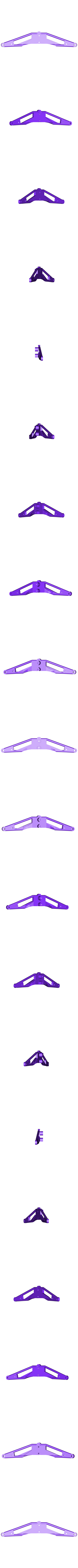

    • upper suspension arms.stl
    • vent left.stl

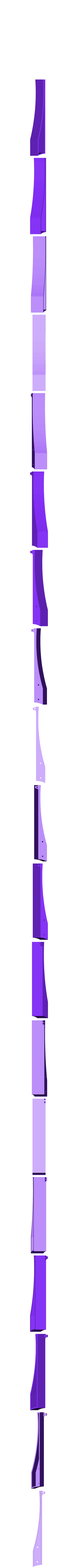

    • vent right.stl
    • vent support mirror.stl

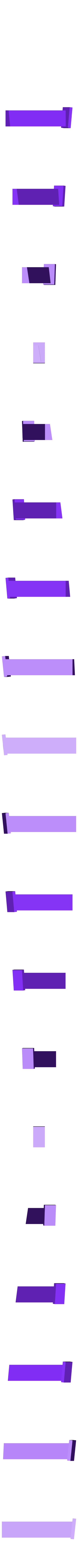

    • vent support.stl
    • wing inner support.stl

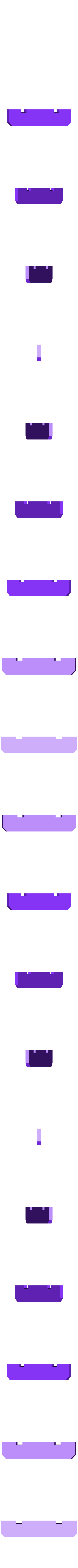

    • wing support b.stl
    • wing support.stl

    Learn more about the formats

  • Last update: 2018/08/06 at 11:27
  • Publication date: 2018/08/02 at 00:05

License

CC BY

Tags

Creator

Issue with this design? Report a problem

Collection associated with this 3D model


Best sellers of the category Various


Add a comment

One comment

How did you do the windshields? Think this will scale down to 1/24 or 1/32? That is the scale of slotcars I run.
