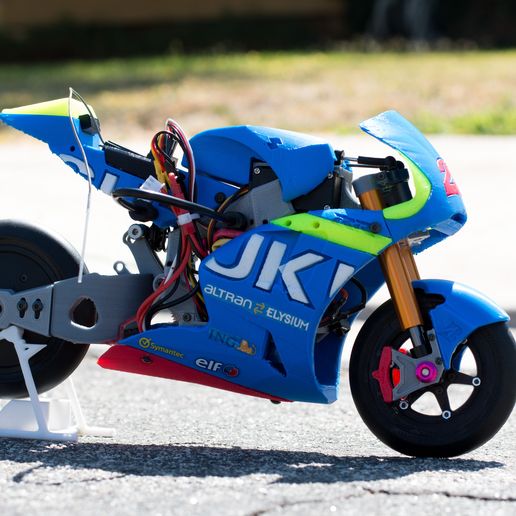

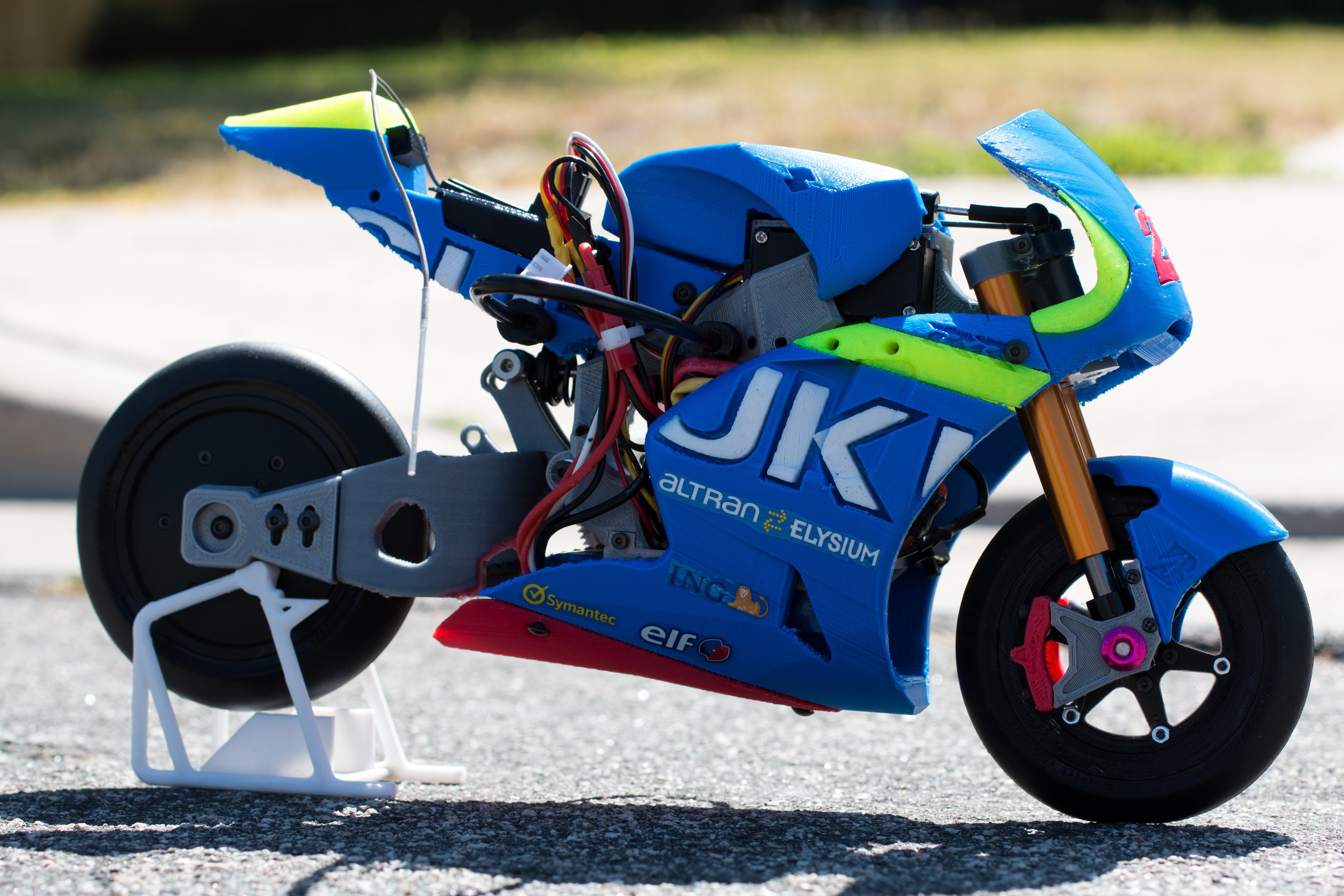

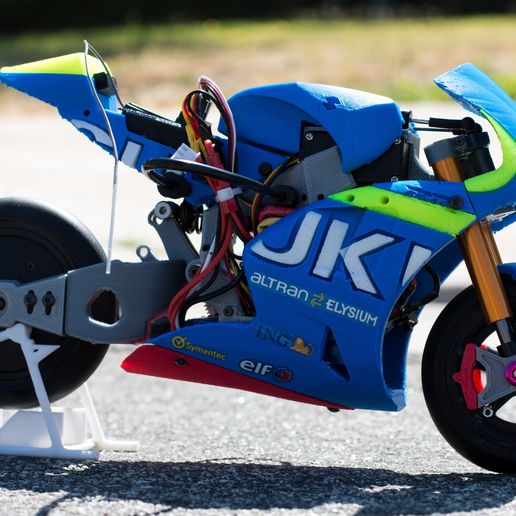

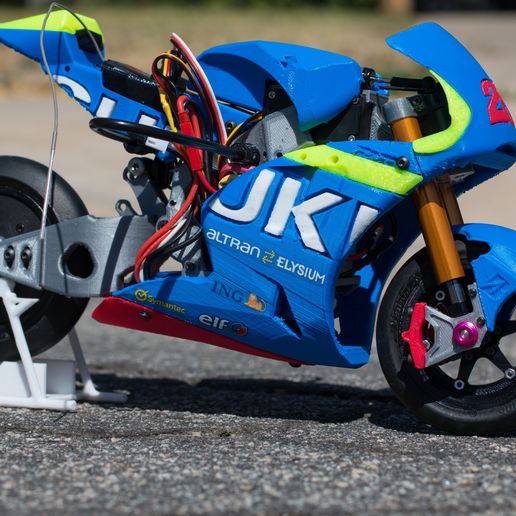

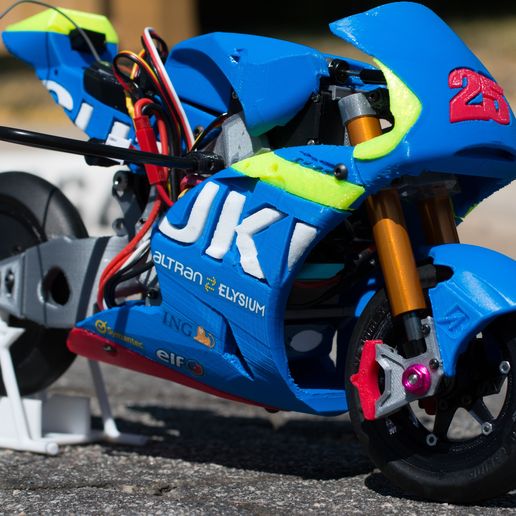

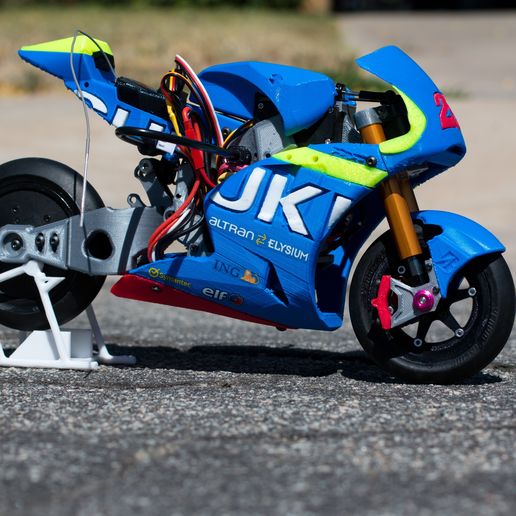

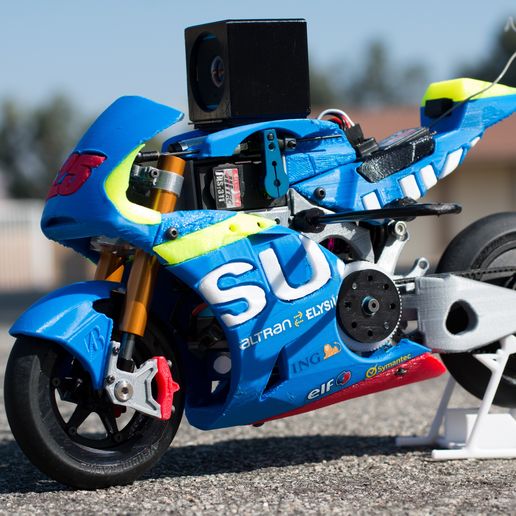

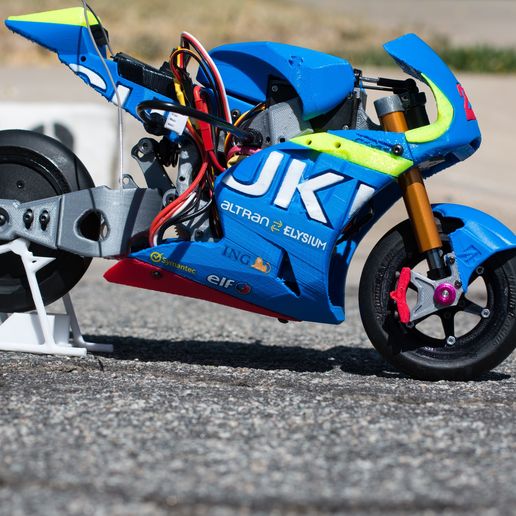

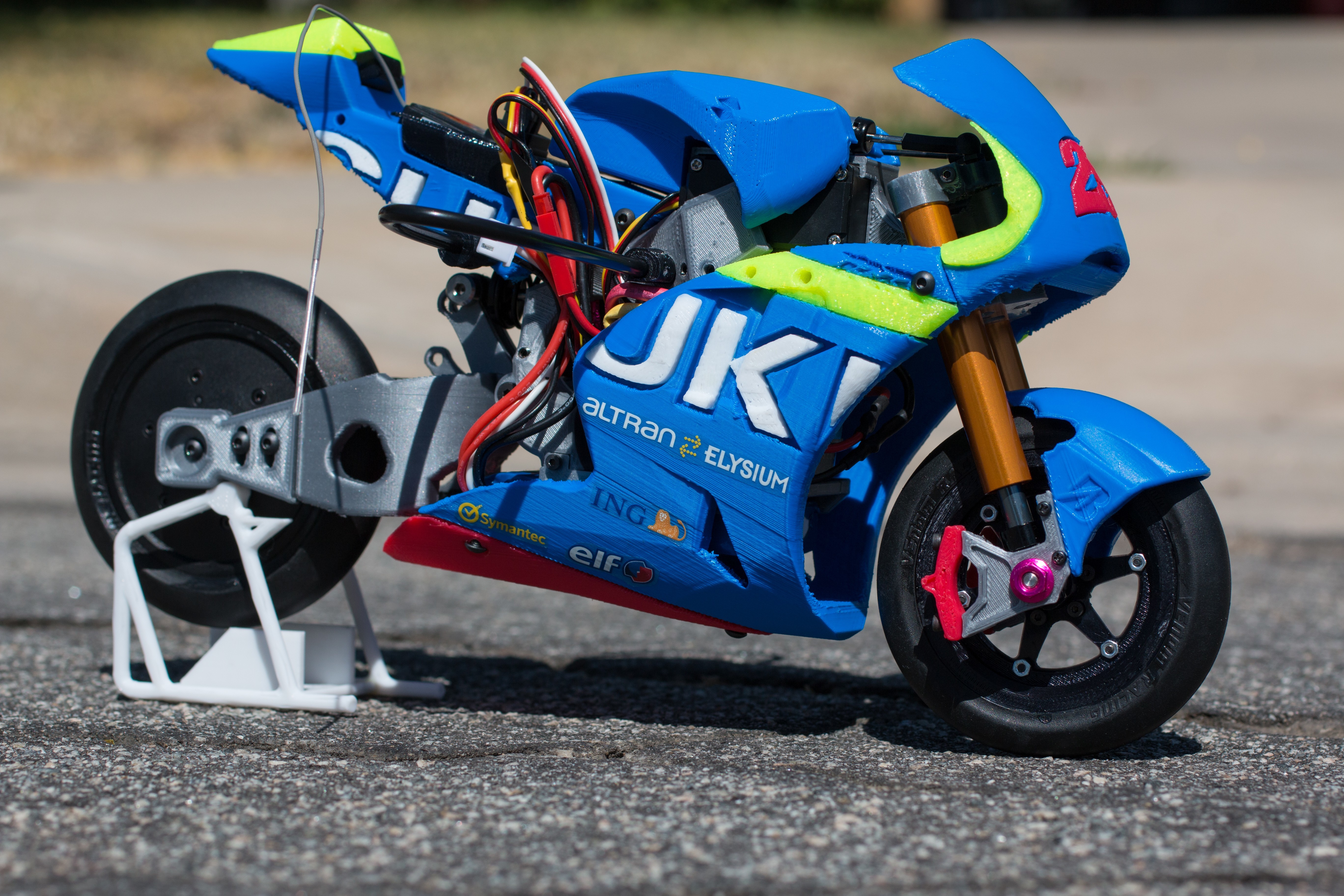

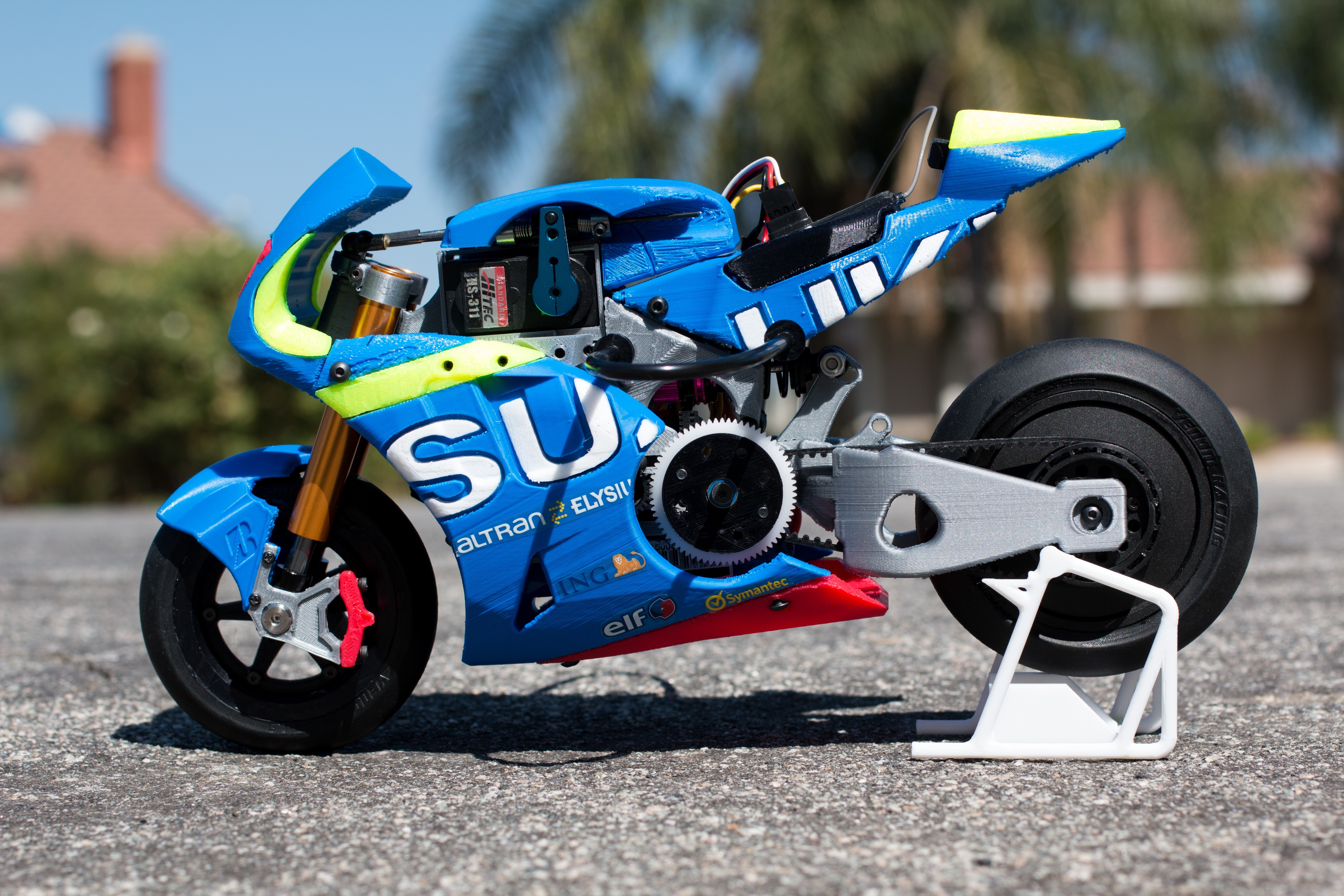

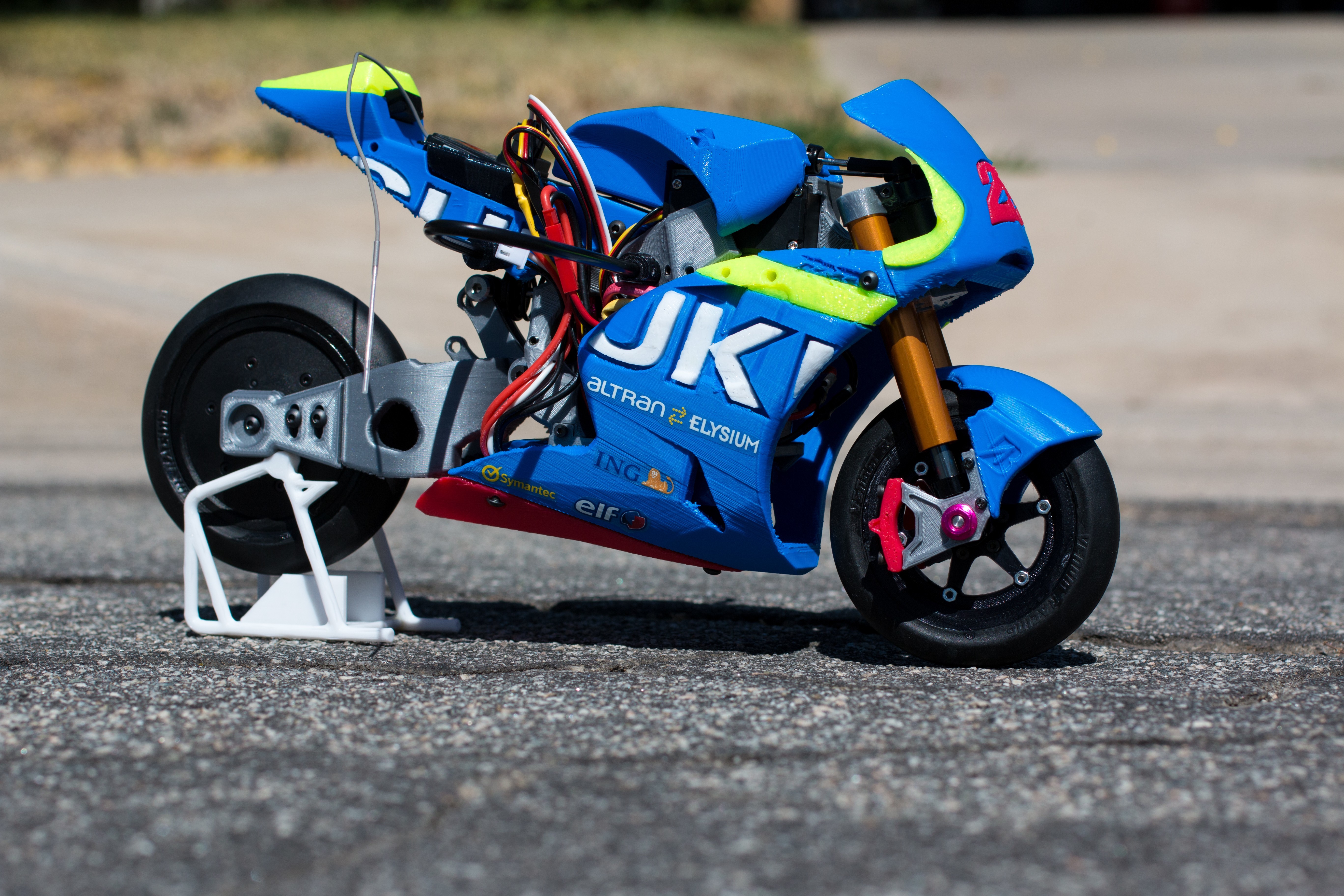

2016 Suzuki GSX-RR 1:8 Racing RC MotoGP Version 2

?
Creation quality: 5.0/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

https://youtu.be/In__RP3M1RM

https://youtu.be/X_VZ3BBEQh4

https://youtu.be/3K6FFrhkM0c

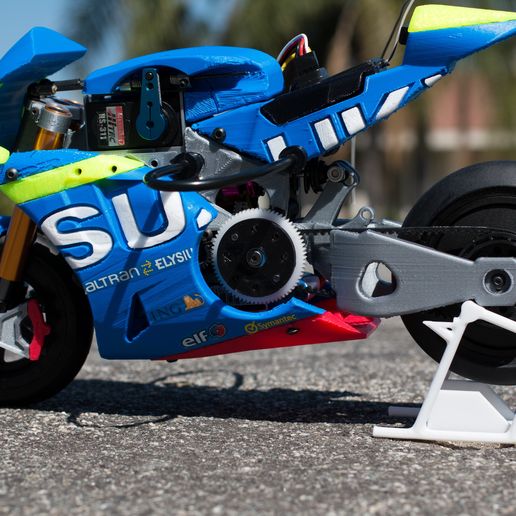

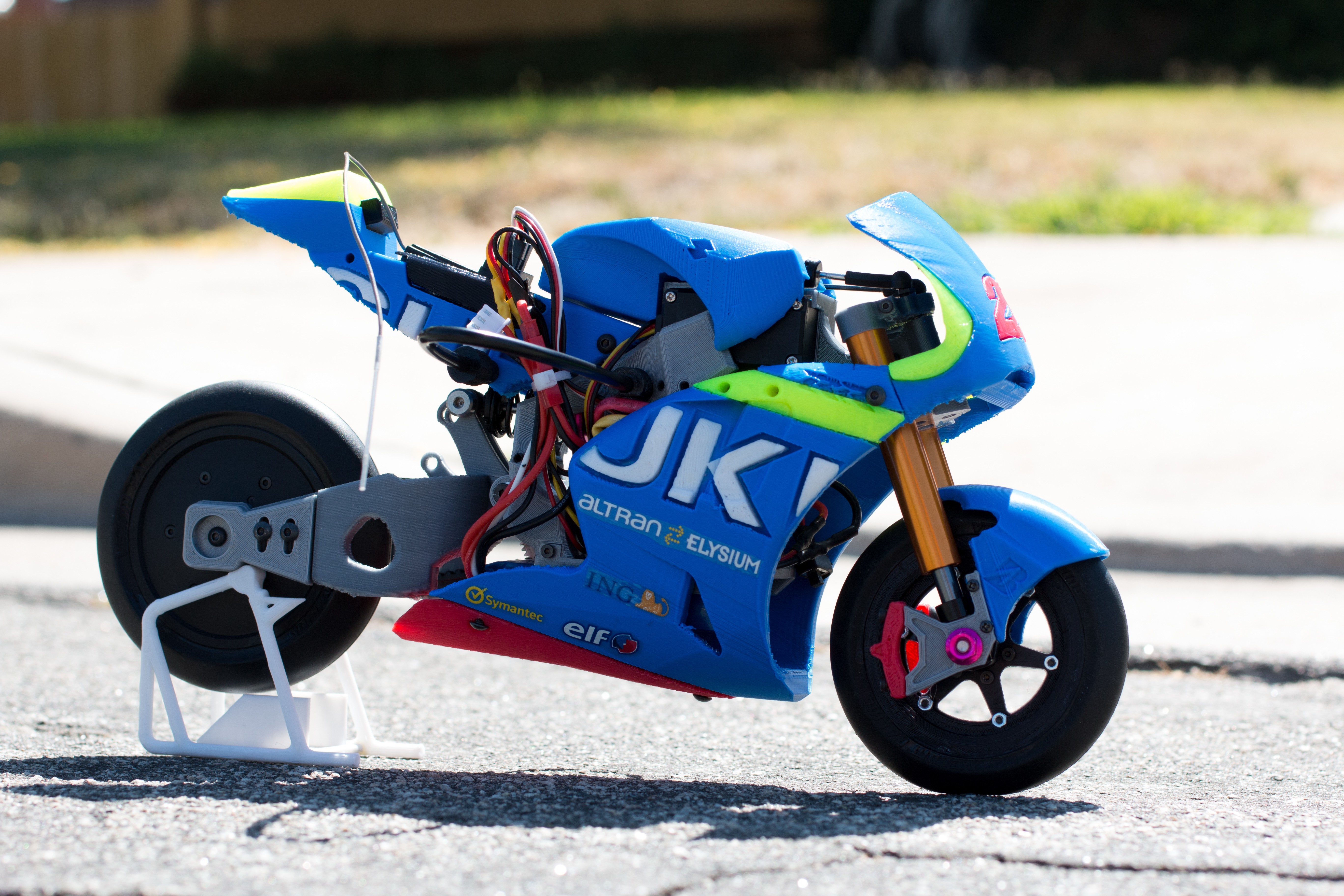

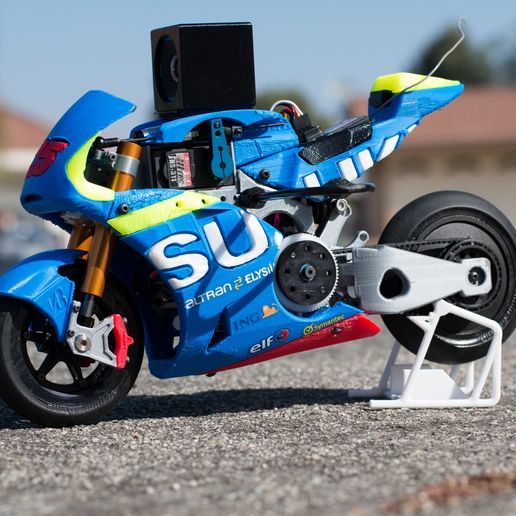

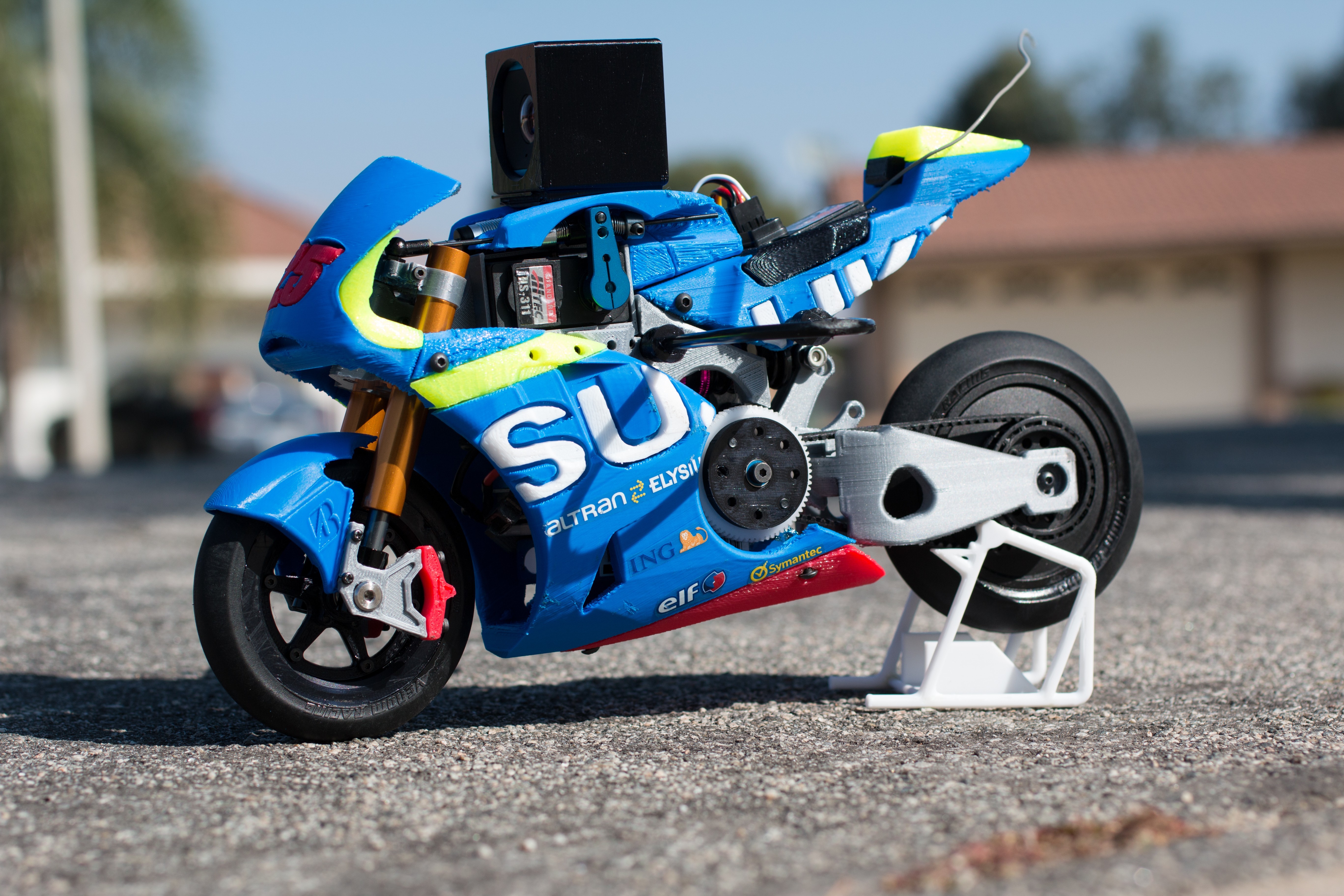

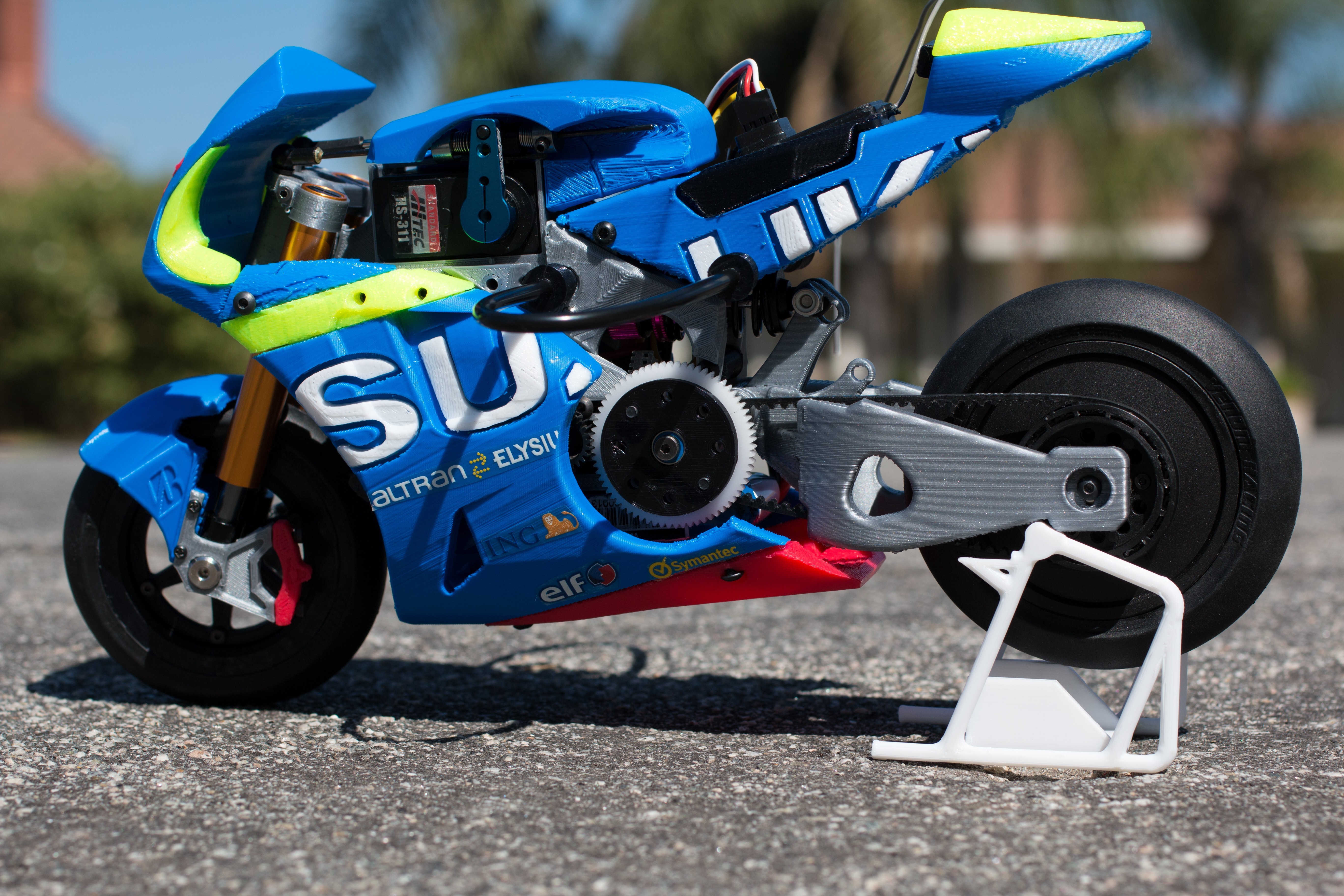

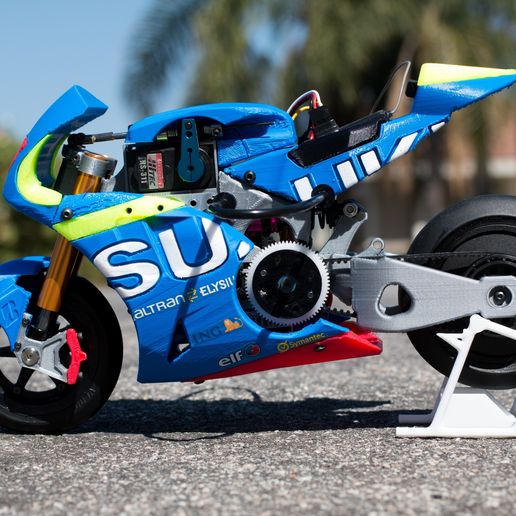

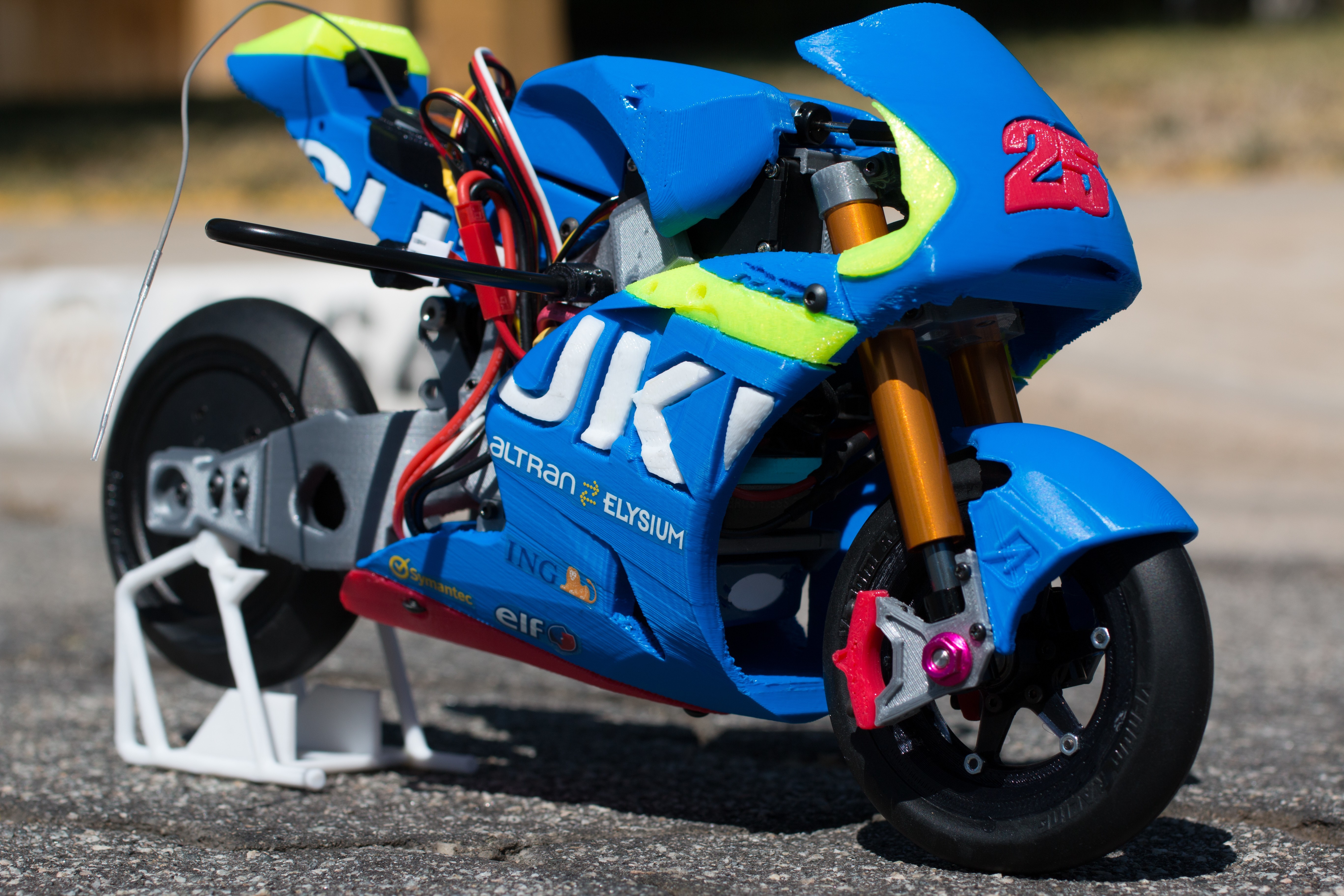

This is a brand new motorcycle. It builds upon the knowledge gained with my previous bikes, but where those were a proof of concept, this is the final product.

This 1/8 size Racing Motorcycle is far more advanced and has been completely redesigned with knowledge gained from actual RC motorcycle designers and racing enthusiasts whose invaluable input was incorporated into the design. This is not meant to be a good 3d printed RC motorcycle, but a serious new RC Motorcycle variant that people can build, design and race at the track.

Version 2:

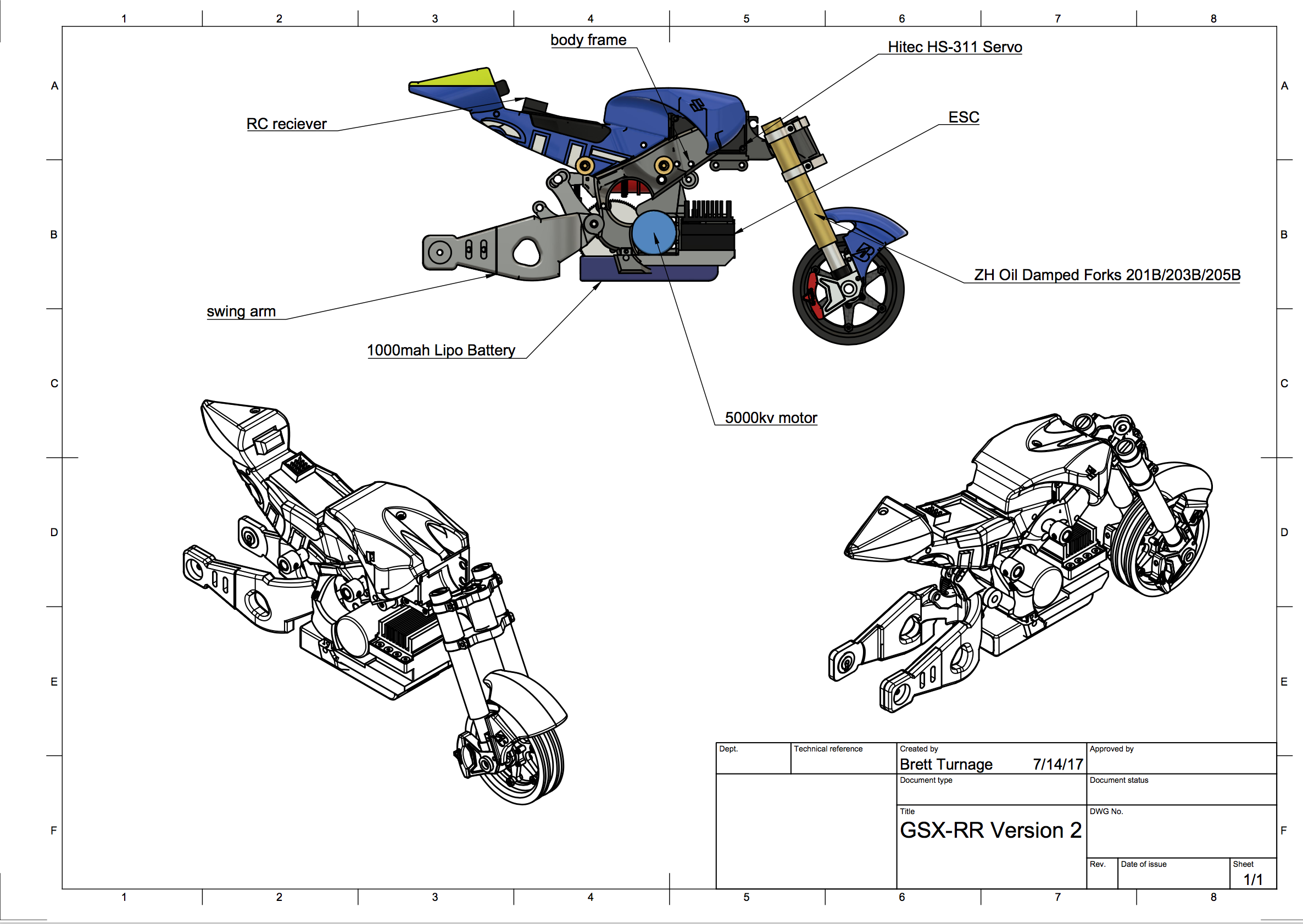

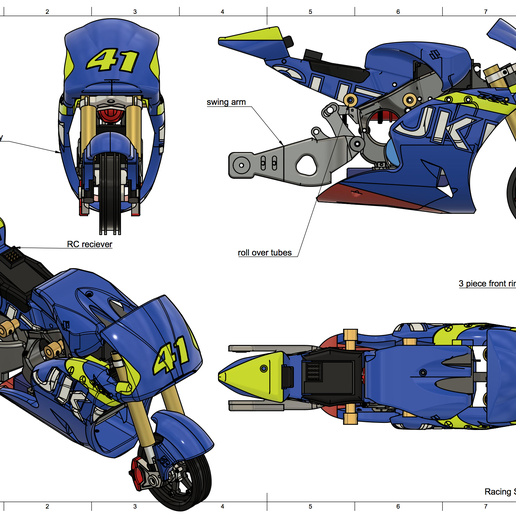

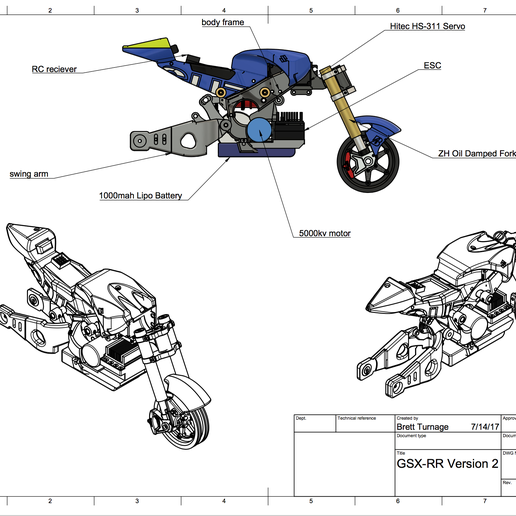

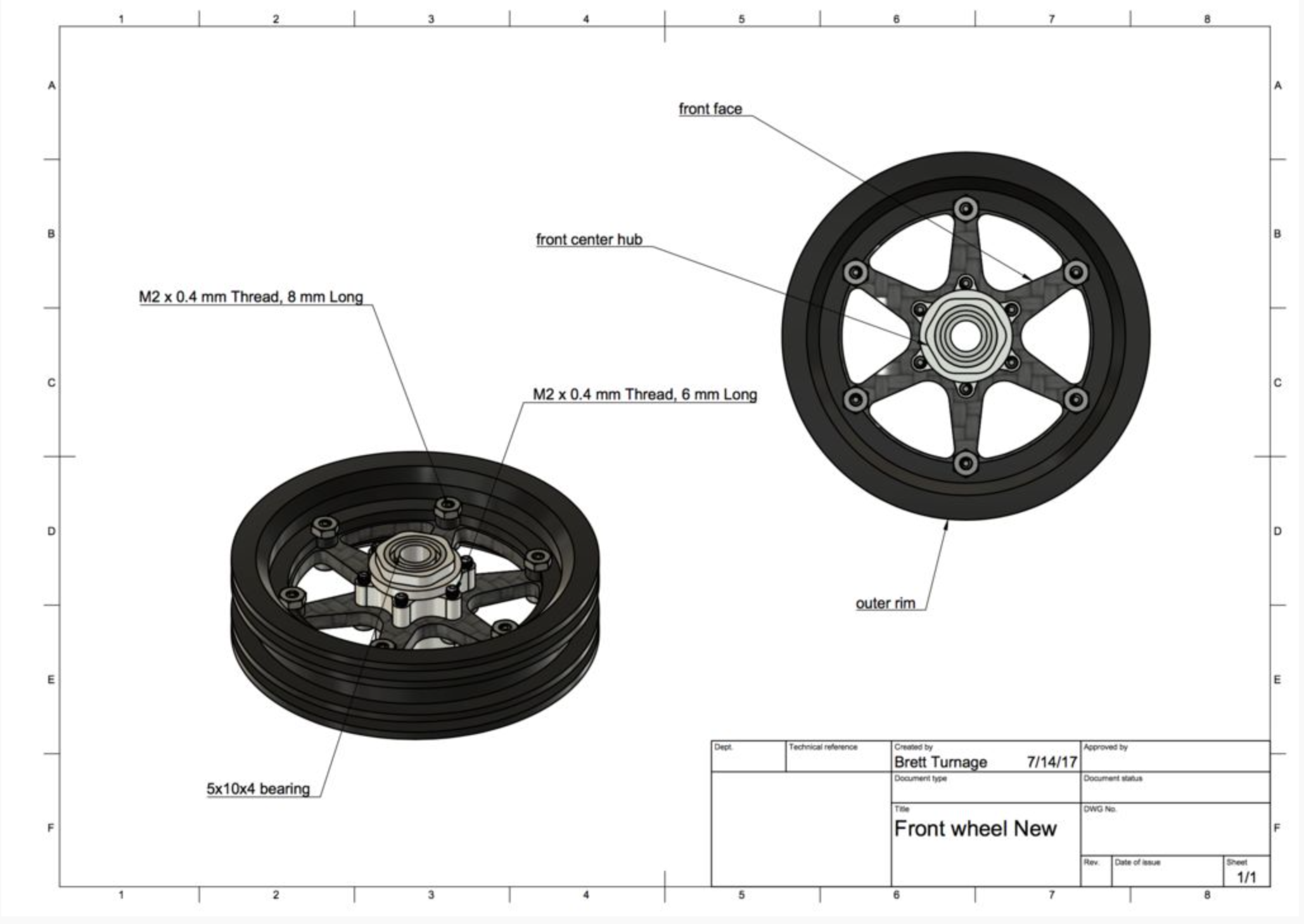

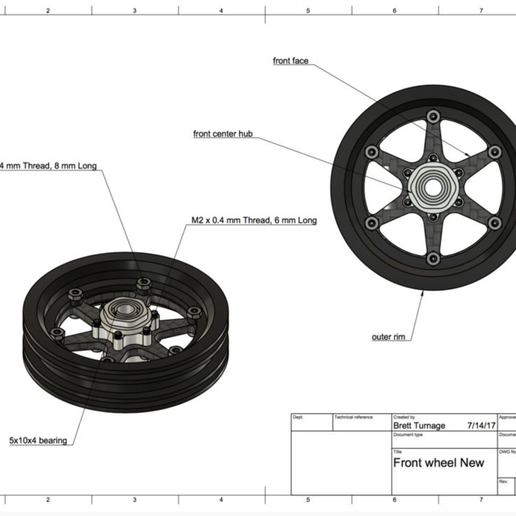

Completely redesigned from Version 1, Slimmer Body, Narrower chassis, Center of gravity has been moved back and towards the center of the bike, rear gyro, three piece front rim, and electronics are stored on chassis.

Built and Engineered by:

Brett Turnage

bti3dlabs.com

@3dprintracetech

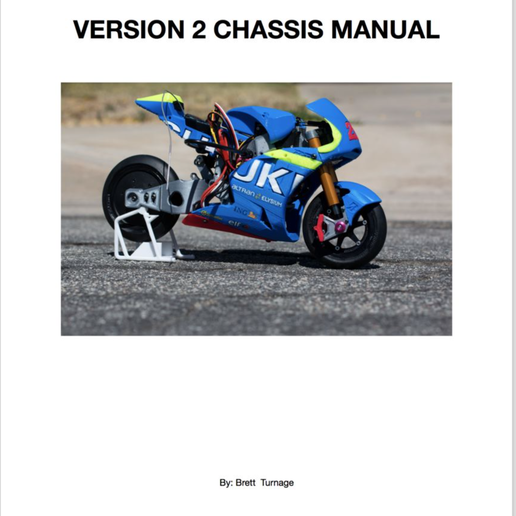

Assembly Manual: https://drive.google.com/open?id=0By6c8kTN8KnBR2dsVHhZU1k3TUE

Parts List: https://drive.google.com/open?id=0By6c8kTN8KnBcnFzY3hVVUlMNFE

Instructables build: https://www.instructables.com/id/2016-Suzuki-GSX-RR-18-Racing-RC-MotoGP-Version-2/


3D printing settings

100% infill

3D printer file information

  • 3D design format: STL Folder details Close
    • 1.stl
    • 2.stl
    • 4.stl
    • 5.stl
    • Front Tire insert.stl
    • GRP Front Tire hub.stl
    • SteeringLinkServoMount (Devastator).stl
    • SteeringLinkServoMount.stl
    • battery base.stl
    • battery cage (left).stl
    • battery cage (main).stl
    • body frame (left).stl
    • body frame (right).stl
    • brembo (left).stl
    • brembo (right).stl
    • caliper (left).stl
    • camera case.stl
    • center stand.stl
    • front (fairing #25) blue.stl
    • front (fairing #41) blue.stl
    • front fender (full).stl
    • front fender (yellow)(left).stl
    • front fender (yellow)(right).stl
    • front hub (new).stl
    • front wheel hub (GRP).stl
    • main body (blue top) (left) .stl
    • main body (blue top) (right).stl
    • main body (main).stl
    • main body (yellow left).stl
    • main body (yellow)(right) .stl
    • motor spacer Replicator.stl
    • rear Tire insert.stl
    • rear fender .stl
    • rear fender top (yellow).stl
    • rear fender.stl
    • rear seat pad.stl
    • rear wheel hub (GRP).stl
    • red bottom.stl
    • rim (new).stl
    • rim face.stl
    • seat.stl
    • servo holder (62.2 degrees).stl
    • servo holder (64.7 degrees).stl
    • servo holder (67.2 degrees).stl
    • servo holder (main).stl
    • spindle (left).stl
    • spindle (right).stl
    • spur gear adapter.stl
    • stand (left).stl
    • stand (right).stl
    • stand brace.stl
    • standoff (right front).stl
    • standoff *beta.stl
    • standoff.stl
    • suxzuki lettering (u)(2)(right).stl
    • suzuki lettering (I)(left).stl
    • suzuki lettering (K)(1)(left).stl
    • suzuki lettering (K)(2)(left).stl
    • suzuki lettering (U)(1)(left).stl
    • suzuki lettering (U)(2)(left).stl
    • suzuki lettering (s)(right).stl
    • suzuki lettering (u)(1) (right).stl
    • suzuki lettering (white) (S left).stl
    • suzuki lettering (white) (U left).stl
    • suzuki lettering (white) (left Z).stl
    • suzuki lettering (white) (right) (K).stl
    • suzuki lettering (white) (right) (U).stl
    • suzuki lettering (white)(right) (I).stl
    • suzuki lettering (z) (right).stl
    • swing arm (adjustable).stl
    • swing arm.stl
    • tank .stl
    • triple tree (bottom).stl
    • triple tree top.stl

    Learn more about the formats

  • Last update: 2017-07-24 at 14:25
  • Publication date: 2017-07-17 at 17:06
