1010 Conformal Rail Guide 54mm (Adhesive Version)
:still():strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/15760472/illustration-file/a56c95b6-8d87-4e3b-a168-19ab69a6635e/faebc9f88d65dcc4ff5ddce968d5093a.png)
/https://preview3d-images.cults3d.com/variants/b05wgzaapn00qfhwdcym6ba2n744/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/70qj93fhbqysfizcdzowu99szz4h/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/5tkcpqzfc0orf9due134jt0ixbym/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/3b2l05p9ce3jcdt7rkcpejmb1bpl/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/y020hmvi16veko4p1x7kbs4wfzv7/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/p0hxzmmgy2a42ql69e3offr3r2xc/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 1.2k views
- 2 likes
- 25 downloads
- 0 comments
- 0 makes
3D model description
By request is a rail guide for mid-power rockets and high power rockets that I have designed. It is a conformal rail guide that will fit 54mm airframe rocketry tubing and the 1010 size of 8020 aluminum extrusion rail.

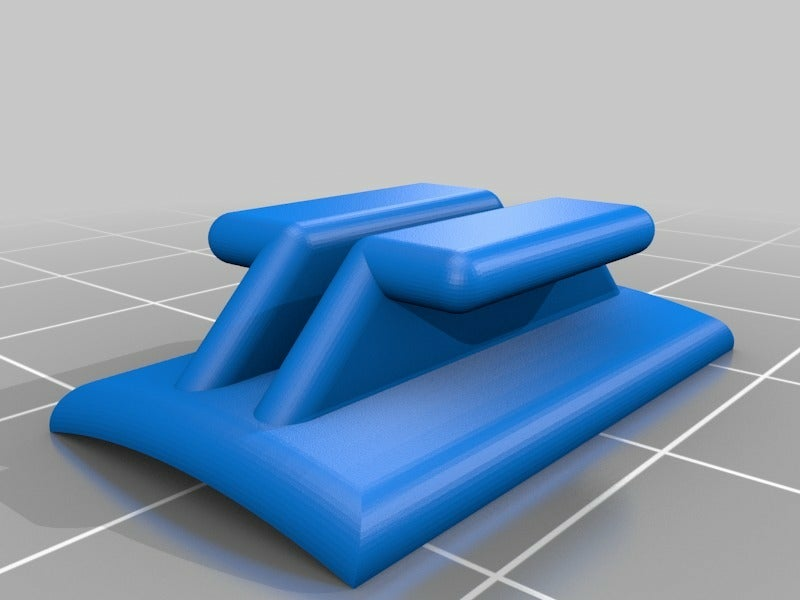

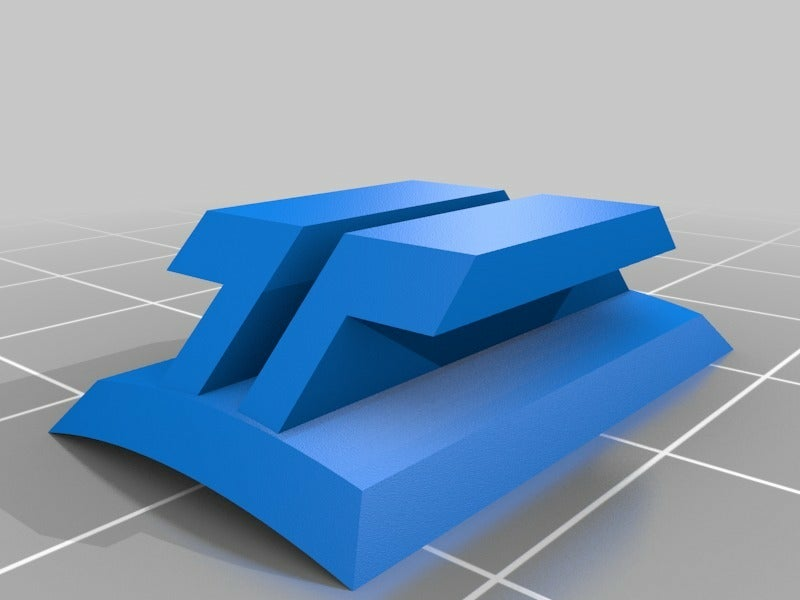

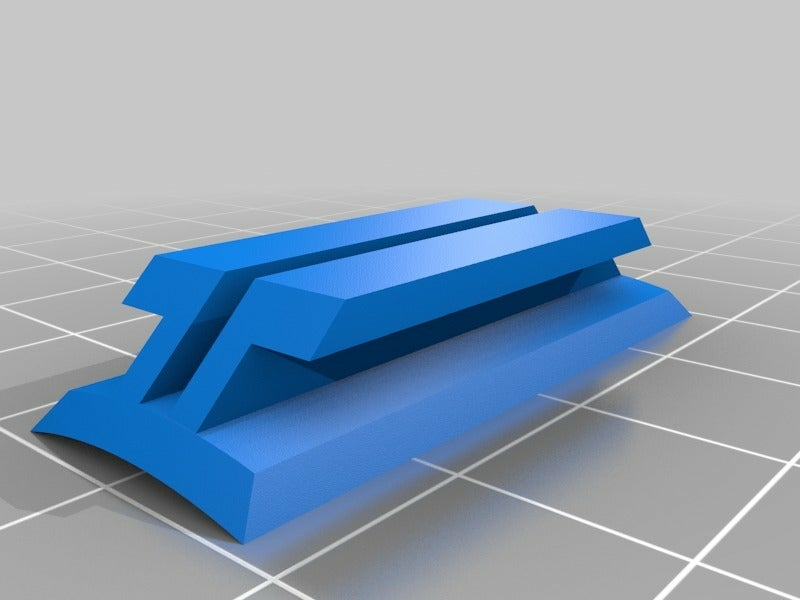

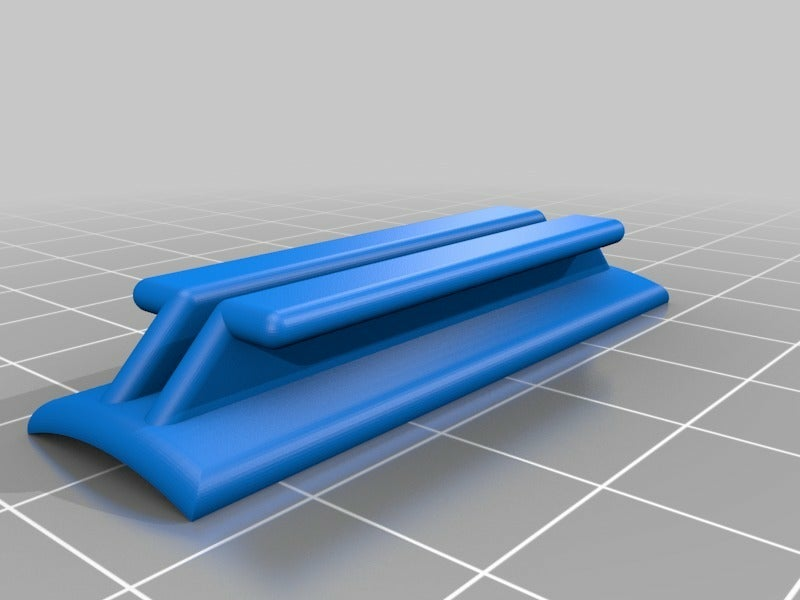

There are two basic versions (chamfered and rounded) with three different lengths that are designed to be glued on.
Short length is 25.4mm (1 inch) long.
Medium length is 38.1mm (1.5 inches) long.
Long length is 50.8mm (2 inches) long.
Recommended infill: 100%
Recommend filament:
E-F motors: PLA
G-H motors: PETG
I-J motors: ABS
3D printer file information
-
3D design format: STL Folder details Close
- 1010_Conformal_Rail_Guide_54mmA_Long.stl
- 1010_Conformal_Rail_Guide_54mmA_Medium.stl
- 1010_Conformal_Rail_Guide_54mmA_Short.stl
- 1010_Conformal_Rail_Guide_54mmB_Long.stl
- 1010_Conformal_Rail_Guide_54mmB_Medium.stl
- 1010_Conformal_Rail_Guide_54mmB_Short.stl
-
Publication date:
2020-12-31 at 07:24
?
Published to Thingiverse on: 2018-12-03 at 05:39
