1010 Conformal Rail Guide 38mm (Fastener Version)

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

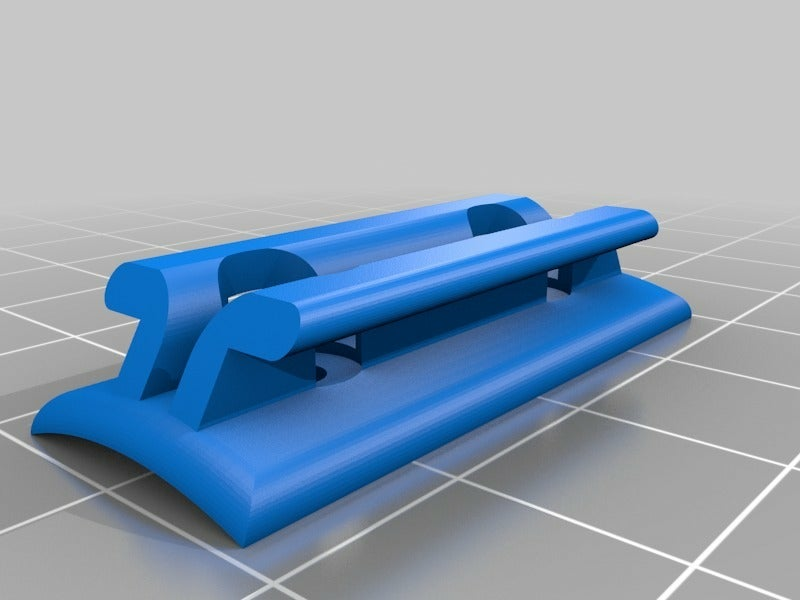

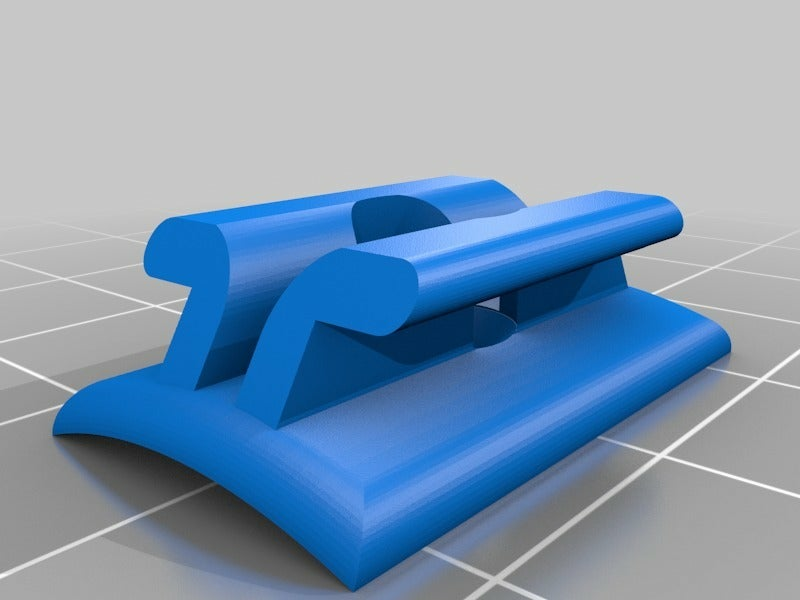

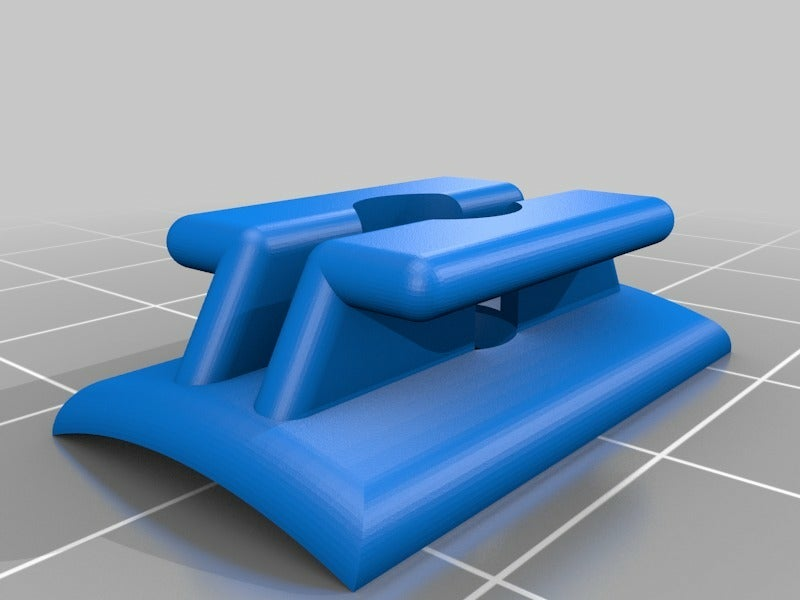

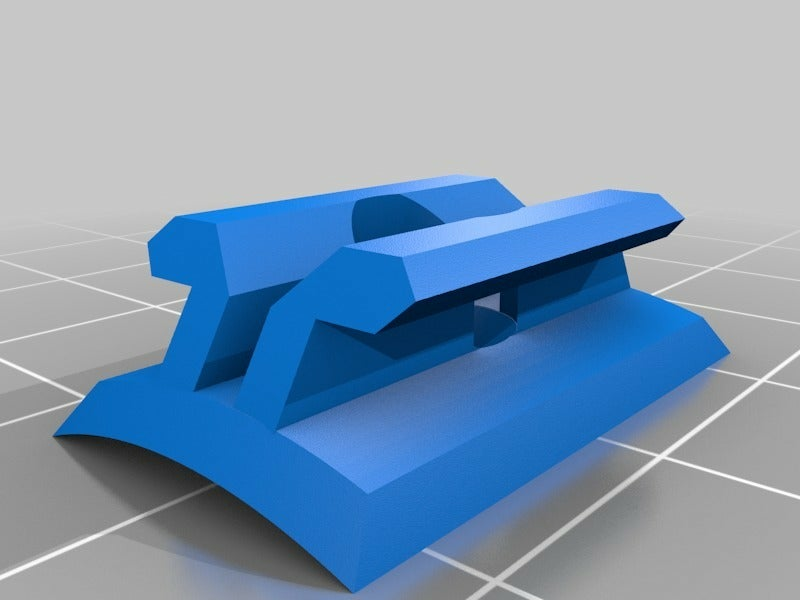

This is the fastener version of the first rail guides I designed for mid-power rockets and high power rockets. It is a conformal rail guide that will fit 38mm airframe rocketry tubing and also fit 1010 size of 8020 aluminum extrusion rail.

As far as I know this is the only conformal rail guide of this kind that is designed to be fastened to a rocket instead of glued.

There are five basic versions with three different lengths that are designed to be held on machine bolt fasteners that come in recessed as well as a non-recessed forms.

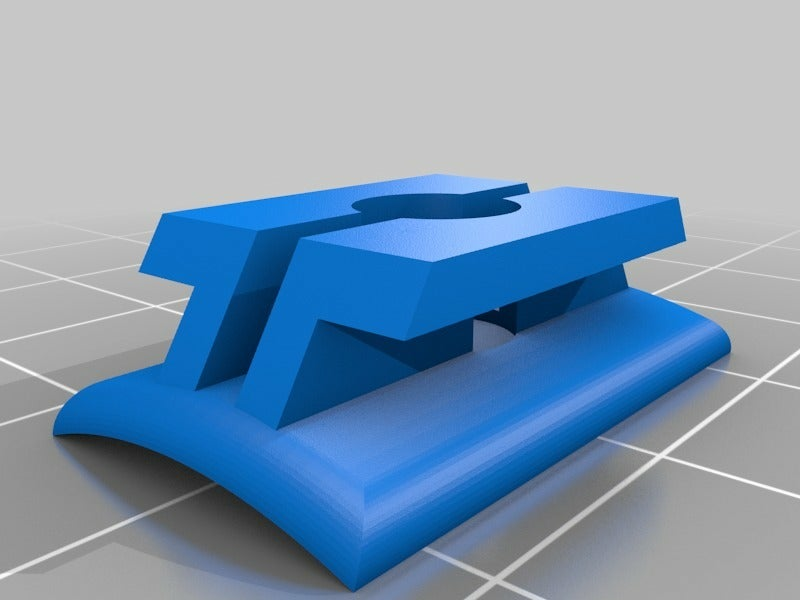

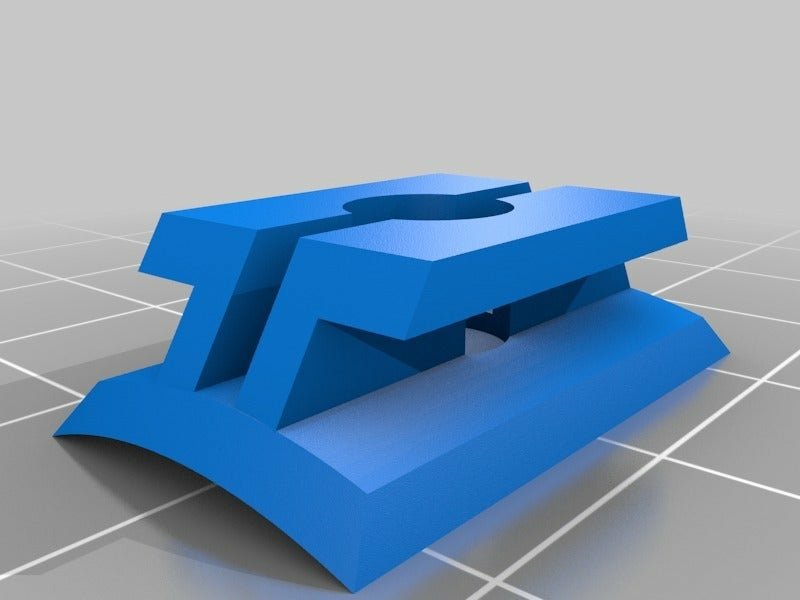

Short length is 25.4mm (1 inch) long.

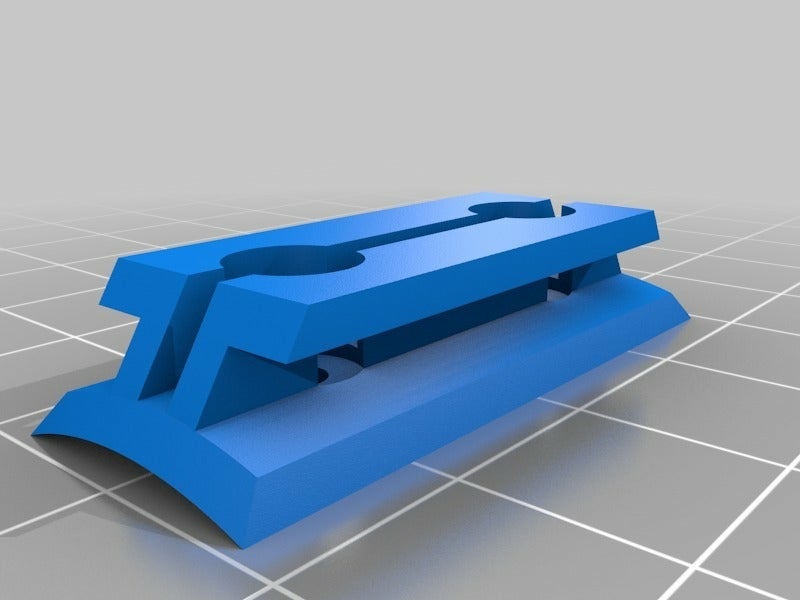

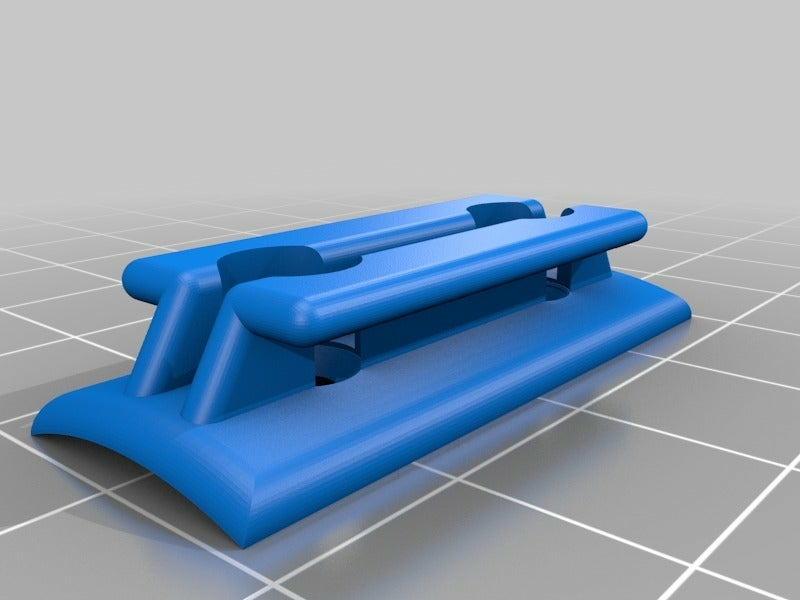

Medium length is 38.1mm (1.5 inches) long.

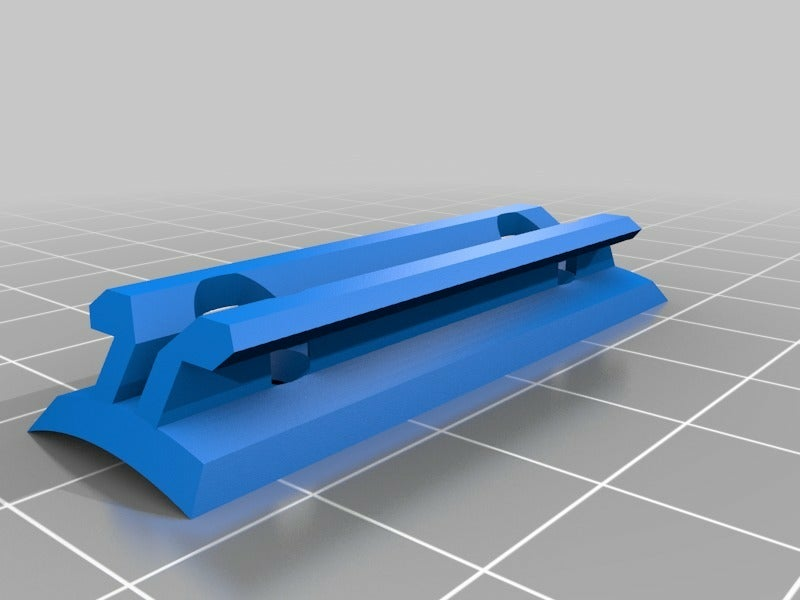

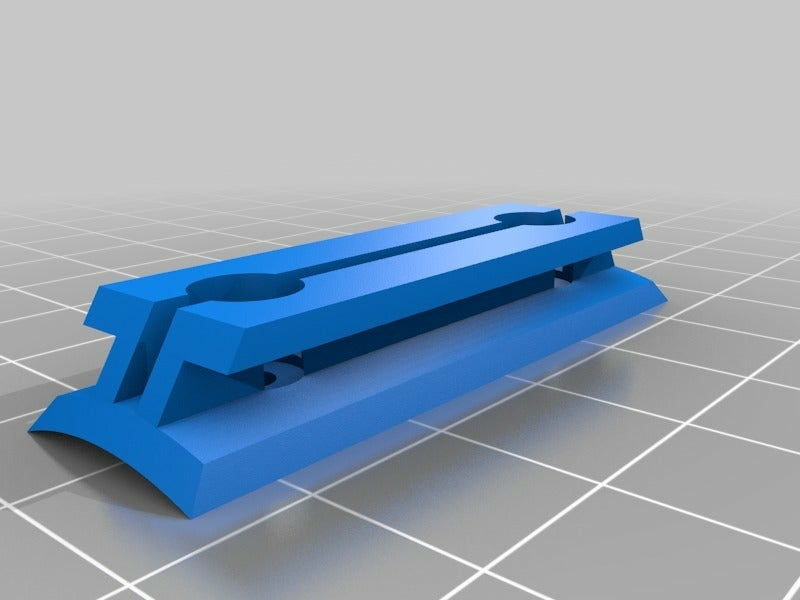

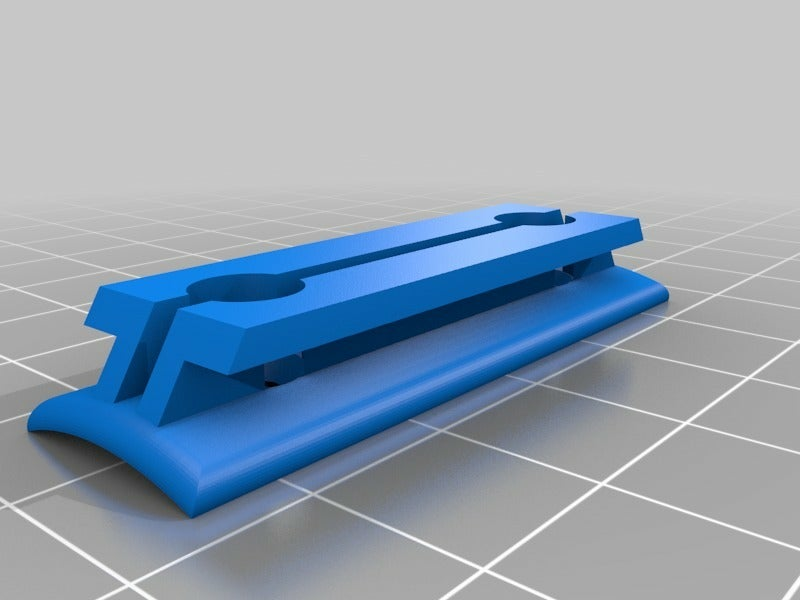

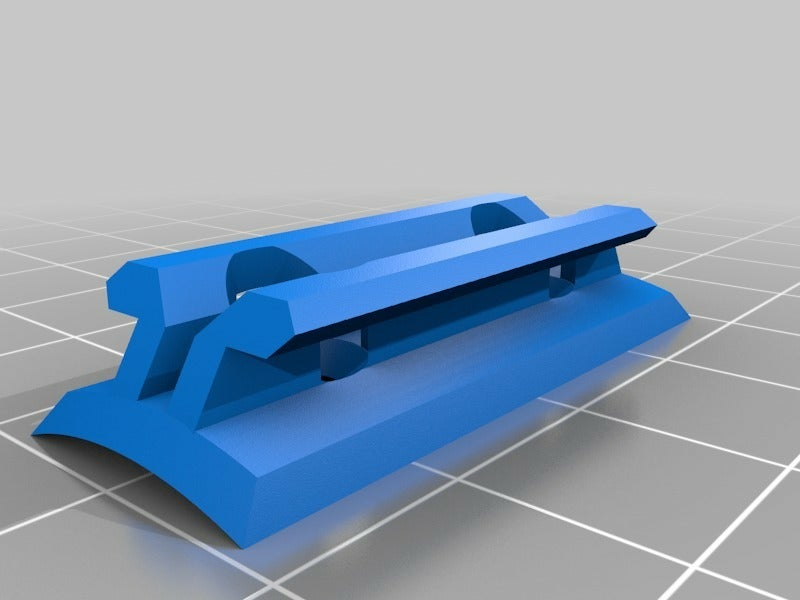

Long length is 50.8mm (2 inches) long.

Recommended infill: 100%

Recommend filament:
E-F motors: PLA
G-H motors: PETG
I-J motors: ABS

3D printer file information

  • 3D design format: STL Folder details Close
    • 1010_Conformal_Rail_Guide_38mmA_LongNR.stl
    • 1010_Conformal_Rail_Guide_38mmA_LongR.stl
    • 1010_Conformal_Rail_Guide_38mmA_MediumNR.stl
    • 1010_Conformal_Rail_Guide_38mmA_MediumR.stl
    • 1010_Conformal_Rail_Guide_38mmA_ShortNR.stl
    • 1010_Conformal_Rail_Guide_38mmA_ShortR.stl
    • 1010_Conformal_Rail_Guide_38mmB_LongNR.stl
    • 1010_Conformal_Rail_Guide_38mmB_LongR.stl
    • 1010_Conformal_Rail_Guide_38mmB_MediumNR.stl
    • 1010_Conformal_Rail_Guide_38mmB_MediumR.stl
    • 1010_Conformal_Rail_Guide_38mmB_ShortNR.stl
    • 1010_Conformal_Rail_Guide_38mmB_ShortR.stl
    • 1010_Conformal_Rail_Guide_38mmC_LongNR.stl
    • 1010_Conformal_Rail_Guide_38mmC_LongR.stl
    • 1010_Conformal_Rail_Guide_38mmC_MediumNR.stl
    • 1010_Conformal_Rail_Guide_38mmC_MediumR.stl
    • 1010_Conformal_Rail_Guide_38mmC_ShortNR.stl
    • 1010_Conformal_Rail_Guide_38mmC_ShortR.stl
    • 1010_Conformal_Rail_Guide_38mmD_LongNR.stl
    • 1010_Conformal_Rail_Guide_38mmD_LongR.stl
    • 1010_Conformal_Rail_Guide_38mmD_MediumNR.stl
    • 1010_Conformal_Rail_Guide_38mmD_MediumR.stl
    • 1010_Conformal_Rail_Guide_38mmD_ShortNR.stl
    • 1010_Conformal_Rail_Guide_38mmD_ShortR.stl
    • 1010_Conformal_Rail_Guide_38mmE_LongNR.stl
    • 1010_Conformal_Rail_Guide_38mmE_LongR.stl
    • 1010_Conformal_Rail_Guide_38mmE_MediumNR.stl
    • 1010_Conformal_Rail_Guide_38mmE_MediumR.stl
    • 1010_Conformal_Rail_Guide_38mmE_ShortNR.stl
    • 1010_Conformal_Rail_Guide_38mmE_ShortR.stl

    Learn more about the formats

  • Publication date: 2020-12-31 at 07:09
    ?
    Published to Thingiverse on: 2018-11-24 at 16:56
