Revopoint POP scanner hard case / protective shell

FRENCH

Hello,

As a beta tester of the Revopoint POP, and having played with it for more than a week, I realized that it is easy to drop or tip it because it is small and you are always handling it.

The problem is that if it is dropped or tipped over, it is either the screen that gets damaged because it is all on the edge, or else the plug / the end of the wire on the plug that takes a shock at the risk of breaking the plug of the POP, or breaking the cable.

That's why I created this protective cover that takes several cirters into consideration:

-Protects the screen against shocks / breakage

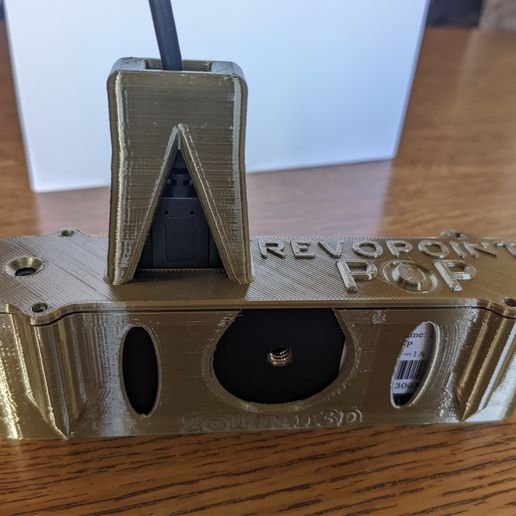

-Protects the plug AND the cable at the back

-Requires very few parts (a version without screws is being created and will be added for free)

-Can be printed without any support

Holes and especially a space are created to force the re-cooling of the scanner which heats up quite a bit.

-Ultra easy to assemble and disassemble

-Is designed to go with any accessory (feet, phone support, etc.)

-Does not interfere at all with the scanner to do its job

-Has the nice logos of Revopoint POP

Since it took me some time, I can't share it for free, but I let it at a low price (very low compared to the prices of the scanner it protects!). Please respect the work of others and do not share files with each other as this is still stealing. Thank you

Zoltan3D

ENGLISH

Hi,

As a beta tester of the Revopoint POP, and having played with it for over a week, I realized that it is easy to drop or tip it over because it is small and that we are always on the move. to manipulate it.

The problem is that in the event of a fall or overturn, it is either the screen which is damaged because it is at the very edge, or if not the plug / the end of the wire on the plug which takes a shock at the risk of breaking the POP plug, or breaking the cable.

This is why I created this protective shell which takes several cirtères into consideration:

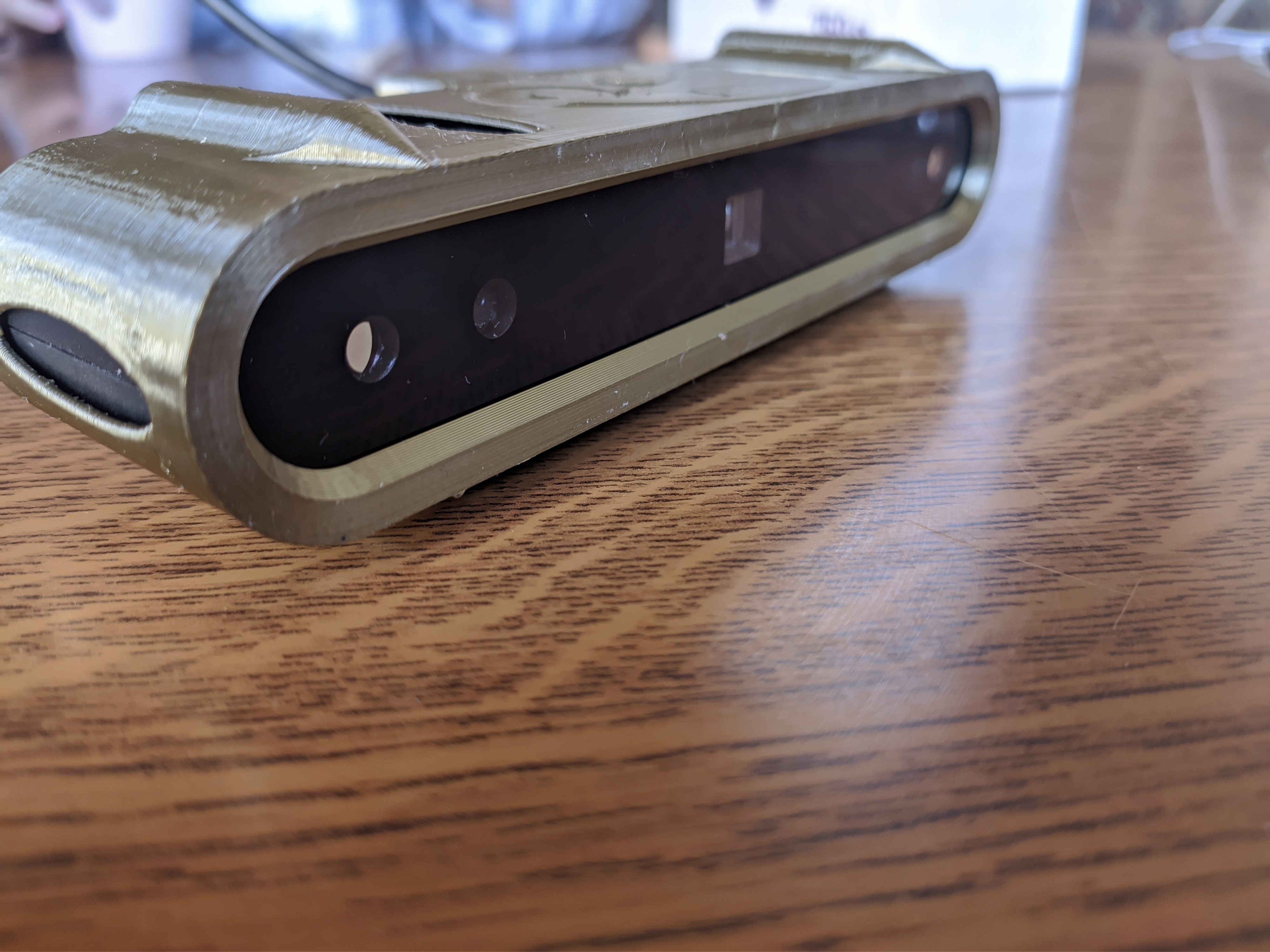

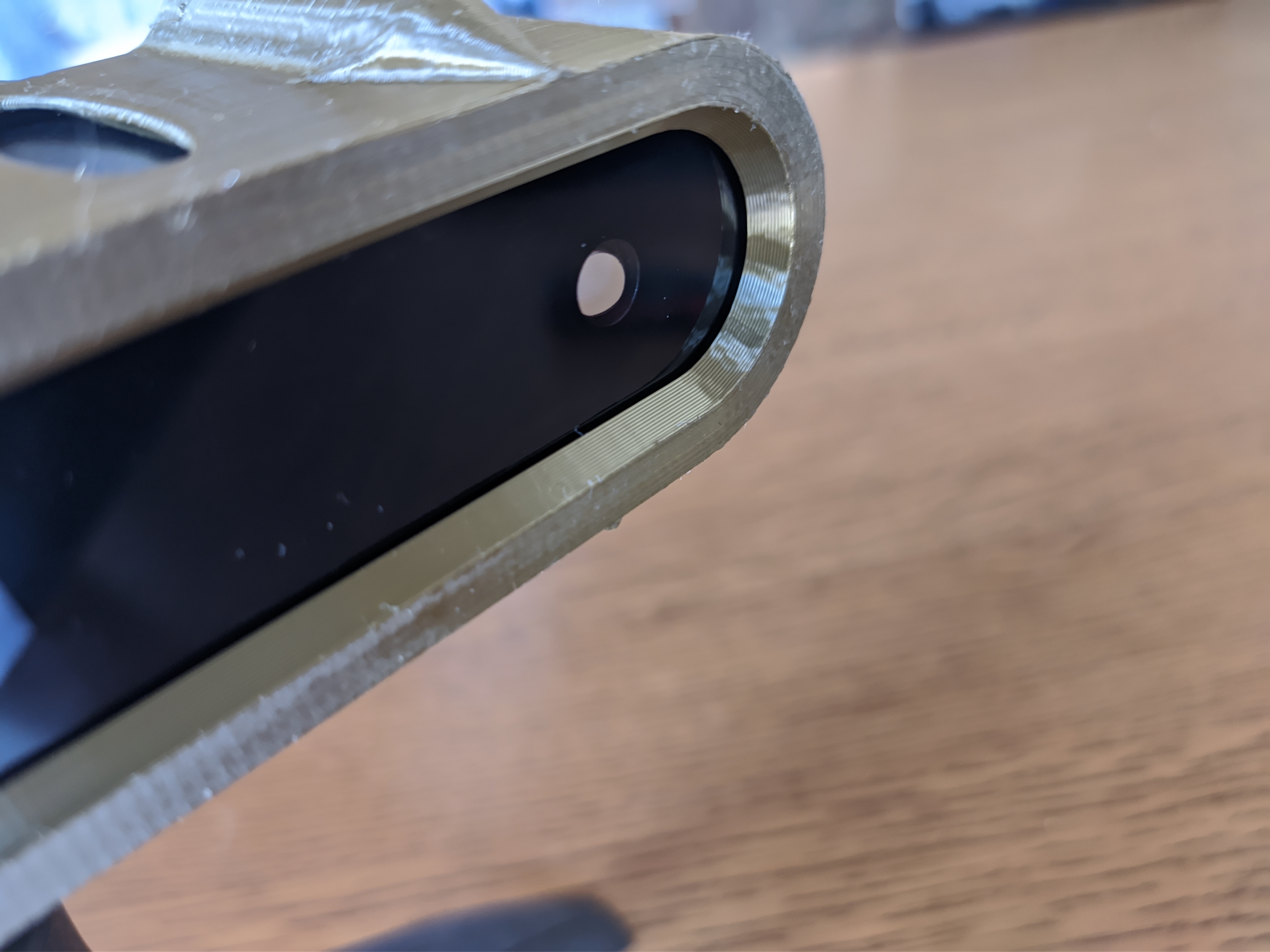

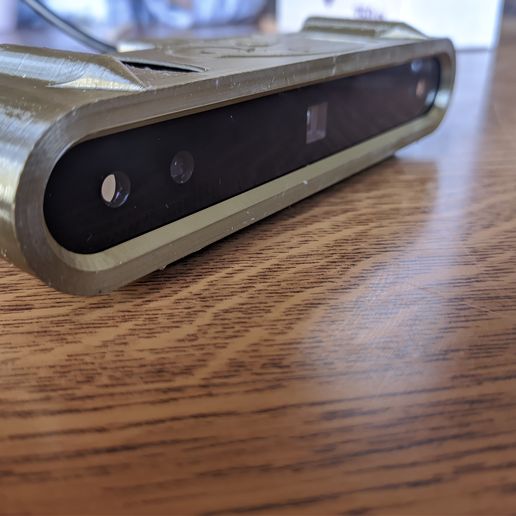

-Protects the screen against impact / breakage

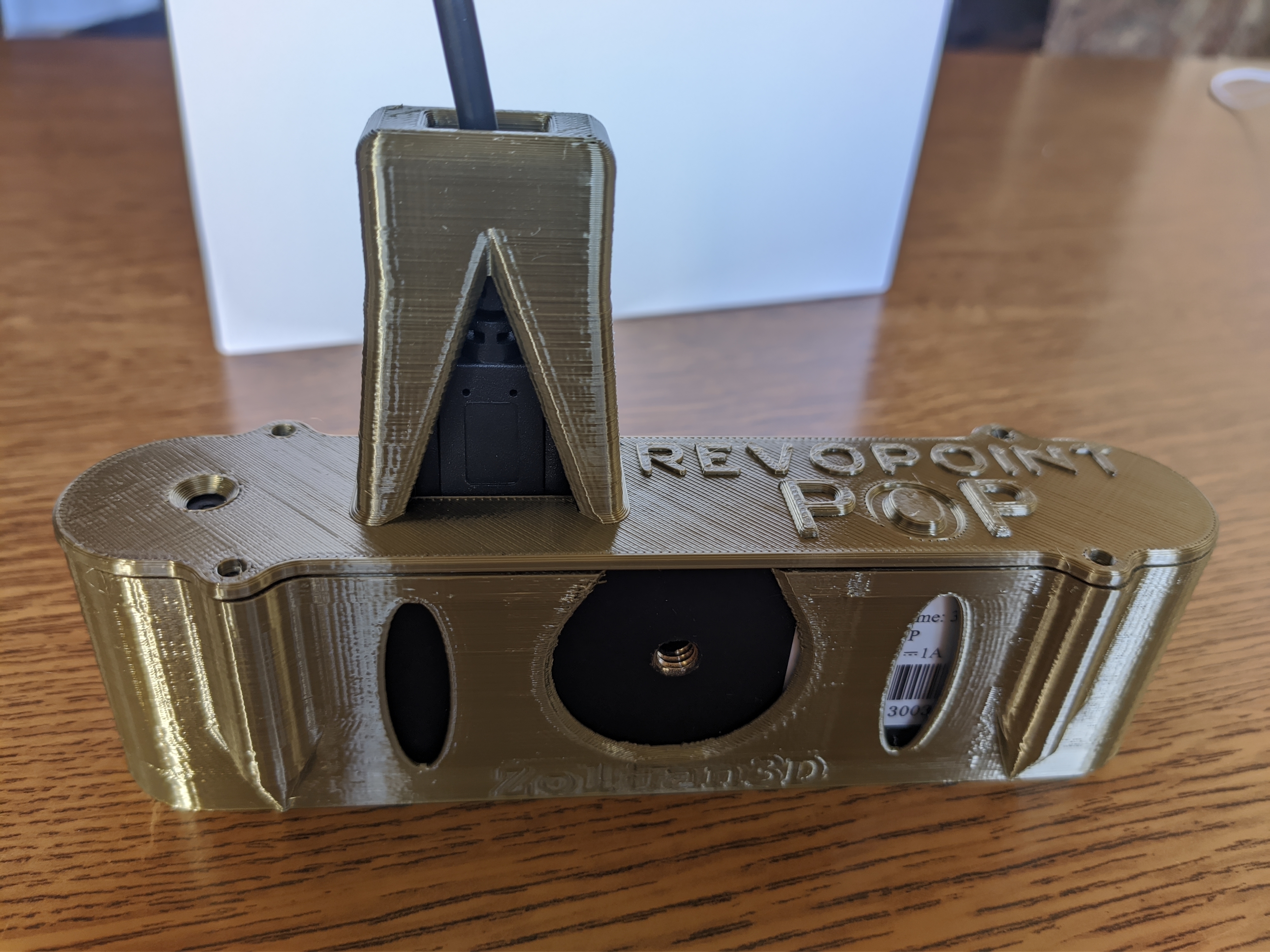

-Protects the plug AND the cable at the back

-Needs very few parts (a version without screws is being created and will be added for free)

-Can be printed without any supports

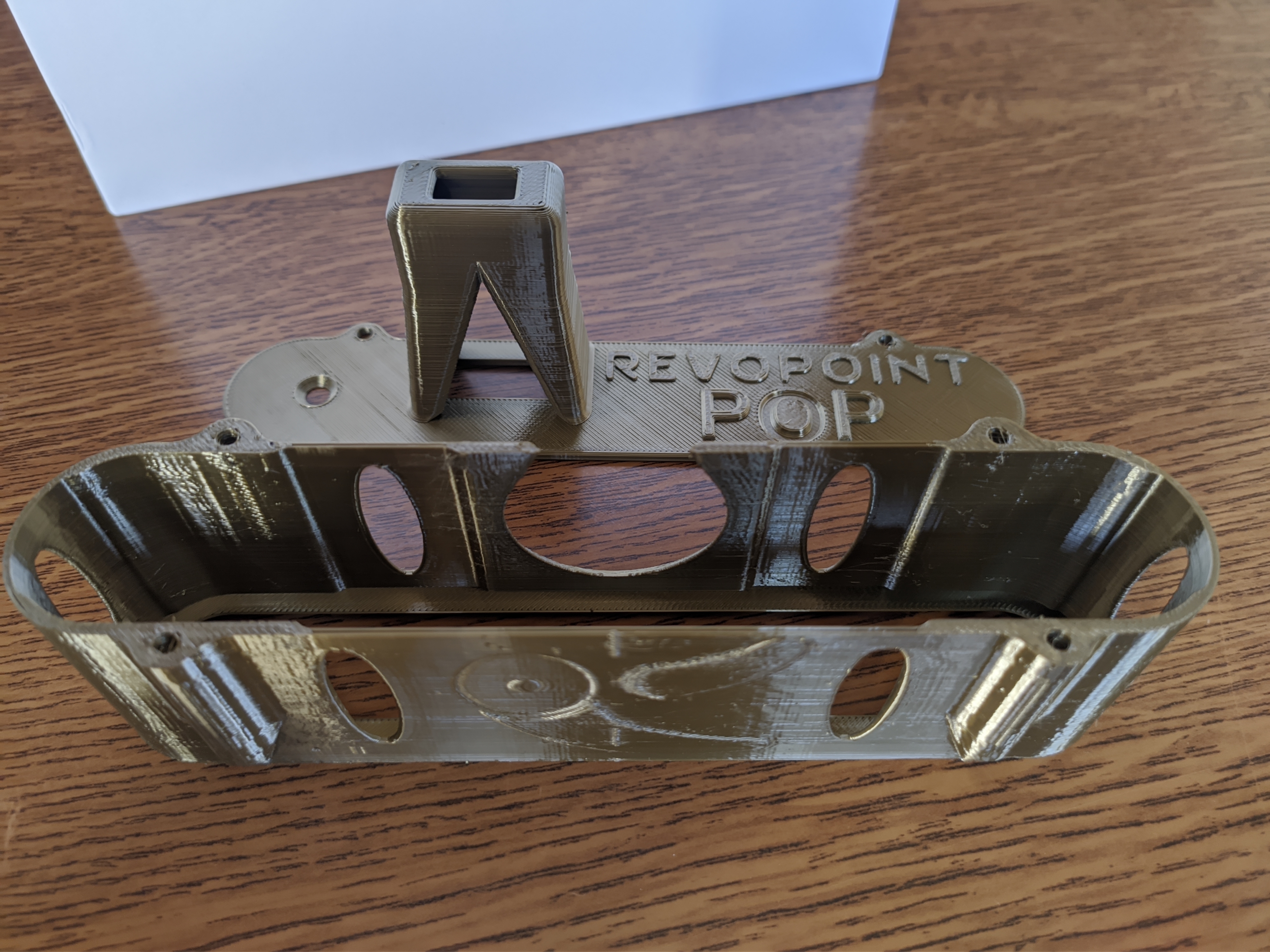

-Holes and especially a space are created to force the reffrissement of the scanner which heats up quite a bit.

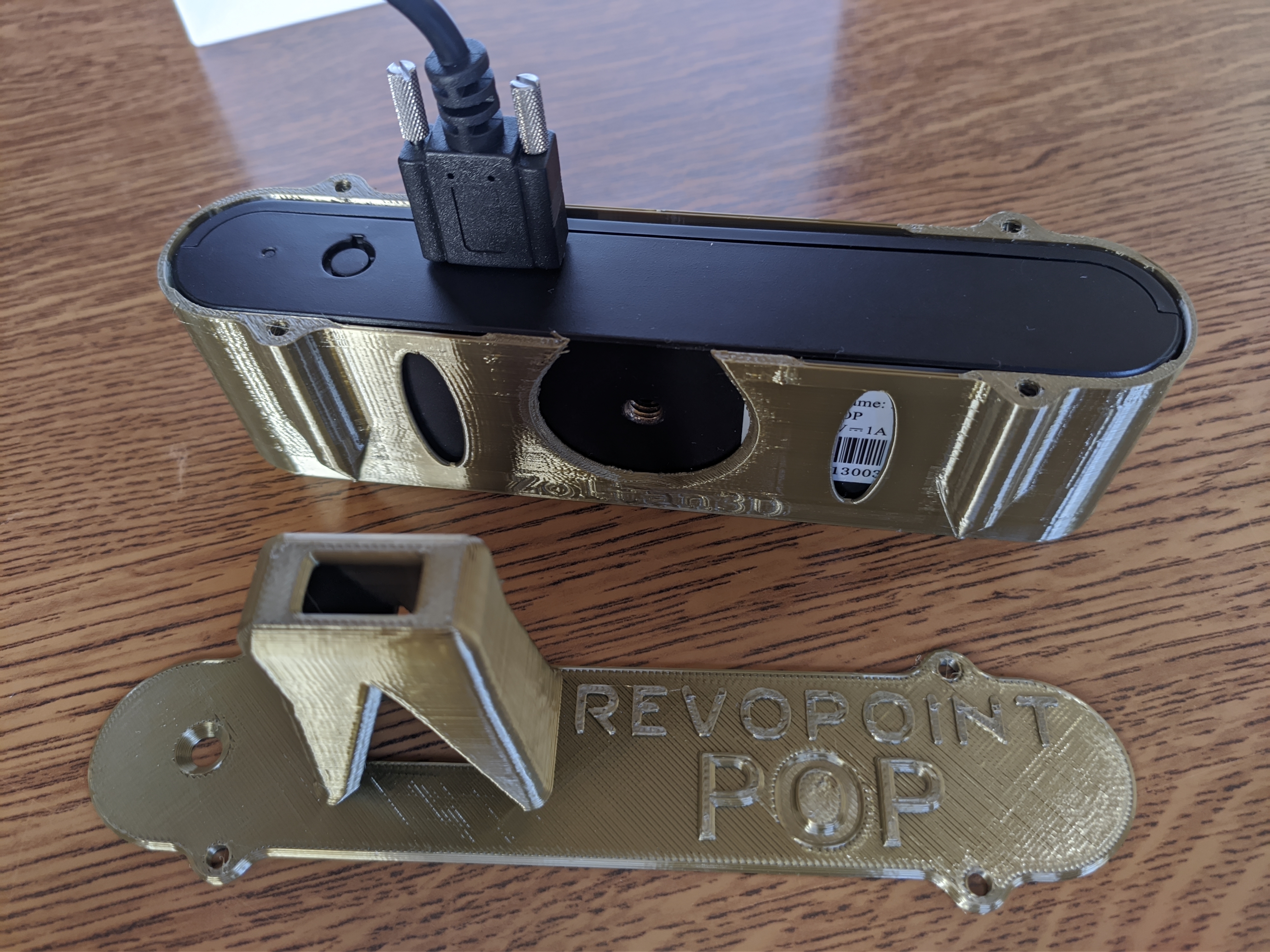

-Ultra easy to assemble and disassemble

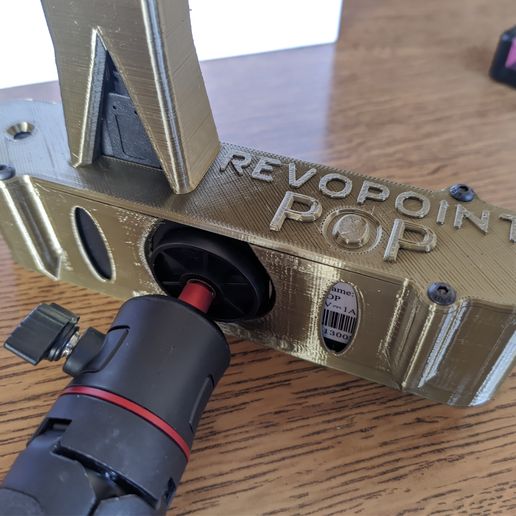

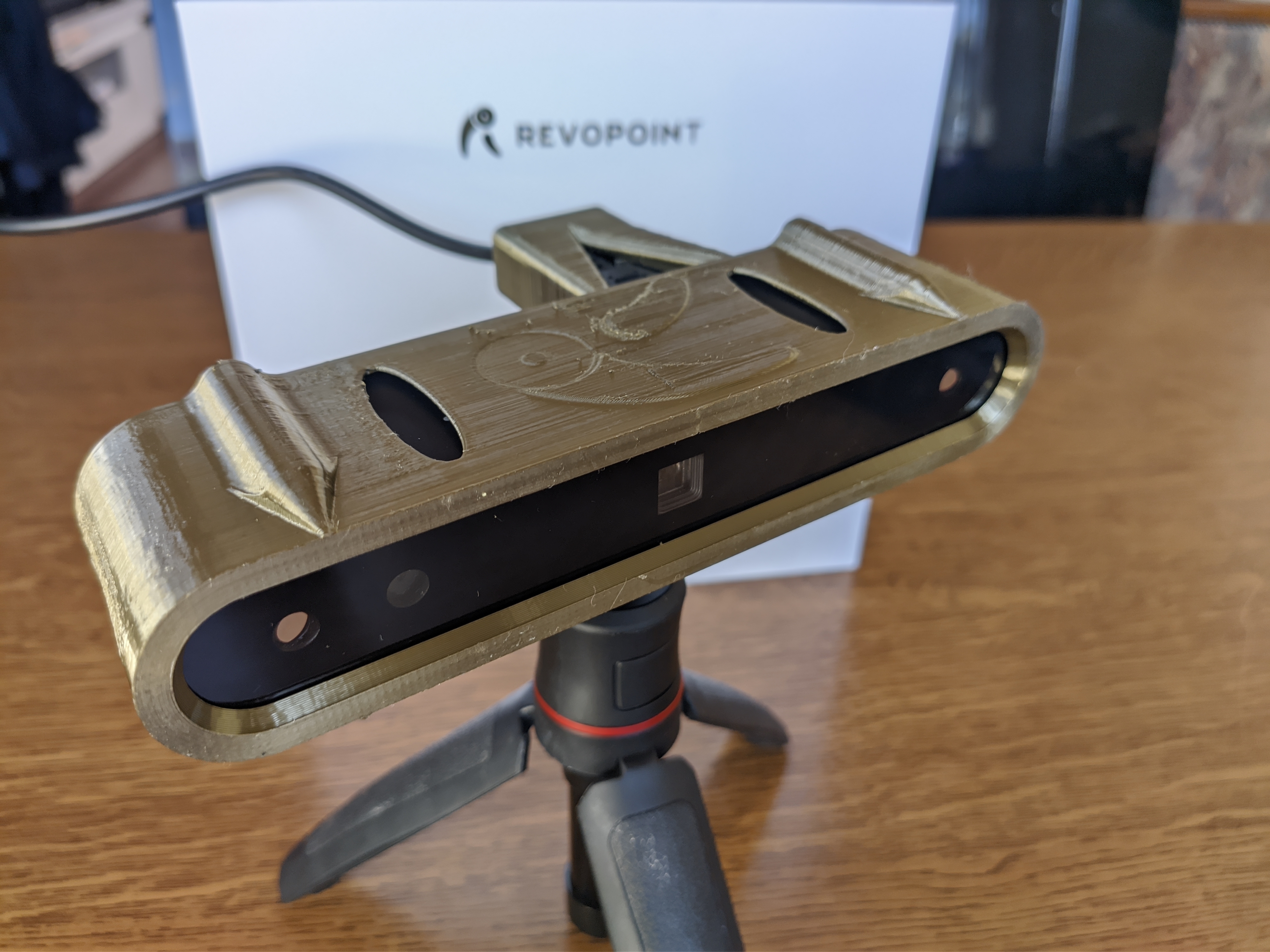

-Is designed to go with any accessory (feet, phone holder, etc.)

• Does not interfere at all with the scanner to do its job

-Has the nice logos of Revopoint POP

Since it took me a long time, I can't share it for free, but I leave it at a low price (very low compared to the price of the scanner it protects!). Please respect the work of others and do not share files with each other as it is still theft. Thank you

Zoltan3D

FRENCH

Print preferably with 5 outlines, 30% fill at a 0.2mm

Do not require any support, they are already in the right direction to print

Use 4 screws M3 length 5 to 20mm (the pitch is already printed)

ENGLISH

Print preferably with 5 outlines, 30% infill at 0.2mm

Does not require any support, they are already in the right direction to print

Use 4 M3 screws 5 to 20mm long (the screw thread is already printed)
