Ultimate Cooler for Nema 17 Stepper motor for 40mm++

3D model description

Hello,

I have some printers and have a major issue in summer : many of them have overheating motors, first I check the current, but all was good, so I decided to design a nema 17 stepper motor cooler for an efficient and perfect cooling ith easy setup

Before print, read print settings !

Here are the most important features of my work :
-for all Nema17 stepper motors (42mm sides) bigger than 40mm (40, 48, 60 : nearly all printers)
-40mm fan (will make 30mm fan and radial fan model too if you want)

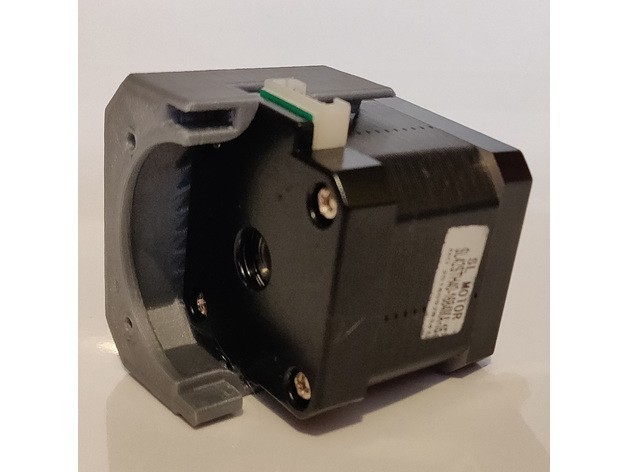

-fit on the back of the motor : nearly all steppers have free space to fit this

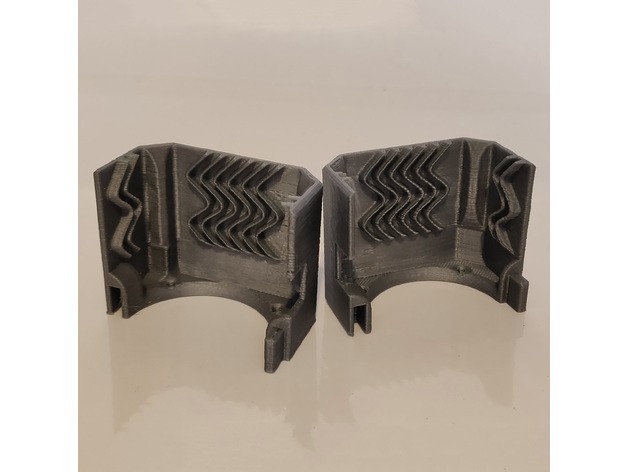

-printed in 2 parts : no need to unmount the stepper motor, no need to unplug (you can nearly install them in plus and play mode when printing :) )

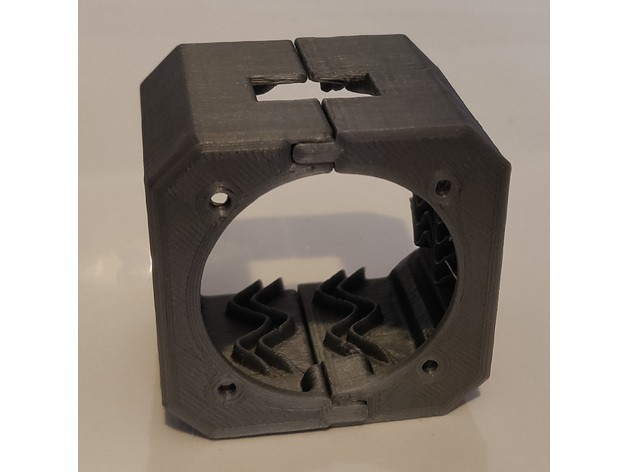

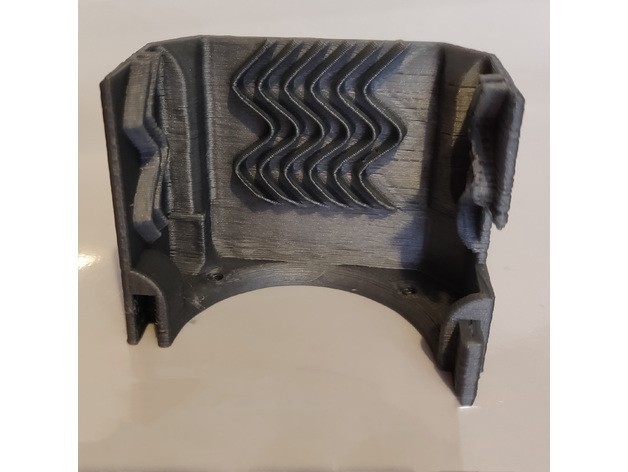

-efficient cooling with the baffles that I made
-cool the sides and the rear of the motor
-easy to print, just set 100% infill and support for higher angle than 70°
-in my case, drop down the temperature from 58°C to 35°C (136°F to 95°F) on a 4hour print ! (no more stepper skip or overheat !)
-M3 screws (10 or 12mm) to hold the 40mm fan

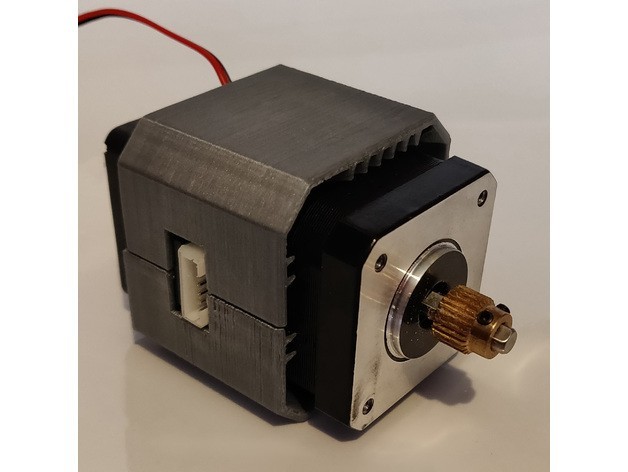

-just print, fit on the stepper motor, mount the fan, and go !

I hope you will love !

Please like if you download and think to post your made one I really want to see other people prints too :)

3D printing settings

Printer:

BIQU Kossel

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

100%

Notes:
Print them with 0.2mm layer and 100% infill

setup supports for angles above 70 degrees (support on only the little hole for the wire plug-in)
use M3 screws (10 or 12mm)
