Quick-Release Bar Clamps
:still():format(webp)/https://files.cults3d.com/uploaders/13326174/illustration-file/d8d3caf2-b212-4397-b0ed-f134c439c1e2/Capture%20d%E2%80%99e%CC%81cran%202017-08-28%20a%CC%80%2016.03.13.png)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 5.4k views
- 41 likes
- 299 downloads
- 0 comments
- 0 makes
Designer
3D model description

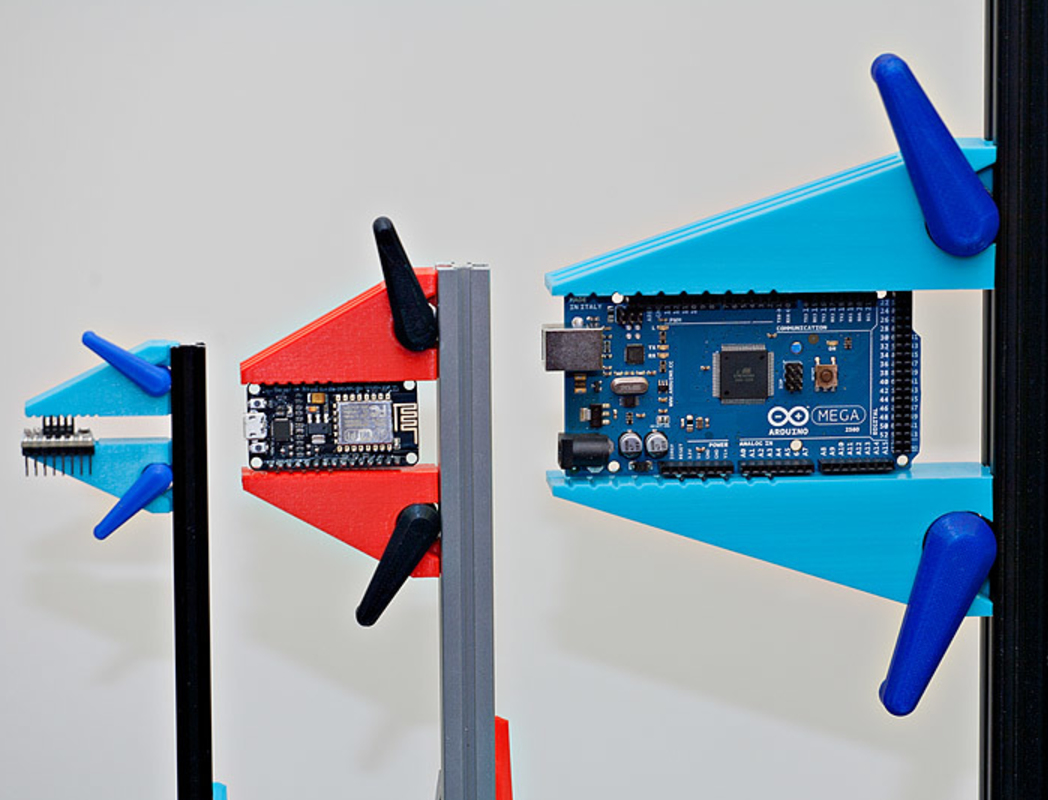

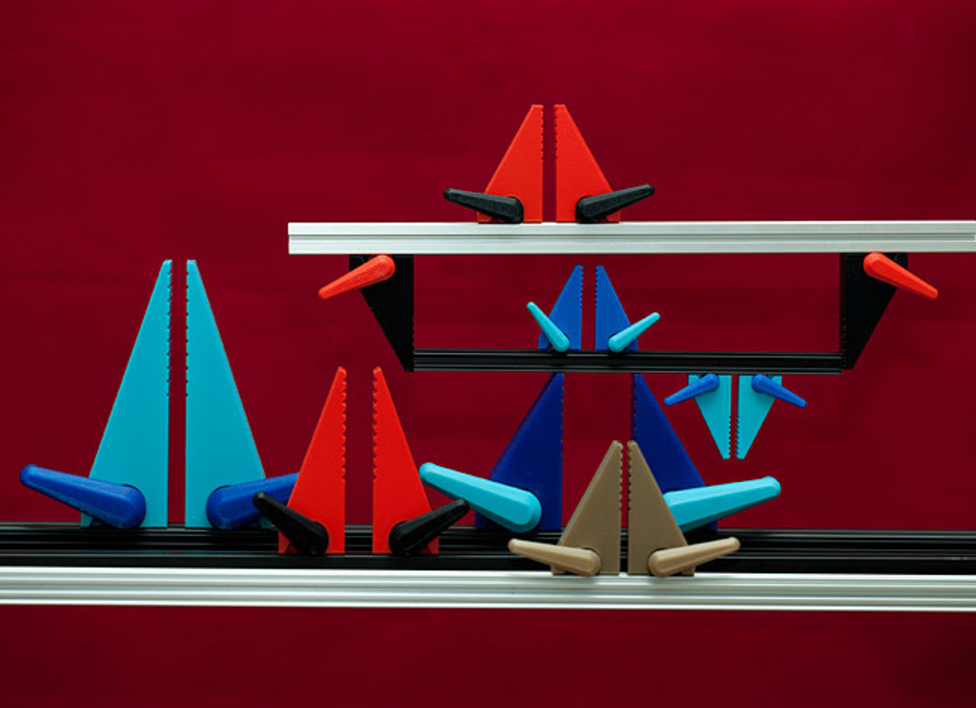

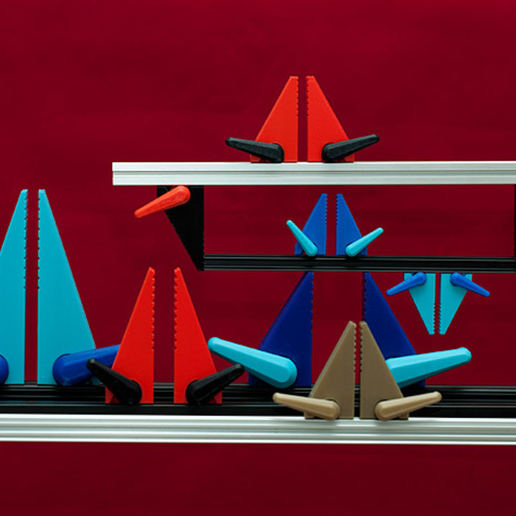

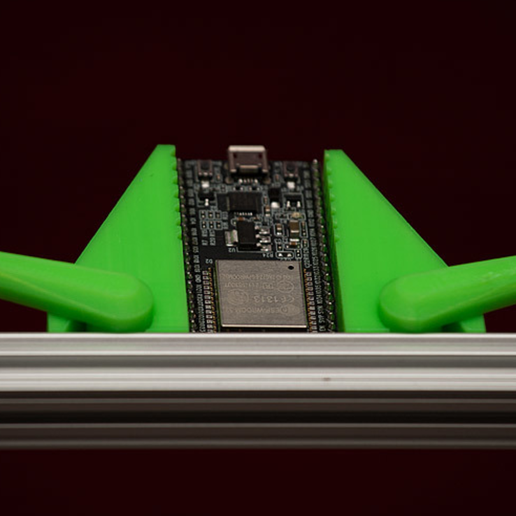

A new type of quick-release clamp designed to slide and lock on aluminum t-slot extrusion. With this fully printable model you can build bar clamps of arbitrary size and mount multiple clamps on the same bar.
Minimalist/functional by design: only two parts, both print without supports and assembles like a puzzle.
The cam-lock lever mechanism is designed such that it puts slight pressure in the jaws when it locks and releases quickly with a snap then slides freely, making part switching effortless compared to classic vise/screw models.
The model is fully parametric via Customizer or OpenSCAD: not only you can control the size of the clamps and their features (grooves and such) but also fit these on the most common aluminum extrusions - Misumi 15mm/20mm (1515 or 2020), OpenBeam, 80/20 1010 1", MicroRax 10mm or even your own T-Slot or C-section profile.

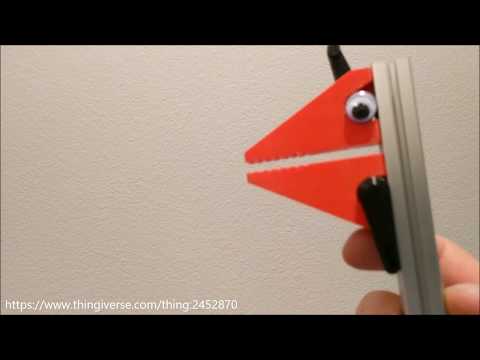

A few examples: https://youtu.be/aWFwbUx84aI https://youtu.be/W1OkOy_swrU
3D printer file information
- Design number: 13931
-
3D design format: STL Folder details Close
- ex_clamp_1515_75mm.stl
- ex_clamp_2020_100mm.stl
- ex_clamp_2020_75mm.stl
- ex_clamp_8020_75mm.stl
- ex_clamp_MicroRax_40mm.stl
- ex_clamp_OpenBeam_50mm.stl
- Publication date: 2017-08-28 at 14:13
License
CC BY-NC - Attribution - Non commercial
Tags
- 1515
- 2020
- 2020_extrusion
- 80
- /20
- bar_clamp
- cam
- -lock
- clamp
- extrusion
- holder
- jaws
- microrax
- misumi
- openbeam
- pcb
- quick_release
- t
- -slot
- tool
- woodworking
- work_holding
