Battery Adapter: AA to C

Download free STL file Battery Adapter: AA to C • 3D printer design, MGXDownload free STL file Battery Adapter: AA to C • 3D printer design, MGXDownload free STL file Battery Adapter: AA to C • 3D printer design, MGX
Download free STL file Battery Adapter: AA to C • 3D printer design, MGX

Did you 3D print this model?

3D model description

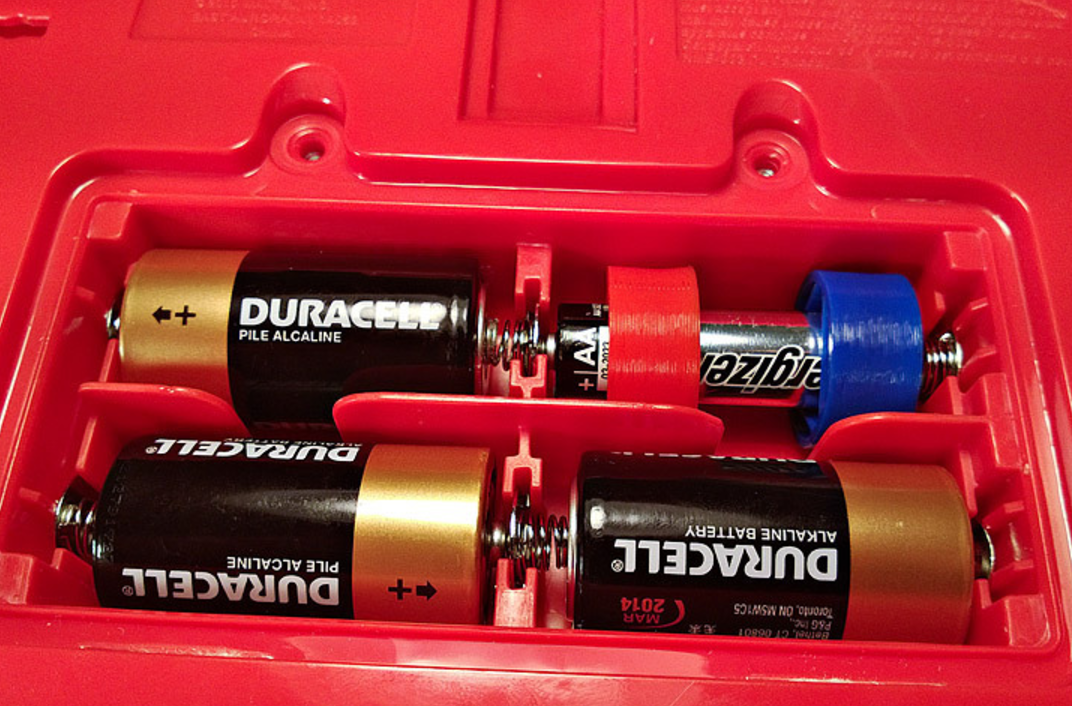

The adapter allows you to use an AA (LR6) battery instead of a C (LR14) battery.

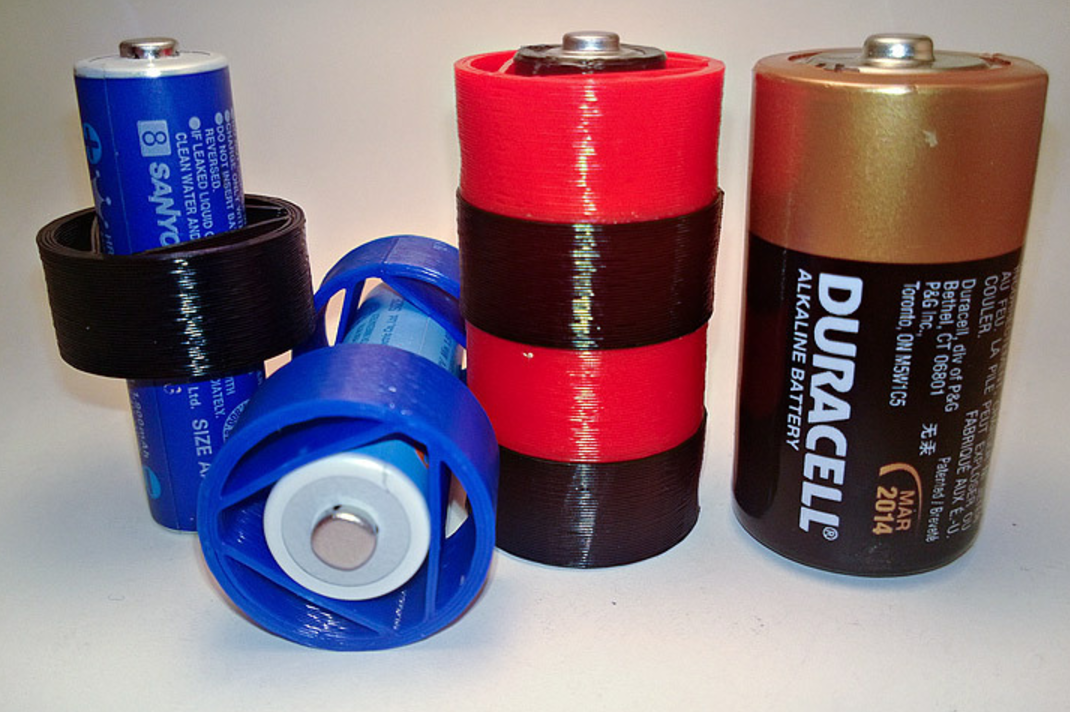

It is 12mm tall: you can stack 4 of them and get the exact battery height, but if you want to save plastic you can also use only 2, or even a single one if you are in a hurry.

Compared to things 39478 and 4205:

less likely to scratch the battery labels (eneloops scratch very easily with the old design).
height adjusted such that 4 of them stack to an exact battery height.

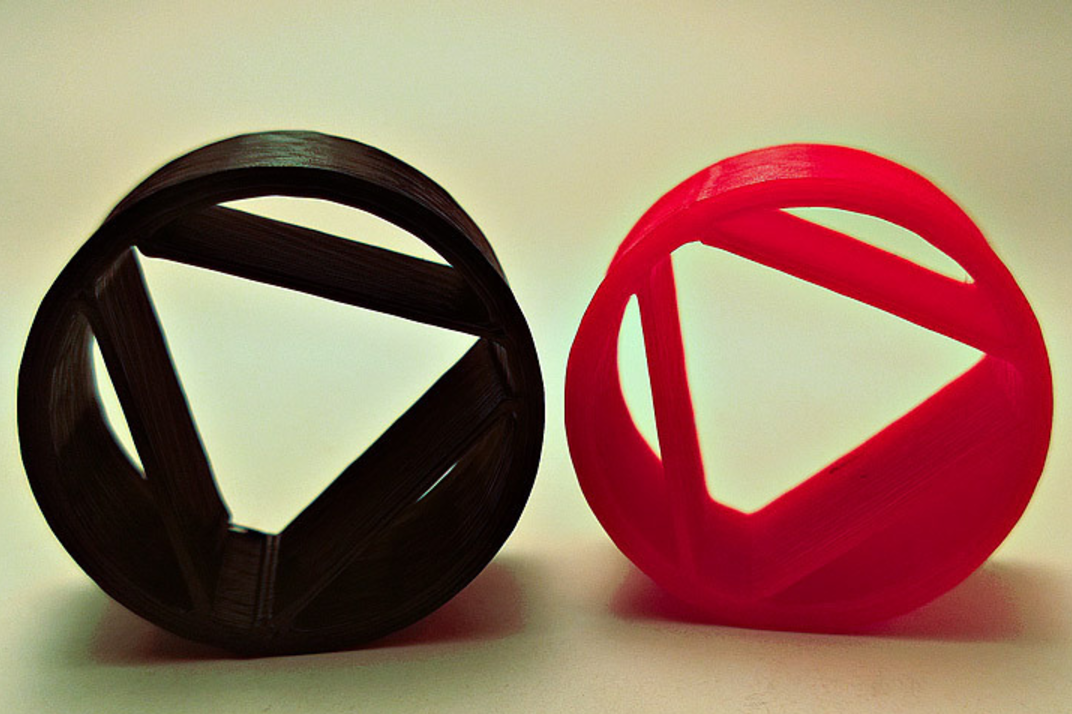

sturdier design but more flexible inside to allow for big variations in AA battery diameter: the inner triangle works like a spring.
simpler geometry: a bit faster to print, 20% taller but still uses the same amount of plastic
a bit more resilient to shock and breakage

3D printing settings

Print in ABS, 0.33mm layer height.
Print lots of these and save $ and waste.

  • 3D file format: STL
