MakerFarm i3v Quick Change X Carriage (and mounts)

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 506 views
  • 4 downloads

3D model description

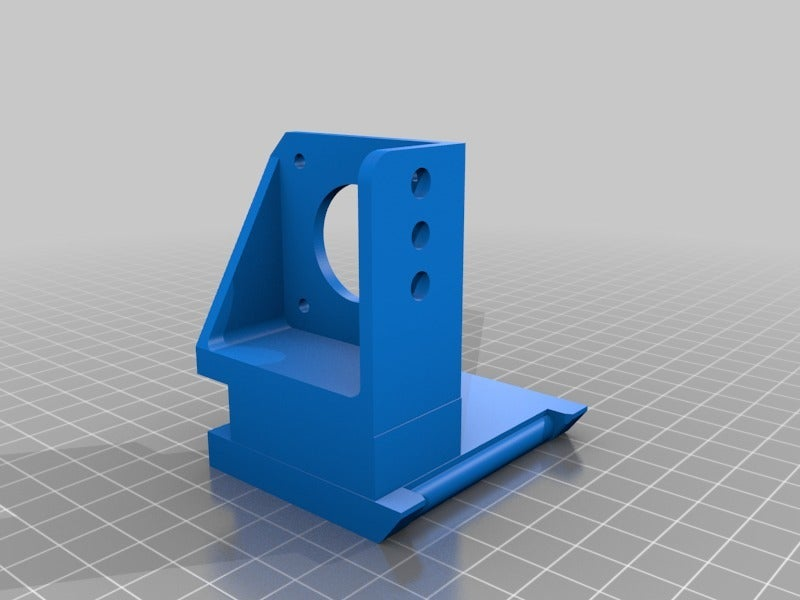

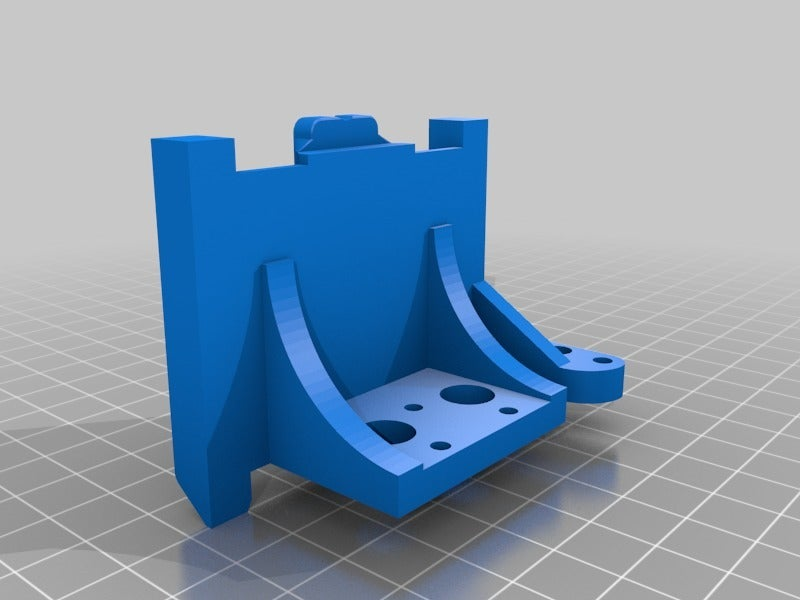

Put the quick-change attachment points on the X carriage for MakerFarm Pegasus/i3v printers, and I had to modify the latch to clear the wheel mounting nuts.

Oct 28 Update: I decided to upgrade my extruder to the E3D Cyclops, and needed a way to mount it (why has noone else done this for the i3v??), so I decided to make one using this quick connect mount. Also included is a blank mount plate for others to use to make their own mounts. I believe with this mount, a 6.3mm spacer is needed to get the BLTouch to the correct height. I haven't assembled it yet, so I can't be sure. I used the 10mm spacer from https://www.thingiverse.com/thing:2314876 and scaled it only in the Z axis to what I needed.

Nov 1 Update: Modified the hotend mount plate to better accommodate the bowden fittings and clips.

July 29 update: Cyclops jammed on me, so I modified a Titan direct mount to use with the v6 instead. I offset the mount from the QC plate in order to make sure the stepper cleared my left Z screw. I tried to keep the nozzle as close to the center of the X mount as possible. Supports may be necessary.

  • 3D file format: STL
