Dial Indicator 2020 Mount Backplate
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/14814455/illustration-file/7852a537-b36d-4c9c-8fea-999ce59235c4/0127201852-1.jpg)
/https://files.cults3d.com/uploaders/14814455/illustration-file/7852a537-b36d-4c9c-8fea-999ce59235c4/0127201852-1.jpg)
/https://files.cults3d.com/uploaders/14814455/illustration-file/95d8b67a-e94f-4282-836f-dc8c5990dbe3/Backplate.png)
/https://files.cults3d.com/uploaders/14814455/illustration-file/b7fb85ea-ad55-42ce-9c9c-8e6a92f4fced/Backplate2.png)
/https://files.cults3d.com/uploaders/14814455/illustration-file/93b45bdf-a268-4ba3-9563-256c135d4429/Backplate3.png)
?
Creation's quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 647 views
- 2 likes
- 25 downloads
3D model description
Added some tabs to clip around 20mm v-slot extrusion.
Three versions are available: one with the tabs in the center, another with the tabs on the top to let it reach further down under the extrusion, and a third with a kind of "hook" to go over the top of the extrusion, in case you use a 2040 extrusion. I have not tested the hook version yet to see how well it grips the extrusion.

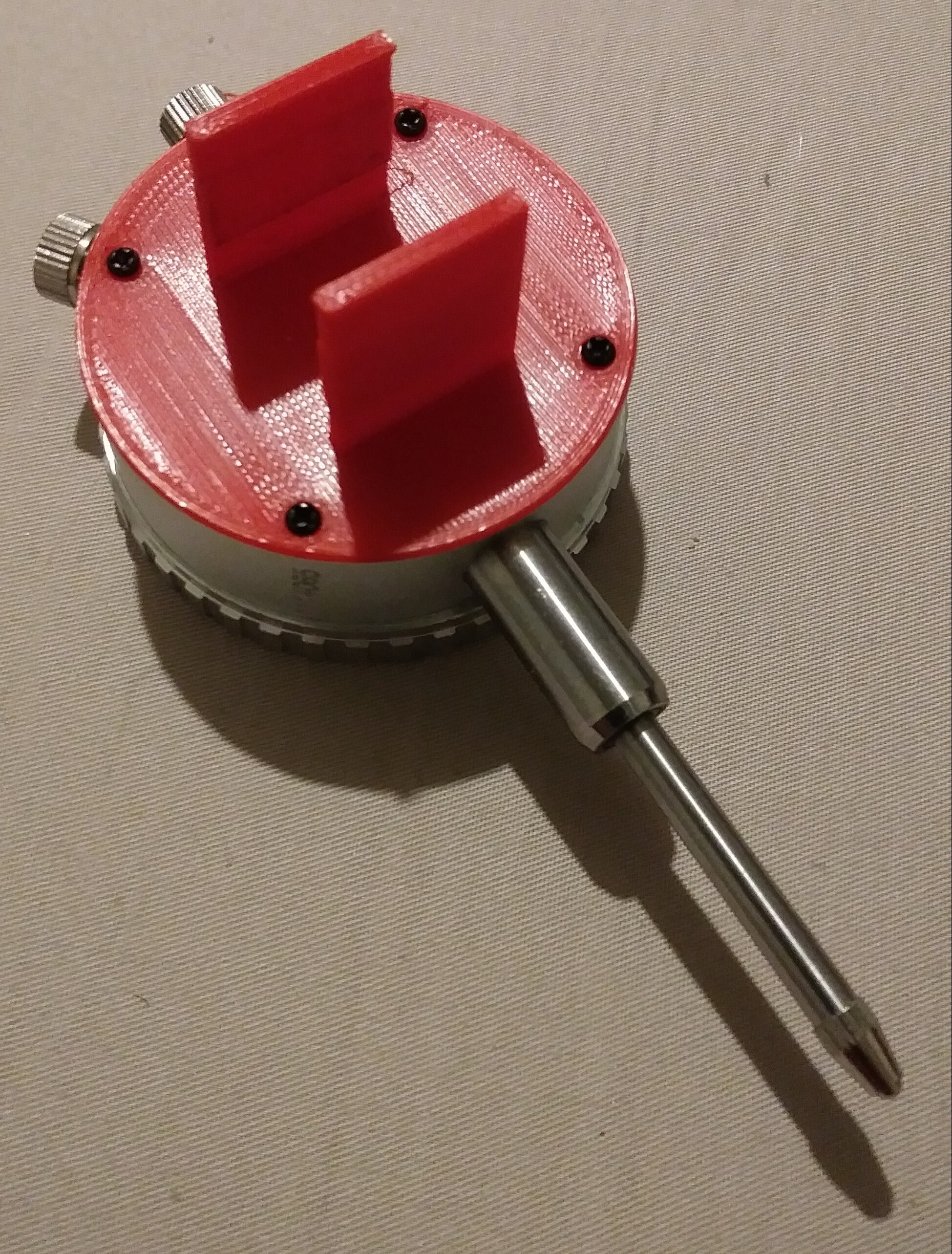

As I tightened the screws on the back of the dial with the center tabs version, I noticed the two tabs pinching together like tweezers. I figure this will help it grip the extrusion better.
- 3D file format: STL
- Publication date: 2020/02/20 at 10:32
