Latching Lock for Micro Servo SG90 9G

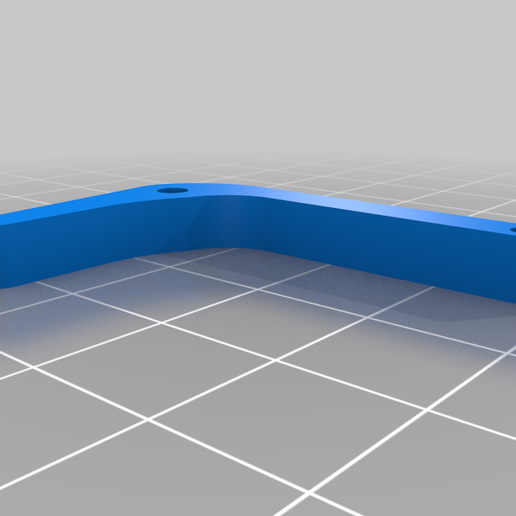

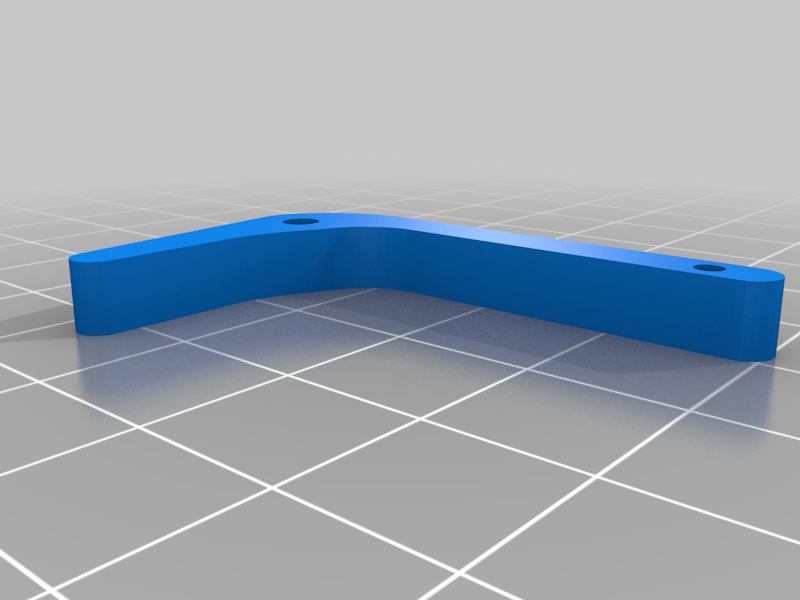

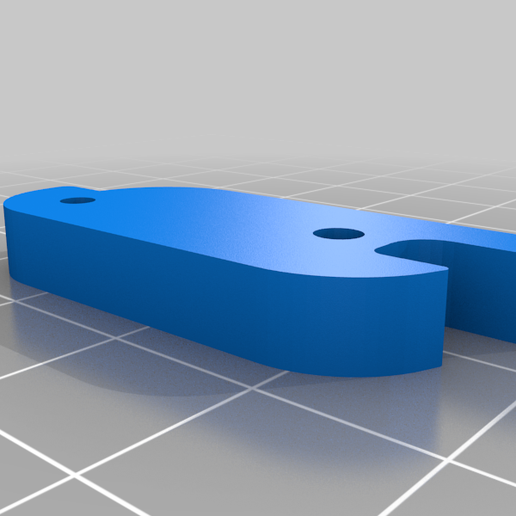

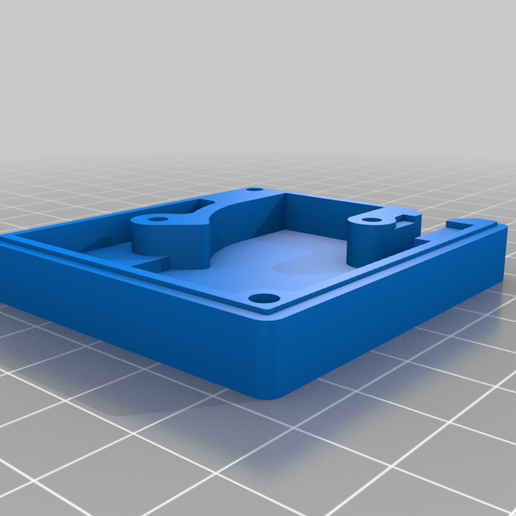

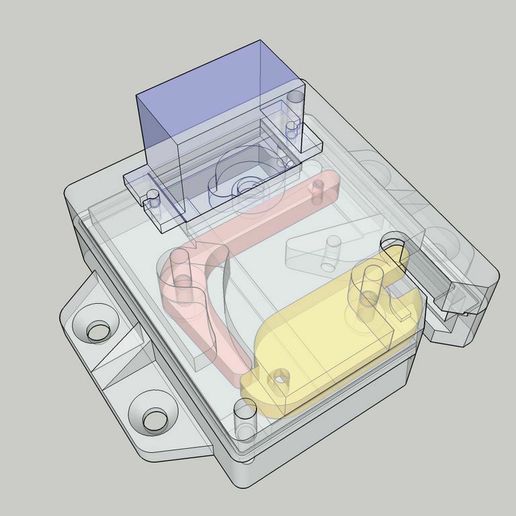

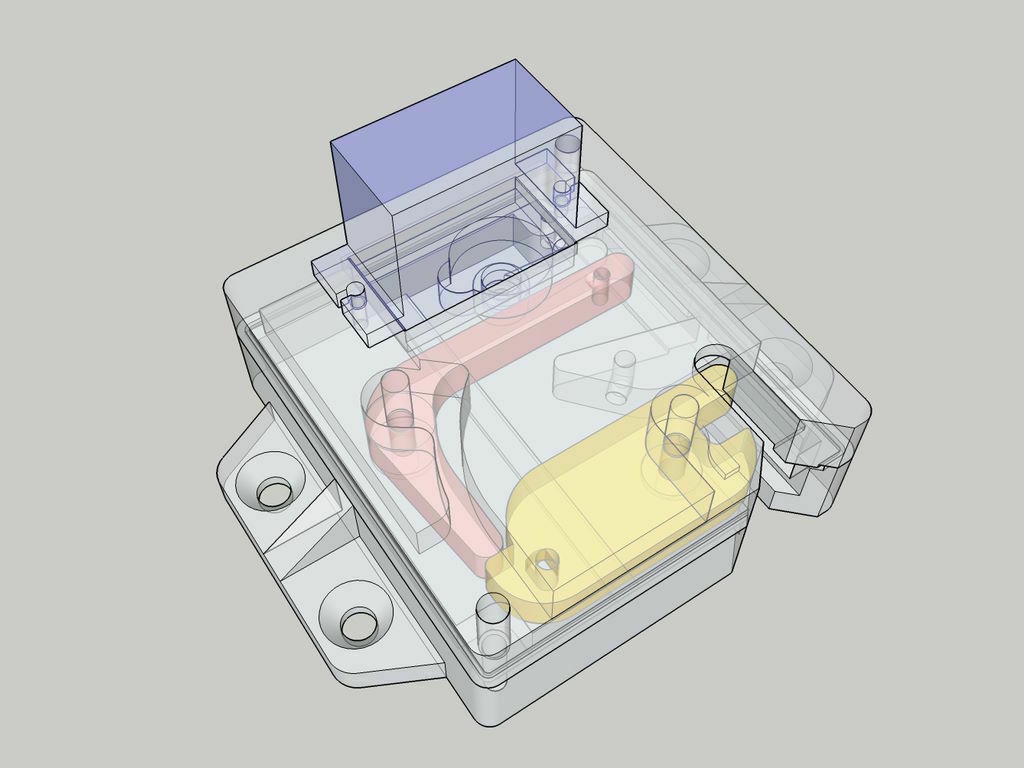

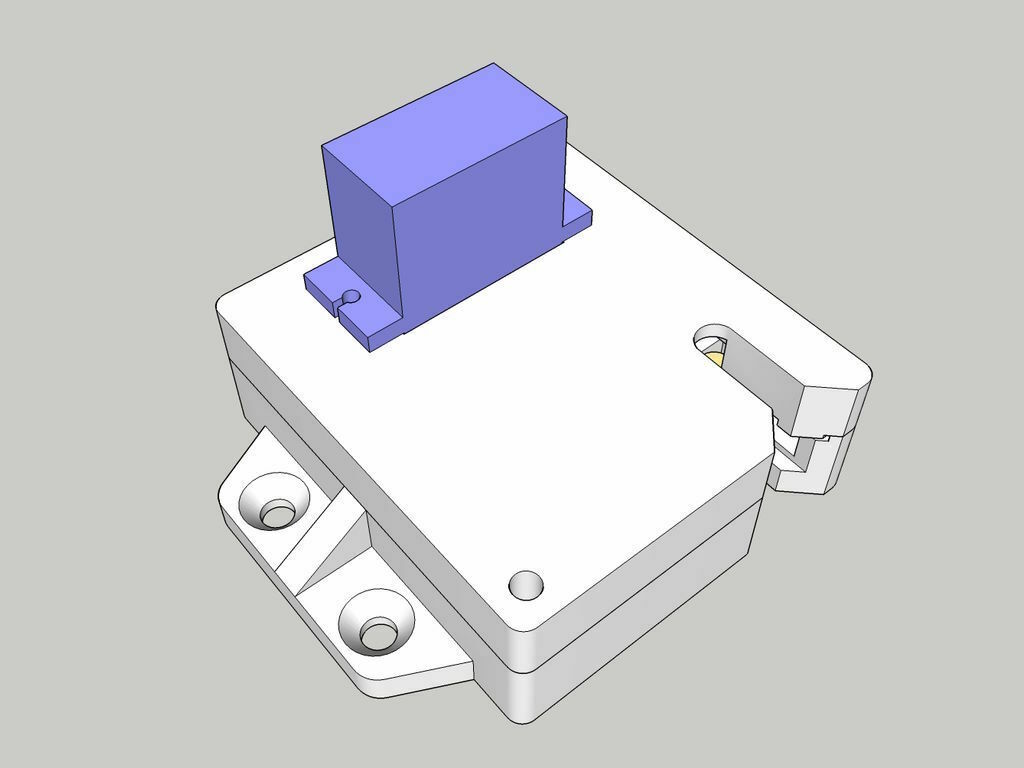

This is an automatically latching lock which is powered by a Micro Servo SG90 9G. This makes it easy and inexpensive to interface to most microcontrollers such as Arduino. It is designed to engage with a pin of 3mm to 4mm diameter (not part of this model). When the pin enters the slot, it causes the mechanism to latch. To unlock it, the servo is driven through a range of 45 degrees, which causes the lock to release. The mechanism is designed to have a large mechanical advantage, so it should be able to cope with quite a bit of load without stalling the servo motor.

We are approaching Halloween as I write this, so perhaps you could use it to drop giant spiders on unsuspecting guests :)

You will also need:
* 2x 3mm x 15mm brass shaft (or similar)
* 2x M3 x 15mm screws to secure the housing
* 2x small springs
* Grease

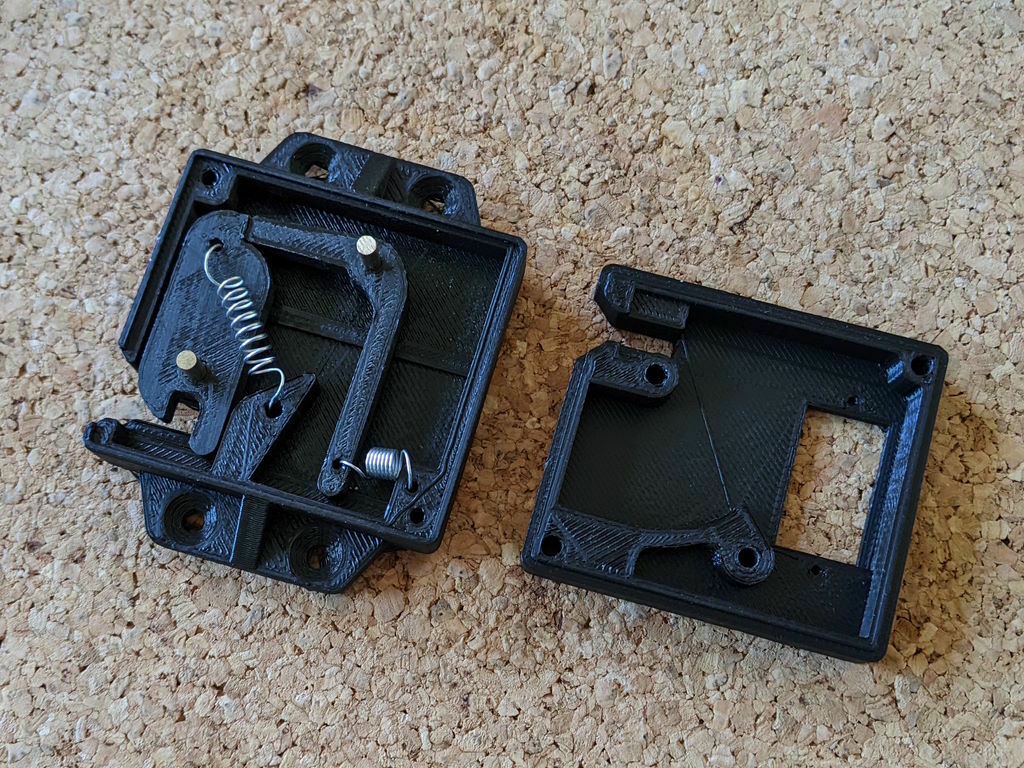

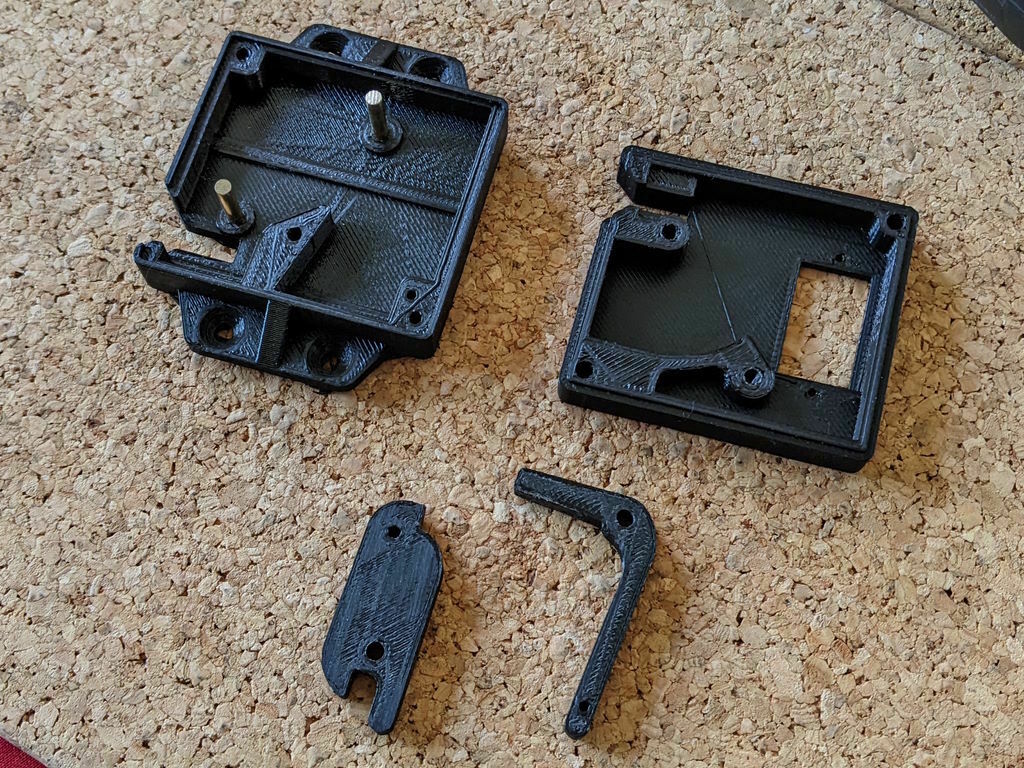

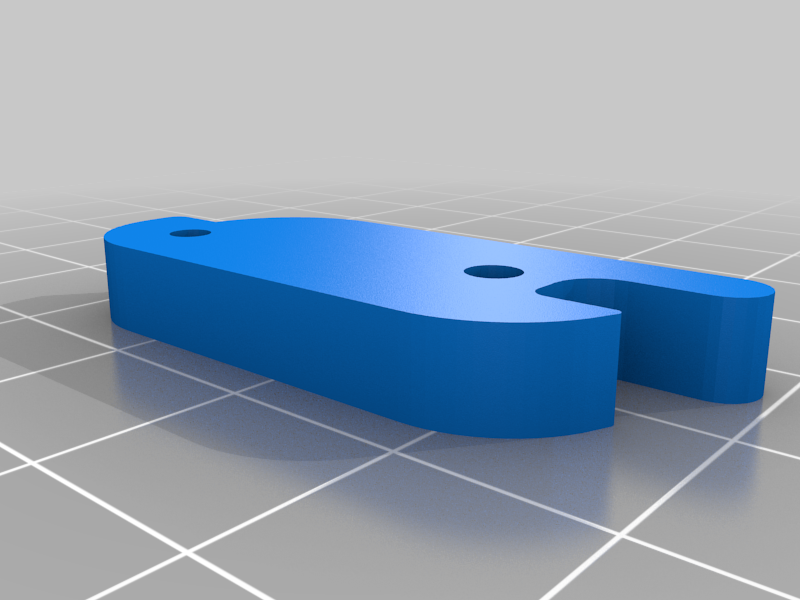

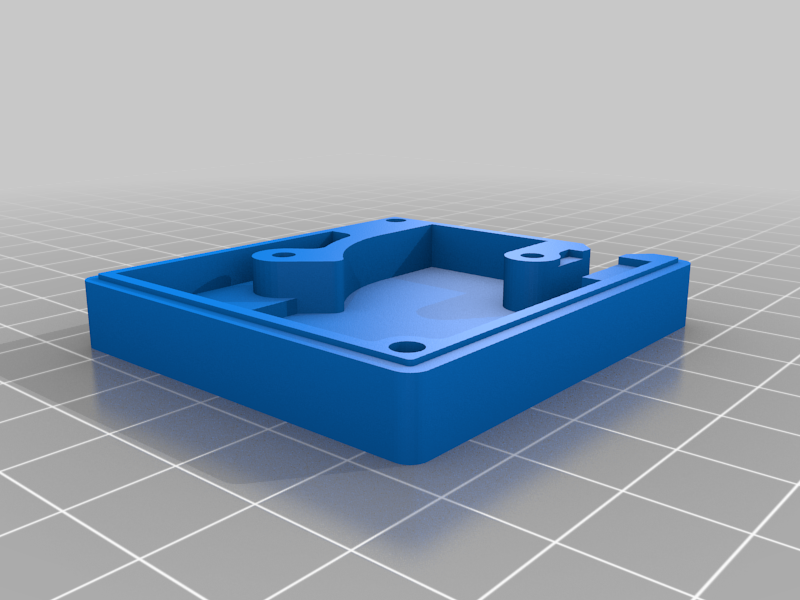

Use a drill to clean up the holes in the moving parts, so that they rotate very freely on the shafts. File or sand the parts to ensure they are smooth, and apply grease before assembly. Test the range of motion of the servo before assembly.

Sample Arduino code is included (example.ino), showing how to drive the servo.
