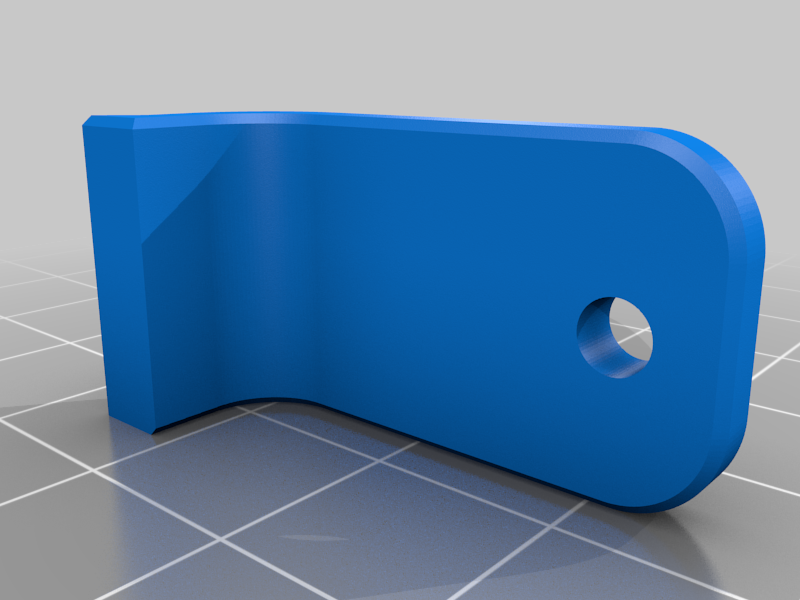

WM_Cap_2.png Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
Lower_Deflector_V3.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
Compact_Dual_Duct_X_Endstop_V1.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
V6_Clamp_V5.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
BLtouch_Plate_V4.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
BLtouch_Plate_V4_springs.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
WM_Cap_2.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
15853463429642.jpg Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
15853463430465.jpg Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
15853463430626.jpg Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
WM_Cap_2.png Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
Lower_Deflector_V3.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
Compact_Dual_Duct_X_Endstop_V1.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
V6_Clamp_V5.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
BLtouch_Plate_V4.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
BLtouch_Plate_V4_springs.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
WM_Cap_2.stl Hypercube Evolution Compact Dual 4010 Duct 2 with X Endstop
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
7 files (STEP and STL) Close
  • BLtouch_Plate_V4.stl 53.746611 ร— 18.986207 ร— 17.635681000000034 mm
  • BLtouch_Plate_V4_springs.stl 53.746611 ร— 14.686207000000003 ร— 17.635650999999996 mm
  • Compact_Dual_Duct_X_Endstop_V1.stl 55.0 ร— 65.0 ร— 51.35000600000001 mm
  • Compact_X_Endstop_V2.step
  • Lower_Deflector_V3.stl 28.800559999999997 ร— 17.999999 ร— 9.700012000000015 mm
  • V6_Clamp_V5.stl 37.0 ร— 21.899997 ร— 12.700012000000015 mm
  • WM_Cap_2.stl 11.200000000000001 ร— 31.829665 ร— 16.612976000000003 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 437963
Design author boothyboothy
boothyboothy

boothyboothy

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

There is newer thing\remix here: https://www.thingiverse.com/thing:4425580

This is a compact dual 4010 duct assembly for the Hypercube Evolution. My second version which includes a X optical endstop.
1.The overall width of this things is only 6 mm wider than the original Scott3d assembly so therefore should not offset too much build volume. The position of the X endstop adds to this making an overall reduction of approximately 10mm
3.The fan ducts are based generally on my recent Hydra Duct design.
4.The offsets for the BLTouch are x= 22 y= -37. There are two brackets, one allows for use with the provided springs.
5.This can be used in conjunction with my revised XY Joiners at this link:
https://www.thingiverse.com/thing:4245532
6.The other components required can be found at the original thing here:
https://www.thingiverse.com/thing:4222420

Useful Accessories:

I remixed this great thing by kulfuerst with a scallop in the right hand side to allow more clearance for the heater cables in some of my compact 4010 fan duct designs. I also included an additional amount of material to the top edge of the duct to provide some additional strength when clipping. It may be better to attach the fan prior to clipping to the heatsink has the fan fixings will reinforce the part
I have found the additional clip enhancements for the Dragon provides improved grip to the V6 heat sink. I have not yet tested sufficiently to comment on the longevity of the part but if the fan is doing its job printing in PETG or stronger should be sufficient.
https://www.thingiverse.com/thing:4426090

I have included a step file if anyone wants to use this has a base for their own design.
Printed in Amazon Basics Red PETG on and Ender 3 Pro.
M3 thermal inserts used:
https://www.amazon.co.uk/gp/product/B07PMZCP23/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1
