Pill Box with AM\PM Apertures

?
Creation's quality: 3.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 880 views
  • 38 downloads

3D model description

Update:01_11_18

Uploaded f3d file.

Update:17_08_18

New version available at the following link:

https://www.thingiverse.com/thing:3054659

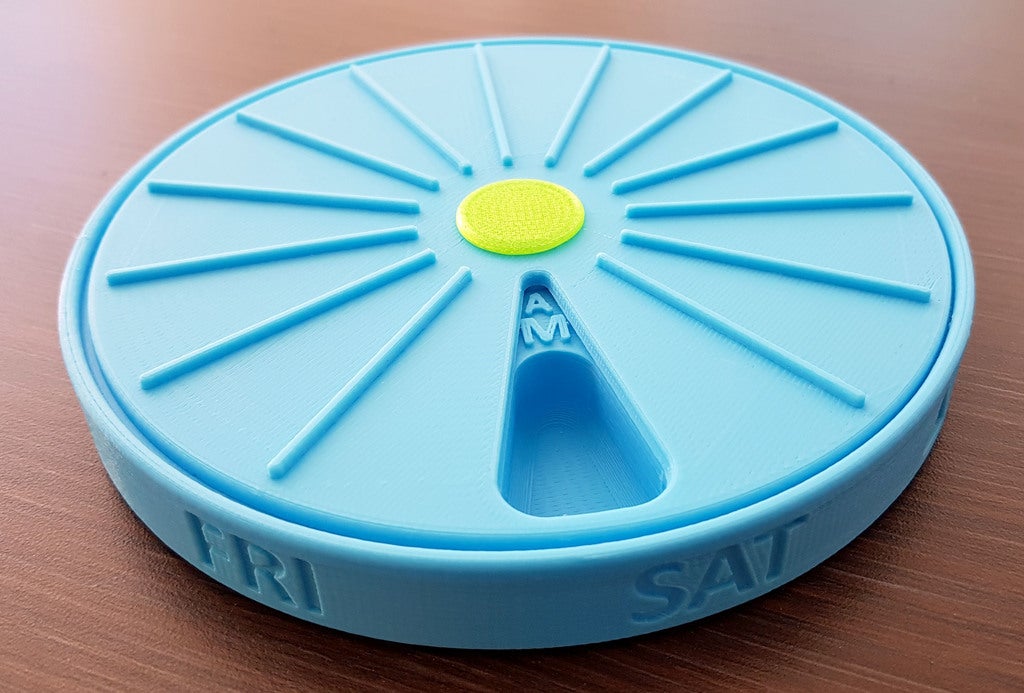

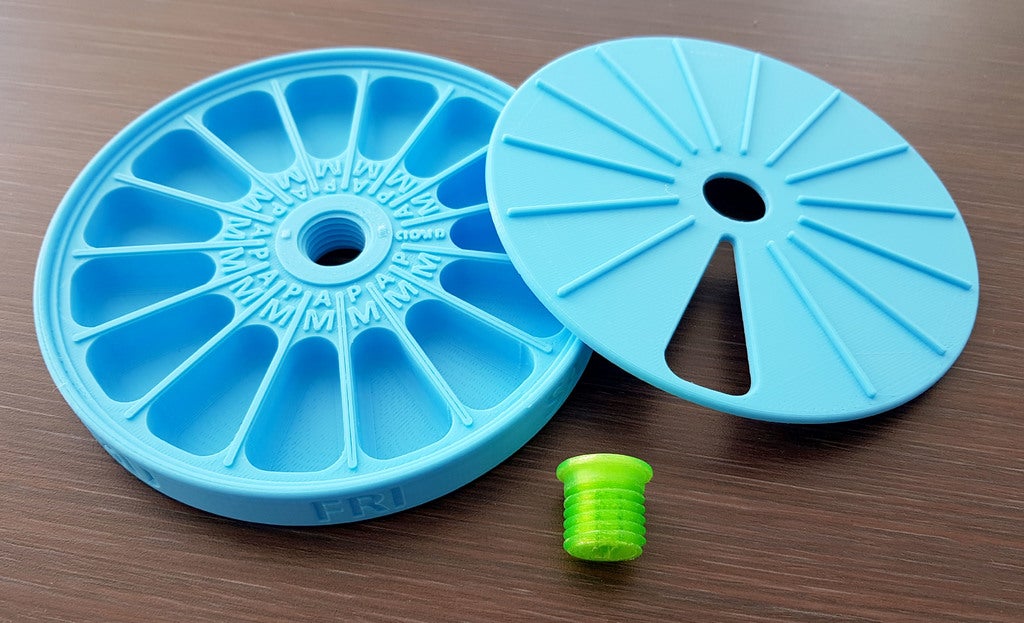

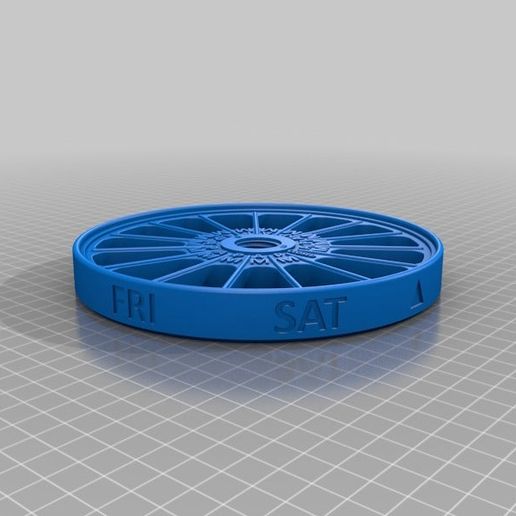

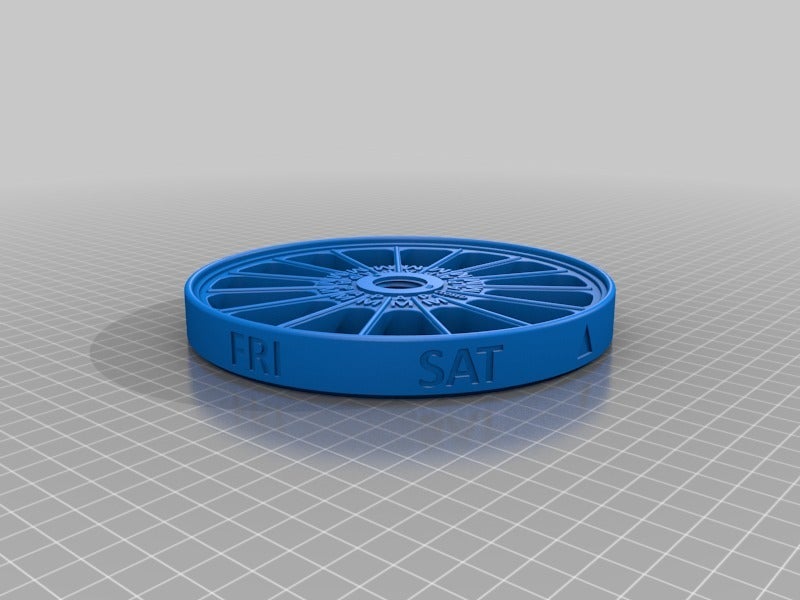

Circular Pill Box with:-

  1. AM\PM apertures.

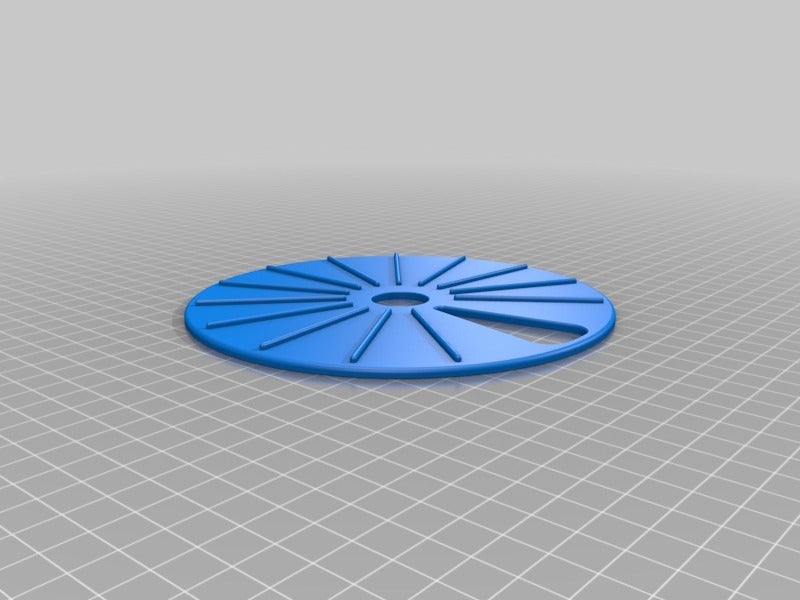

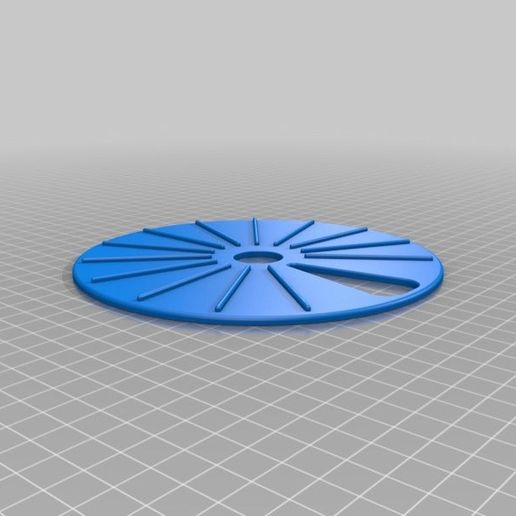

  2. Ridged lid for Arthritic grip.

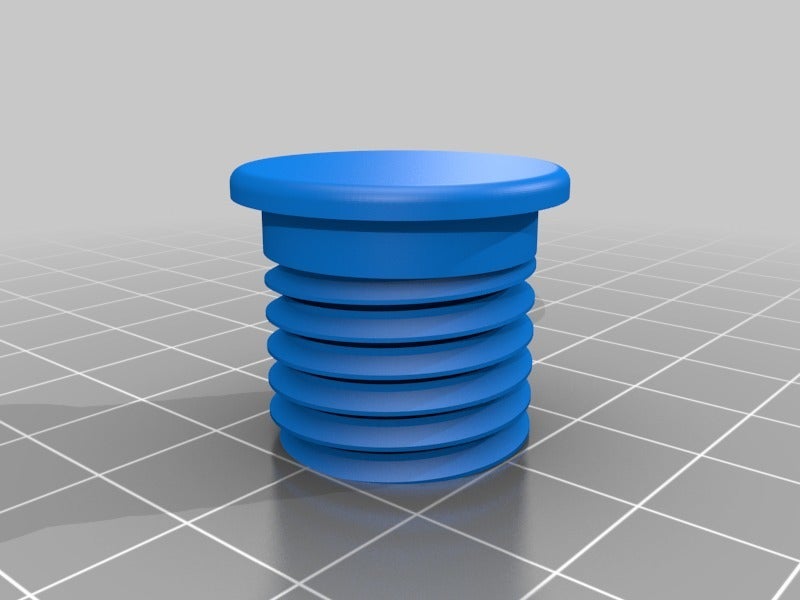

  3. Slotted centre screw to adjust tension
  4. Lid ratchet detail to stop at individual apertures (requires further refinement).

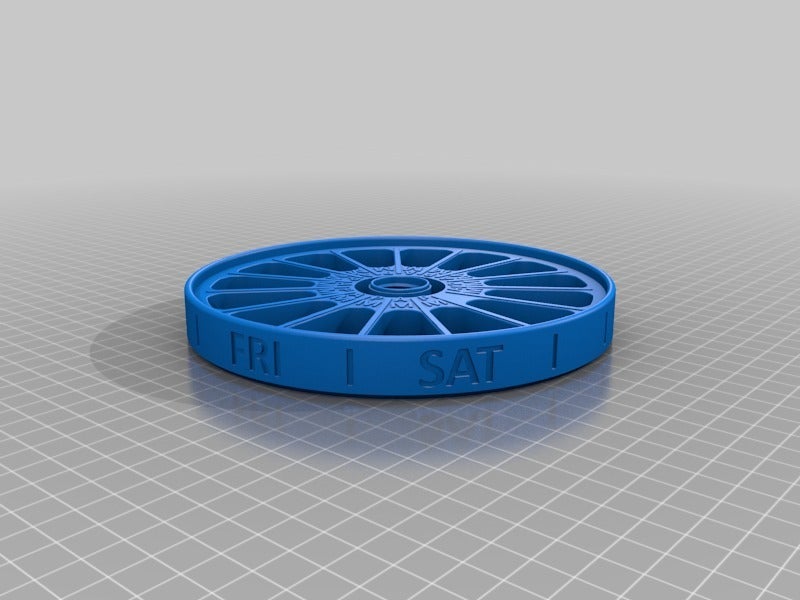

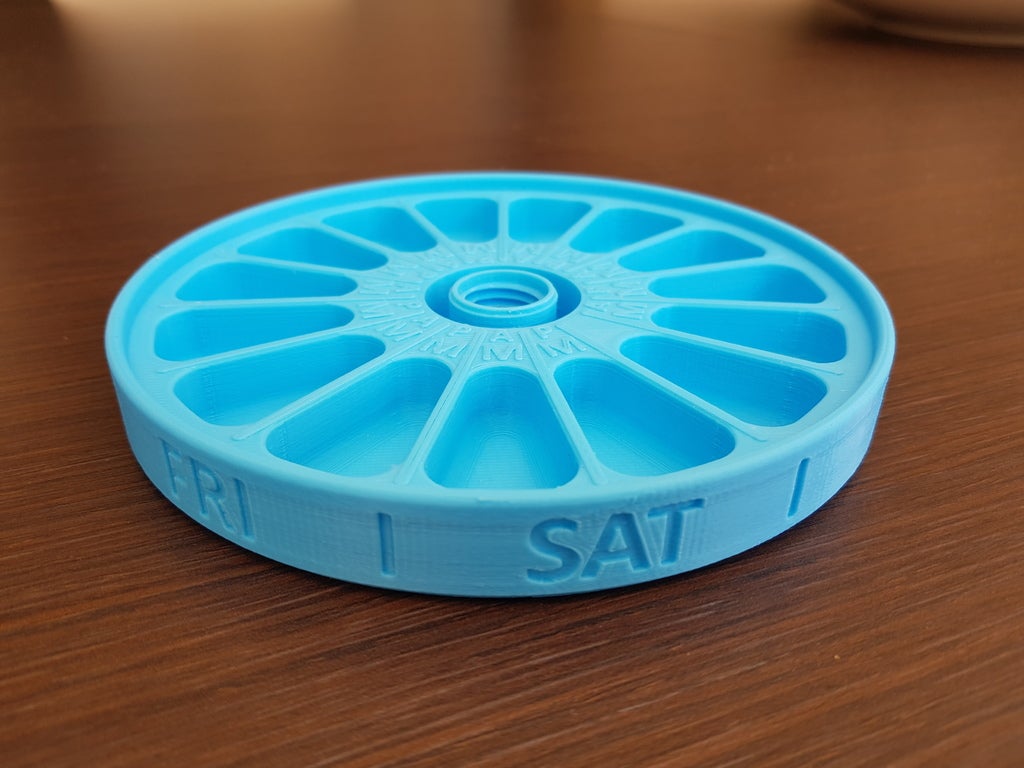

Update: 05\07\18 - Revised Base\Body design

  1. Removed Base perimeter detail that sometimes binds with outer rim of lid.
  2. Modified central node detail to facilitate revised ratchet detail and removed existing ratchet detail (Still to be finalised).
  3. Included linear divisions between days on outer perimeter.
  4. Removed closed lettering & icon due to limits of clarity with some printers.

3D printing settings

-

3D printer file information

  • 3D design format: F3D and STL Folder details Close
    • Body_V1_30_06_18.stl
    • Body_V2_05_07_18.stl
    • Bolt_V1_30_06_18.stl
    • Lid__V1_30_06_18.stl
    • PillBox_Apertures_V1.f3d
  • Publication date: 2021/05/28 at 01:37
