Ender 3 - Ender 3 Pro Side Mounted Spool Holder

?
Creation's quality: 4.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.2k views
  • 7 likes
  • 222 downloads

3D model description

There is a newer version of this thing which prints faster and is easier to assemble at this link: https://www.thingiverse.com/thing:4461496

There is a Remix\Alternative Version of this thing here: https://www.thingiverse.com/thing:4399949/files

Update:07\01\20

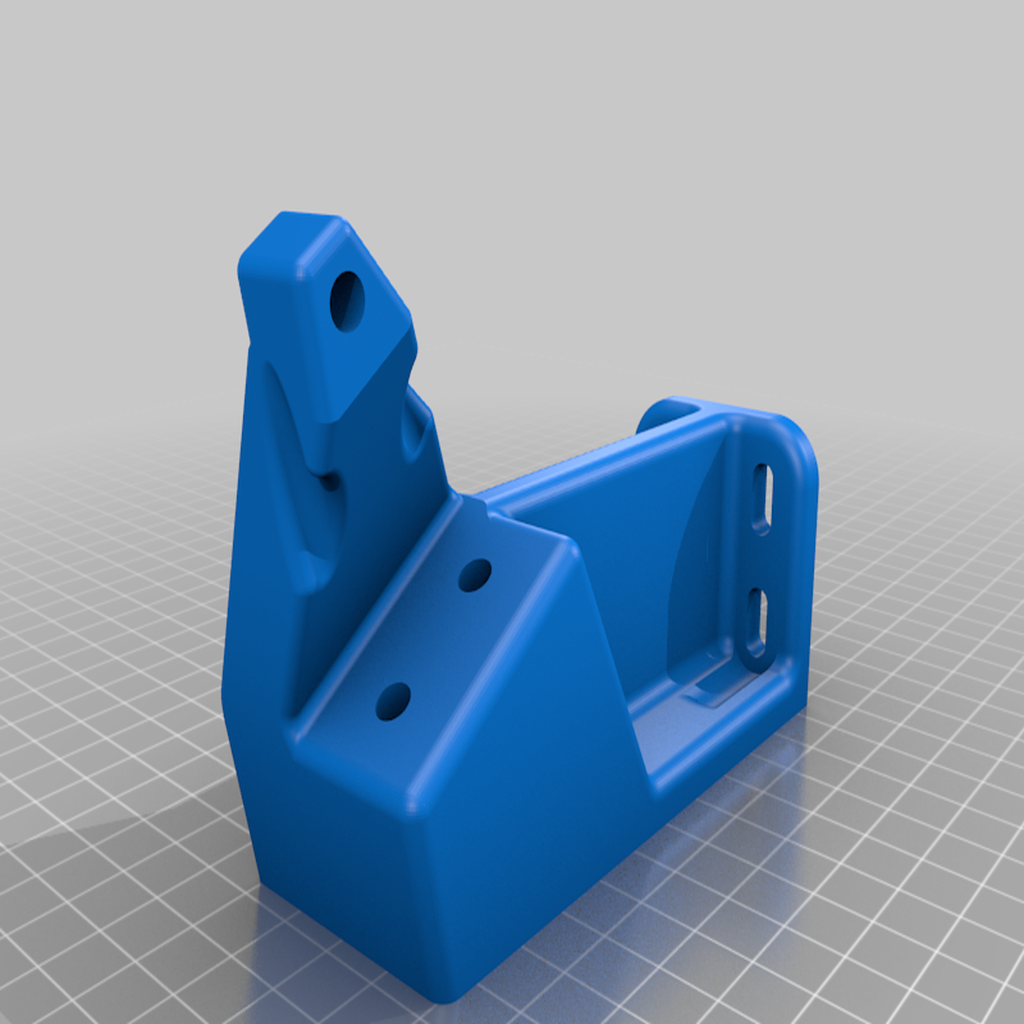

Uploaded a variation (E3_Spool Holder_V2) with extended fixing slots to allow the part base to be set flush with the bottom of the extrusion and therefore facilitate the integration of an Ender 3 foot on the spool holder. This version is untested so please treat as WIP.

I wanted a spool holder that was connected\fixed to the printer, side mounted that did not put strain \vibration on the frame. I therefore knocked this up for my latest Ender 3 Pro. I admit this may be slightly over engineered but I wanted something that was robust and would last.

Apologies in advance if there is a similar thing uploaded\published that I have not noticed.

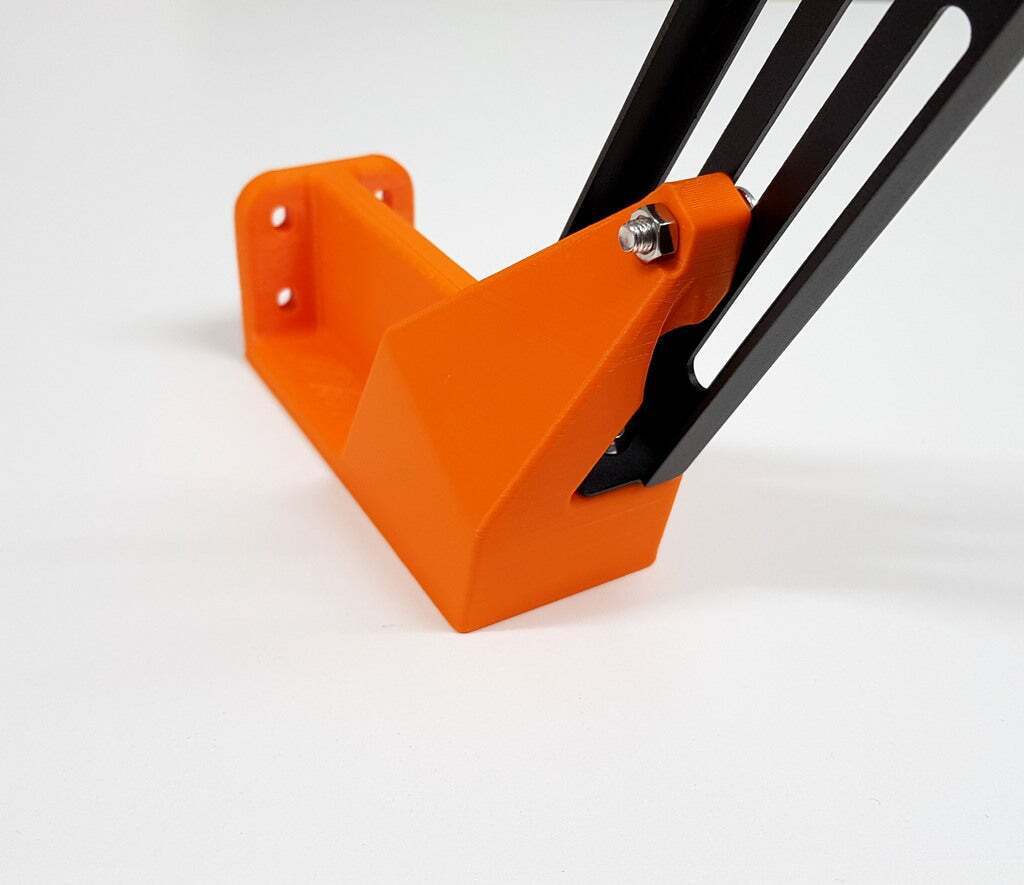

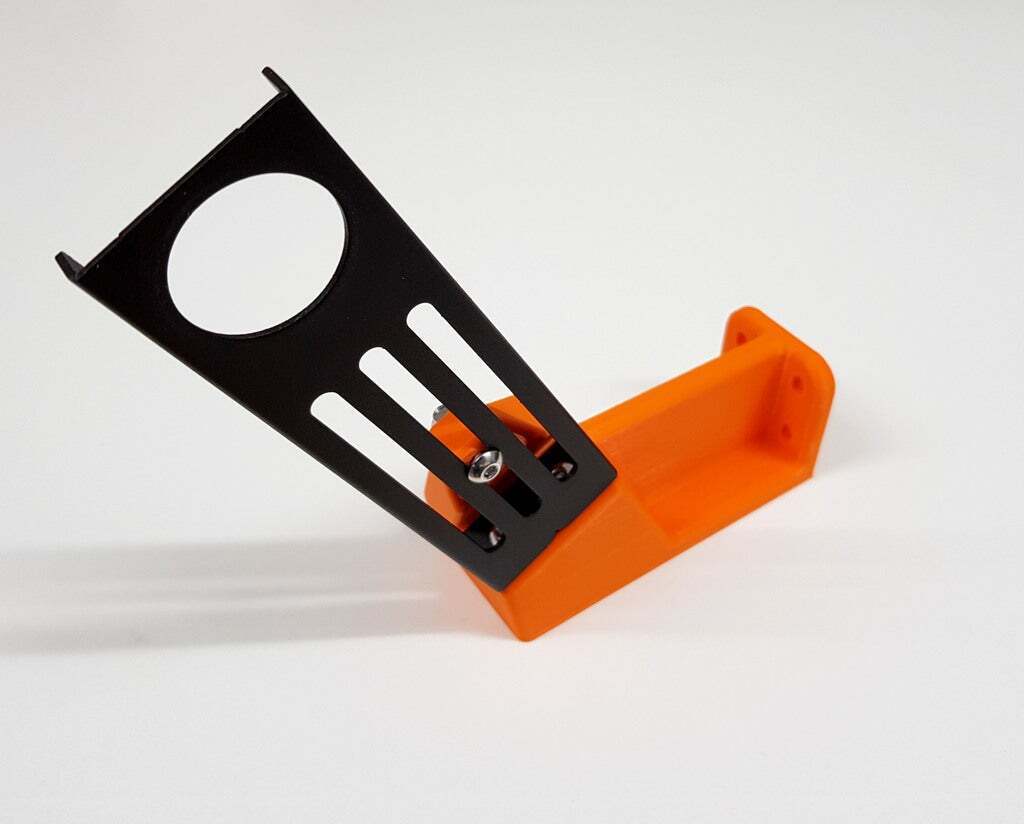

You will need 3 x M5 x 20 mm Bolts + Nuts to attach the stock Ender 3 spool holder to the thing. You will also need 2 - 4 M4 x 10 mm Bolts + T nuts to fix into the side 2020 extrusion.

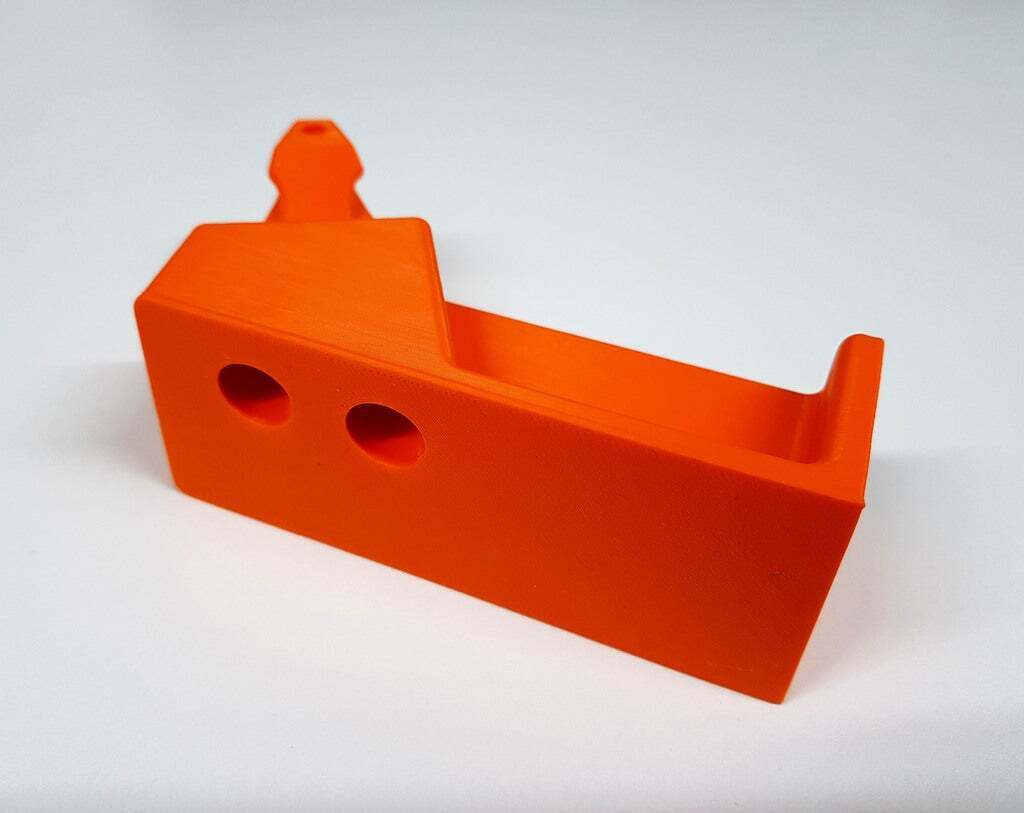

Printed with PrimaValue Orange PLA, 210C, 50C Bed,.02 resolution, 30mms, 30% infill and 3 perimeters.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • E3_Spool_Holder_V1.stl
    • E3_Spool_Holder_V2.stl
  • Publication date: 2021/05/28 at 01:29

License

CC BY

Tags

Creator

Multi-Disciplinary Professional Designer with 35 years contract experience in Interior, product and Furniture Design. Since receiving a rebadged Wanhau Duplicator Plus (Balco from Aldi) 3d printer from my wonderful wife for Christmas 2018 I am now using my design skills for personal 3D product creation.

3D Printers:

CR-10S
Ender 5
Hypercube Evo
2 X Ender 3 Pros
Ender 3 v2
Prusa Mini Clone
Iframe (not yet published)
