Ender 3 - Ender 3 Pro Side Mounted Spool Holder V3

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.3k views
  • 3 likes
  • 121 downloads

3D model description

Now compatible with the Ender 3 V2

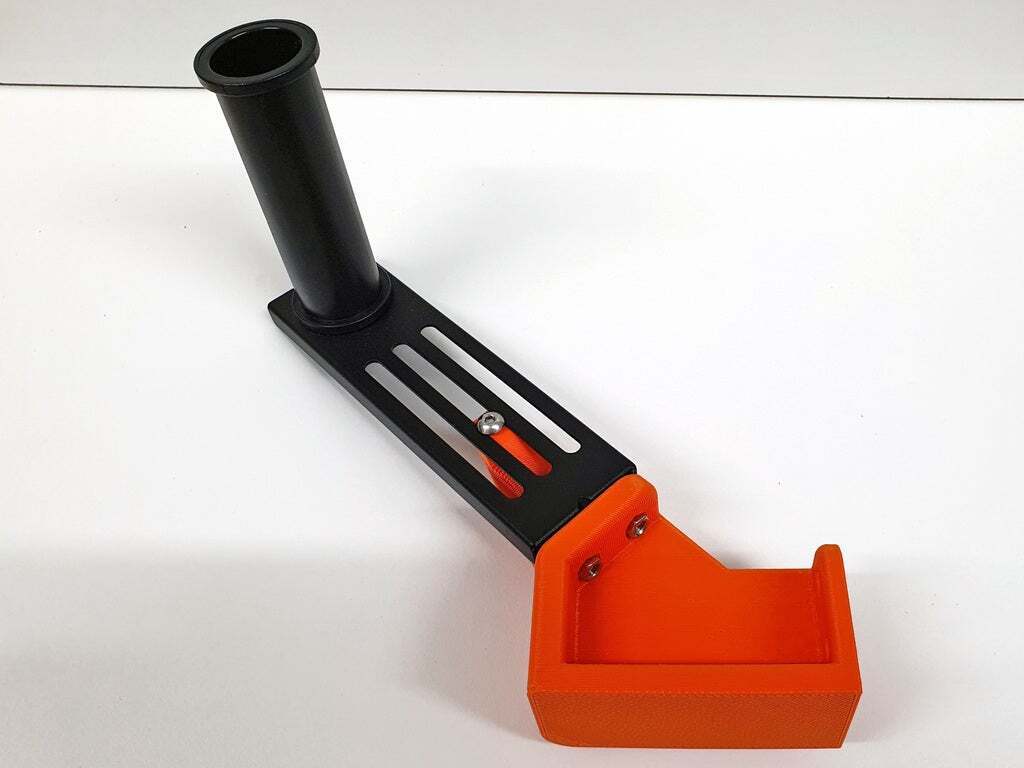

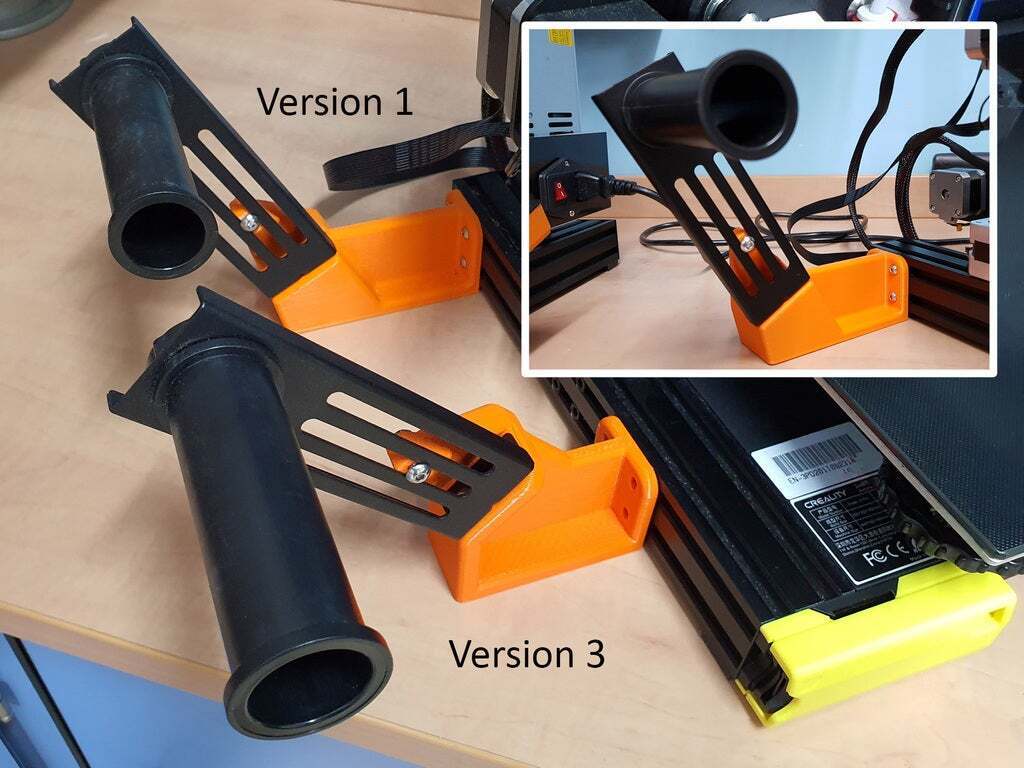

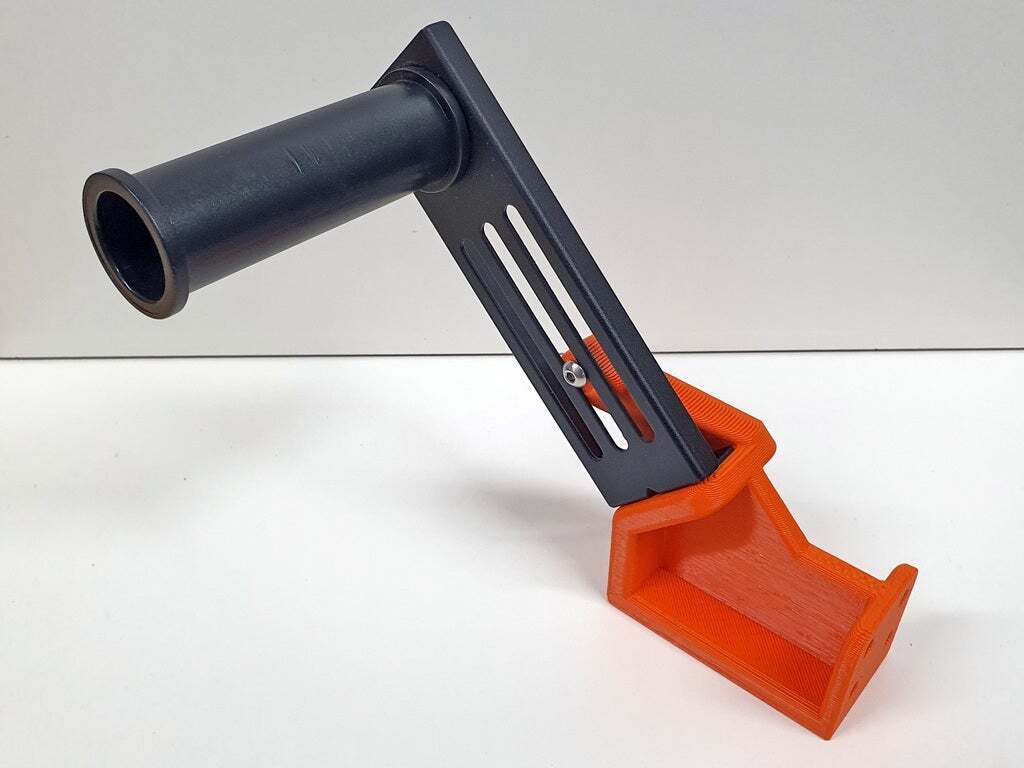

This is a remix of my Side Mounted Spool Holder which prints faster and is easier to assemble.

I have uploaded 2 variations they both effectively do the same job, one uses slightly less plastic.

I have slightly changed the mounting angle for ease of assembly and printing but the spool position is exactly the same as the previous version.

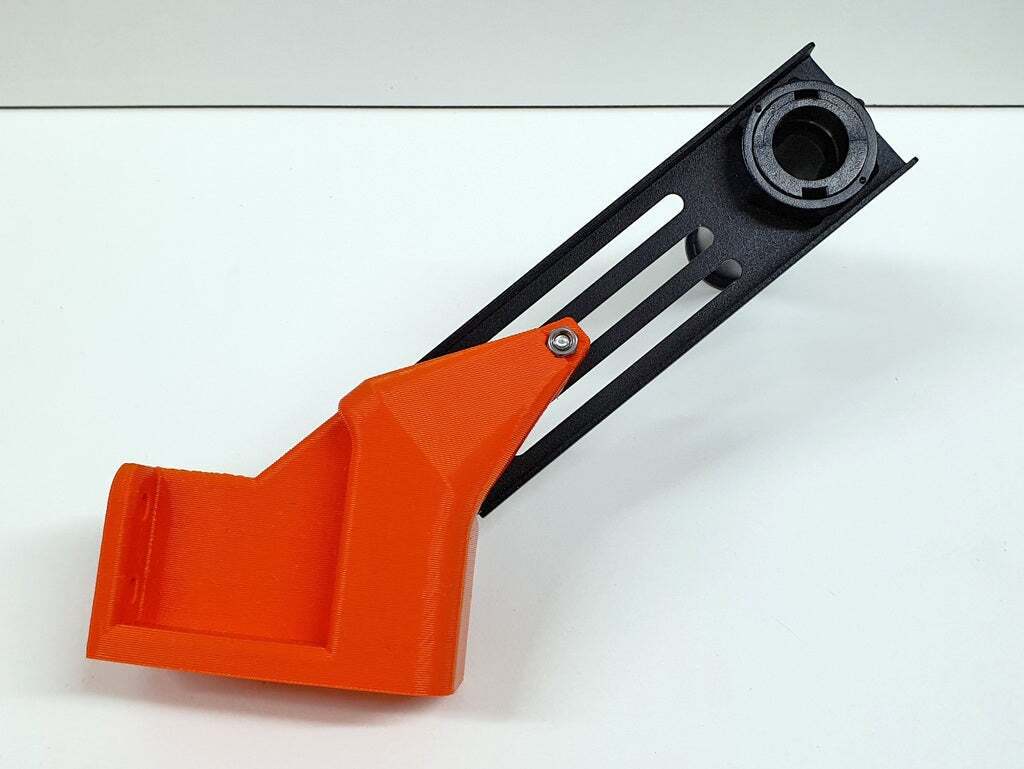

You will need 3 x M5 x 12-16 mm Bolts + Nuts to attach the stock Ender 3 spool holder to the thing. You will also need 2 - 4 M4 x 10 mm Bolts + T nuts to fix into the side 2020 extrusion.

Printed with Amazon Basics Orange PETG, 235C, 70C Bed,.05 resolution, 40mms, 30% infill and 2 perimeters with a 0.8 nozzle. For a 0.4 nozzle increase the perimeters to 3 and print @ 0.2.5 - 0.3 mm layer height.

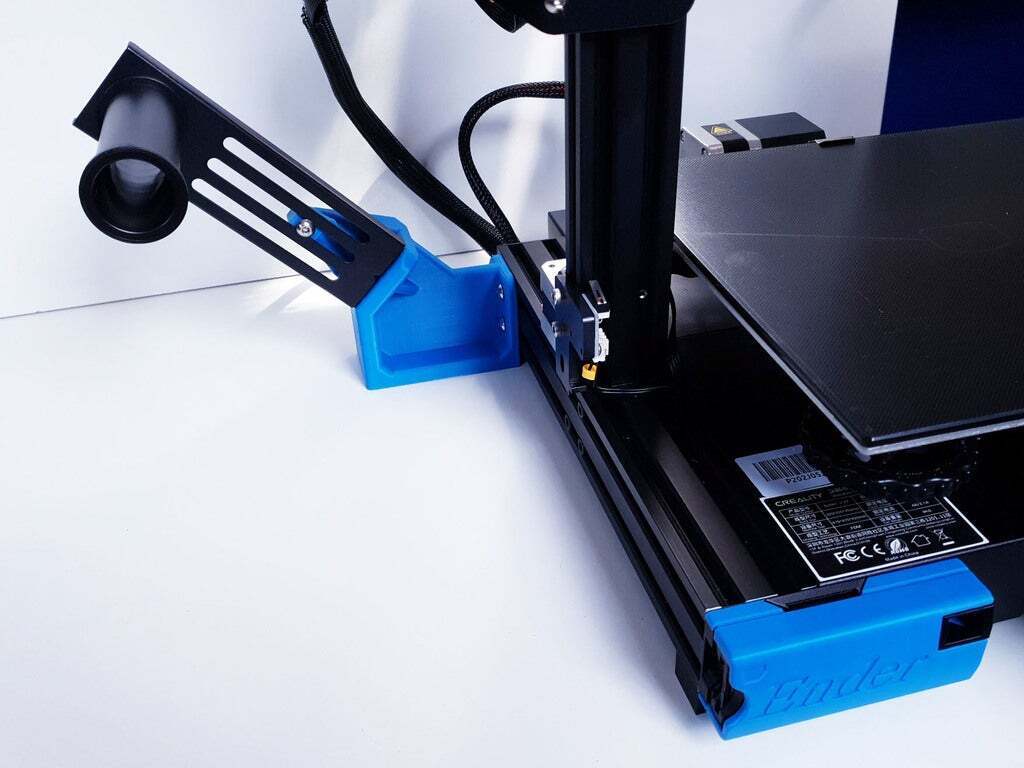

Update:17\08\20 Uploaded new versions with all M5 holes and increased clearance of existing holes. Included versions for the Ender 3 V2 which is 6mm higher.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • Side_Spool_Holder_V3A.stl
    • Side_Spool_Holder_V3B.stl
    • Side_Spool_Holder_V3_1_Ender_3_V1_Version_M5_Holes.stl
    • Side_Spool_Holder_V3_Ender_3_V1_Version_M5_Holes_Less_Plastic.stl

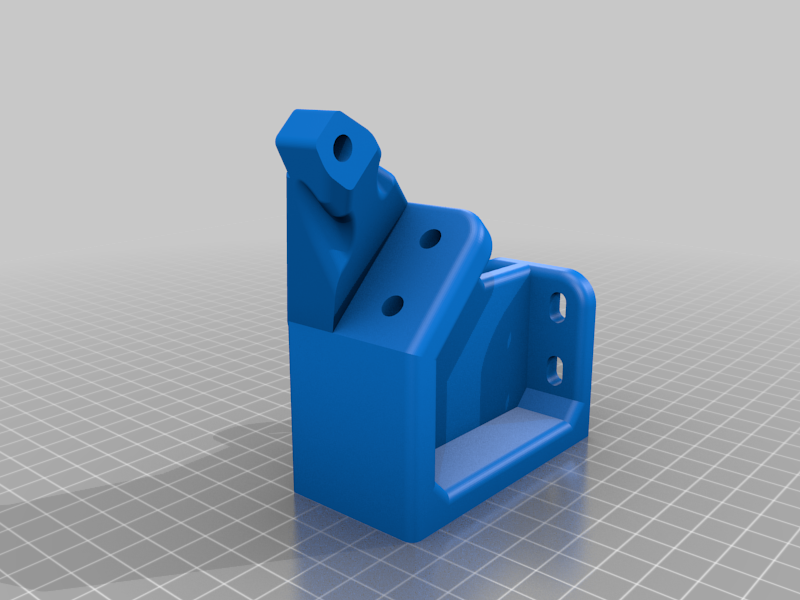

    • Side_Spool_Holder_V3_Ender_3_V2_Version_M5_Holes.stl
    • Side_Spool_Holder_V3_Ender_3_V2_Version_M5_Holes_Less_Plastic.stl
  • Publication date: 2021/05/28 at 01:22

License

CC BY

Tags

Creator

Multi-Disciplinary Professional Designer with 35 years contract experience in Interior, product and Furniture Design. Since receiving a rebadged Wanhau Duplicator Plus (Balco from Aldi) 3d printer from my wonderful wife for Christmas 2018 I am now using my design skills for personal 3D product creation.

3D Printers:

CR-10S
Ender 5
Hypercube Evo
2 X Ender 3 Pros
Ender 3 v2
Prusa Mini Clone
Iframe (not yet published)
