Hand-Screw Clamp
:still():format(webp)/https://files.cults3d.com/uploaders/4112983/illustration-file/000726cd-5267-4246-868c-a9e30af1afd9/3D%20Printed%20Hand-Screw%20Clamp%20Free%20STL%20JakeJake%20Cults7.jpg)
?
Creation quality:
5.0/5
(8 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 89.8k views
- 652 likes
- 6.2k downloads
- 6 comments
- 8 makes
Designer
3D model description

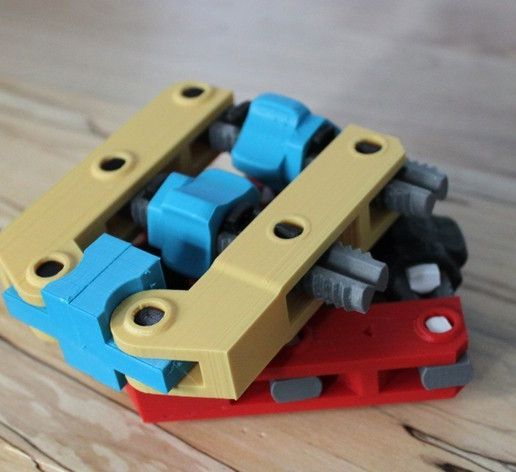

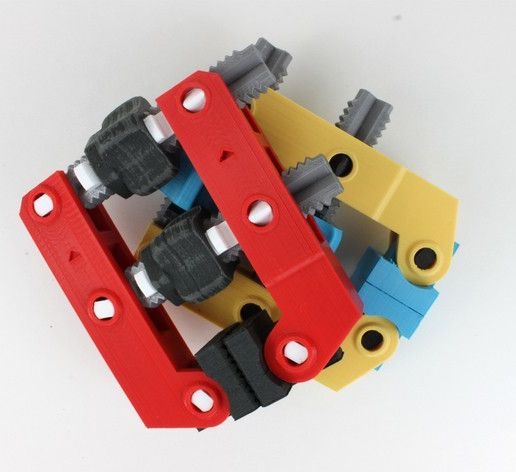

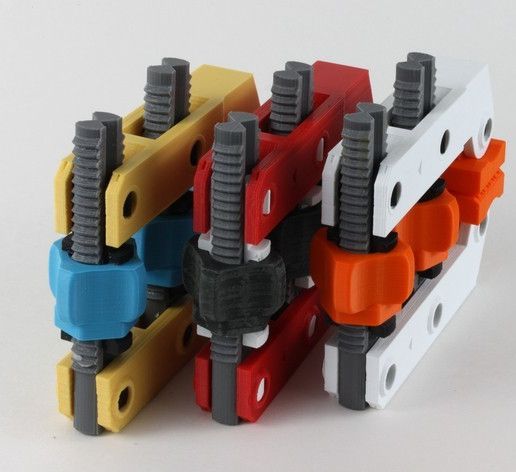

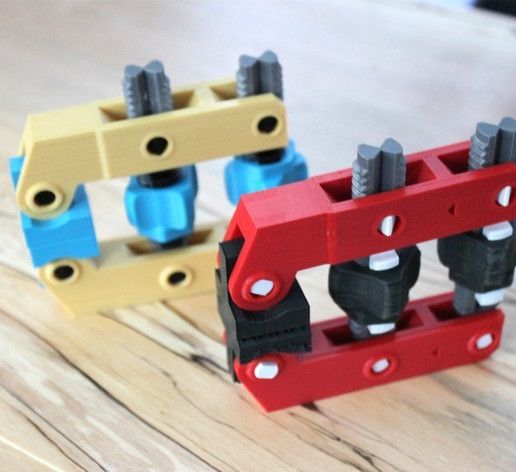

My goal with this thing was to make a clamp that was as strong as possible, with 3d printed parts only. For this, careful consideration needed to be made so that each part respects the grain of the 3d print. It is, however, still a 3d printed plastic clamp, so don't get too crazy with it!
3D printing settings
I printed everything with standard draft settings, in PLA. Through testing, I found that the small "SlideHinge" parts are always the first things to fail. They break off at the very tip of the end that captures the rotating knob. So if you wanted it stronger with minimal changes, you could print the "SlideHinge" part solid.
Assembly video:
https://youtu.be/MIiluSksuhI

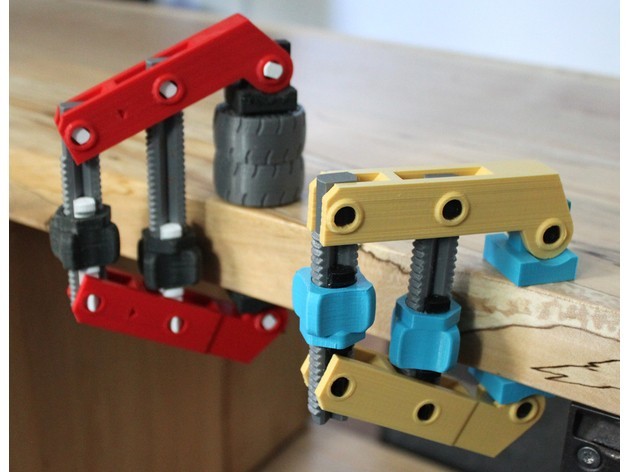

Watch this thing crushing stuff:
https://youtu.be/ECYQ5PWOezY
3D printer file information
- Design number: 12490
-
3D design format: STL Folder details Close
- Jaw1.STL
- Jaw2.STL
- Knobx2.STL
- Padx2.STL
- Pinx4.STL
- SlidingHingex4.STL
- Threadsx2.STL
- Publication date: 2017-06-26 at 10:30
License
CC BY-NC-SA - Attribution - Non commercial - Share alike
