Flashforge Creator Pro Super Duper Spool Hanger

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 518 views
  • 8 downloads

3D model description

Edit: Sep-19-2016: changed the design to metric.

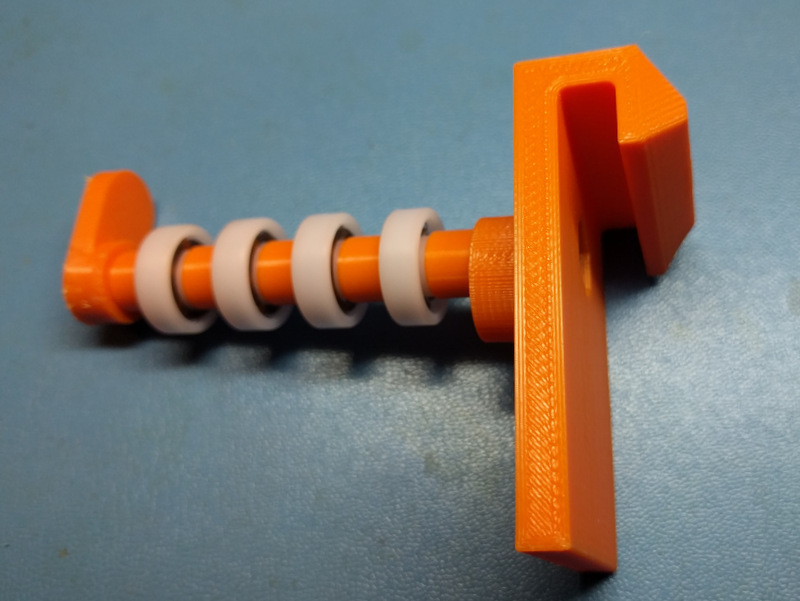

This is a super duper hanger for the Flashforge Creator Pro and similar printers. This design has a few advantage

  • Bearings based, virtually zero friction.
  • Easy to mount and remove the spool. No screwing required.
  • Easy to install and remove holder from the printer (e.g. in tight places)
  • Fits all common spool form factor and spool holes, including Hatchbox spool with 1" hole.

Printing: print in the orientation of the provided STL file. This orientation will provide the max strength. I printed with ABS, 4 bottom/side/top layers, 0.2mm layers with 0.4mm nozzle, 20% infill and support material from the printing bed to that large round bump.

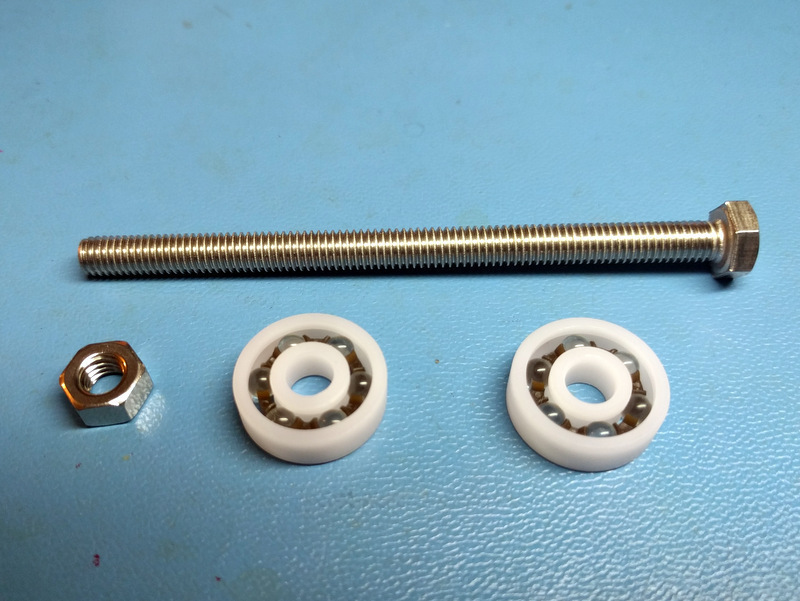

Materials: M6*90 screw (e.g. https://www.amazon.com/gp/product/B0143ACXD4), 4 X 626 bearings (I prefer the plastic/glass type, search ebay for '626 Plastic Nylon POM Ball Bearings', they turn smoothly, open don't require lubrication, don't rust, and light weight), and an M6 hex nut.

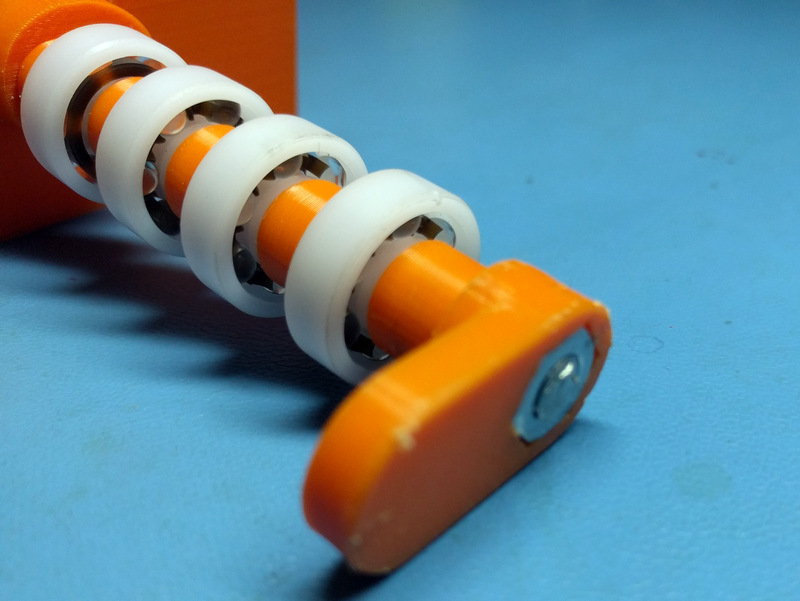

Assembly: debar the spacers and other holes (use a debarring tool such as Shaviv or a large drill bit) insert the bolt into the base, inserts the spacers and bearings insert the end piece and the nut and tighten everything.

Verifying your assembly:
* Make sure that all the bearings turn freely. The spacers are designed with chamfer at their ends to make sure the touch only the center part of the bearings.
* Make sure the end piece is well tighten and that it is pointing up. If it doesn't point up, release it, release, turn the bolt in the base a third of a turn or so and tighten again.

  • 3D file format: SCAD and STL
  • Publication date: 2020/01/29 at 21:02
