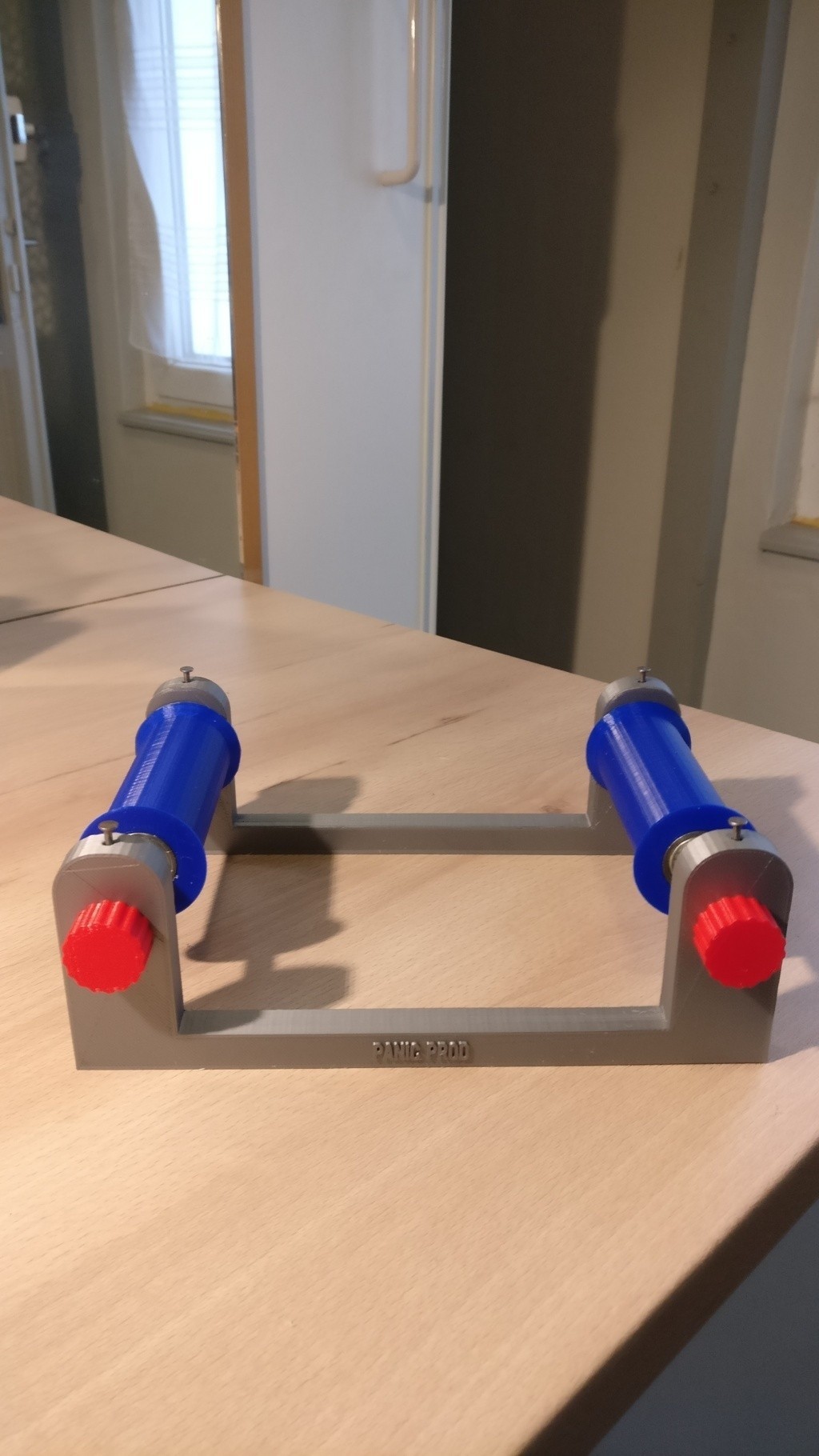

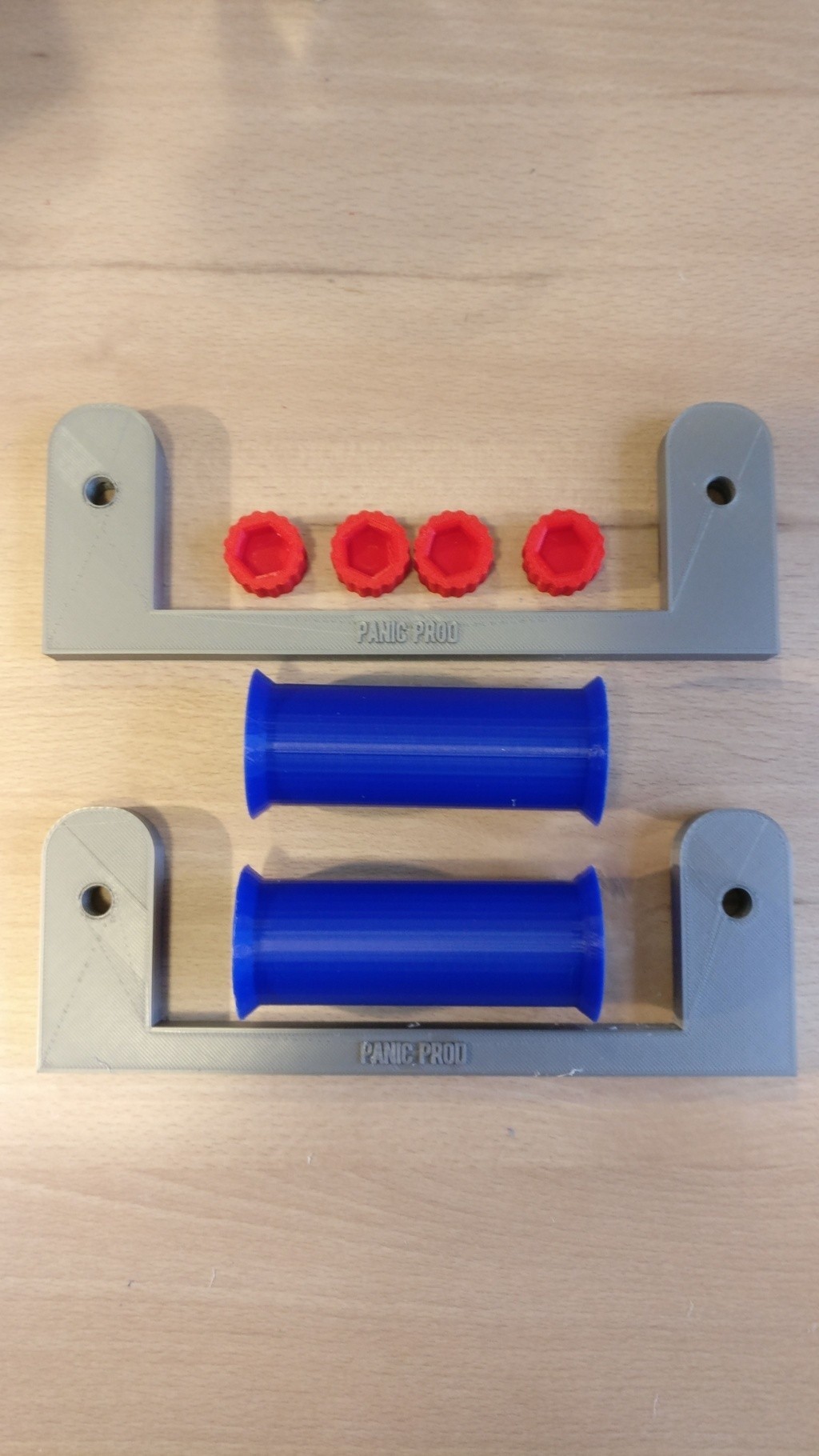

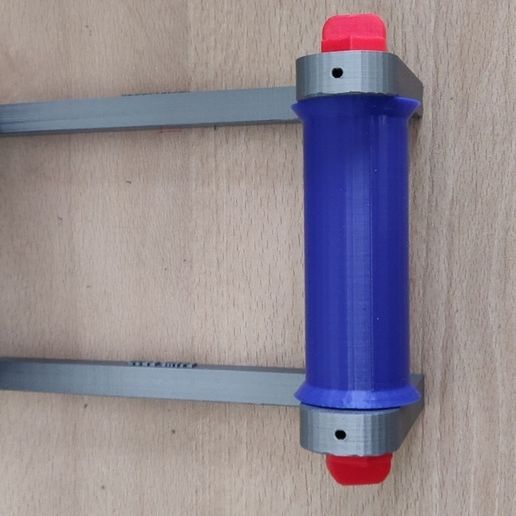

This is a filament reel dispenser, composed of eight parts, with two assembly versions, either by threaded rods or by pins.

Version 1:

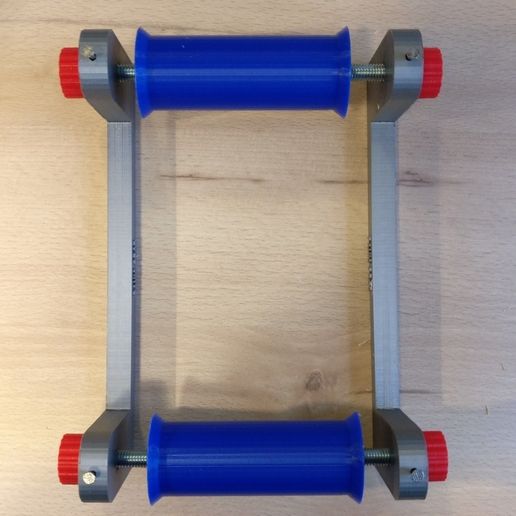

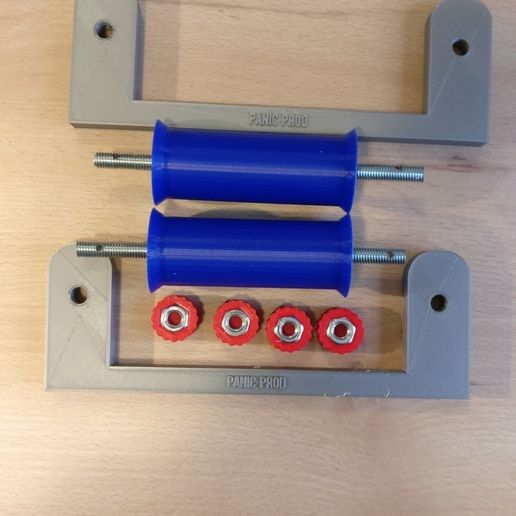

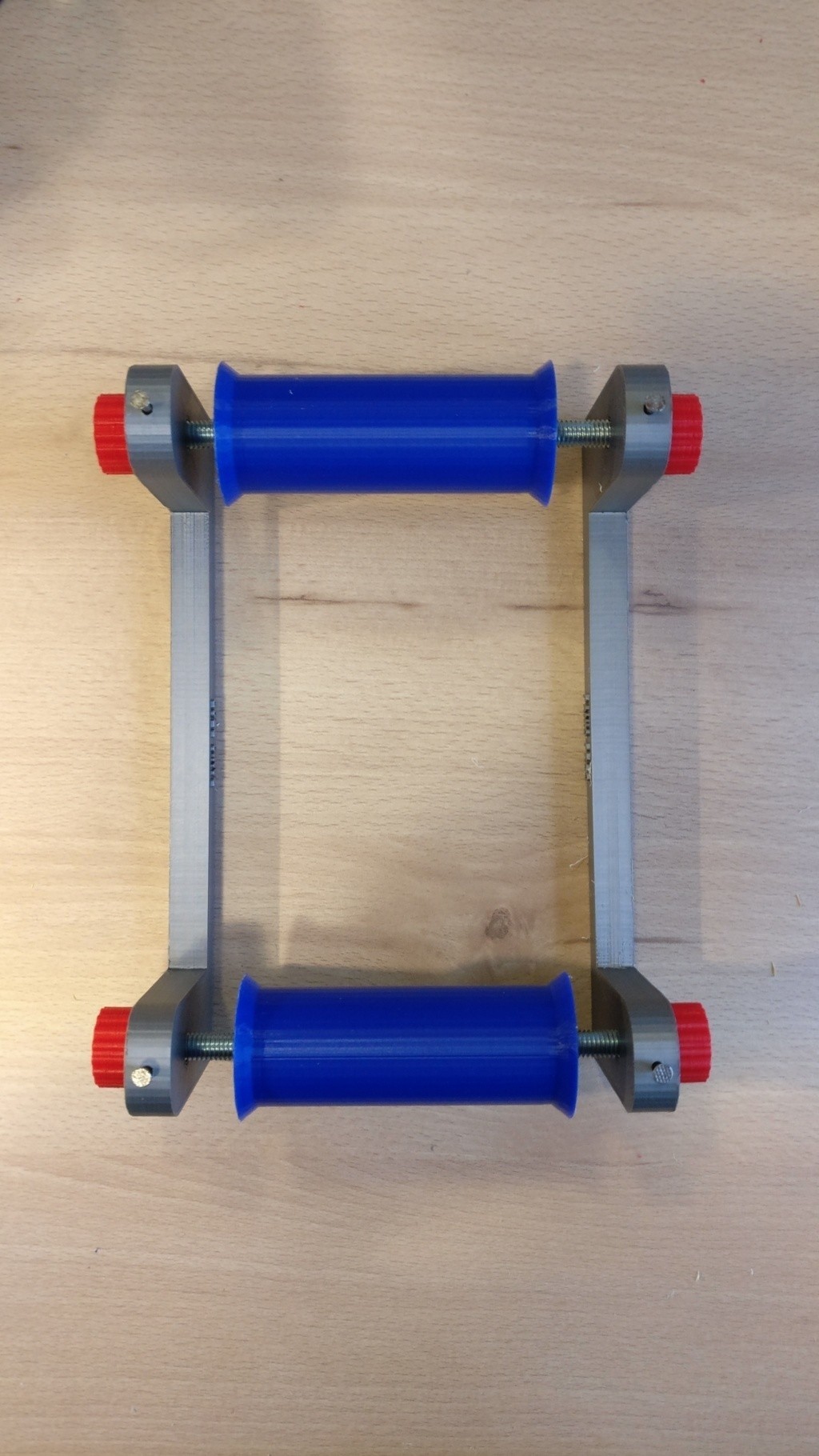

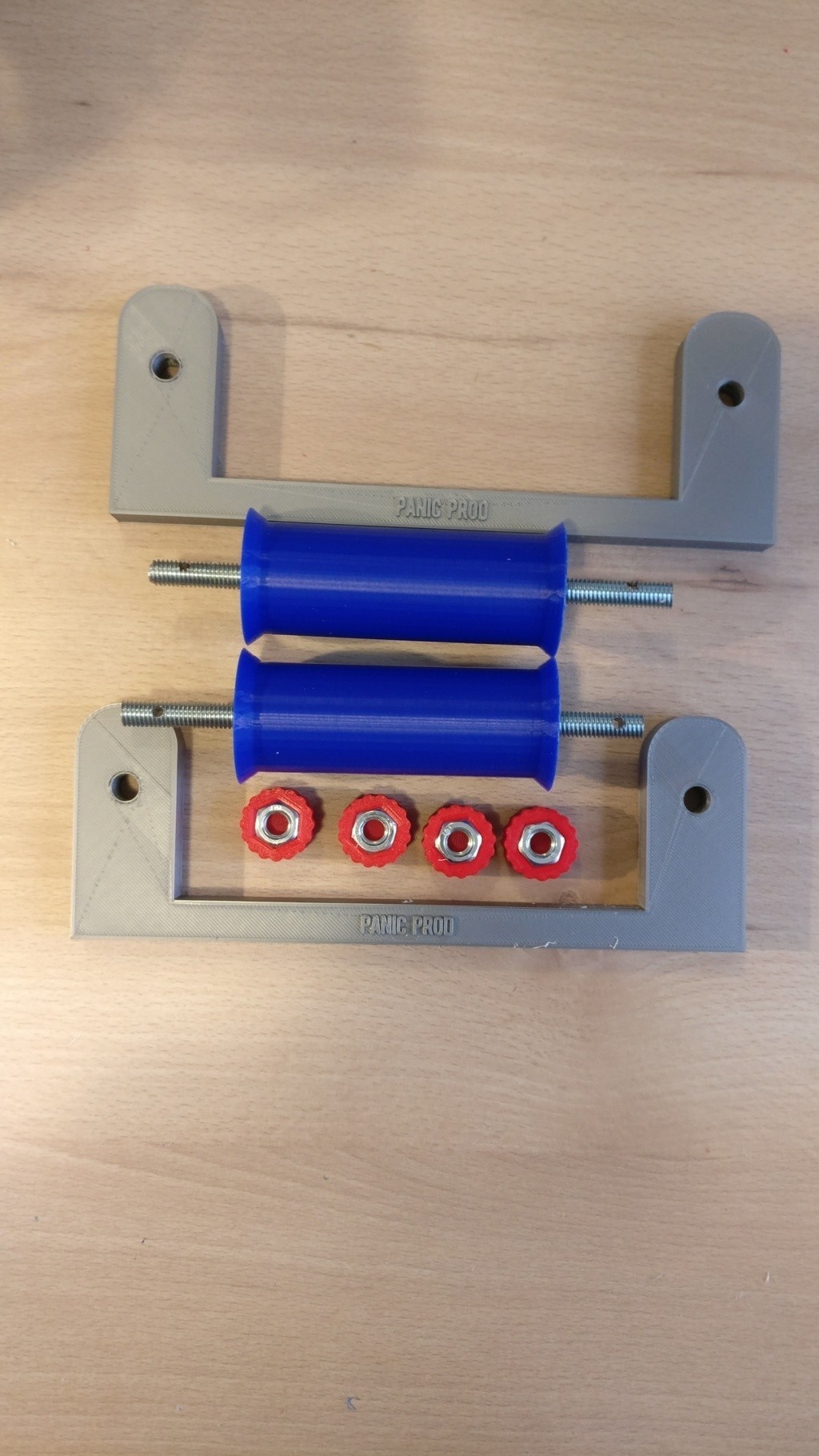

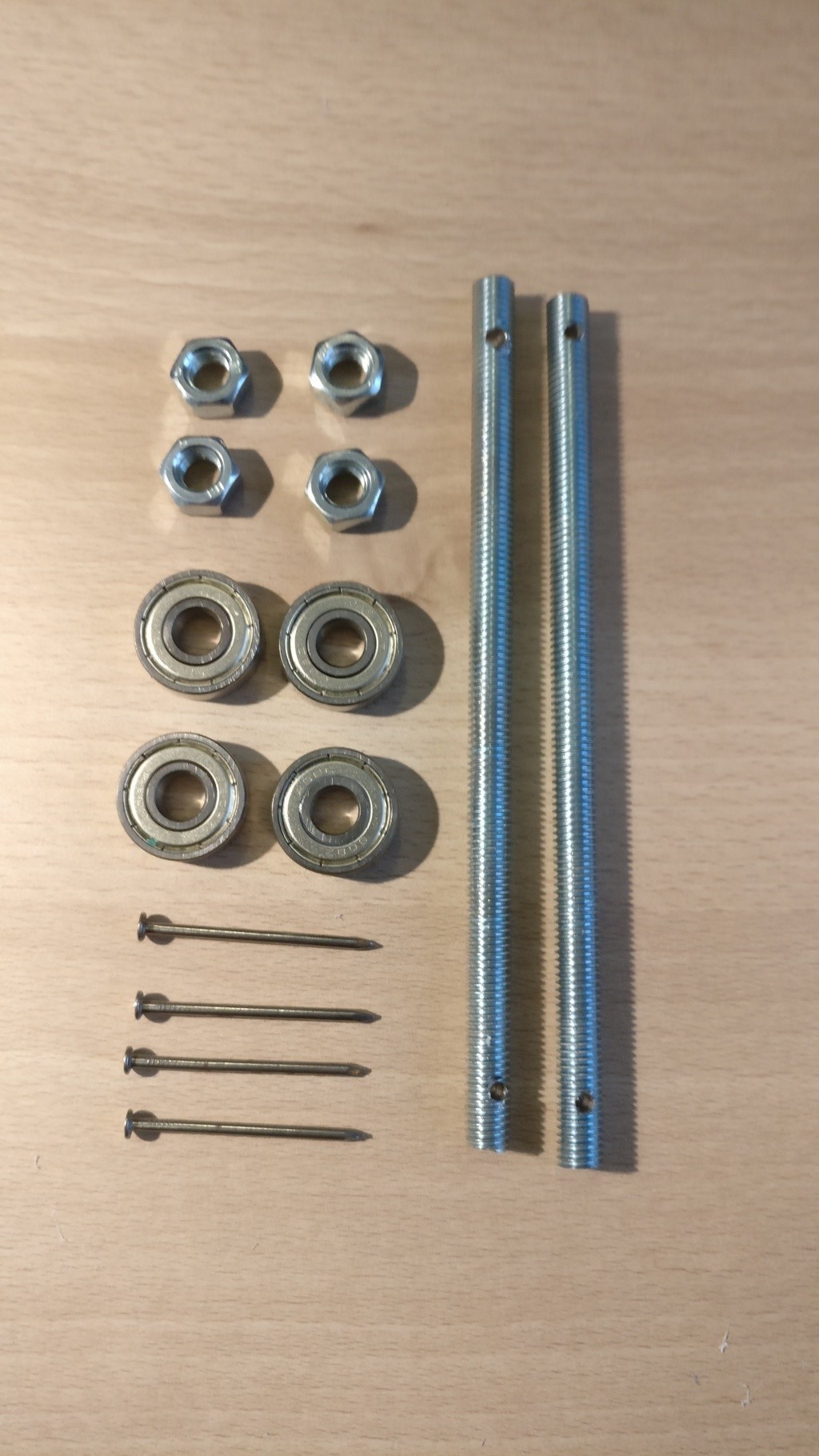

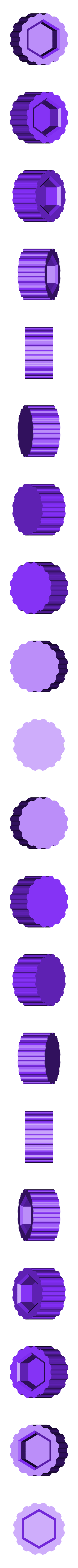

2 supports, 2 rollers, 4 wheels. To assemble everything, you will need: 2 8 mm threaded rods that you will cut to the length of your choice, 4 M8 nuts, 4 608Z ball bearings (22 x 8 x 7) and 4 40 mm pins, which will act as pins. The threaded rods must be drilled in their axis at 1 cm from their ends.

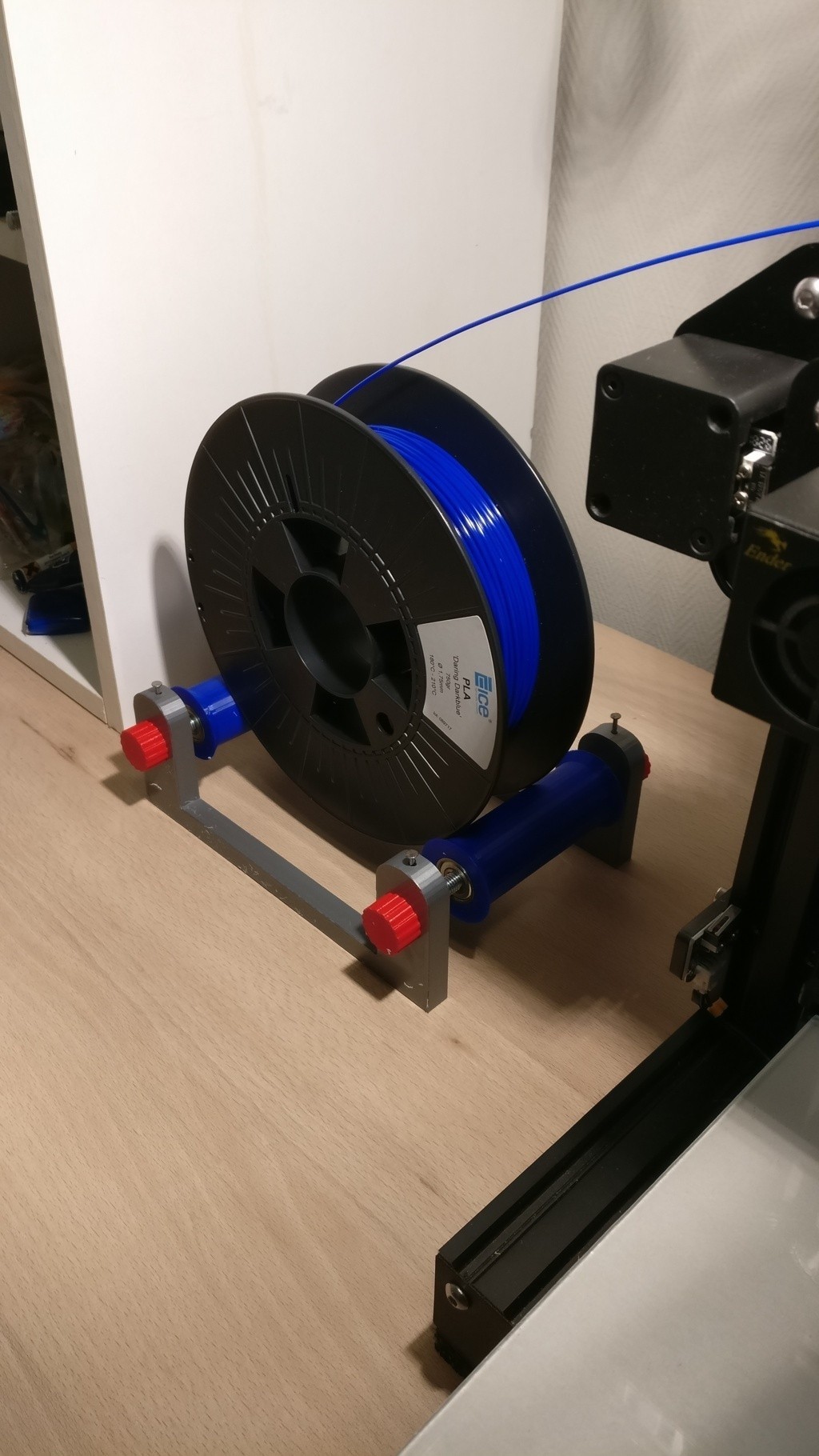

A little DIY, certainly, but in the end, a very practical accessory, which avoids having the coil resting on the printer, and with this system, the angle of entry of the filament into the extruder is impeccable.

Version 2 :

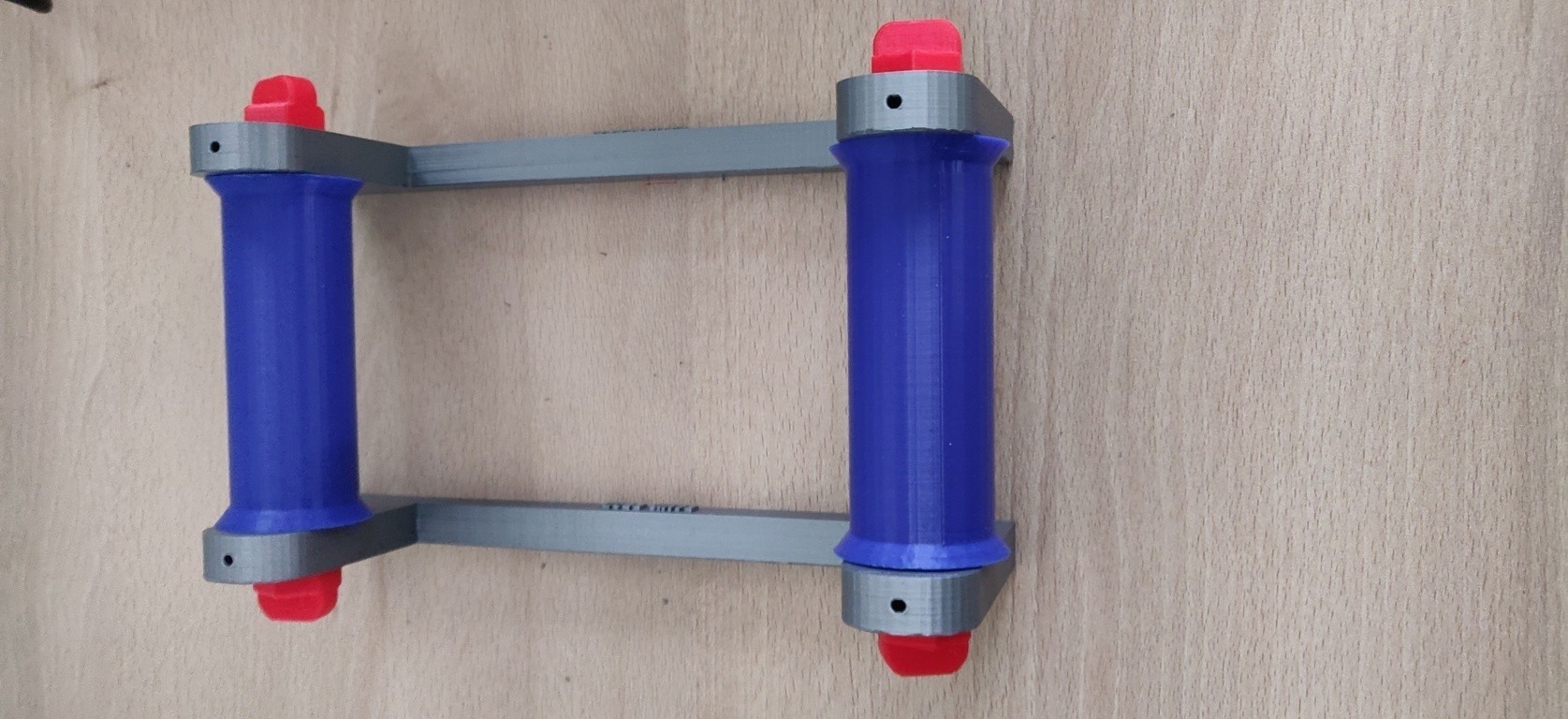

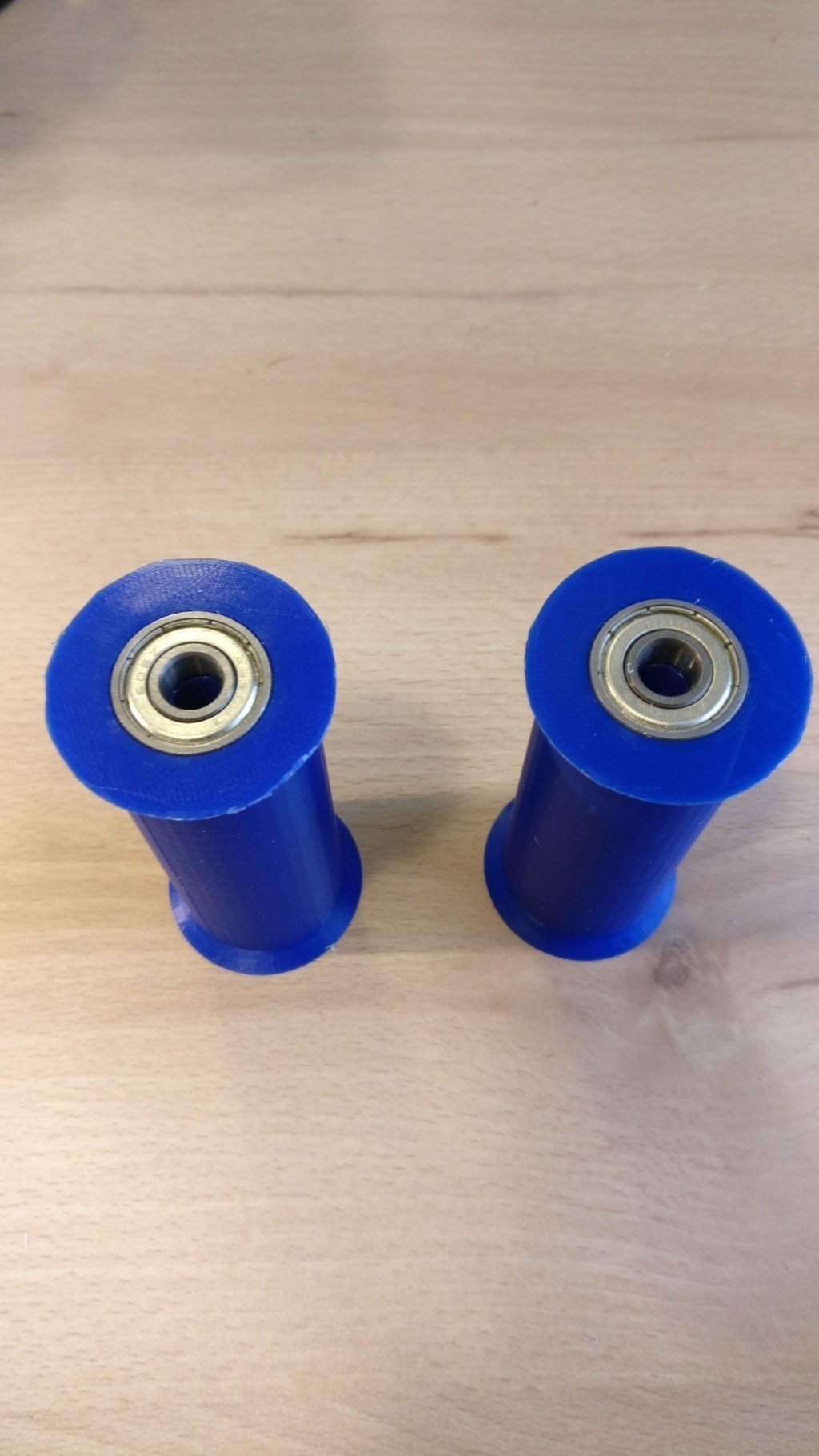

2 Supports, 2 rollers, 4 pins, 4 bearings 608Z.

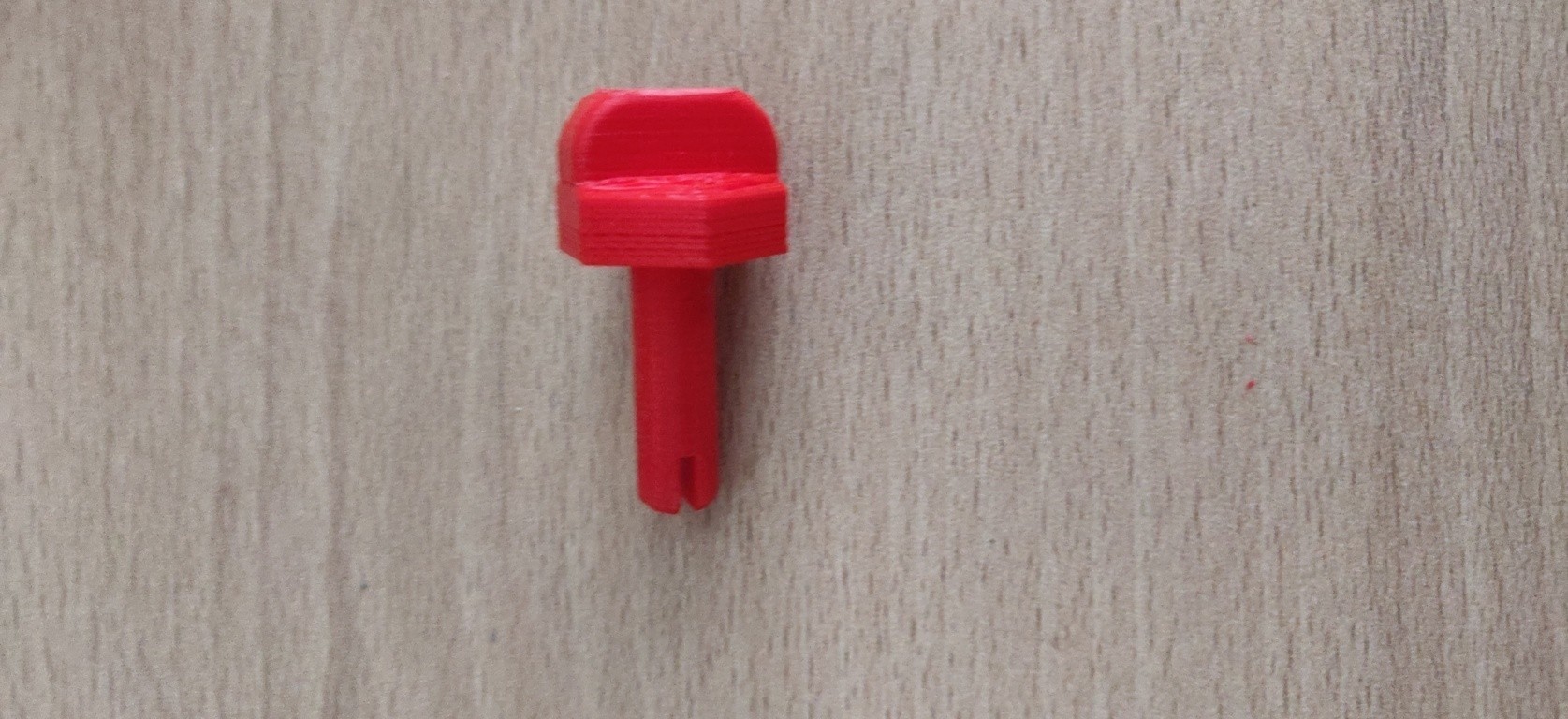

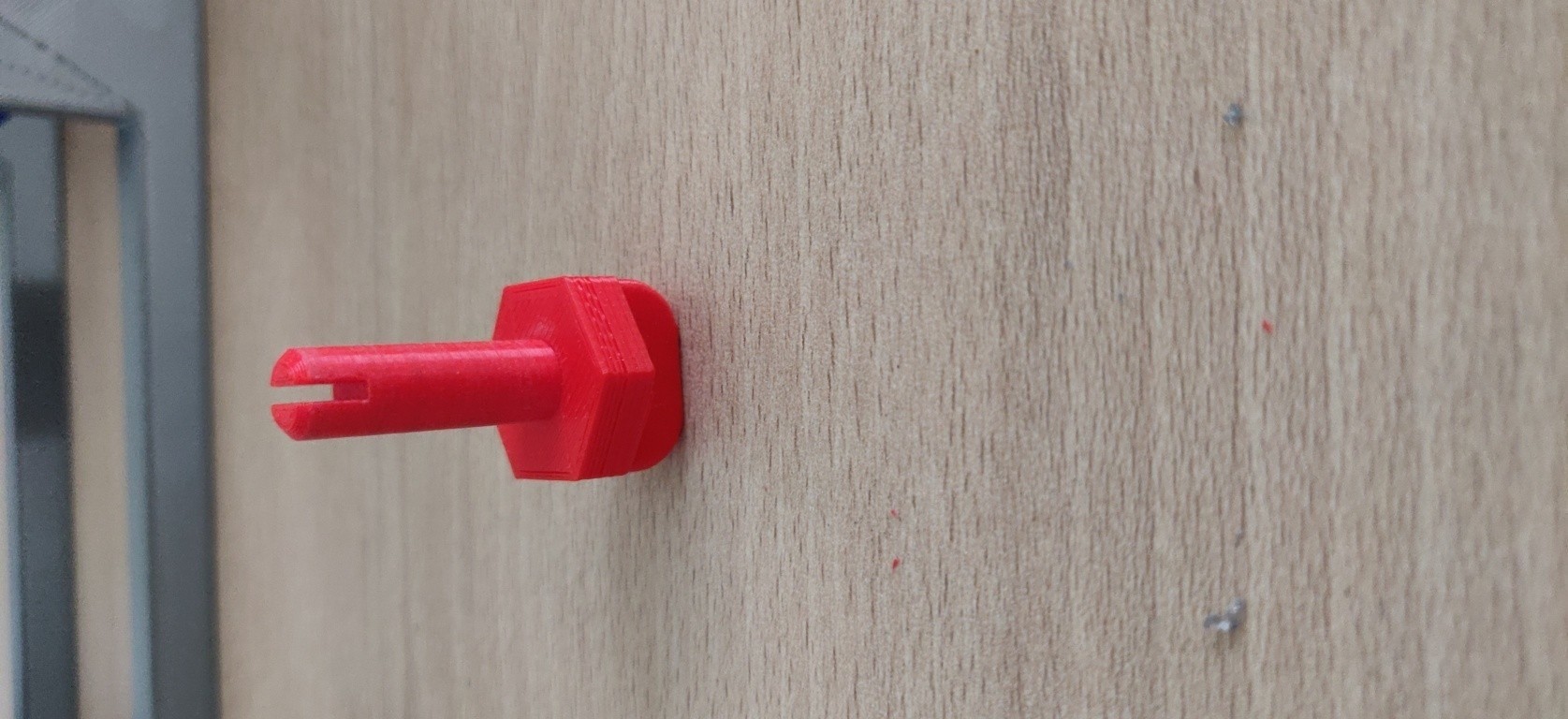

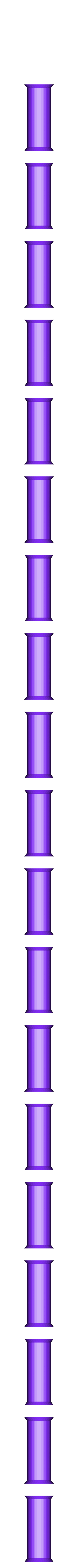

I modelled, for the non do-it-yourselfers, a pin that replaces the threaded rod, just put one in each bearing, and that's it.

To optimise the adhesion of the coil to the rollers, simply glue a flexible coating strip for the bottom of the drawers, sold as a GSB roll, especially at LM. Once done, there are no more slippages between the coil and the roller. The process is very smooth.

3D printing settings

Modeling with FreeCad.

Slicer: Cura.

Printer : Creality Ender 3

Height of layer: 0.2 mm

Filling: 20%.

Tray grip: edge

Support: only for rolls, printed upright

Printing time :

2 supports: 5 hours

2 rolls: 4 hours 30 minutes

4 wheels: 50 minutes.

4 pins: 1 hour 50 minutes (30% filling)
