Rotary USB key holder

3D model description

Here is an improvement of my usb key holder.

It differs from the first by the installation of a ball bearing and a plate that allow it to rotate on itself. It is therefore easier to choose the key, simply by giving it a small impulse.

You will need a 608Z bearing.

3D printing settings

Modeling: FreeCad

Slicer: Cura

Material: PLA 1.75

Layer height: 0.2

Filling: 20%.

Supports

Adhesion: Edge

Nozzle temperature: 200° C

Temperature of the tray: 60° C

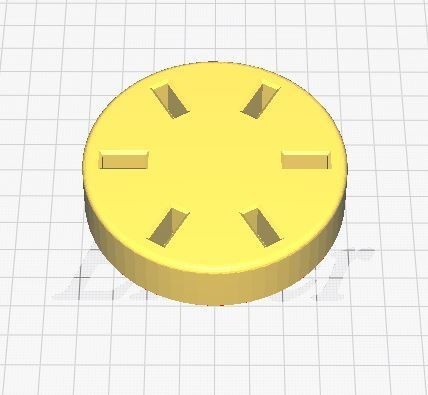

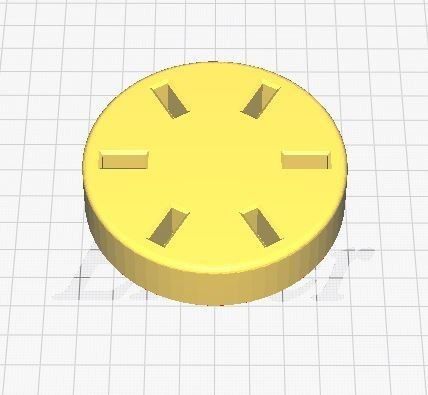

Support size :

Diameter: 80 mm

Height: 18 mm

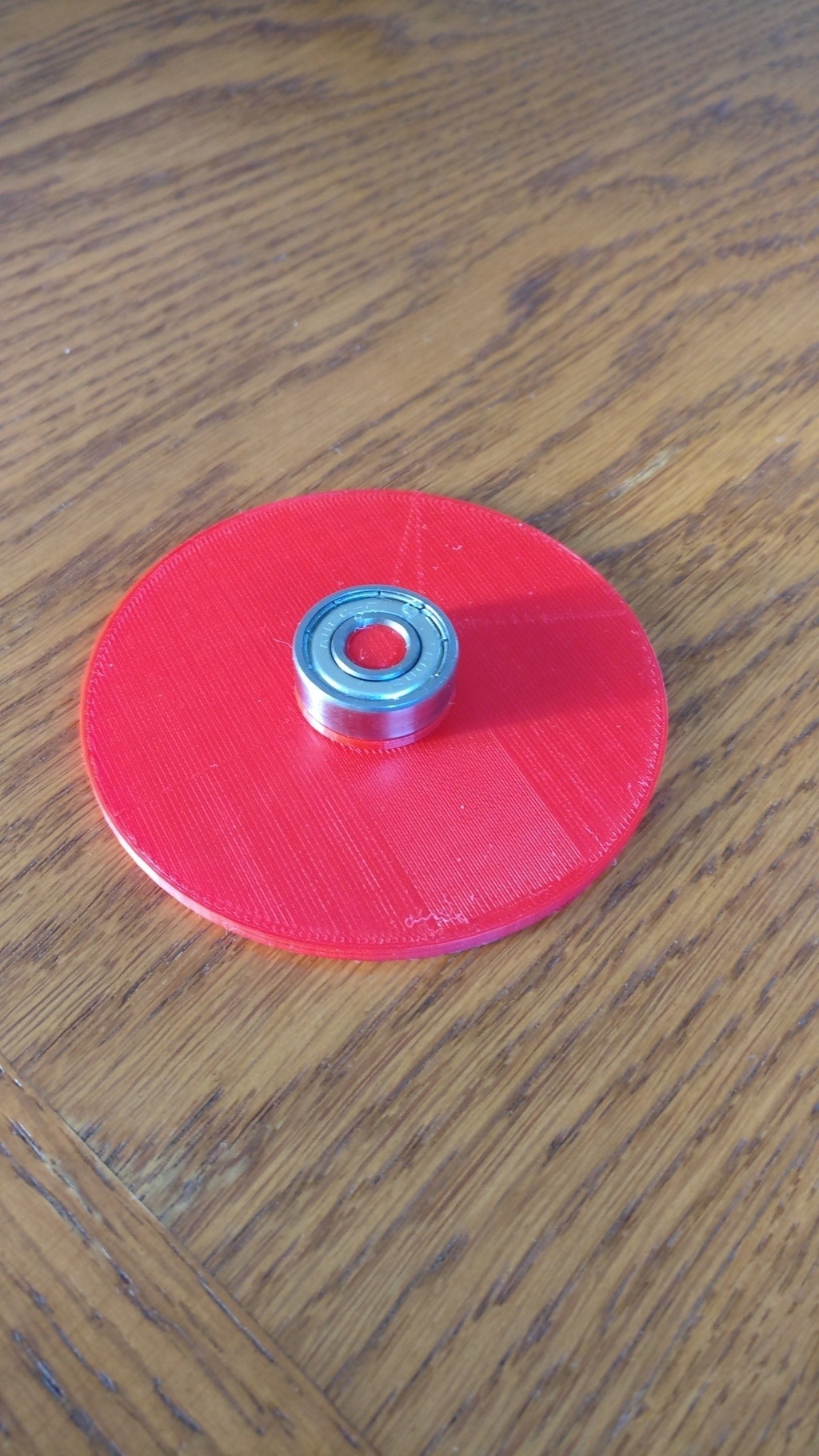

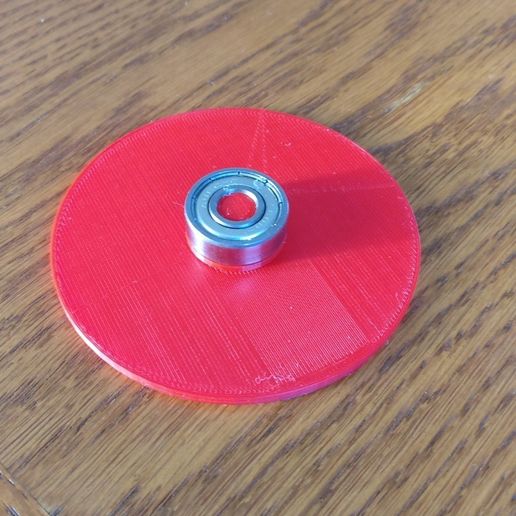

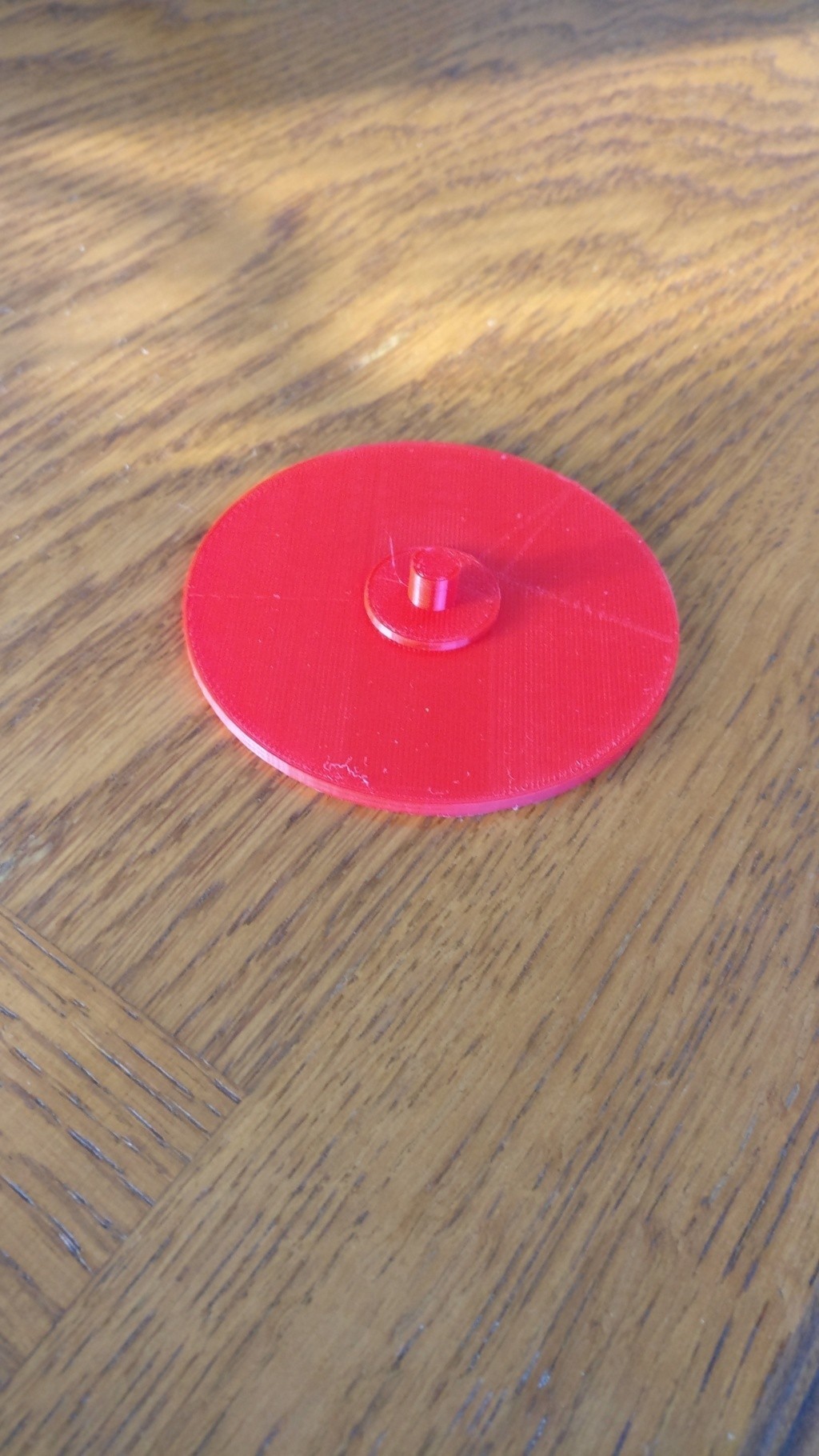

Dimension of the board:

Diameter: 80 mm

Height: 3.2 mm

Bearing seat: 1.5 mm

Total height: 22.7 mm

  • 3D model format: STL

Tags

Creator

License

CC BY NC ND
