Chromatik 750g vertical spool

Download free STL file Chromatik 750g vertical spool • 3D print model, AllezlomDownload free STL file Chromatik 750g vertical spool • 3D print model, AllezlomDownload free STL file Chromatik 750g vertical spool • 3D print model, AllezlomDownload free STL file Chromatik 750g vertical spool • 3D print model, AllezlomDownload free STL file Chromatik 750g vertical spool • 3D print model, AllezlomDownload free STL file Chromatik 750g vertical spool • 3D print model, Allezlom

Did you 3D print this model?

3D model description

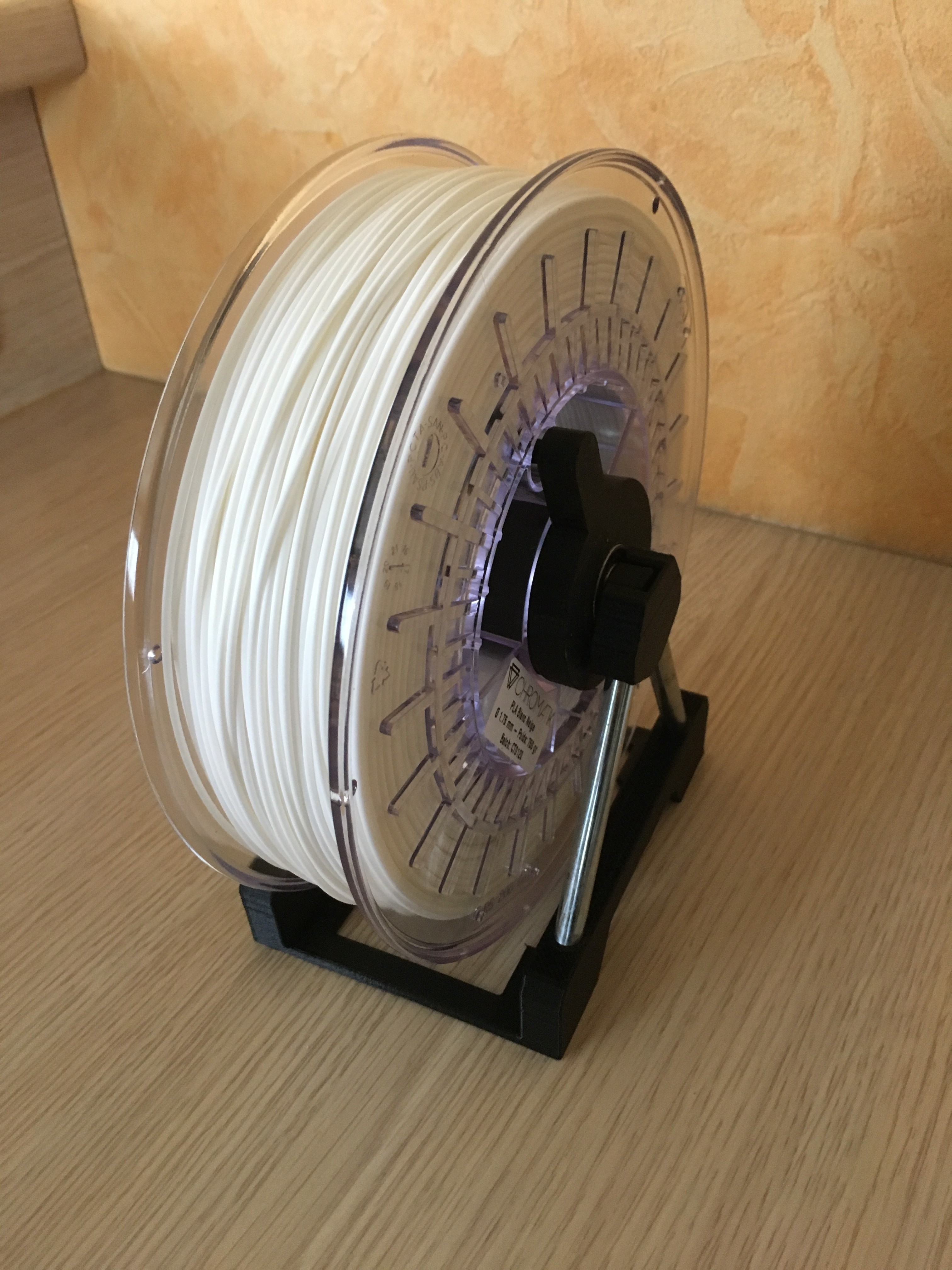

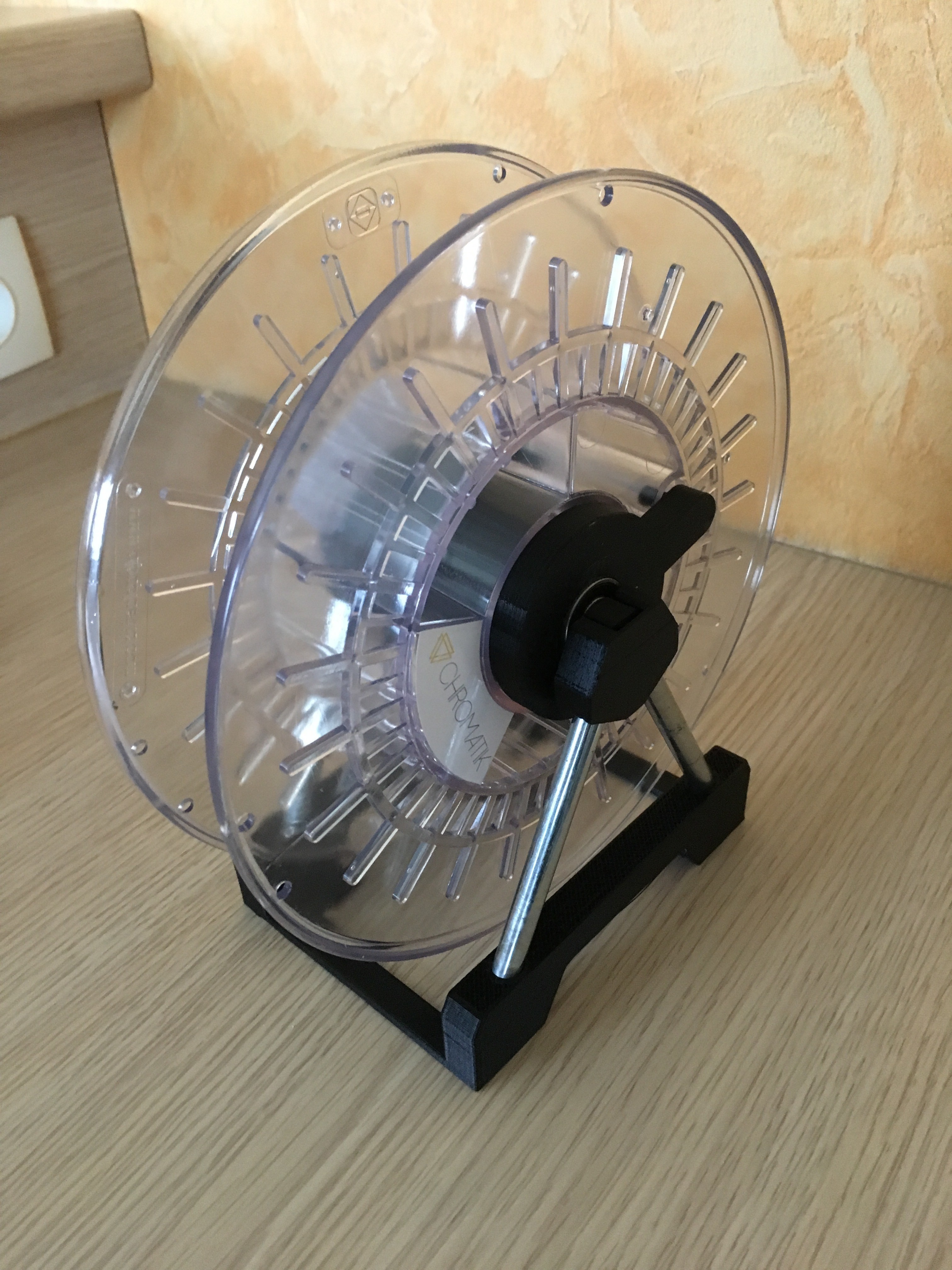

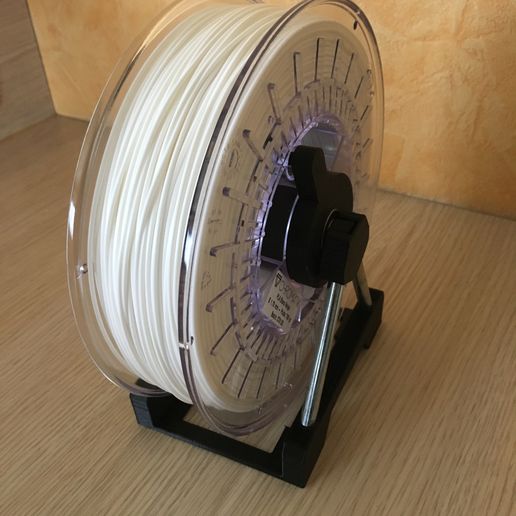

Having just bought my first 3D printer, I realized my first impression by printing the Dagoma horizontal roller. Not practical. For coils with a diameter of 200 mm of Chromatik, the filament relaxes and releases the blanks of the coil which can jam. Having two bearings that did not serve, I had the idea to design my own unwinder.

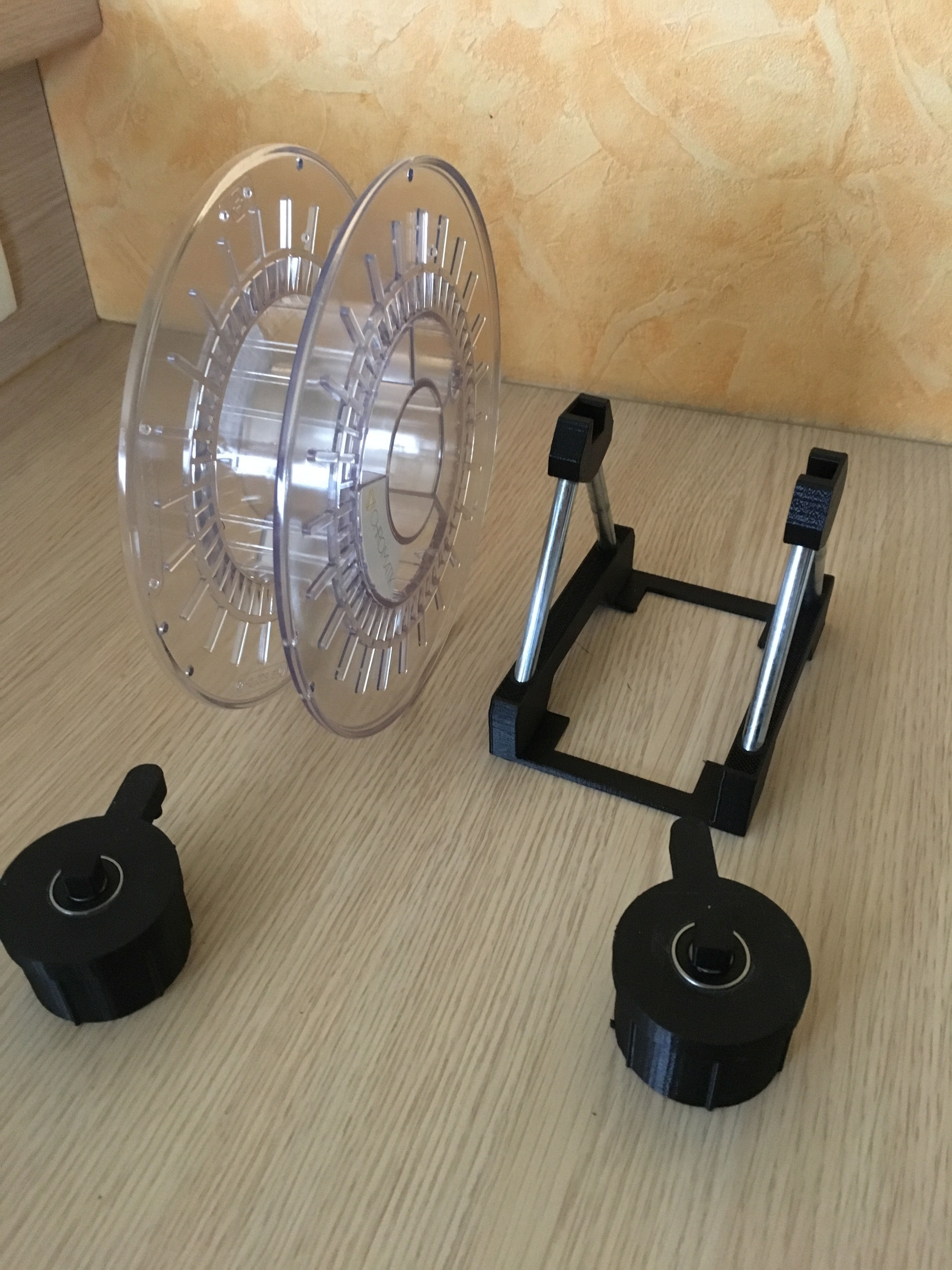

Unwinder consisting of:
- 2 bearing 608RS ext. 22 mm, axis. 8 mm ep. 7 mm
- 4 rods diameter 8 mm length 91 mm

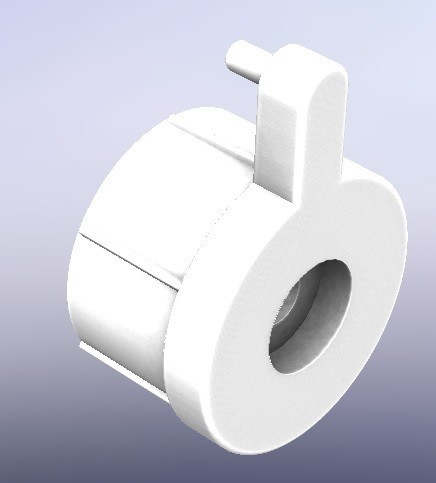

- 2 printed hubs

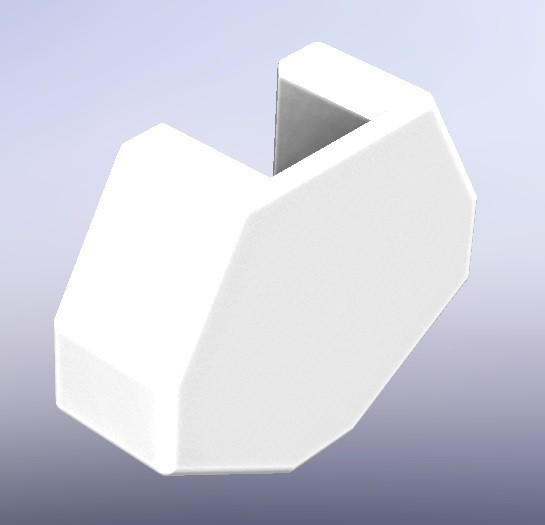

- 2 printed axis supports
- 2 printed axes

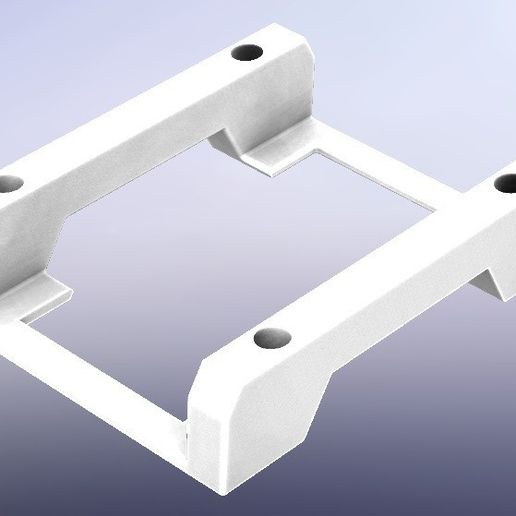

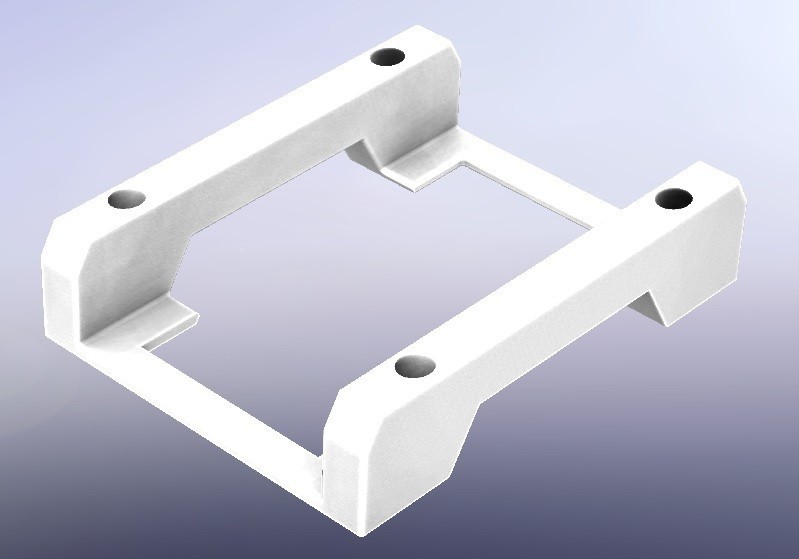

- 1 printed foot

3D printing settings

Printing on Dagoma Discoeasy 200 prepared with Cura
- hull
- fast (0.2 mm)
- with support for parts touching the footplate only
- Printing time: 2h49 foot, 2 axes 12 min, Axis 37 min, 2 hubs 2h43

  • 3D file format: STL

Tags

Creator

License

CC BY NC SA

Page translated by automatic translation. See the original version.


Best sellers of the category Tool


Add a comment

One comment

Merci pour ce dérouleur bien sympathique (même s'il faut un peu forcer, au risque de casser la structure...).
Avec quel logiciel modélisez-vous vos objets ?
