Customizable Penny Weight / Coin Compartment

Did you 3D print this model?

3D model description

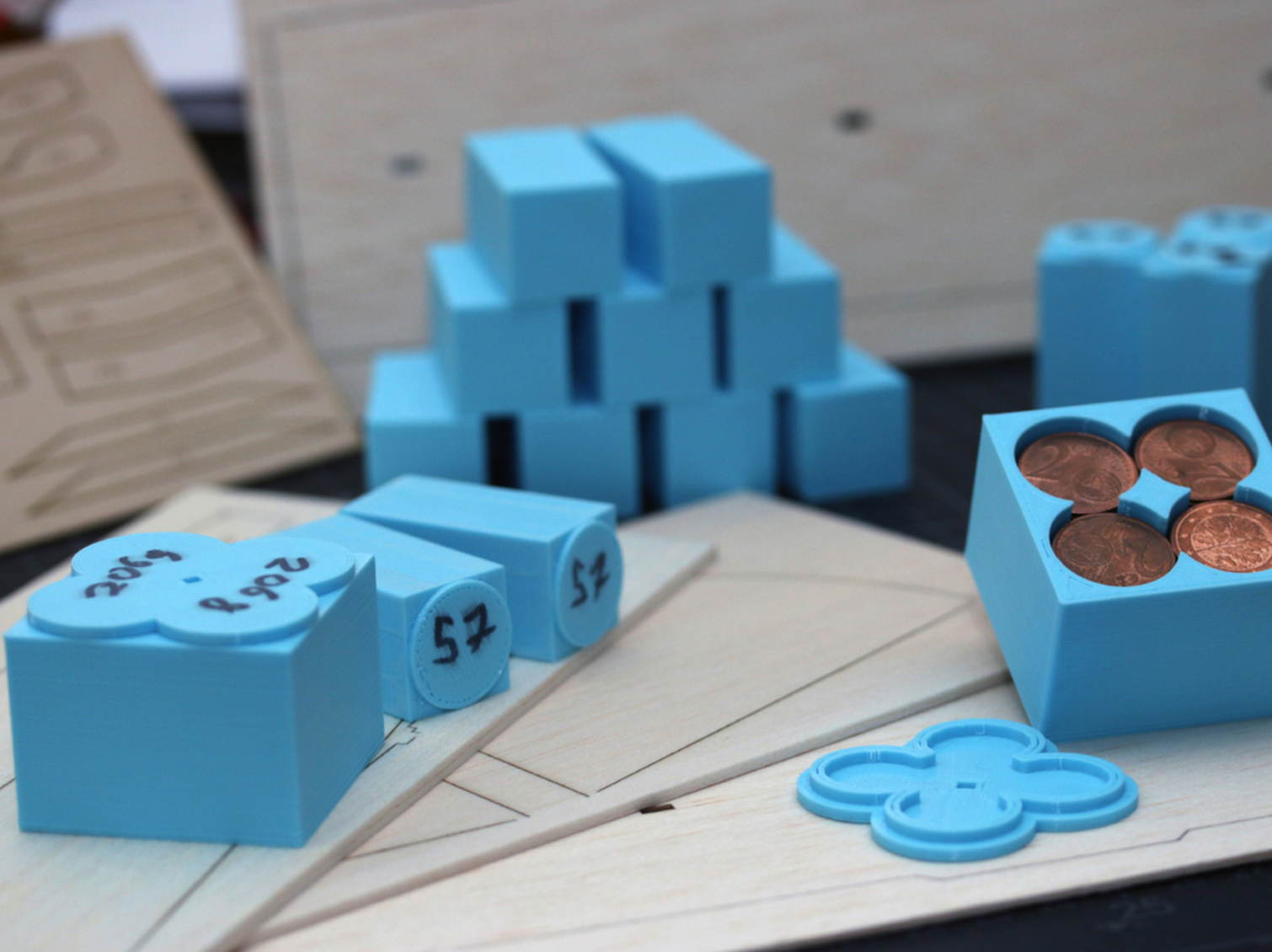

After building a Flite Test foam plane, I want to create sailplane from a balsa kit. For this kit I need some weights and because I have many euro cents, I had the idea to create a parametric box, where I can set the coin diameter, the height of the chamber(s) for the stacked coins and the number of chambers. Now, I have enough weights to start with the balsa kit.
And maybe, there is someone else, who needs some weights or maybe these boxes for another purpose, like a silver coin compartment.

You can use the Customizer or the OpenSCAD file to customize your own weights or compartments with your currency. All parameters have a detailed description.

Update
2017-06-02:

added an option to choose which parts needed (box, lid or both)
added opening slot to remove the lid with a flathead screwdriver

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Rafts:
Doesn't Matter

Supports:
No

Resolution:
1/2 of nozzle diameter. E.g. 0.2mm layer height with 0.4mm nozzle

Infill:
25%

Post-Printing

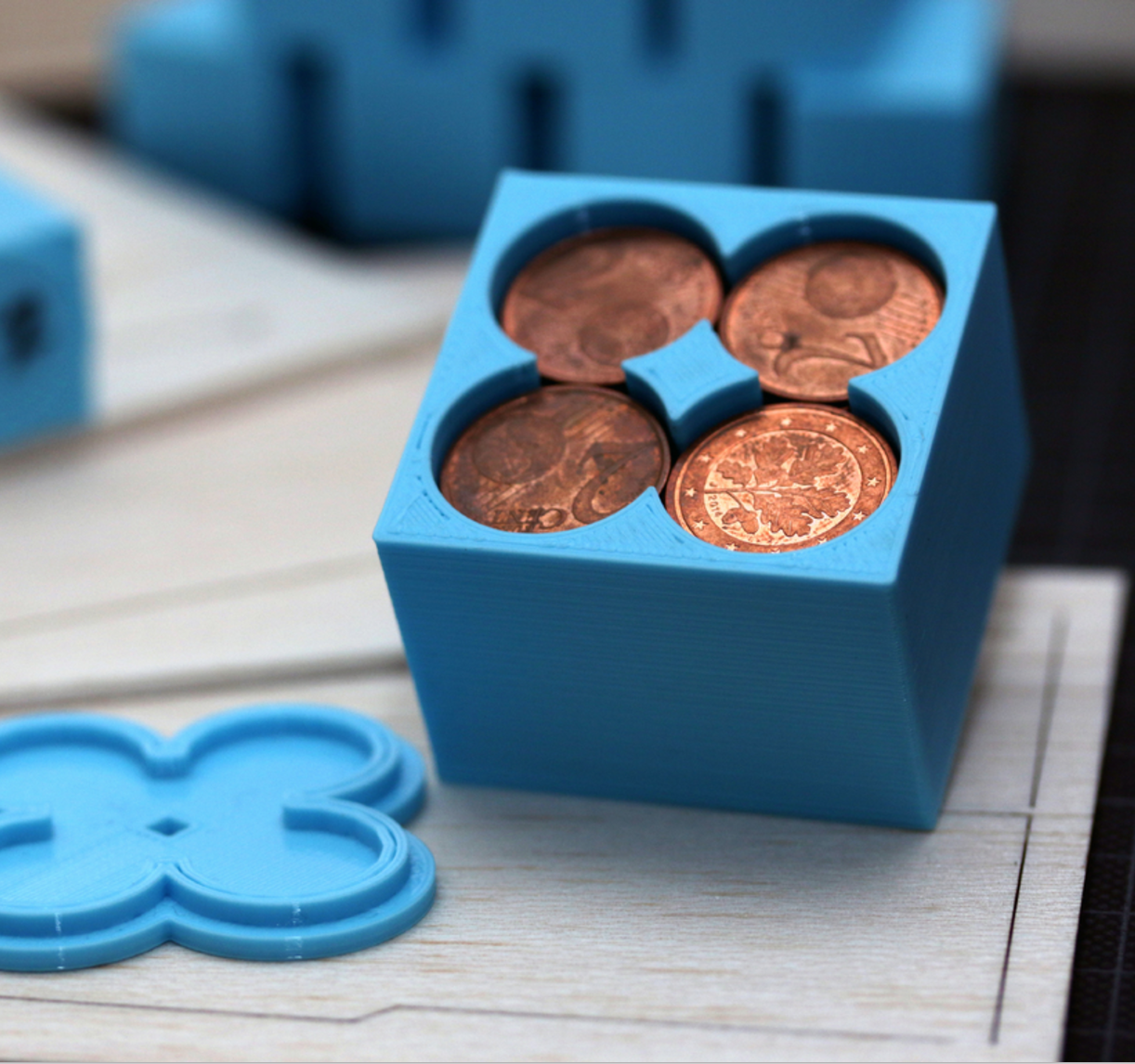

Step 1 Insert Coin
Insert all the coins and leave min. 2mm space at the top for the lid.

Step 2 Close the Box
Press the lid on top of the box. This is a really tight fit! So you should level the lid in parallel with the top of the box and press it down. This may take some force and I have no idea, how to remove the lid.

Custom Section

Website
https://mightynozzle.com

  • 3D model format: STL and ZIP

Tags

Creator

Followers Followings 0
Downloads 12434

I like to create things to save money and time. Wherever possible, I try to use aspects of ecological design. As a full-time software developer and pragmatic solution designer my focus is on the creation of customizable things.

License

CC BY NC
