Anycubic Kossel Effector cable guide

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 325 views
  • 7 downloads

3D model description

Another little add-on for the Kossel or any other delta printer with 2020 framework. I had the effector wiring loom snag on an item on the desk recently, causing the print to get trashed. I thought I'd seen one of these on Thingiverse a while back but when needed, I couldn't find it so here's my own effort.

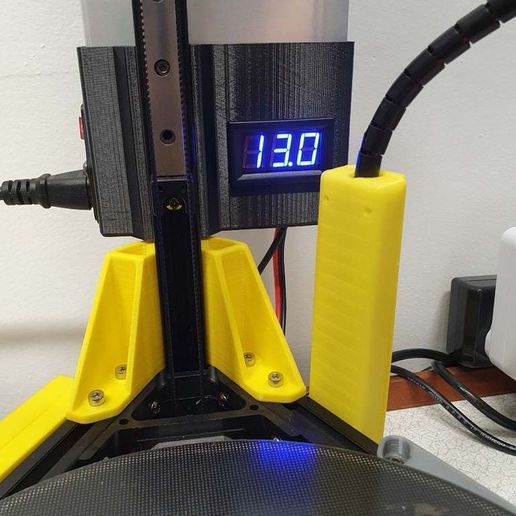

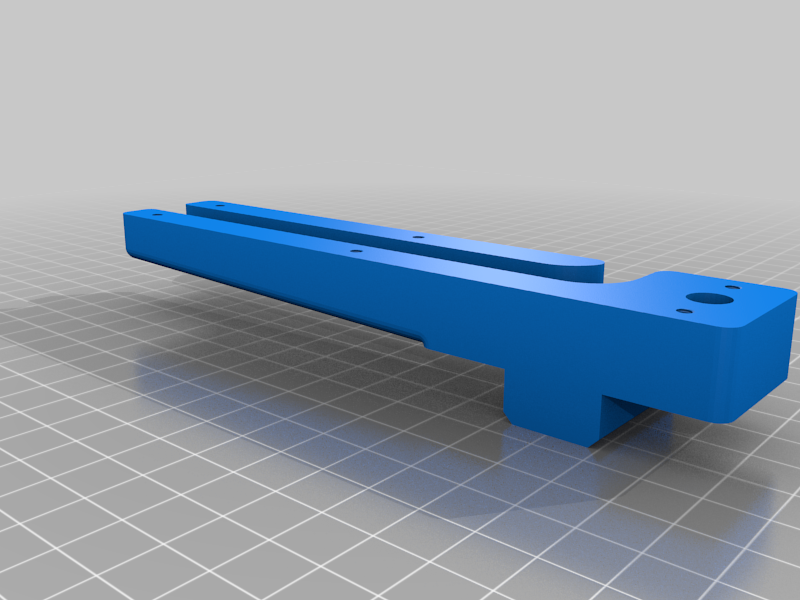

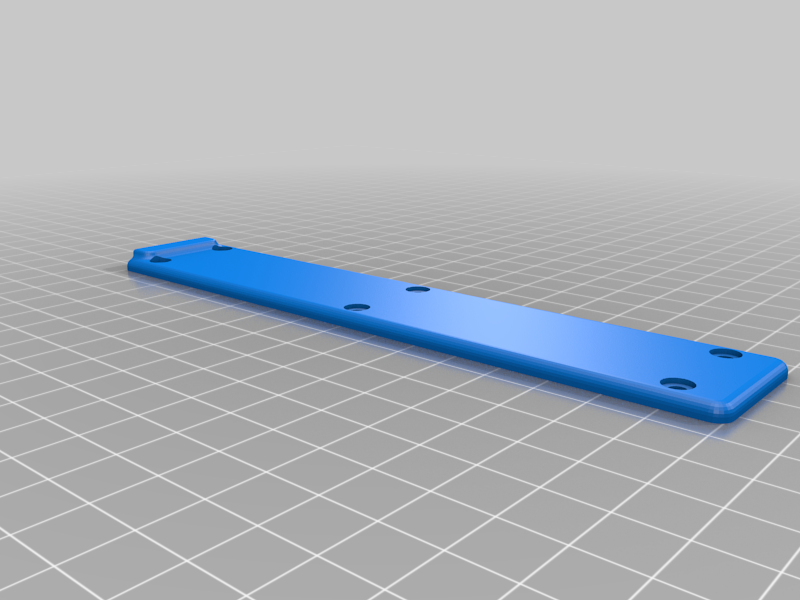

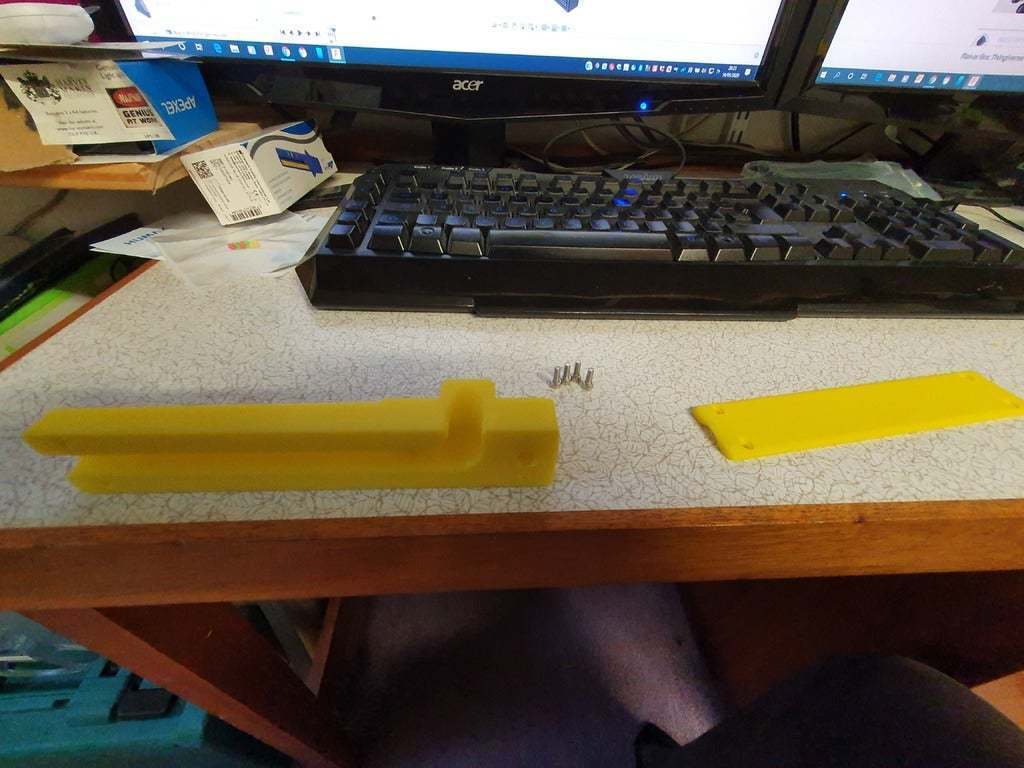

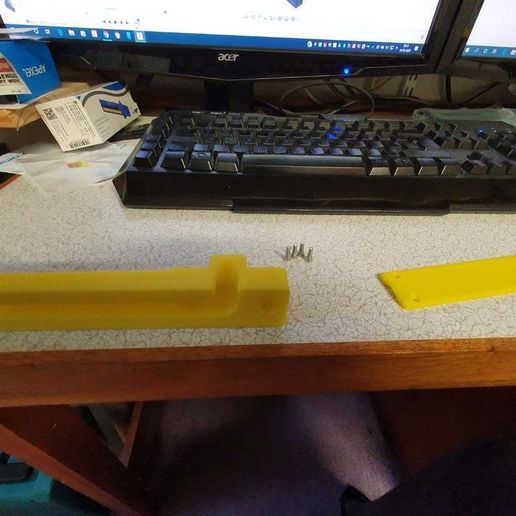

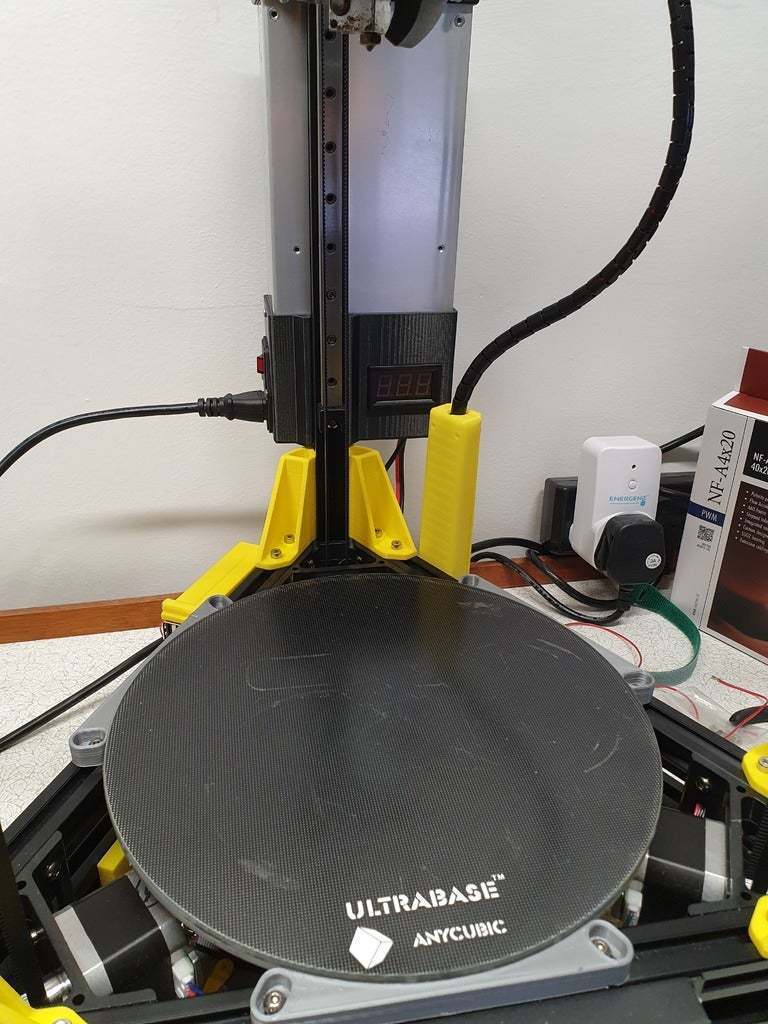

It fits onto the lower frame rails wityh the aid of a pair of M4 x 6mm cap head screws and a pair of M4 T-nuts. There is a guide block which helps keep it straight as well as form a nice route for the effector wiring loom. The loom is fitted into the groove, exiting at the top and the lid is secured using 6 x M3 x 6mm or 8mm screws.
Nothing rocket science about this design but if it helps someone else to prevent the spaghetti monster visiting, my work will not be in vain.

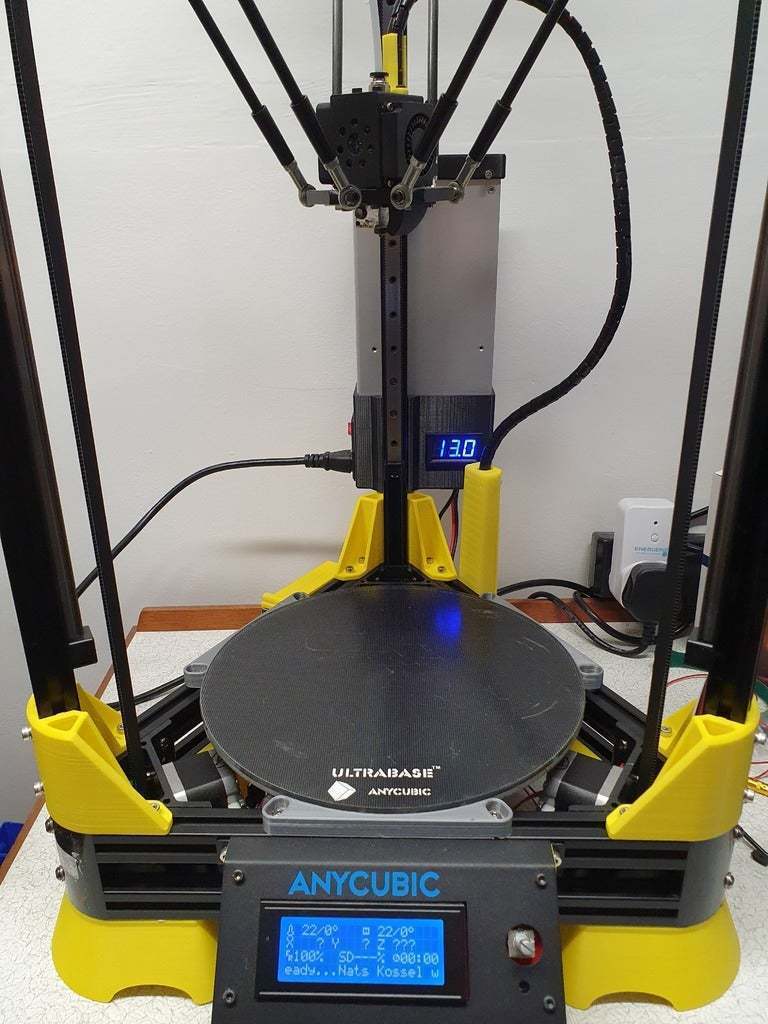

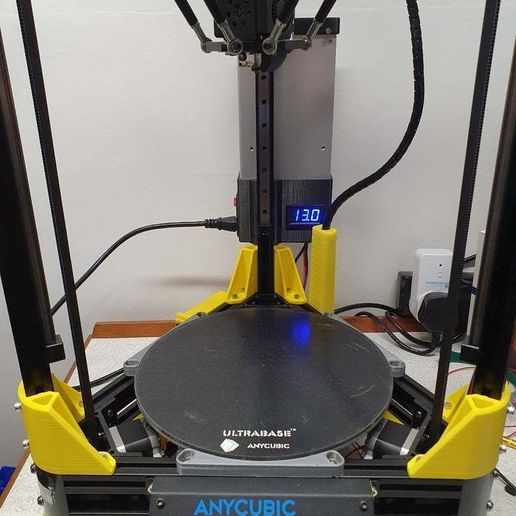

Note: The one in the photo's is a 4 screw version. After printing I noticed the cover tended to bulge a little in the centre so I changed the design and added another pair of cover screws in the centre.
The cover was printed with Esun PLA+ but I ran out and had to print the mast out of a new roll or Ziro PLA, which I have to say, is less than impressive.
