Tronxy X5S top cable chain system

?
Creation's quality: 4.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 3 likes
  • 54 downloads

3D model description

Having seen several designs of cable management for the Tronxy X5S carriage, i attempted to print a few options but none really seemed to work for me. The original OEM design tends to pull the carriage to one side and the drag chains are not really designed to be sideways loaded, so eventually they sag and risk colliding with parts of the gantry and belts.
This design uses 4 x 608 ball bearings for the swivel mounts and the design is deliberately close tolerance as I found some of the other options on Thingiverse were a bit of a sloppy fit. I found I could safely remove 8 links of the original chain and still comfortably reach all areas of the bed with the carriage.

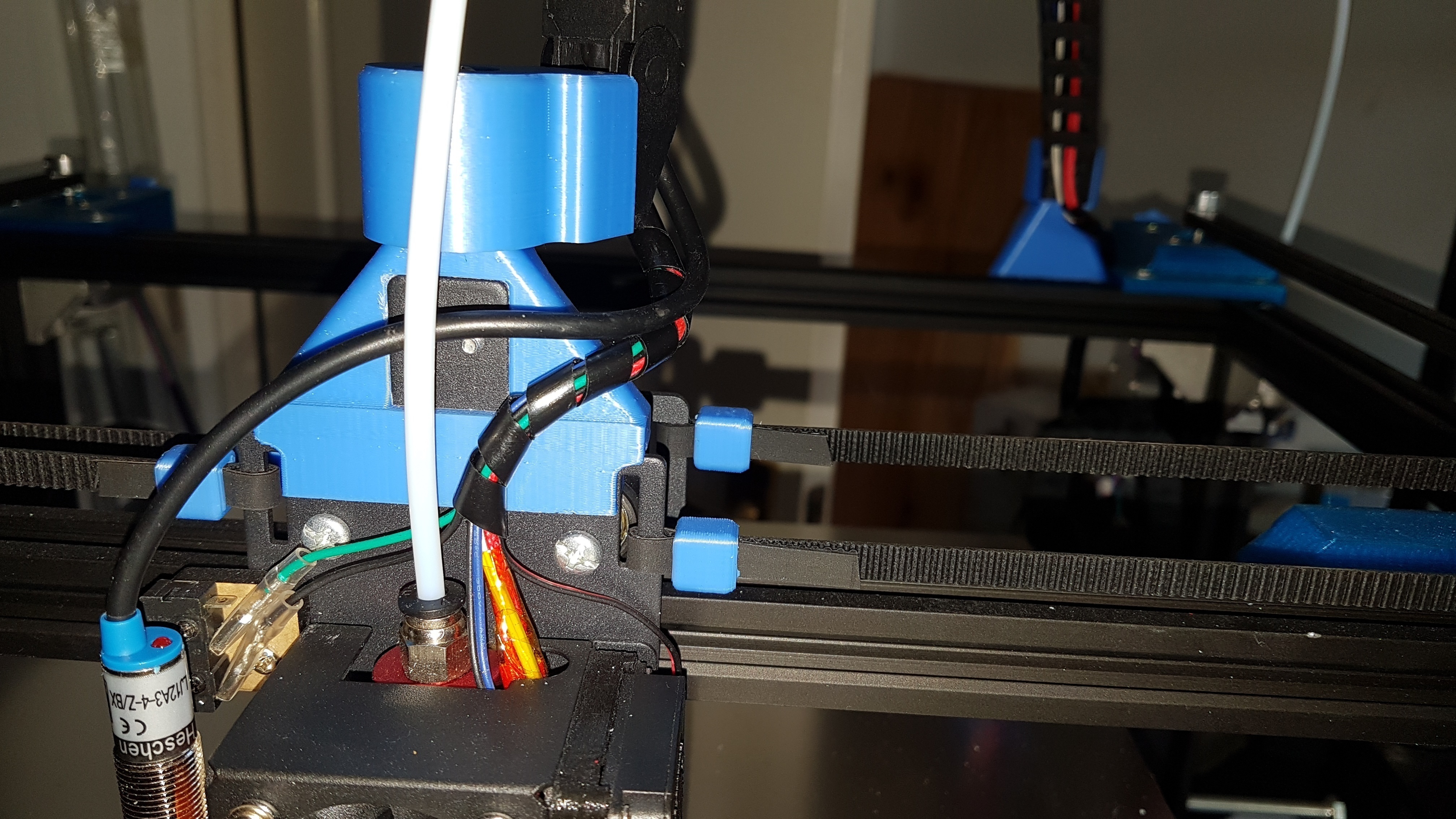

Apologies for garbage photos. I still haven't found how to re-orentate them within the App.I'll need to get on the PC to fix.

  • 3D file format: STL
  • Publication date: 2020/02/20 at 00:44
