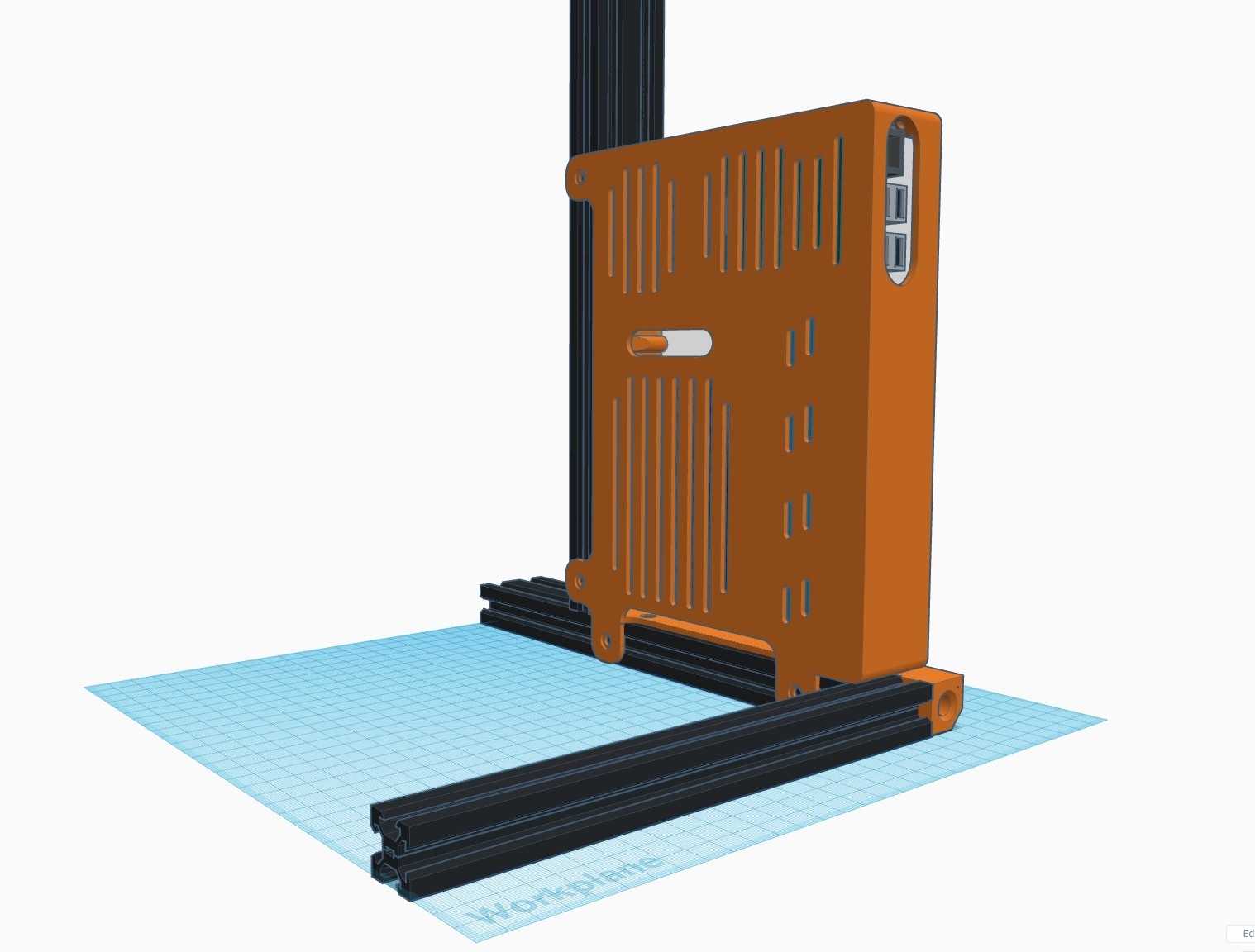

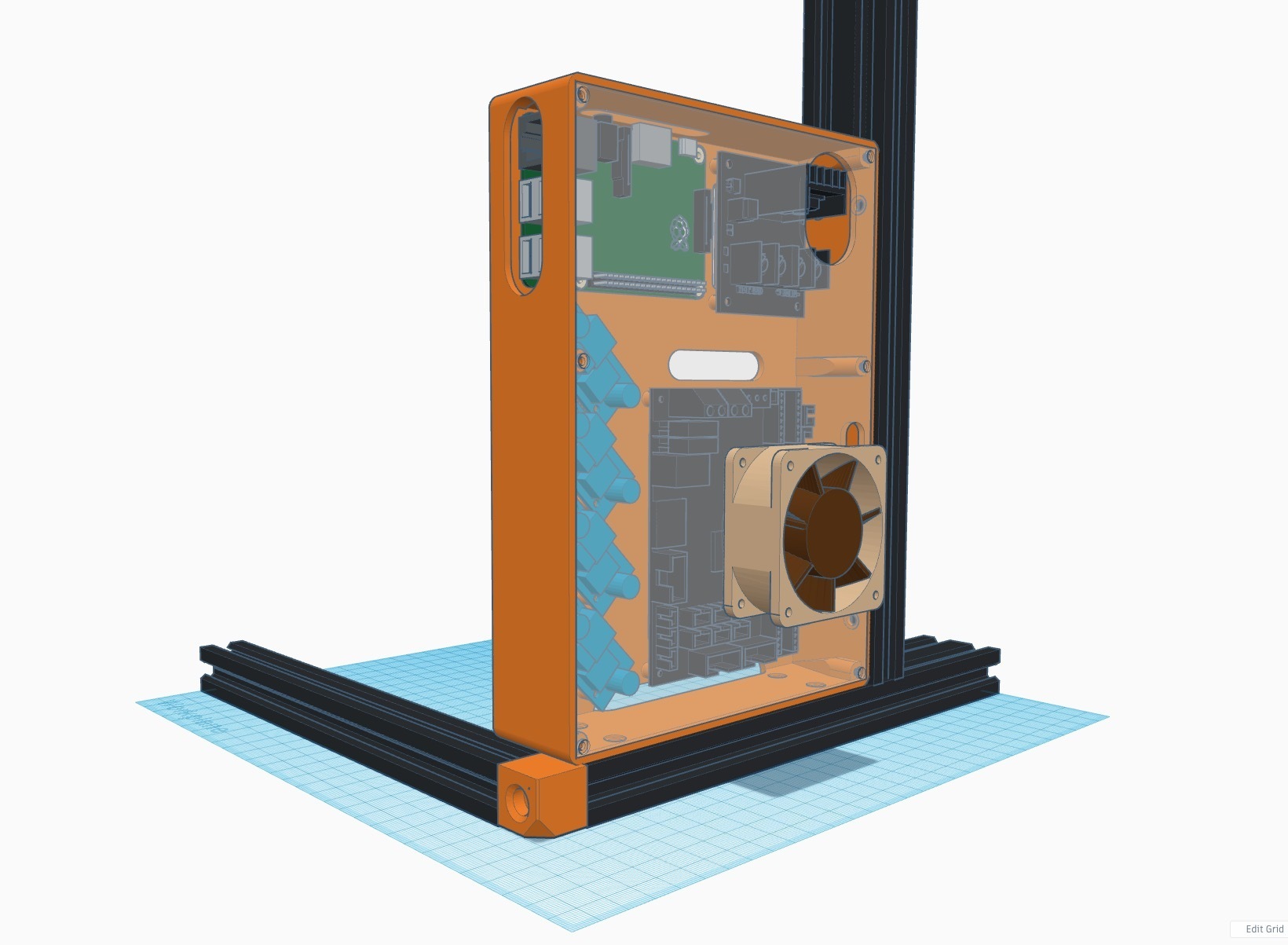

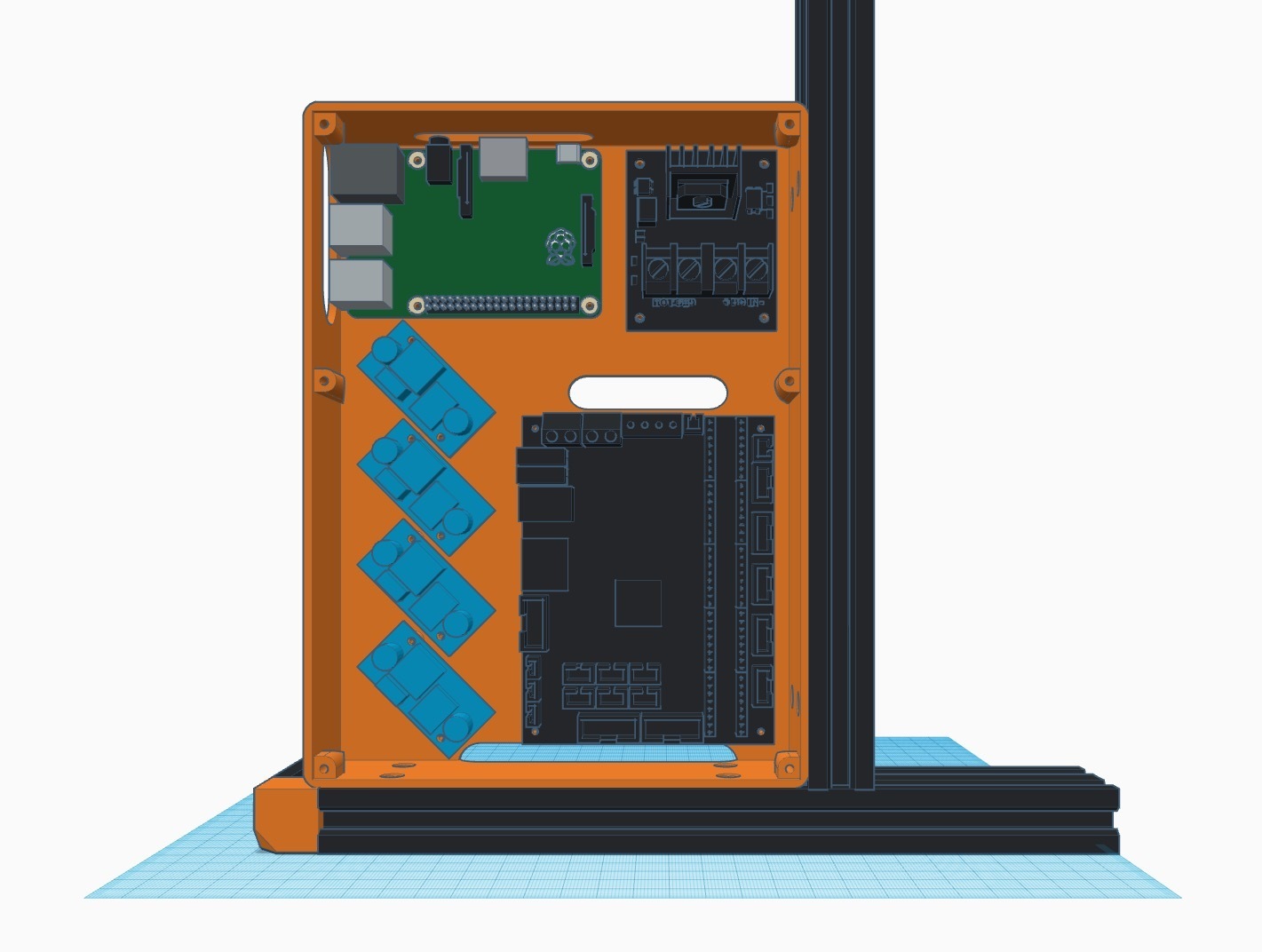

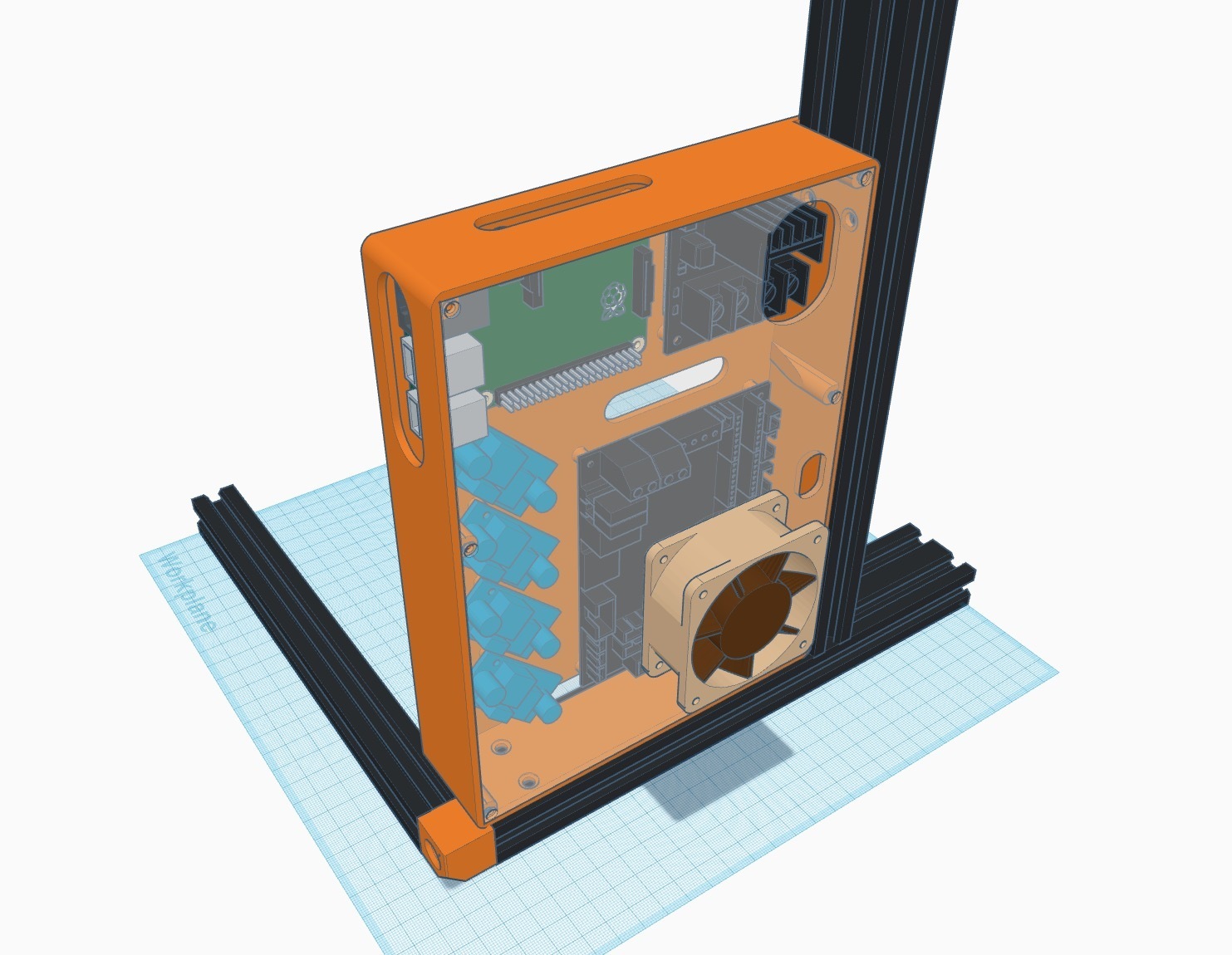

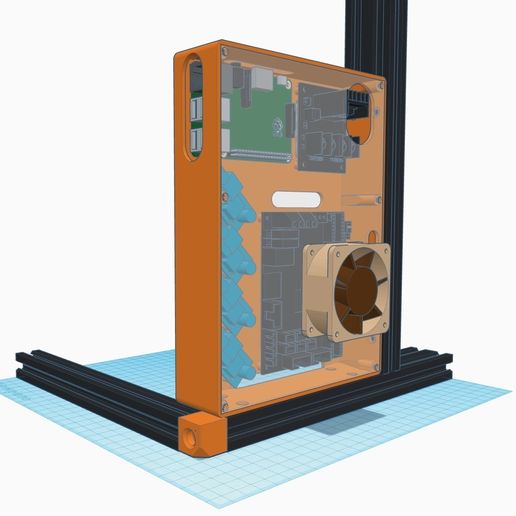

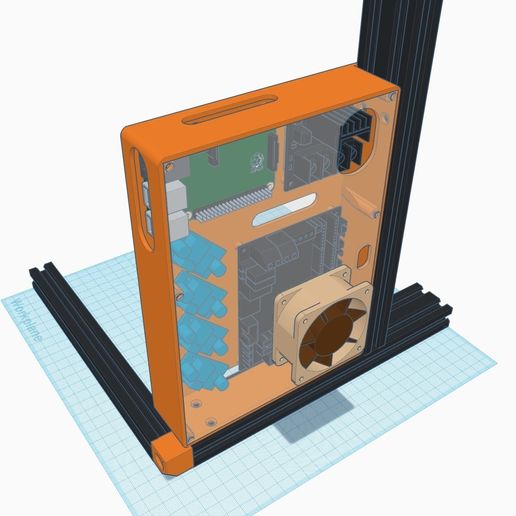

Anet A8 Plus Electronics Enclosure - SKR v1.3, Raspberry Pi, Mosfet, 4x Buck Converters

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 5.6k views
  • 10 likes
  • 164 downloads

3D model description

Made my Anet A8 Plus Bear completely silent with a Bigtreetech SKR 1.3 and Noctua fans for everything. Since I needed 4 buck converters and planned on a Mosfet for the hot bed, I really needed an enclosure to house everything in one place and to make the wiring neat.

Links to what I use:
Bigtreetech SKR 1.3 w/ 2208 Stepper Drivers: https://amzn.to/2GWvvH4
BIQU Mosfet: https://amzn.to/2SbGZM0
Noctua Fan - 40x10: https://amzn.to/2OsUAOh
Noctua Fan - 40x20: https://amzn.to/3b9GTgI
Noctua Fan - 60x25: https://amzn.to/2Uq5CYn
Buck Converters: https://amzn.to/31oT3hr
Raspberry Pi: https://amzn.to/2v0Pou6
Hardware Kit: https://amzn.to/2RZNUcg
T-Nuts: https://amzn.to/31qC3ai

Pictures coming soon.

Enjoy and post your makes!

If you found my Things useful, treat me to a cup of coffee by using the PayPal button below :)

Buy me a cup of coffee
Buy me a cup of coffee $3.00 USD
Buy me a massive cup of coffee $5.00 USD
Give me a caffeine coma $10.00 USD





3D printer file information

  • 3D design format: STL Folder details Close
    • Anet_A8_Plus_Enclosure-v3.stl
    • Anet_A8_Plus_Enclosure_-_Lid.stl

    Learn more about the formats

  • Publication date: 2020/02/05 at 12:00

License

CC BY NC

Tags

Creator

Just having fun with my Ender 3 and sharing my ideas along the way.

If you found my Things useful, treat me to a cup of coffee by using the button 👇

Donate

Issue with this design? Report a problem

Best sellers of the category Tools


Add a comment

2 comments

@DARKMIKI: I use the Raspberry Pi to run Octoprint. It allows me to start and manage prints without and wires, using wifi. Along with running and controlling lights and my camera for watching the prints remotely. I wanted all the electronics to be neatly in one place.

Hi, why did you need Raspbery for silencing Anet A8?
