Ender & CR10 Filament Extruder Block with Threaded Coupler and Nut

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 5.4k views
  • 17 likes
  • 403 downloads

3D model description

The PC4-M6 Coupler that came with my Ender 3 was broken out of the box. The extra that came with the printer only lasted a few prints until it could no longer hold the PTFE tube when printing. I found this genius printable coupler but the threads were so weak that it broke when I was trying to thread it into the extruder block. Thus, this remix.

With this block, we no longer need to buy couplers. Just use a wrench to make this tight and the PTFE tube aint goin nowhere. An added bonus is this block is flexible filament friendly. I trimmed my PTFE tube a bit and pushed it through to get it closer to the gear and bearing.

I have been printing several months with no issues. Including many 10+ hour prints and several 20 hour prints back to back.

Enjoy and post your makes!

If you found my Things useful, treat me to a cup of coffee by using the PayPal button below :)

Buy me a cup of coffee
Buy me a cup of coffee $3.00 USD
Buy me a massive cups of coffee $5.00 USD
Give me a caffeine coma $10.00 USD





3D printer file information

  • 3D design format: STL Folder details Close
    • Filament_Extruder_Block_with_Threaded_Coupler.stl

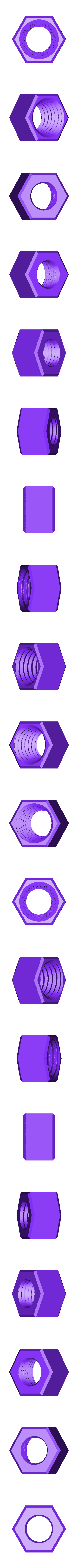

    • bowden_fitting_nut.stl

    Learn more about the formats

  • Publication date: 2019/08/02 at 11:46

License

CC BY
