Face Shield COVID-19

?
Creation's quality: 4.2/5 (11 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 9.5k views
  • 24 likes
  • 1.8k downloads

3D model description

COVID virus protection face shield 19.

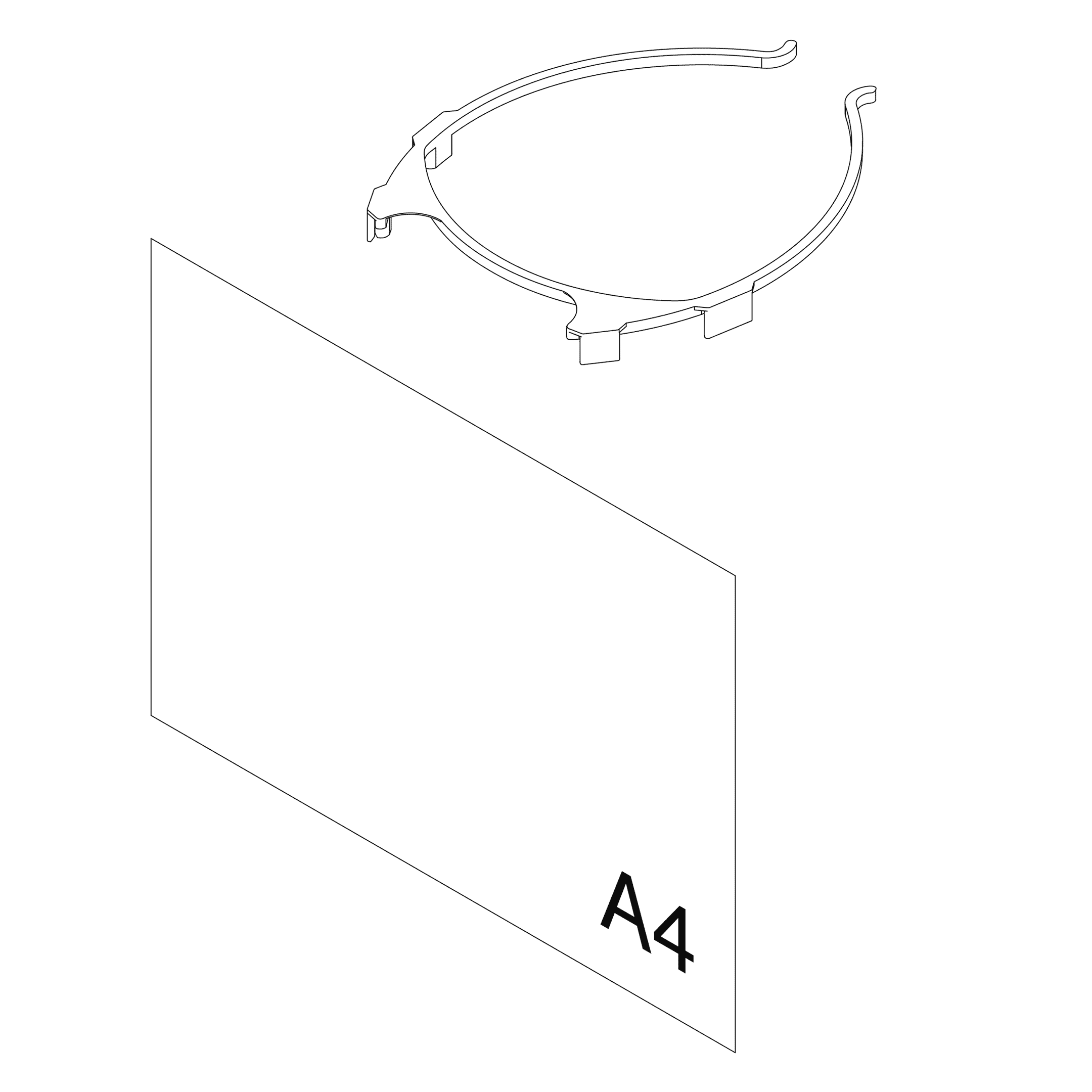

To be combined with an A4 PVC sheet.

Advantage:

  • there is no need to add a rubber band (headband system)

  • there is no need to drill holes on the A4 (productivity gain)

  • less than 50 minutes printing time

#3DvsCOVID19

3D printing settings

  • Nozzle: 0.4mm

  • Layer height: 0.3mm

  • Wall thickness: 0.8mm

  • Thickness above/below: 0.8mm

  • Filling density: 10%.

  • Speed: 60mm/s

  • 3D file format: STL
  • 3D model size: X 157 × Y 184 × Z 13.5 mm
  • Last update: 2020/05/06 at 19:28
  • Publication date: 2020/04/03 at 15:38

Tags

Creator

License

CC BY NC SA

Page translated by automatic translation. See the original version.


Best sellers of the category Tool


Add a comment

2 comments

Con tus parámetros me dio 1 hora 31 minutos, tal vez faltan otros detalles, saludos.

como haces para que el tiempo de impresión sea de menos de 50?
