Vesa Adapter Mount For Monitors Without Back Holes

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.1k views
  • 6 likes
  • 107 downloads

3D model description

#Description

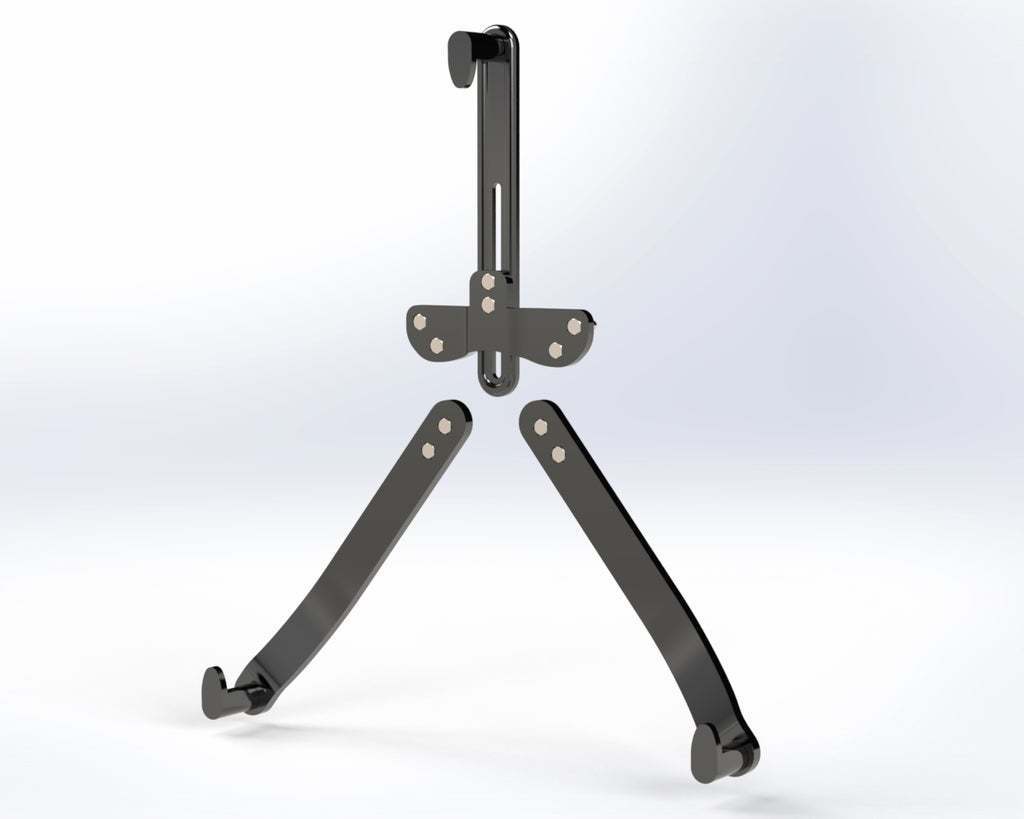

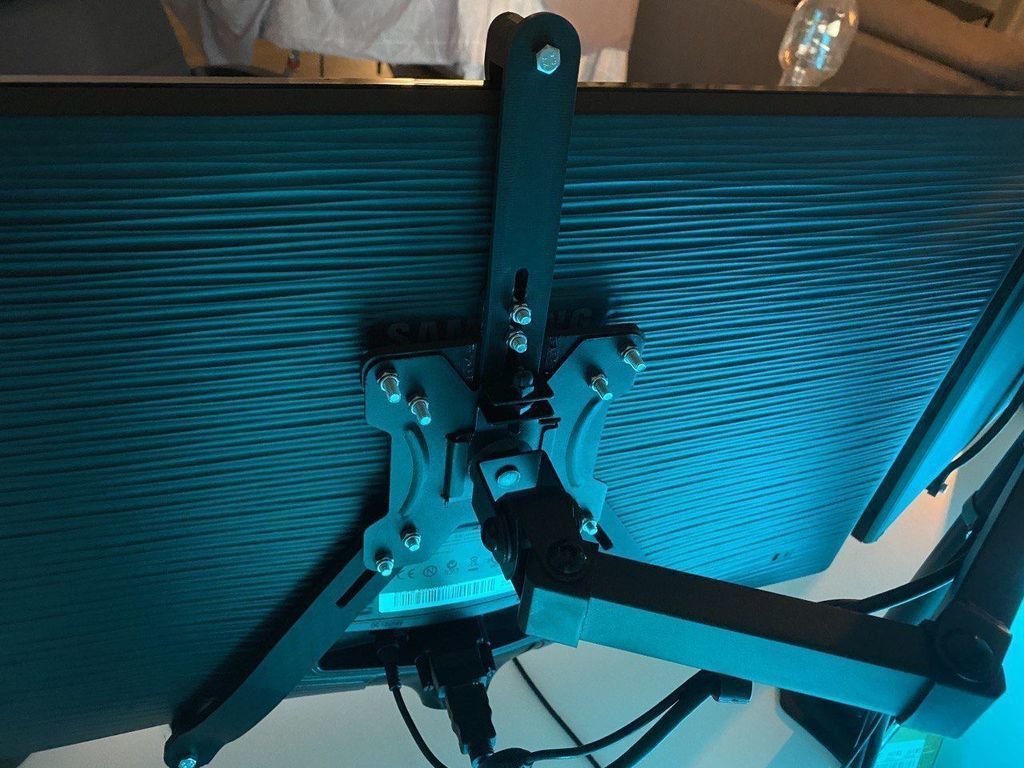

This adapter is for the use of floating monitor mounts for monitors without mounting holes in the back. The standard of these monitor mounts is the so-called Vesa mount on which the extension is based. This way, even monitors that are not actually suitable for this mount can be attached. The screen size must be between 17and 27 and the screen thickness must be between 30 mm and 75 mm for the product to be securely attached.

Recommended Monitor Mounts You should be able to use any regular vesa monitor mount, but I use myself this dual monitor mount

#Extra parts required

10pcs M5x16mm hexagon head screws (ISO 4017)
10pcs M5 nuts
Printing List

1x flange

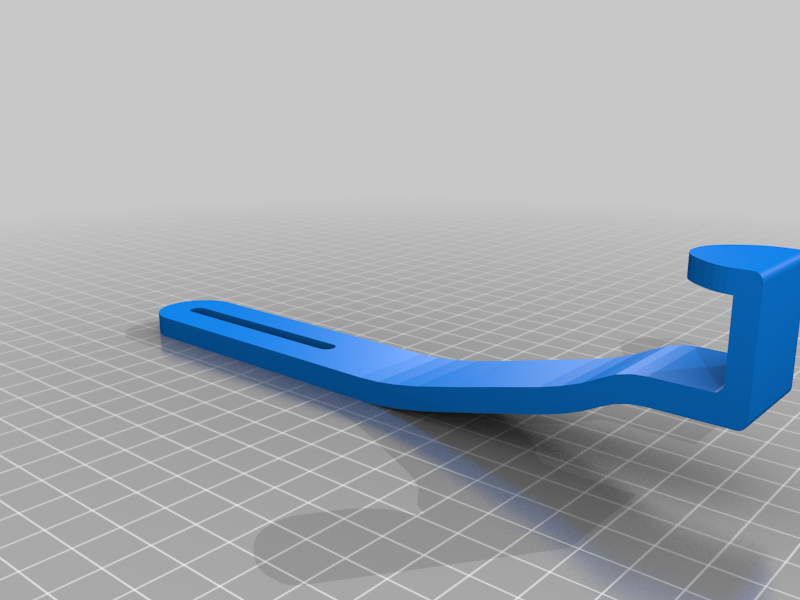

1x strut-top
2x strut-bottom

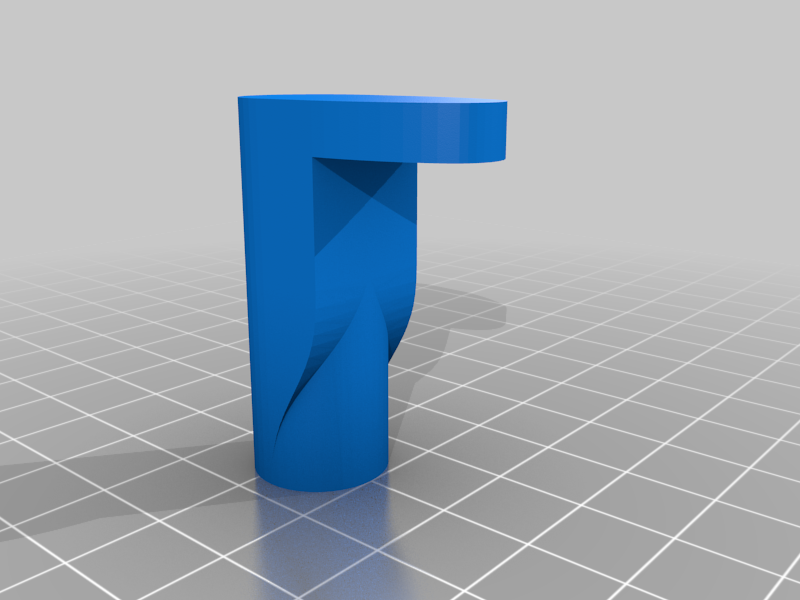

3x hooks (size depends on your monitor)

  • 3D file format: STL
  • Publication date: 2020/08/18 at 05:58

Tags

Creator

License

CC BY
