3D model description

#DAGOMERLIN

Device that keeps you informed of the weather and news while taking a shower!

In fact it is a support for iPad pro. Ask if you want a version for iPad air for example.

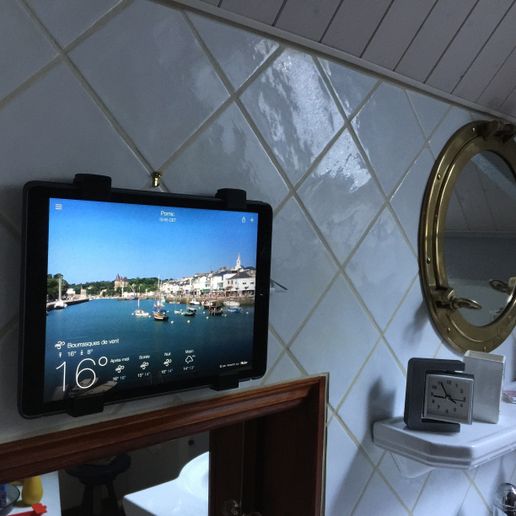

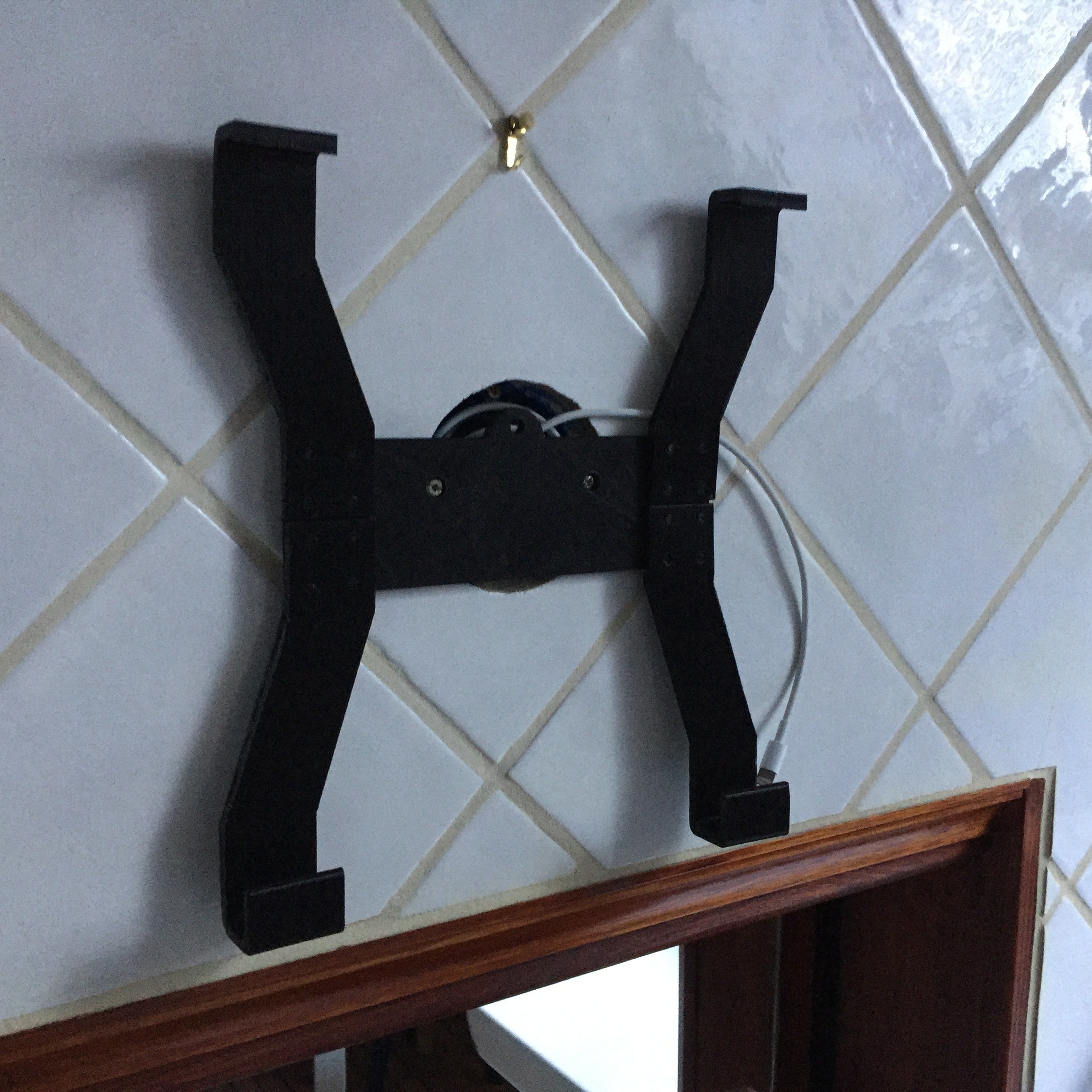

This support can be fixed to the wall or placed on a table: on the wall hooked by a hook for a board, or on a 60mm jar with two screws.

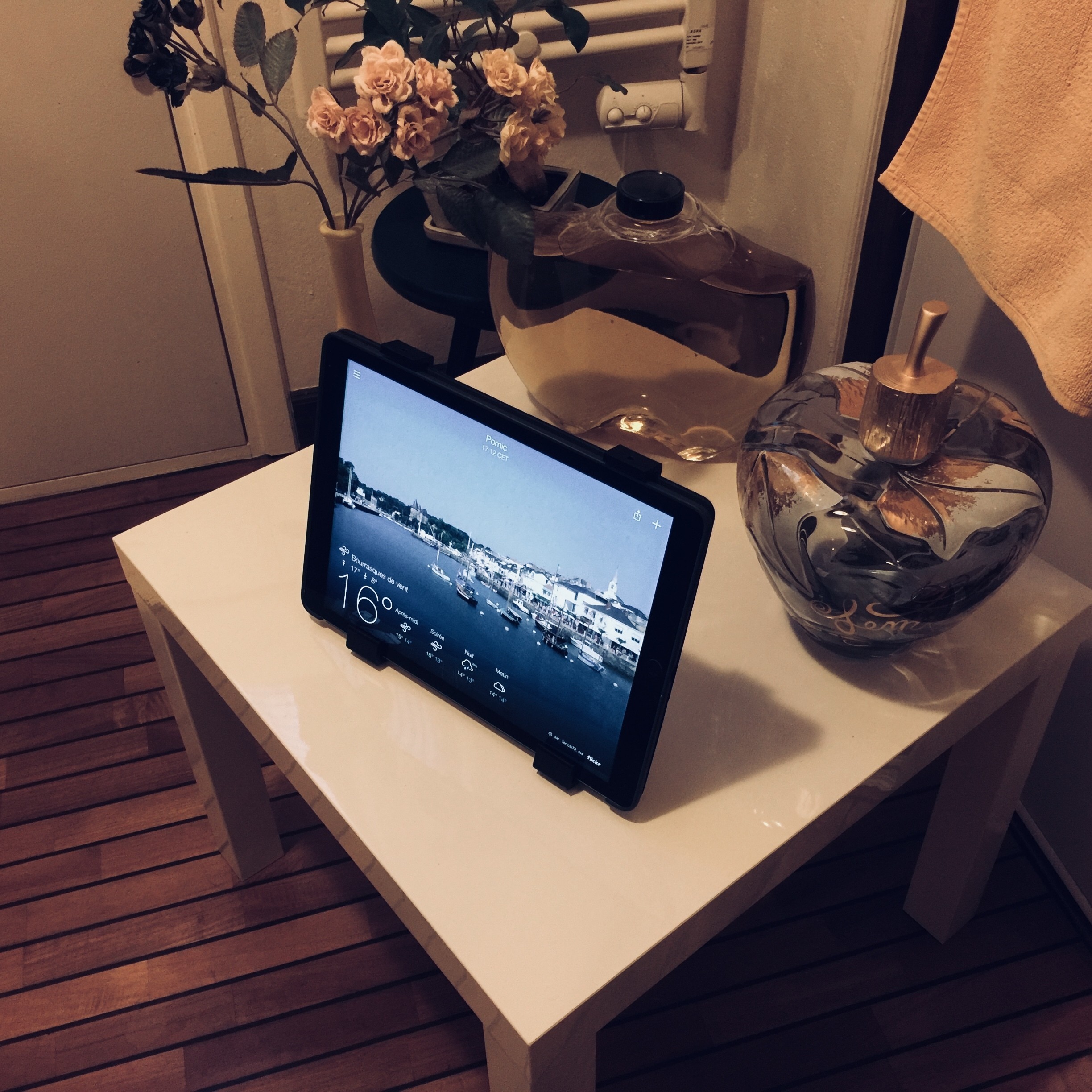

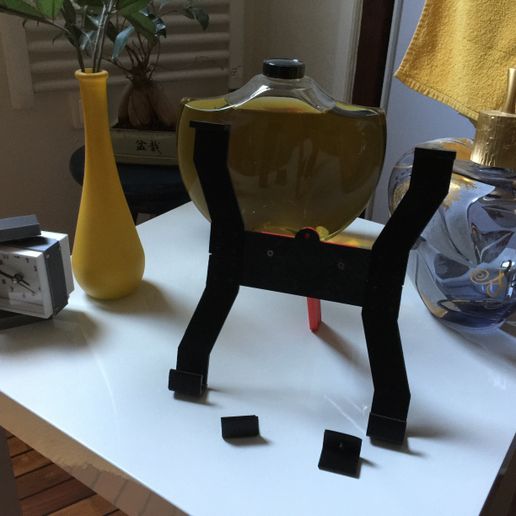

The support is designed to receive an iPad pro with its protection (23cm high and 13mm thick). Two pieces come to lock the Ipad on its support. In table-top mode, two screws attach the back reinforcement to the support, one leg holds it all at an angle.

9 printed pieces are required for all two modes of use.

The fixing screws on pot of 60 possible and a screw diameter 2x20mm with nut for the axis of the back leg.

Achievement on:

Printer: DAGOMA DiscoEasy200.

Print preparation by Cura by DAGOMA.

TINKERCAD modeling.

PLA CHROMATIC 1,75mm, choice of color, temperature 210 °.


3D printing settings

1: support_ipad_1: 1H44 in 0,15mm per layer, support for printing: everywhere.

2: support_ipad_2: 3H8 in 0,15mm per layer

3: support_ipad_3: 1H42 in 0,15mm per layer, support for printing: everywhere.

4: support_ipad_4: 1H25 in 0,15mm per layer, support for printing: everywhere.

5: support_ipad_5: 52minutes in 0,15mm per layer for 1 piece!

6: support_ipad_6: 1H23 in 0,15mm per layer, support for printing: everywhere.

7: pietement_ipad_1: 2H42 in 0,10mm per layer

8: pietement_ipad_2: 2H43 in 0,10mm per layer

3D printer file information

  • 3D design format: STL Folder details Close
    • pietement_Ipad_1.stl
    • pietement_Ipad_2.stl
    • support_Ipad_1.stl
    • support_Ipad_2.stl
    • support_Ipad_3.stl
    • support_Ipad_4.stl
    • support_Ipad_5.stl
    • support_Ipad_6.stl
    • support_Ipad_monte.stl

    Learn more about the formats

  • Last update: 2017/11/25 at 15:39
  • Publication date: 2017/11/22 at 17:47

License

CC BY NC

Creator

Vieux retraité qui ne pense qu'à réparer et créer!

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Best sellers of the category Home


Add a comment

One comment

Hello,
Serait-il possible d'avoir la version pour IPAD MINI ? (Version 4 si possible).
Merci

Hello
Is it possible to have IPAD MINI version ? (Version 4 if possible).
Thanks
