Alarm clock / thermometer

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 855 views
  • 4 likes
  • 21 downloads

3D model description

#DAGOMERLIN

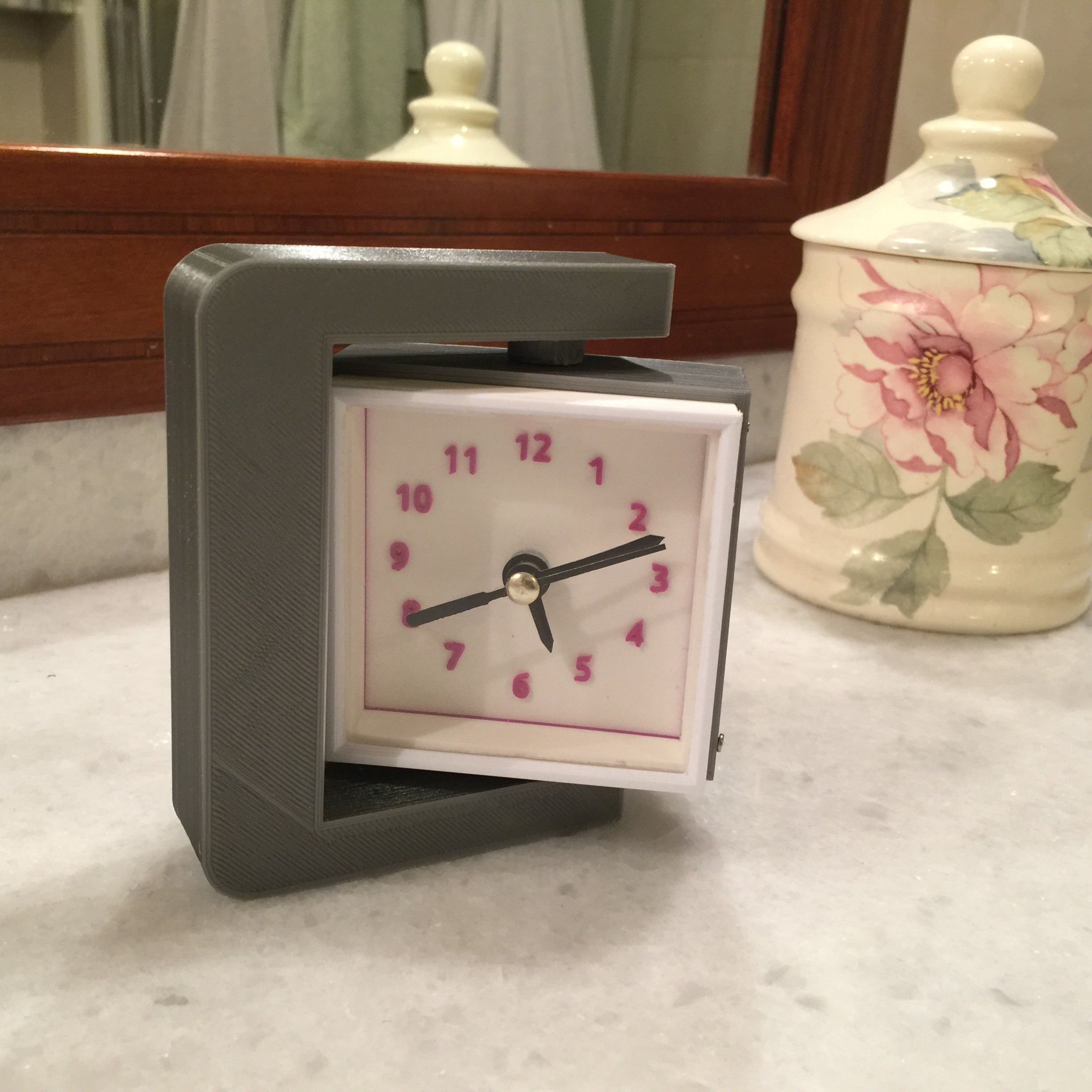

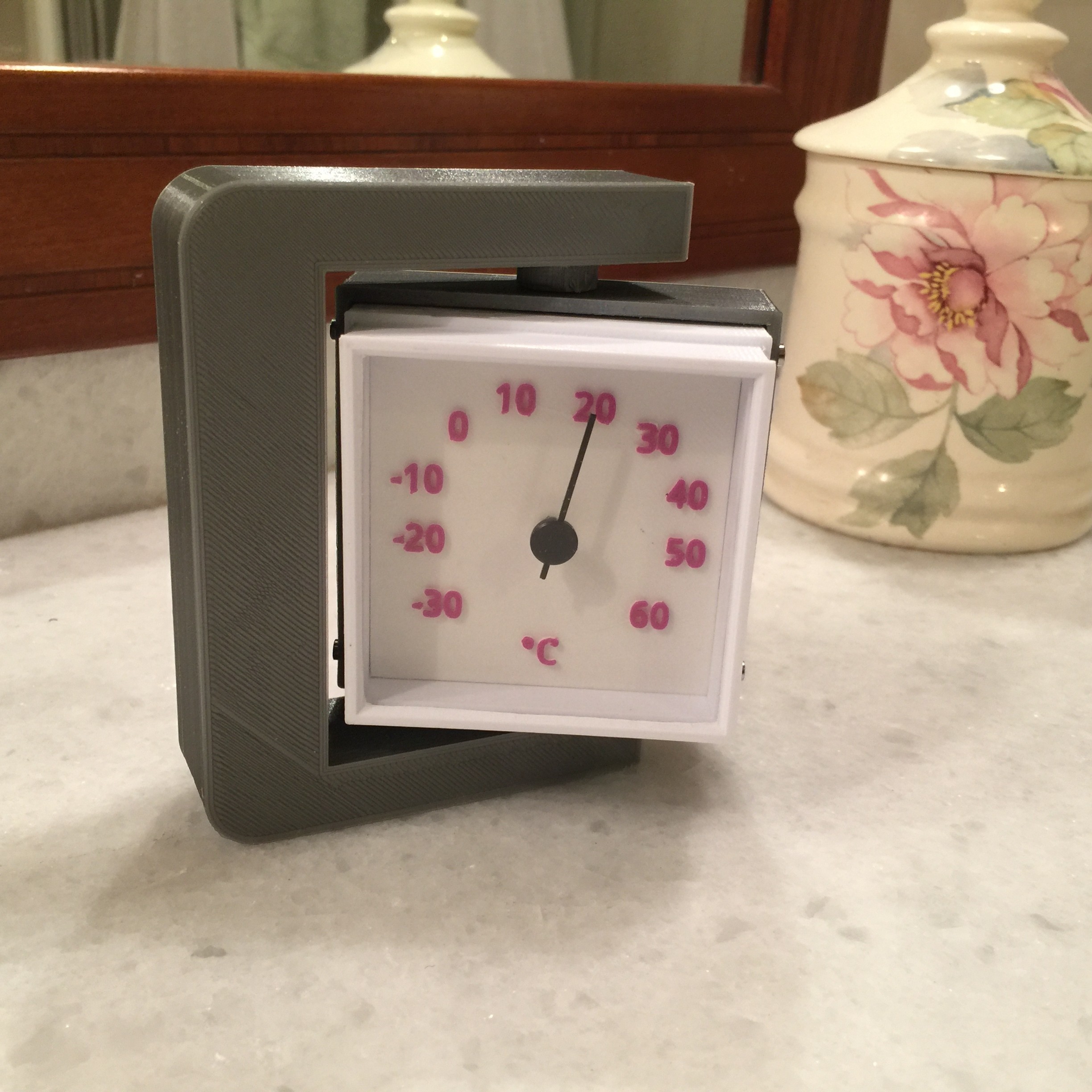

Alarm clock / bathroom thermometer.

Supplies:

Quartz movement with needles (Amazon 1,11 € vat incl.)

Bimetal thermometer recovery of a car thermometer.

Needle protection: transparent plastic of a cd.

8 small screws on request.

(Replacement of the movement battery by the 4 screws thermometer side).

7 printed parts: alarm clock display, inner body, thermometer body, external support, temperature display and 2 covers.

DAGOMA DiscoEasy200 printer, modeling: TINKERCAD website, modeling preparation by Cura by Dagoma.

3D printing settings

All parts PLA CHROMATIC, Temperature 205 °, filling 17%, Fine quality 0.1mm.

Alarm clock 1: white color, print support: everywhere. change filament> red layer 27

filament change> white layer 29

Printing time 4H16 approx.

Alarm Clock 2: pearl gray filament color, no print media, no filament change.

Printing time 4H7 approx.

Alarm clock 3: white filament color, print media everywhere, no filament change.

Printing time: around 5H24.

Alarm clock4: pearl gray color, print media everywhere, no color change.

Print time 8H44.

Alarm clock5: white filament color, no print media, color change> red at layer 17.

Print time: 50minutes.

Wake6 and 7: white filament color, no print support, no color change.

  • 3D file format: STL
  • Last update: 2017/11/14 at 13:29
  • Publication date: 2017/11/08 at 18:16

Tags

Creator

Designs 13
Downloads 498
Followers 10

Vieux retraité qui ne pense qu'à réparer et créer!

License

CC BY NC
