Mesh Bottle Holder

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 946 views
  • 6 likes
  • 66 downloads

3D model description

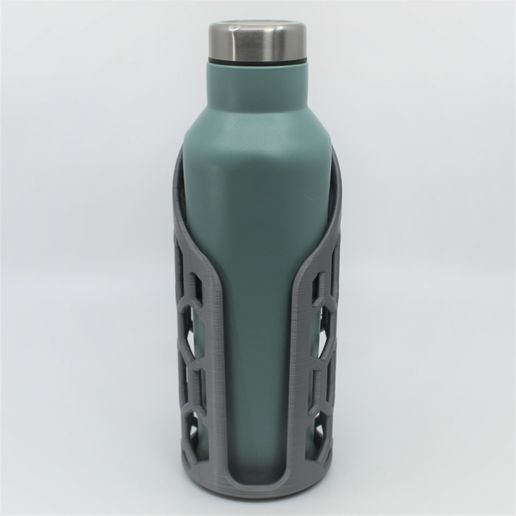

Designed this bottle holder for a friend, with a squashed hexagon mesh for lightweight strength that doesn't require support material to print.

As Athens isn't the most cycling friendly city in the world we don’t have bikes, so apologies for no bike mounted photos, maybe one of you guys can upload one!

It is designed to fit standard bike bottles up to 70mm in diameter. This should be the standard for most use cases but if you use a slightly bigger/smaller bottle you can scale it up/down a bit in your slicer (around 3% either way).

The mounting holes are standard for most bikes and use 2x M5 clearance holes spaced 63.5mm apart with some allowance in the tolerances for scaling the design as mentioned above (see slightly oversized oval holes in images).

We printed this design with Silver PLA [Real Filament].

To print this design we used an Ultimaker 2+ 3D printer and the print in the photos is printed with a 0.6 mm nozzle [you can also use 0.25mm, 0.4mm +0.8mm].

We would love to see your prints!

Follow us!

F: facebook.com/3dppa

I: @3dprintproject.athens

3D printing settings

Resolution: 0.1mm - 0.3mm (0.3mm Shown)

Infill: 0% (saves weight + print time while still remaining strong)

Wall Thickness: 1.8mm

Brim: No

Raft: No

Speed: 60mm/s

Post processing: Not Required

Dimensions: 199mm x 87mm x 70mm

Time to Print: 5 hours 41 minutes

Material Usage: 102g

  • 3D file format: STL
  • Last update: 2020/06/16 at 08:18
  • Publication date: 2020/06/06 at 12:21

Tags

Creator

Designs 29
Downloads 926
Followers 157

3D Print Project Athens (3DPPA) is a new startup that aims to bring a more personal touch to its customers via the manufacture method of 3D printing. The company saw the burgeoning craft scene in Athens and saw an opportunity to use 6+ years of 3D printing experience to give people the chance to own unique, locally inspired and manufactured designs. Happy printing!

License

CC BY NC ND
