Flashforge Creator Pro improved Dome handle

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 327 views
  • 5 downloads

3D model description

This is a top handle for the Improved Dome for Flashforge Creator Pro thing http://www.thingiverse.com/thing:1194887. It makes it easy to remove and place the dome using one hand.

This thing was designed by customizing the parametric handle generator http://www.thingiverse.com/thing:2320611. If you use the stock dome or any other dome, you can customize it to your specific dimensions.

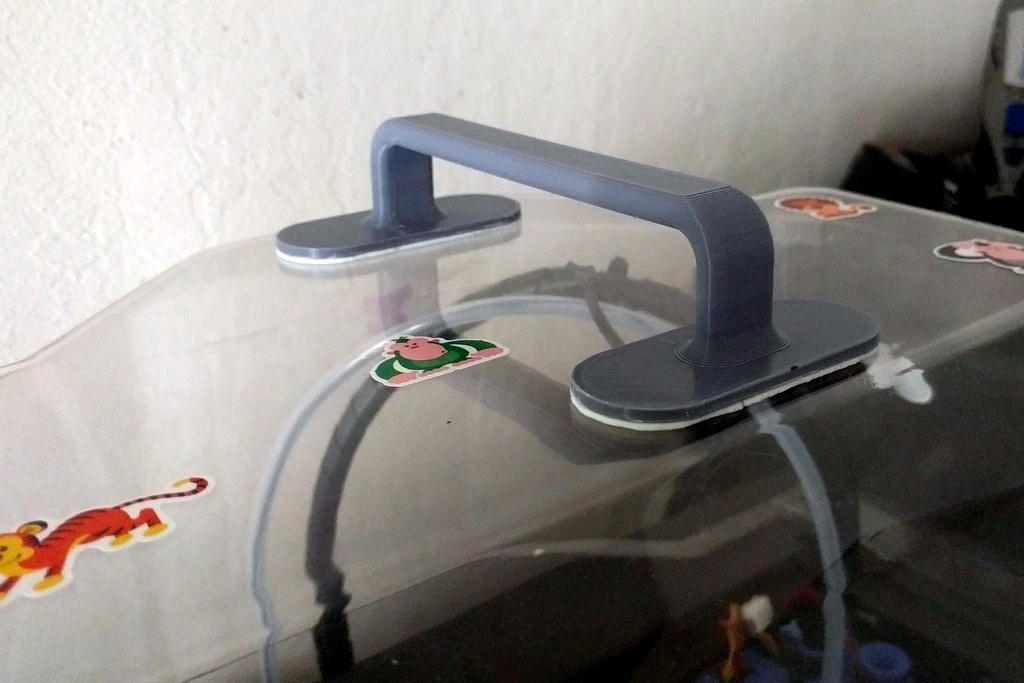

I attached it to the dome using 3M 2Lb (1Kg) double sides mounting tape.

A few design notes:

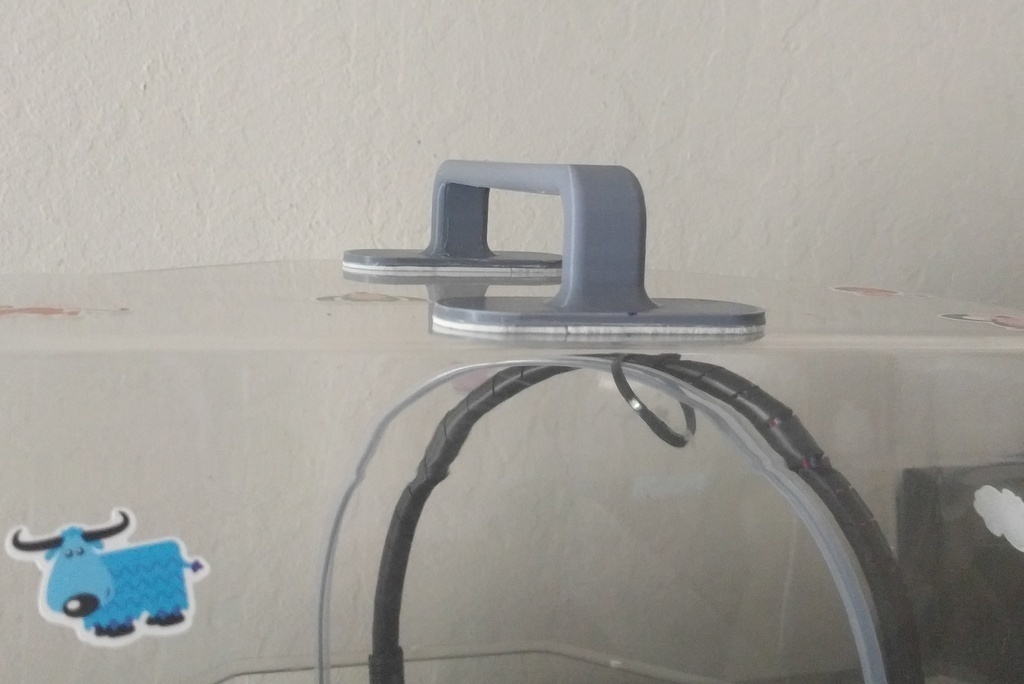

* The handle is attached to the dome near its front and rear walls for increase strength and stability.

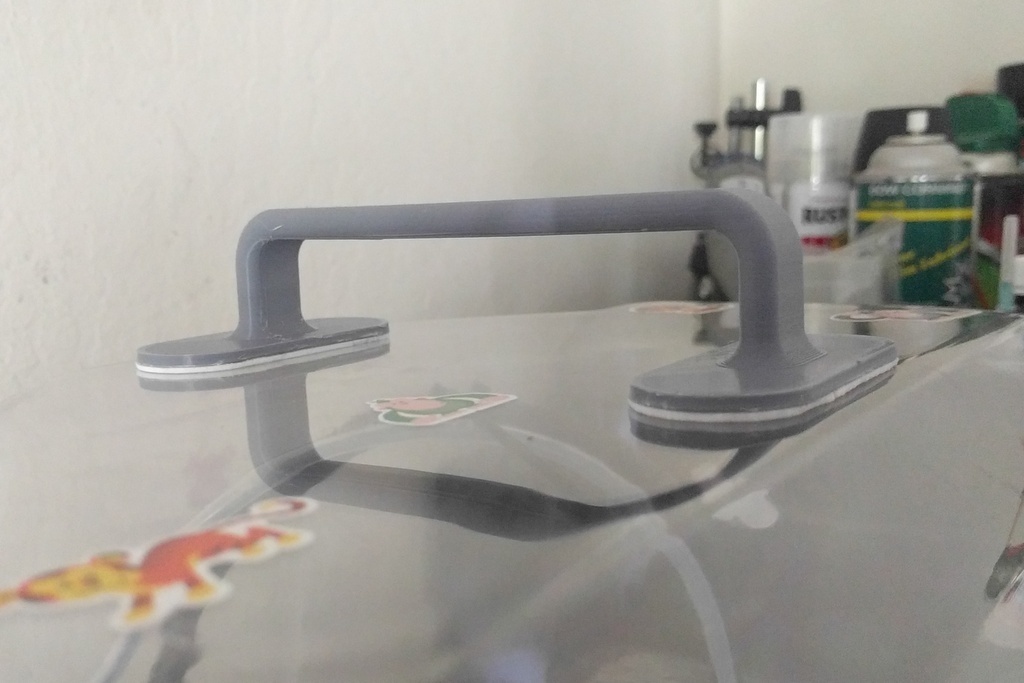

* The two bases of the handle are extra wide for additional lateral stability.

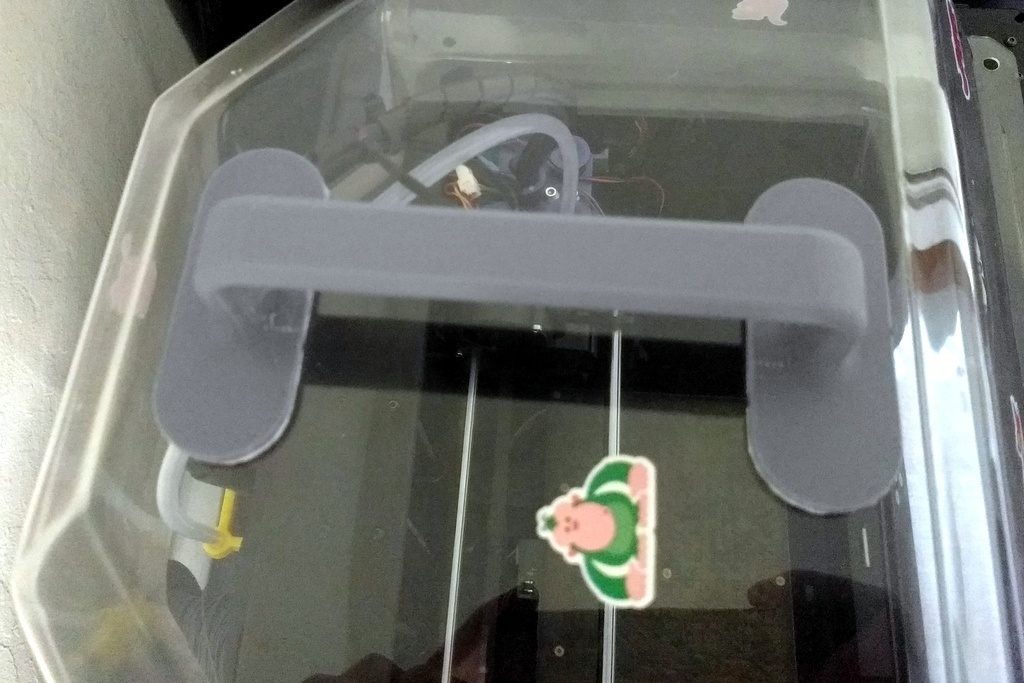

* Make sure to attach the handle at the center of the dome for better stability.
* I printed it with PLA, 0.2mm 200C (higher temp = better layer adhesion), cooling fan on and material support. I also used brim to prevent the edges of the bases from lifting.

3D printing settings

Using the following options:

base_diameter = 30
handle_proportion = 2.7
filet = 5
base_proportion = 2.5
hole_depth = 15
handle_length = 125
base_rotation = 90
handle_bent_radius = 10
handle_height = 30
base_height = 3
base_offset = 0
$fn = 90
bent_fn = 30
hole_diameter = 1.5
handle_thickness = 7

  • 3D file format: STL
  • 3D model size: X 155 × Y 75 × Z 33.5 mm
  • Publication date: 2020/01/29 at 21:09
