Eumakers Xmas ball

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 8.4k views
  • 59 likes
  • 1.3k downloads

3D model description

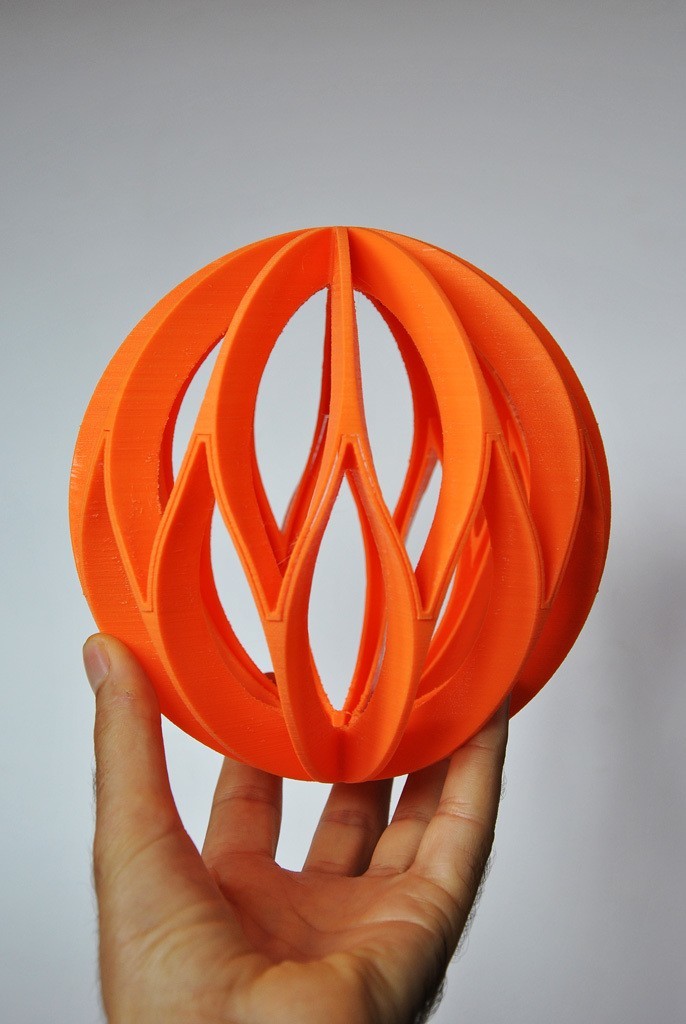

Xmas Ball consists in a two part big Christmas ball.

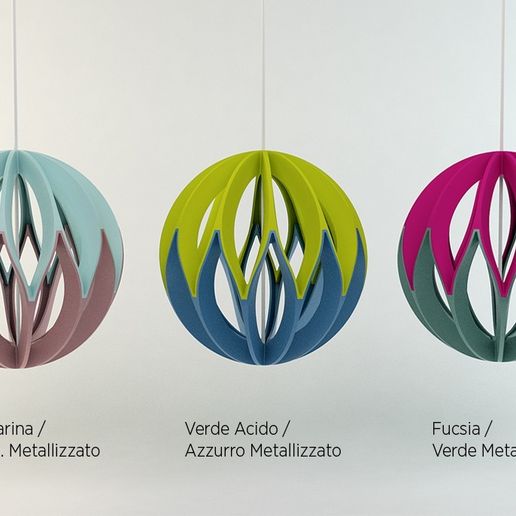

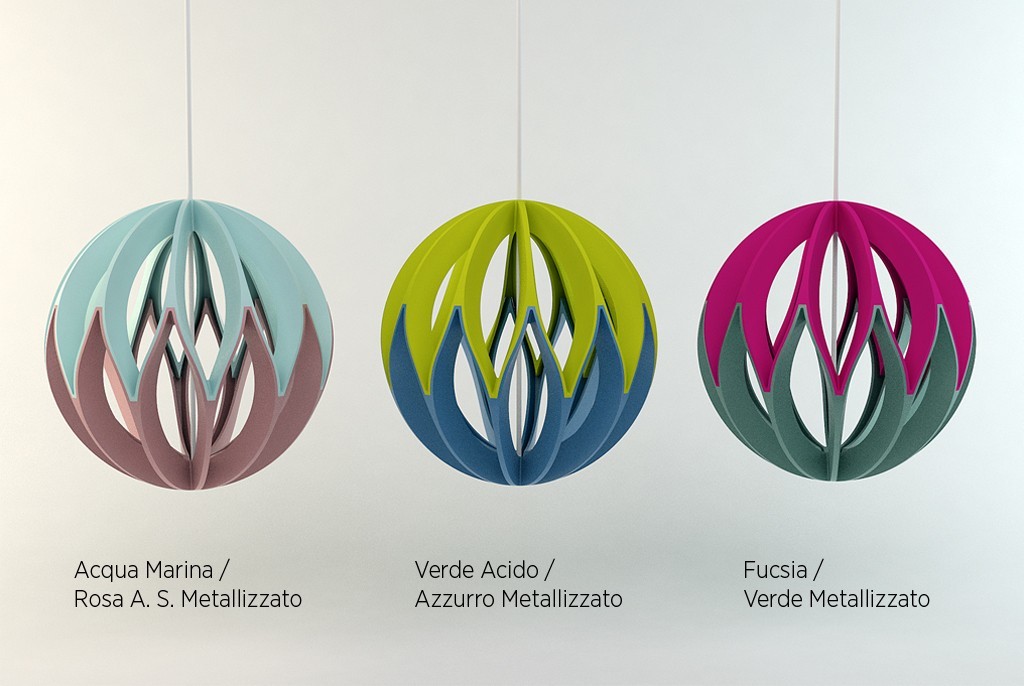

It is very easy to assemble, and permits two color combinations.

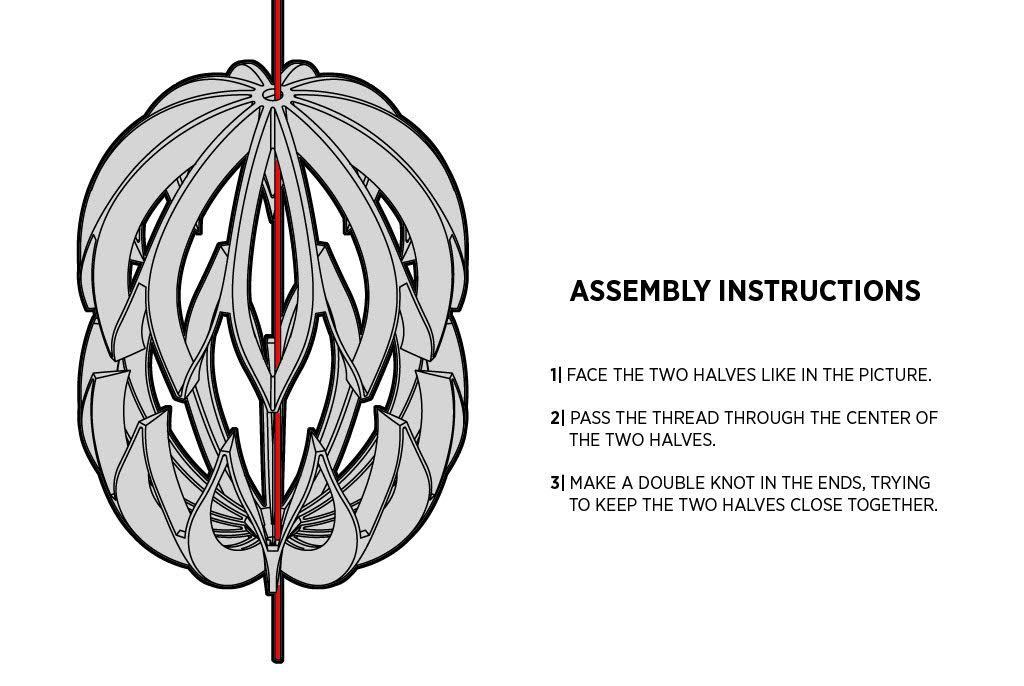

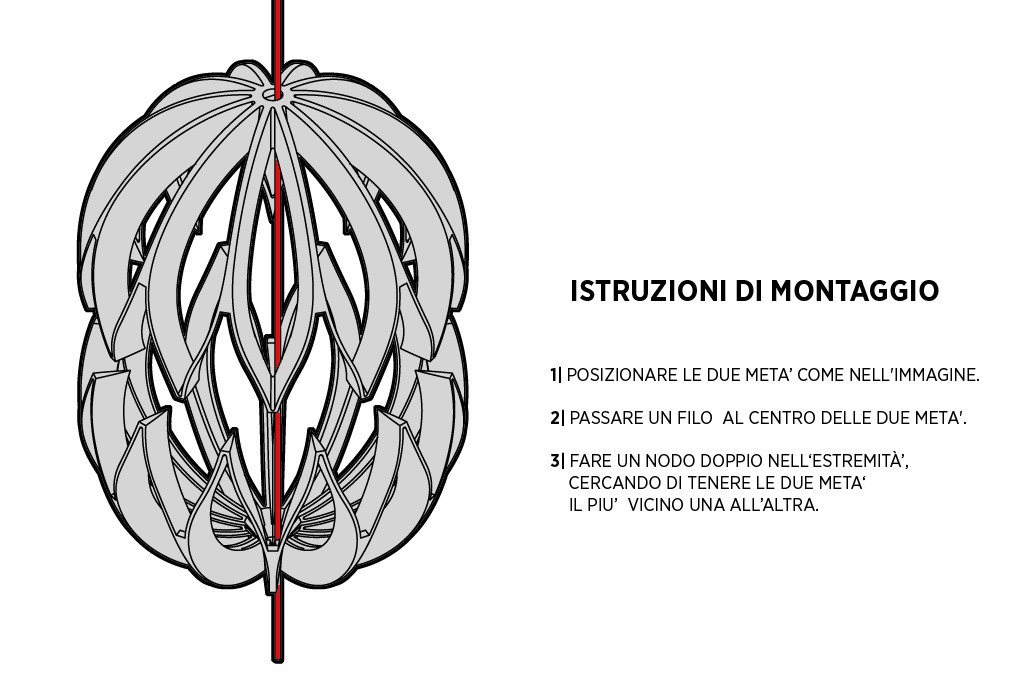

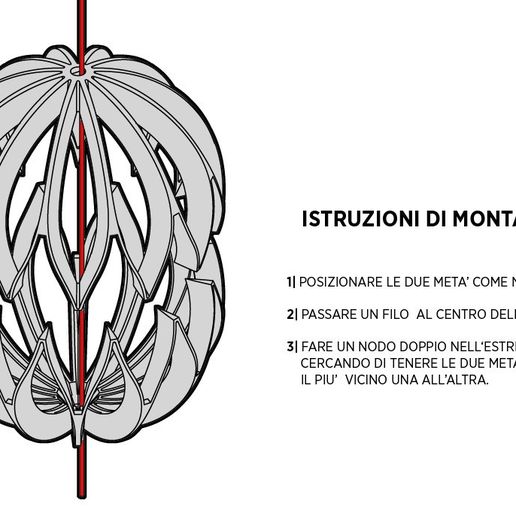

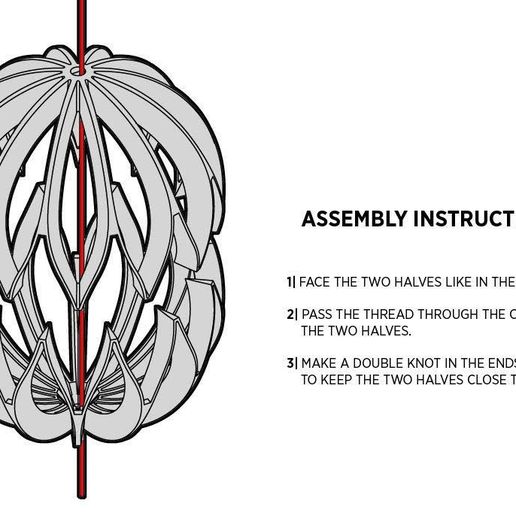

After printing the two halves, all you have to do, is pass a thread through them and make a knot at the ends.

Then, it will be ready to be hanged as a window decoration.

Designed by Helder Santos


3D printing settings

PRINTING NOTES
IN CASE YOU HAVE SOME DIFFICULTIES IN PRINTING THE "Xmas_Ball.stl" FILE, YOU CAN TRY USING "Xmas_Ball_Rotated.stl" FILE INSTEAD.

SLICE ENGINE - CURA 15.04.2

EXTRUDER TEP | 213ºC
COOLING | 0-10%

  • BASIC TAB

Layer Height | 0.20 mm
Shell Thickness | 0.8 mm
Enable Retraction | On
Bottom/Top Thickness | 0.8 mm
Fill Density | 100%
Print Speed | 50 mm/s
Support Type | NO
Platform Adhesion Type | BRIM - Brim Line Amount | 5

  • ADVANCED TAB

Nozzle Size | 0.4 mm
Initial Layer Thickness | 0.3 mm
Travel Speed | 250 mm/s
Bottom Layers Speed | 20 mm/s
Infill Speed | 50 mm/s
Top/Bottom Speed | 25 mm/s
Outer Shell speed | 40 mm/s
Inner Shell Speed | 50 mm/s
Minimal Layer Time | 5 mm/s
Enable Cooling Fan | OFF

  • RETRACTION

Minimal Travel | 1.5 mm
Minimal Extrusion Before Retracting | 0.02 mm
Z Hop When Retracting | 0 mm
Retracting Length | 6.0 mm
Retracting Speed | 45 mm/s

3D printer file information

  • 3D design format: OBJ and STL Folder details Close
    • XMAS BALL 3.stl
    • XMAS BALL.obj
  • Publication date: 2016/12/05 at 18:11

License

CC BY NC ND

Creator

EUMAKERS was founded in early 2014 has become a leader in Italy and Europe for the production and marketing of PLA filaments for 3D printing.

Actually EUMAKERS can count on the widest range of PLA colors on the market (over 100 tones available).

The experience and results acquired over the years allow the EUMAKERS to be at the forefront in the field of plastics research and to introduce in the market an increasing variety of products.
