Trebuchet

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 4.8k views
  • 22 likes
  • 235 downloads

3D model description

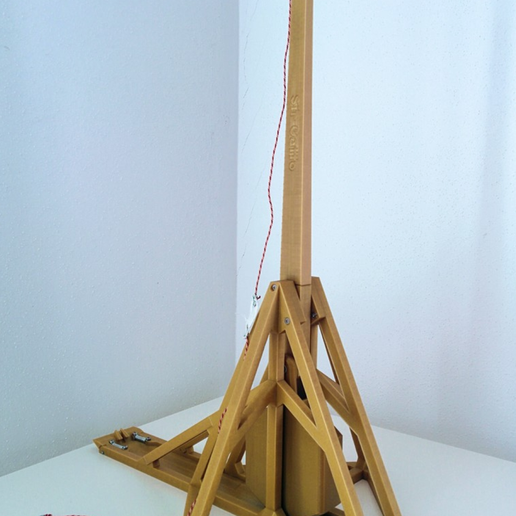

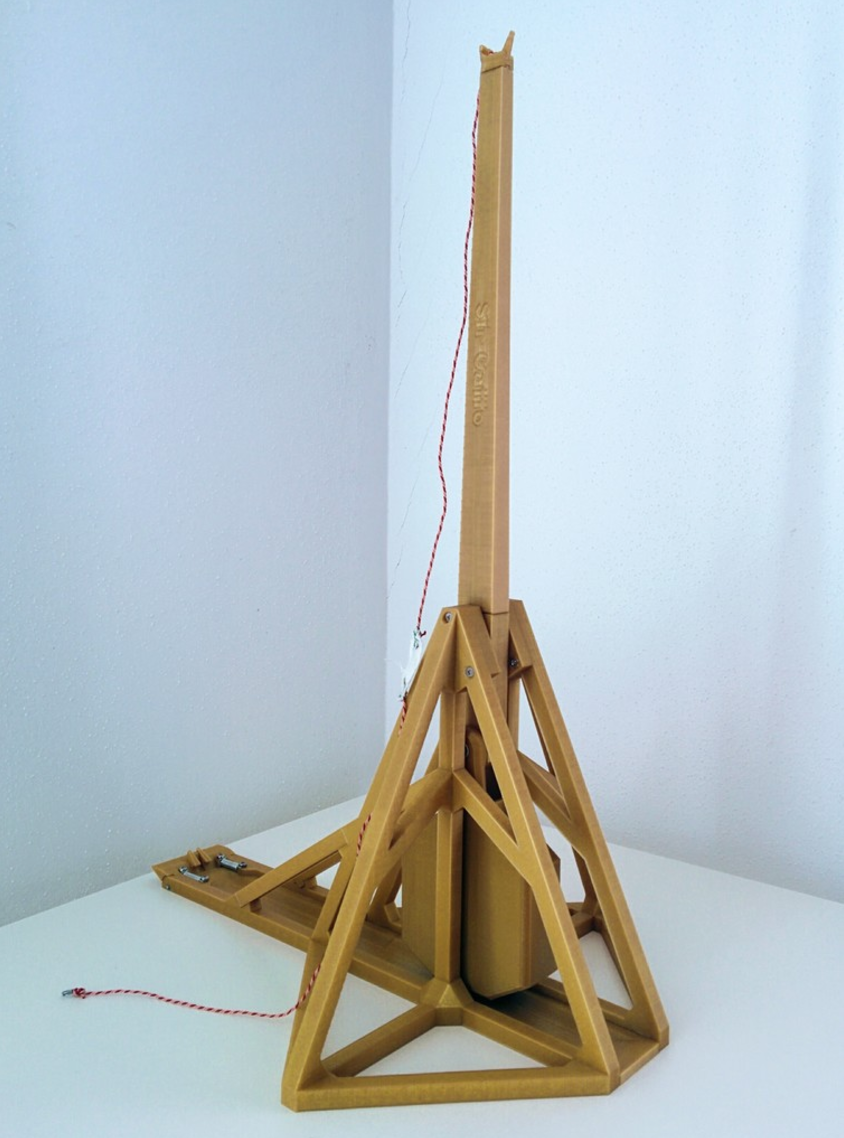

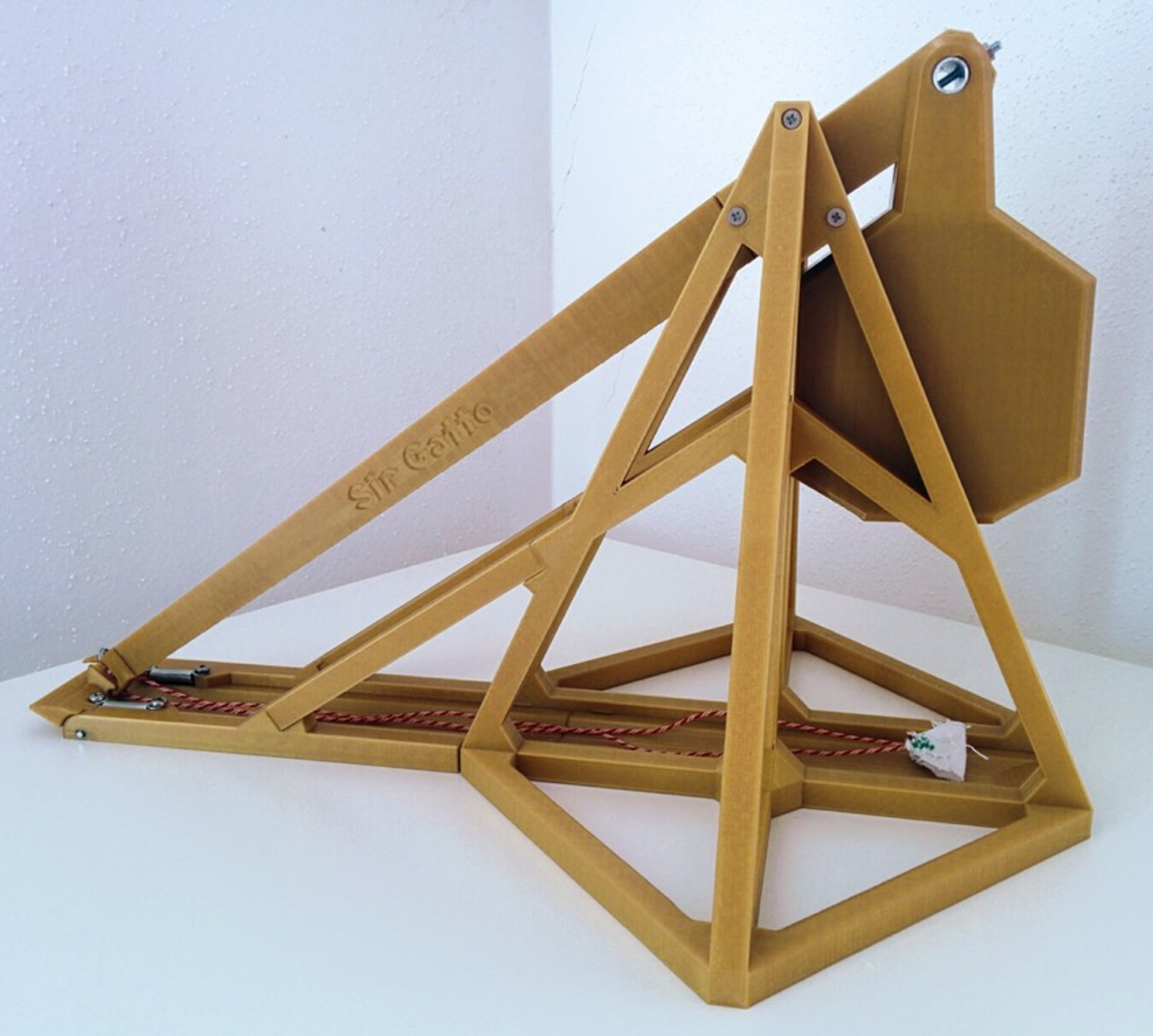

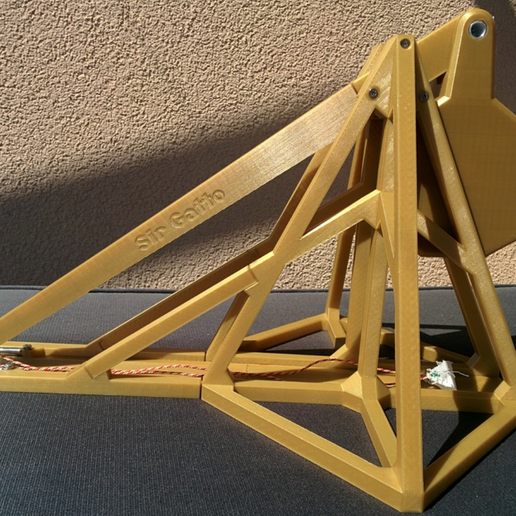

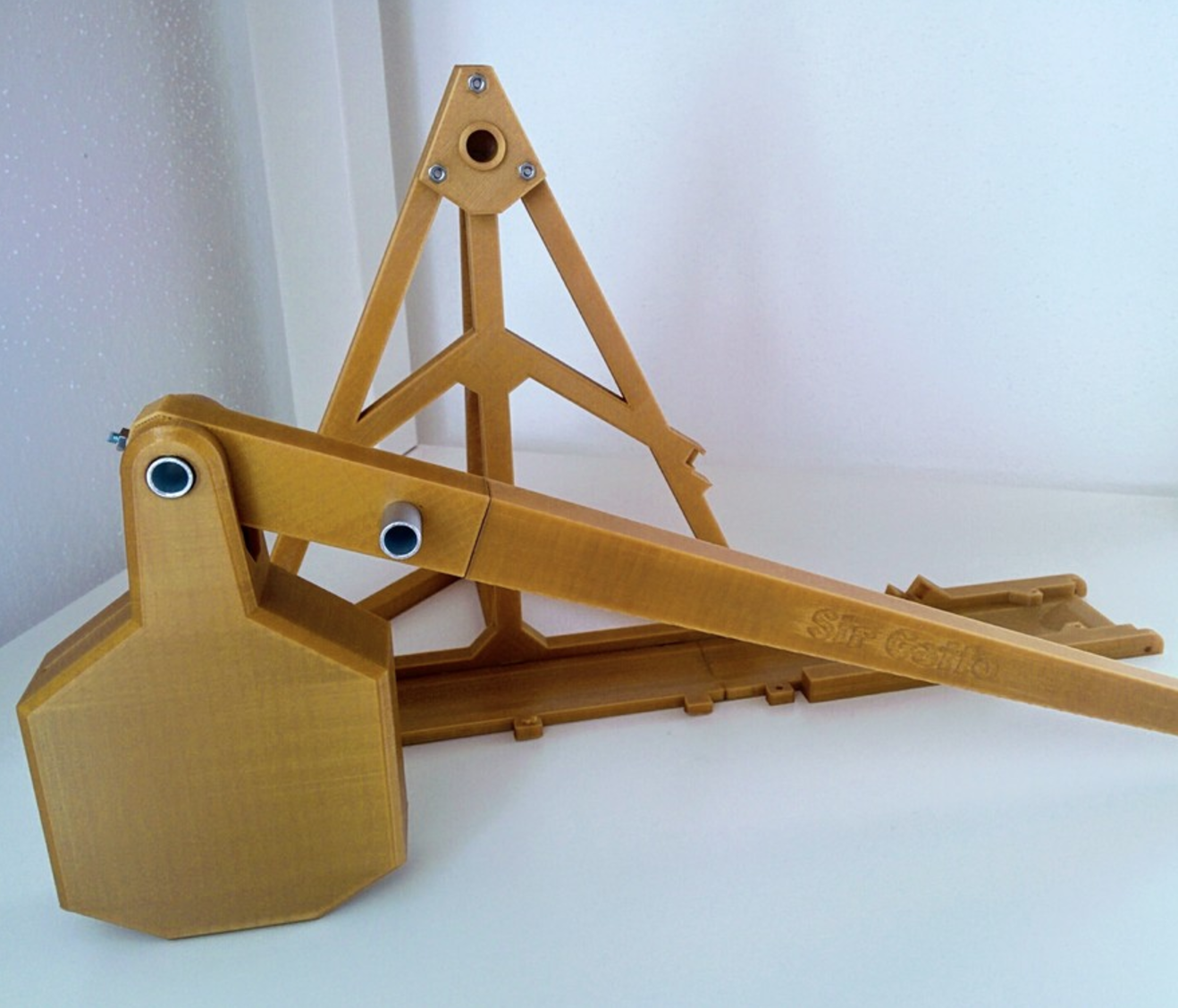

A nice working trebuchet to throw around small stones, sweets or whatever ...

Use some coins to fill up the counter weight.

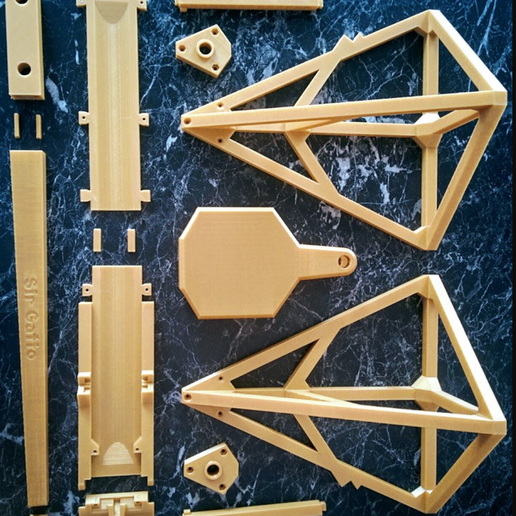

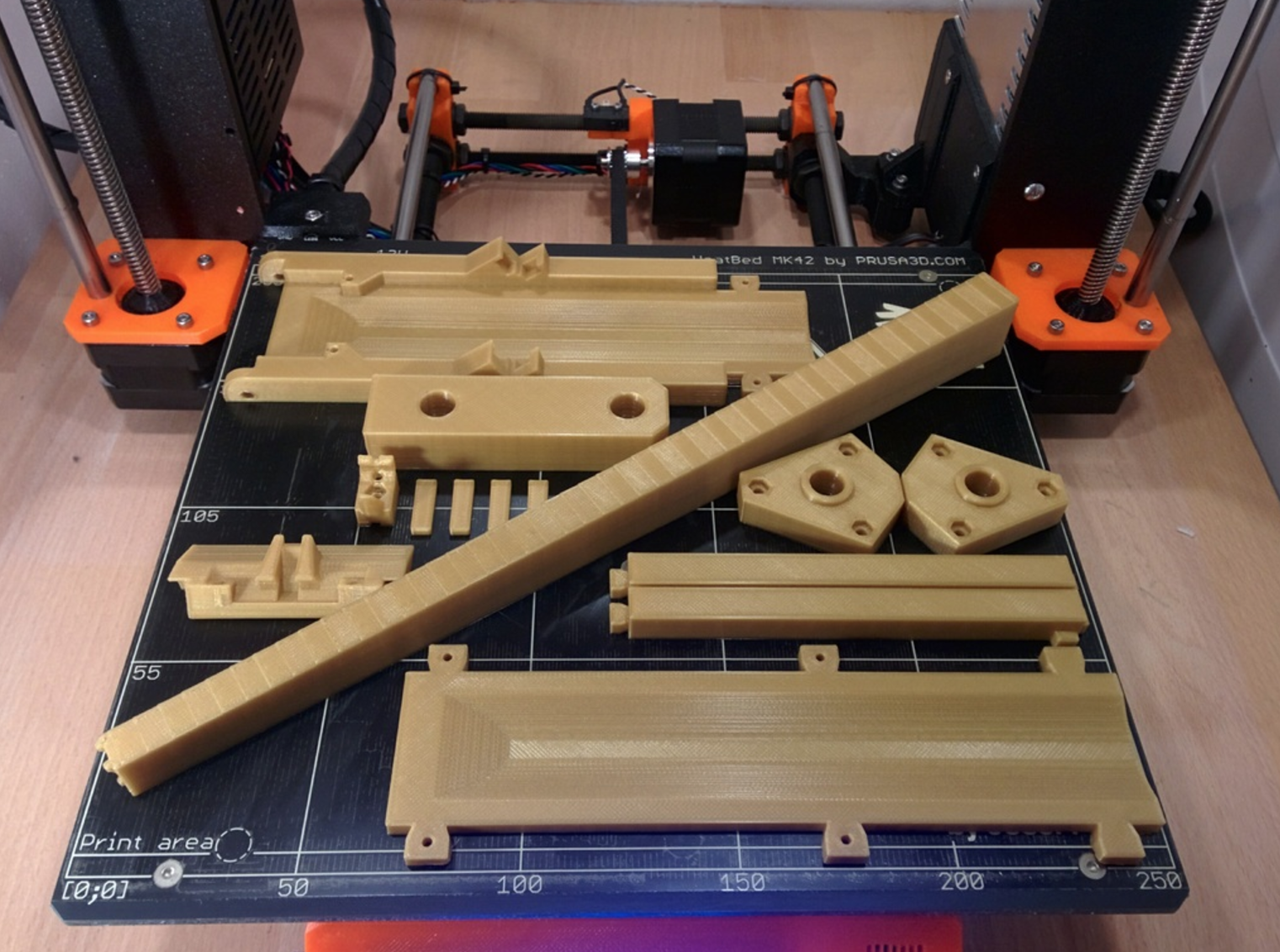

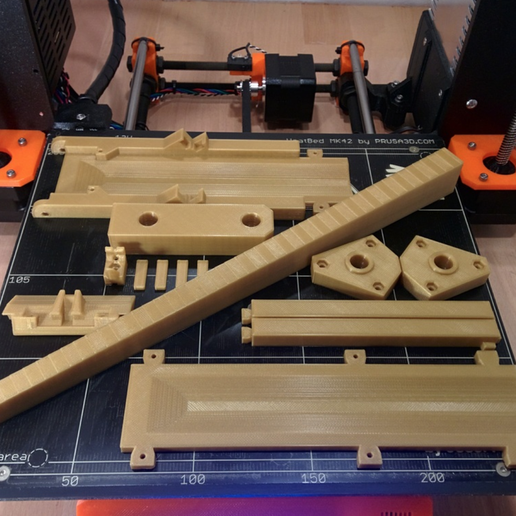

You can print every part with standard settings. No support or raft needed.

This is how it looks like in slow motion: https://youtu.be/s_eITNoklZY


3D printing settings

Printer Brand:
Prusa

Printer:
Prusa Mk2

Rafts:
No

Supports:
No

Resolution:
0.2

Infill:
15%

Notes:
just standard settings

3D printer file information

  • 3D design format: STL Folder details Close
    • Arm_Teil_1.stl
    • Arm_Teil_2_blank.stl
    • Arm_Teil_3.stl
    • Auslöser.stl
    • Dübel_1.stl
    • Dübel_2.stl
    • Dübel_3.stl
    • Dübel_4.stl
    • Gegengewicht.stl
    • Links_Lager.stl
    • Links_Längsstrebe.stl
    • Links_Seitenteil.stl
    • Rampe_Teil_1.stl
    • Rampe_Teil_2.stl
    • Rechts_Lager.stl
    • Rechts_Längsstrebe.stl
    • Rechts_Seitenteil.stl
  • Publication date: 2017/05/03 at 11:57

License

CC BY NC

Tags

Creator

I am a civil engineer. In my work i do stuff like modeling digital surfaces for excavators. Something like 3D printing in a bigger scale..

For my latest designs i use fusion 360. It's perfect for 3D printing!.Earlier designs like the siren where made with AutoCAD. Something i don't recommend for 3D printing. It's awful for 3D modeling...

I come from Austria and my native language is german. So if my words sometimes don't look right the reason for that is that i don't speak english very often.
