What would the world of 3D printing be without a 3D parcheesi.

INSTRUCTIONS, PARTS LIST AND QUANTITIES TO BE PRINTED

All parts can be printed without supports as they are oriented except the dice (the faces have a slight curve). If they are printed correctly there is no need to glue them but if we glue them we will get a more solid assembly).

The "STL" of all the parts have the original measurements. The download contains some files that end with the word "TEST". They are a cutout of the RIGHT BASE, the LEFT BASE, the HOUSE part, and, a PATHWAY part and an OUTPUT BOX part. It is necessary to print them as a test by modifying the x-y expansion to find the correct tolerance so that the parts fit perfectly.

The test parts

"STL_BASE_DER_TEST" and "STL_BASE_IZQ_TEST" are missing.

to modify them. Once the required tolerances are known we can print all parts.

All parts of: 01_SUPPORT STRUCTURE, 06_SHEETS, 07_CUBILETS and 08_SHEETS must be printed.

without modifying the dimensions. For the others we will print with the x-y expansion that we determine with the TESTs.

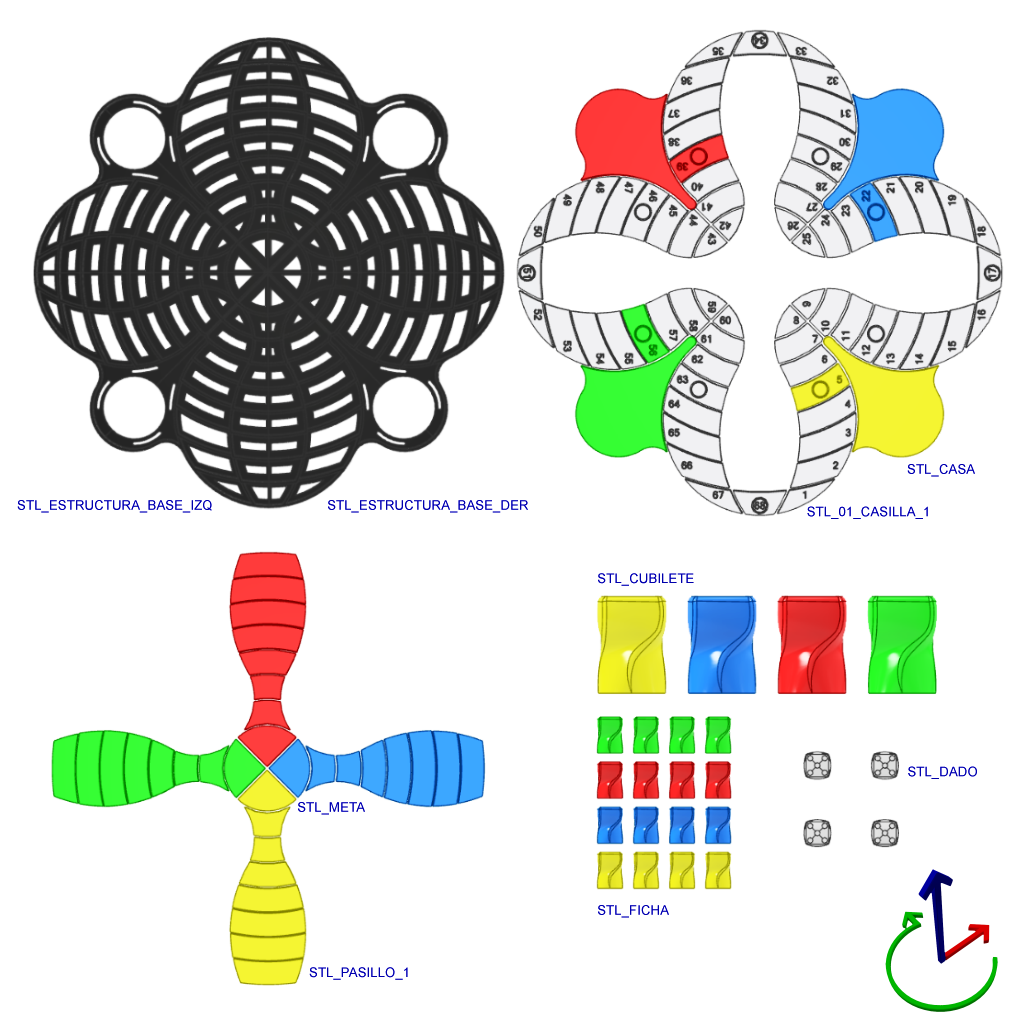

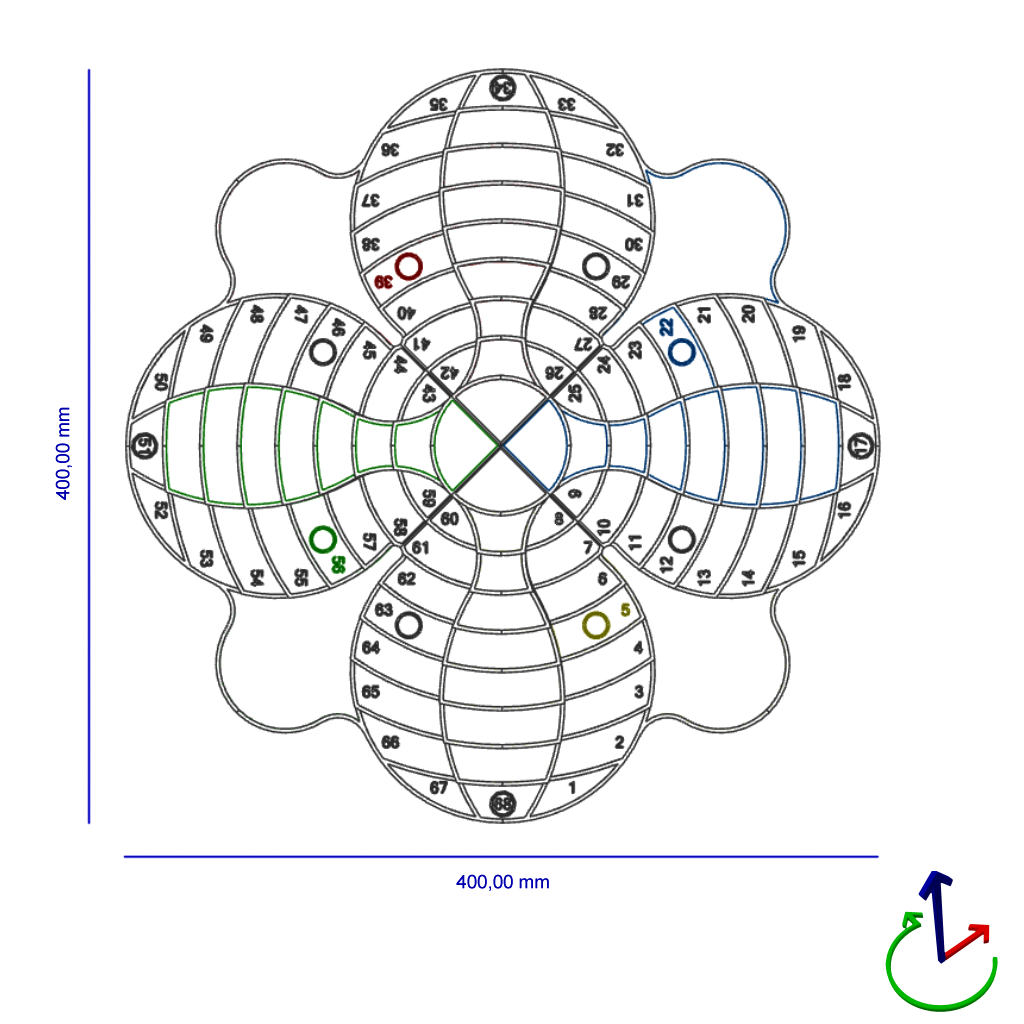

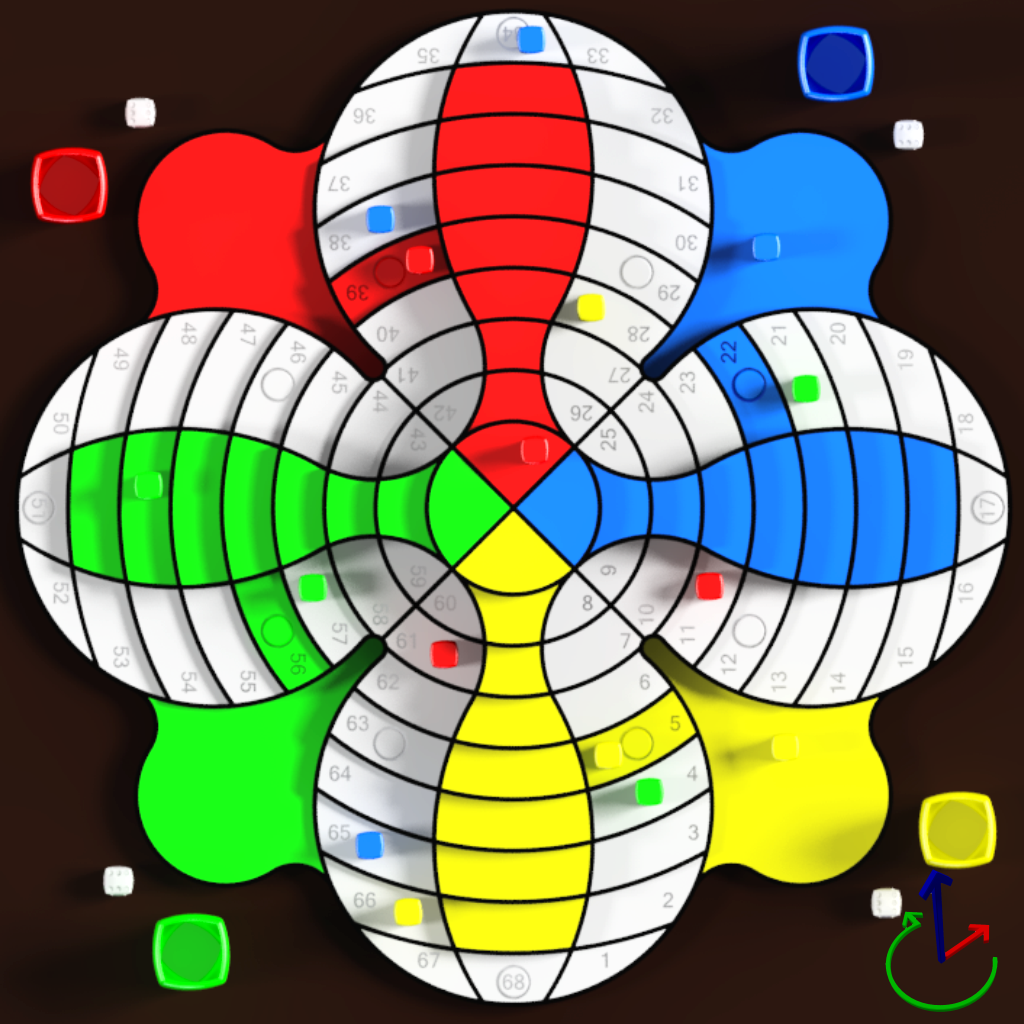

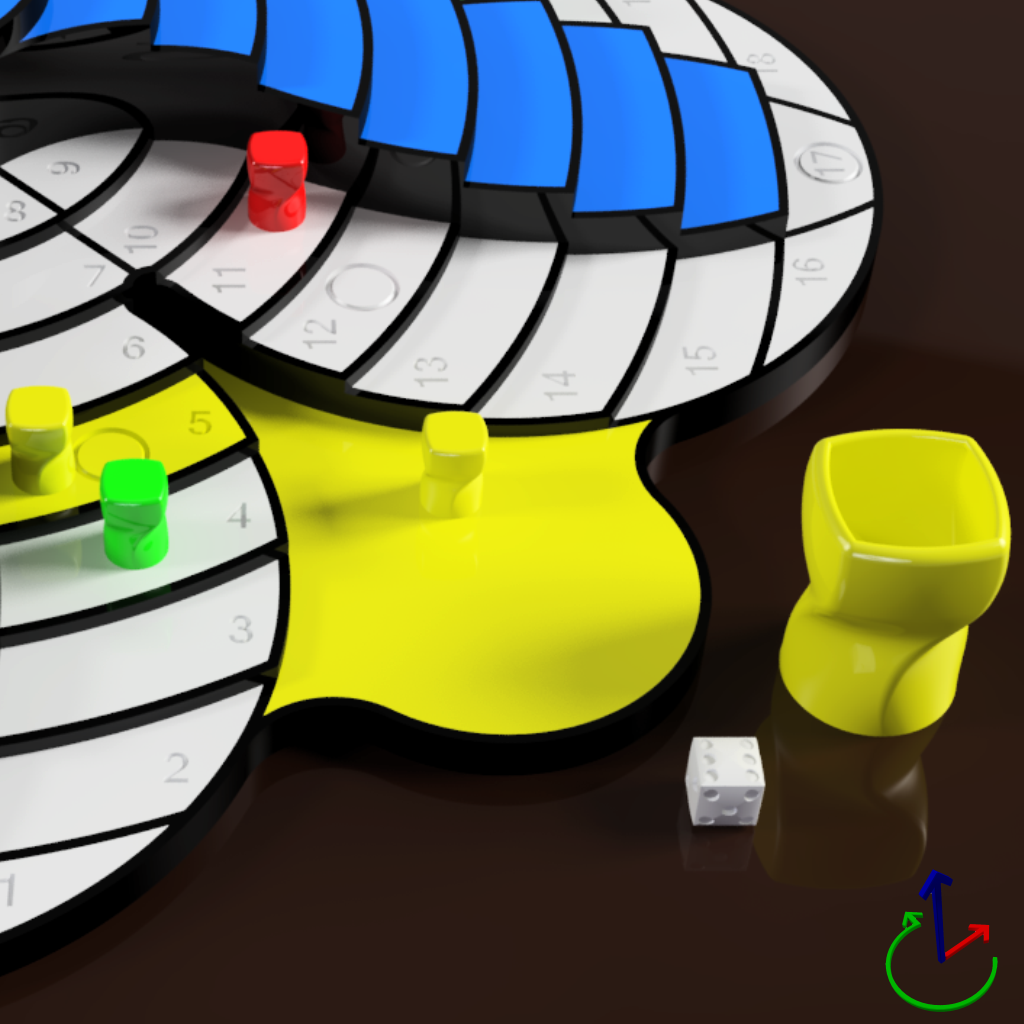

Files in compressed folders. Use the published images for reference.

00_PARTS FOR TEST

(Print the bases without modifying dimensions)

STL_BASE_DER_TEST

STL_BASE_IZQ_TEST

(Print "HOUSE", "WALKWAY" and "EXIT" by setting expansion

X-Y to fit correctly. In my tests by reducing -0.07mm they fit perfect, you may have to lower the corners a bit due to the bulge that occurs at changes in direction).

STL_CASA_TEST

STL_AISLE_04_TEST

STL_EXIT_05_TEST

01_SUPPORT STRUCTURE (Do not modify dimensions)

STL_STRUCTURE_BASE_DER (Print 4)

STL_STRUCTURE_BASE_IZQ (Print 4)

STL_REMACHE (Print 4) (The rivet part is intended to join the base structures on the side of the house parts, in the central area. Instead of using rivets, all parts of the structure can be fastened together using a plastic flange in the

triangular holes in the center)

02_PIEZAS CASA (Print by adjusting X-Y expansion)

STL_CASA (Print 4. Attention to colors)

03_PIEZAS CASILLAS NUMERADAS (Print by adjusting X-Y expansion)

From STL_01_SQUARE_1 to STL_68_SQUARE_68 (All parts are different, print 1 of each. Pay attention to the colors of the outlets)

04_PIEZAS_PIEZAS PASILLO (Print by adjusting X-Y expansion)

STL_PASILLO_1 to STL_PASILLO_7 (Print 4 of each. Pay attention to colors)

05_TARGET_PIEZES (Print by adjusting X-Y expansion)

STL_META (Print 4. Attention to colors)

06_SHEETS (Do not modify dimensions)

STL_FILE (Print 16. Pay attention to colors)

07_CUBILETES (Do not modify dimensions)

STL_CUBILET (Print 4. Pay attention to colors)

08_DADOS (Print with supports)

STL_DADOS (Print 4)


3D printing settings

Printing without supports except for dies.

Layer: 0.2 (dice and tokens recommended 0.1-0.12)

Filling: 20%.

Speed: 40 mm/s

PLA 210º Bed: 60

PETG 235 Bed: 92º (recommended)

(X1-Laminator Kisslicer_1.6.3)

I will address any questions in the comments.

In the spirit of improving my work, I would appreciate it if you rate the quality of the creation.

Thank you for your attention.
