MANUAL TURNTABLE

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3k views
  • 27 likes
  • 6 downloads

3D model description

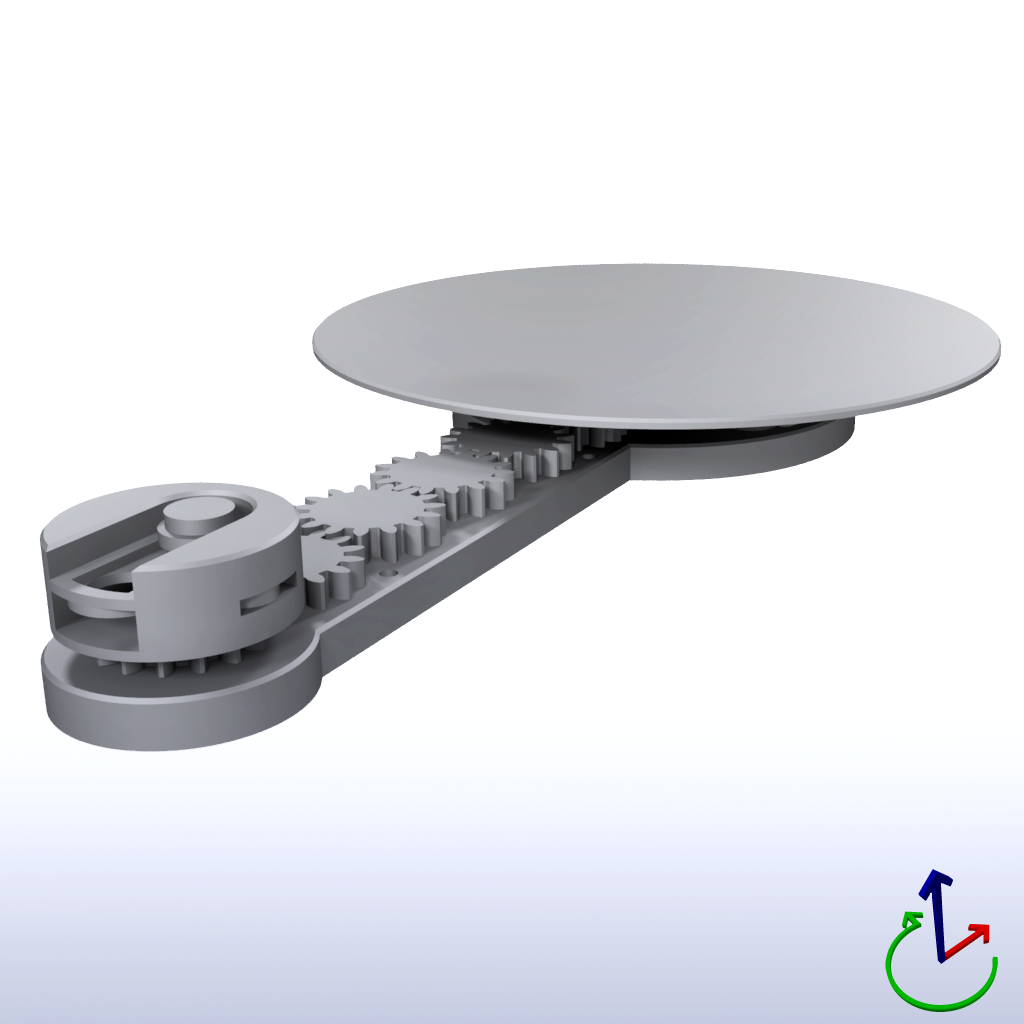

Manual turntable with which we can photograph and make 360 videos of our creations or paint models and parts.

I have added three plates (print the one you prefer) of 120mm, 180mm and 200mm and a base in two pieces that are joined with 2 plastic flanges, so you can print on printers 200x200 or higher.

The knob has a cam that slides out for easy full turns.

Once mounted, it needs to be attached, for example, with screws, double-sided tape or hot silicone, to a surface so that it will not move when you turn it.

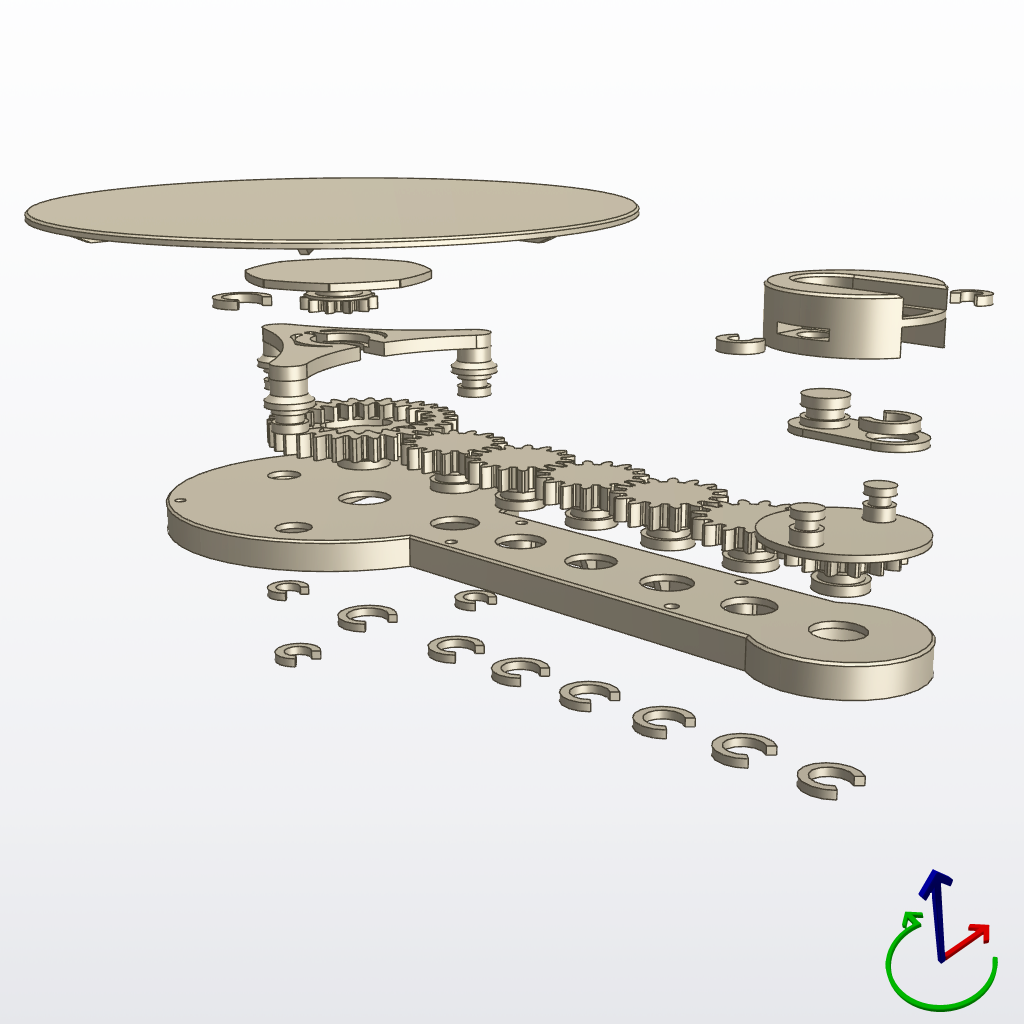

Assembly is very easy, just going by the pictures posted, but I'll address any questions in the comments.

I recommend not modifying the dimensions.

In the parts list I indicate, for each part, whether supports are necessary, the number of parts to be printed and the orientation I have used.

If the printer is properly calibrated there should be no problem for it to work properly.

The gears are attached to the base using clips. It is recommended that the clips rotate freely in their housings. It may be necessary to sand the grooves of the gear shafts a little to achieve this (depending on how the seams and brackets remain).

PARTS LIST:

1.- stl-plato-120- DO NOT CHANGE ORIENTATION - SUPPORTS NO

2.- stl-base-plate-part- DO NOT CHANGE ORIENTATION - SUPPORTS NO

3.- stl-base-part-command- DO NOT CHANGE ORIENTATION - NO SUPPORTS

4.- stl-base- CHANGE ROTATION IF NECESSARY-SUPPORTS NO

5.- stl-plato-180- DO NOT CHANGE ORIENTATION - SUPPORTS NO

6.- stl-plato-200- DO NOT CHANGE ORIENTATION - SUPPORTS NO

7.- stl-clip-sop-sop-eng-plato (x3)- PRINT 3 - DO NOT CHANGE ORIENTATION - SUPPORTS NO

8.- stl-sop-eng-plato- RECOMMENDED ORIENTATION - YES SUPPORTS

9.- stl-clip-corona- DO NOT CHANGE ORIENTATION - NO SUPPORTS

10.- stl-clip-eng (x6)- PRINT 6 - DO NOT CHANGE ORIENTATION - SUPPORTS NO

11.- stl-corona- RECOMMENDED ORIENTATION - YES SUPPORTS

12.- stl-eng-1-2-3-4 (x4)- PRINT 4 - RECOMMENDED ORIENTATION - YES SUPPORTS

13.- stl-eng-5- RECOMMENDED ORIENTATION - SUPPORTS YES

14.- stl-eng-command- RECOMMENDED ORIENTATION - YES SUPPORTS

15.- stl-eng-plato- RECOMMENDED ORIENTATION - YES SUPPORTS

16.- stl-command-box- RECOMMENDED ORIENTATION - YES SUPPORTS

17.- stl-clip-box (x2)- PRINT 2 - DO NOT CHANGE ORIENTATION - NO SUPPORTS

18.- stl-clip-eng-plato- DO NOT CHANGE ORIENTATION - SUPPORTS NO

19.- stl-clip-leva-mando- DO NOT CHANGE ORIENTATION - SUPPORTS NO

20.- stl-clip-cam-command- RECOMMENDED ORIENTATION - YES SUPPORTS

I will address any questions in the comments.

In the spirit of improving my work, I would appreciate it if you could rate the quality of the creation.

Thank you for your attention.


3D printing settings

Layer: 0.2

Supports: Yes

Backfill: 20-30%.

Speed: 40 mm/s (recommended for PETG)

PLA 210º Bed: 60

PETG 235 Bed: 92º (recommended)

I'll address any questions in the comments.

Thank you for your attention.

3D printer file information

  • 3D design format: STL Folder details Close
    • 10_stl-clip-eng_x6.stl
    • 11_stl-corona.stl
    • 12_stl-eng-1-2-3-4_x4.stl
    • 13_stl-eng-5.stl
    • 14_stl-eng-mando.stl
    • 15_stl-eng-plato.stl
    • 16_stl-caja-mando.stl
    • 17_stl-clip-caja_x2.stl
    • 18_stl-clip-eng-plato.stl
    • 19_stl-clip-leva-mando.stl
    • 1_stl-plato-120.stl
    • 20_stl-leva-mando.stl
    • 2_stl-base-parte-plato.stl
    • 3_stl-base-parte-mando.stl
    • 4_stl-base.stl
    • 5_stl-plato-180.stl
    • 6_stl-plato-200.stl
    • 7_stl-clip-sop-eng-plato_x3.stl
    • 8_stl-sop-eng-plato.stl
    • 9_stl-clip-corona.stl

    Learn more about the formats

  • Publication date: 2021/08/19 at 22:36

Copyright

©

Tags

Creator

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Best sellers of the category Various


Add a comment

One comment

Can you add a bevel gear under the platform to fit a gearmotor?
se le puede agregar un engranaje conico debajo de la plataforma para colocarle un motorreductor?

Hola ELNANIEL2607, bajo la plataforma no hay mucho espacio. Se diseñó lo mas resistente y compacto posible. Se me ocurre que se puede adaptar un motor encima del stl_eng_mando. Con una pletinas y dos tornillos se puede sujetar el motor a los laterales de la base del mando y con otra pletina al eje del motor y a los pivotes superiores de este engranaje. Otra posibilidad es sustituir el stl_eng_mando por una copia del stl_eng_5 y adaptar el motor sobre este.
