LONG OUTER BARREL+BARREL GRIP FOR AAP-01

Long Outer Barrel and Barrel Grip for AAP-01, outer barrel has profile the same as the upper.
Has inner +11MM CW Threads on end of barrel.
Minimum Inner Barrel length needed is 129MM(same as original).

2 lengths for the Outer Barrel, 12 inch and 9 inch.
Outer Barrel mounts onto AAP-01 the same way the original Outer Barrel is mounted on to Upper, use original screws to mount Inner Barrel/Hop-Up.

2 versions for Barrel Grip, Smooth and Side-Profiled Diamonds.
Barrel Grip Mounts onto barrel with included Picatinny Rail, needs x1 M5x35MM Long Countersunk screw to pinch onto rail.

Also included is a picatinny rail section to mount the barrel grip.
Picatinny Rail mounts on with self screw holes on barrel, use x2 M3x8MM long Countersunk Screws

Magbase stock can be downloaded here: https://cults3d.com/:3313186

Printing Space required: 256MMx256MMx256MM

Refer to your Manufacturers Filament Specifications for ideal printing.

Outer Barrels and Grips have flats on bottoms to rest against build plate.

12 inch Outer Barrel needs to be diagonal(corner to corner of Build Plate) in order to barely fit.

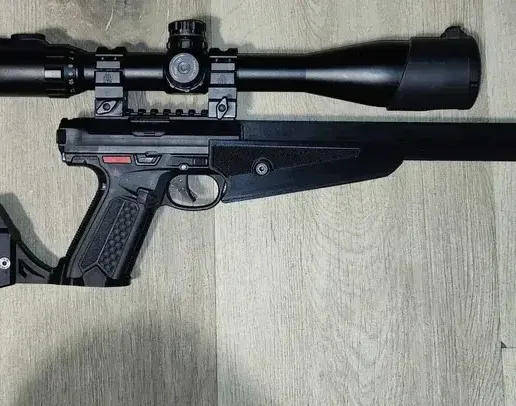

Pictures shown use ABS filament, following specs are used but you can change them as you want them.
-(BambuLabs) Polylite ABS filament preset
-0.2mm Layer Height
-4 Wall Loops
-Gyroid Sparse infill - 20% density
- Brim Type: Outer Brim + 4mm brim width
