G1 Transformers Sideswipe - No Support

3D model description

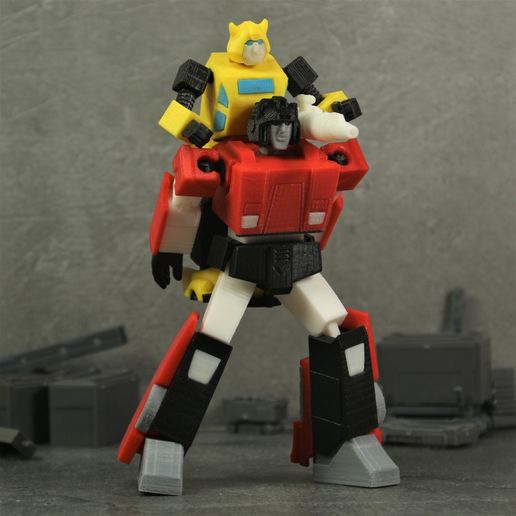

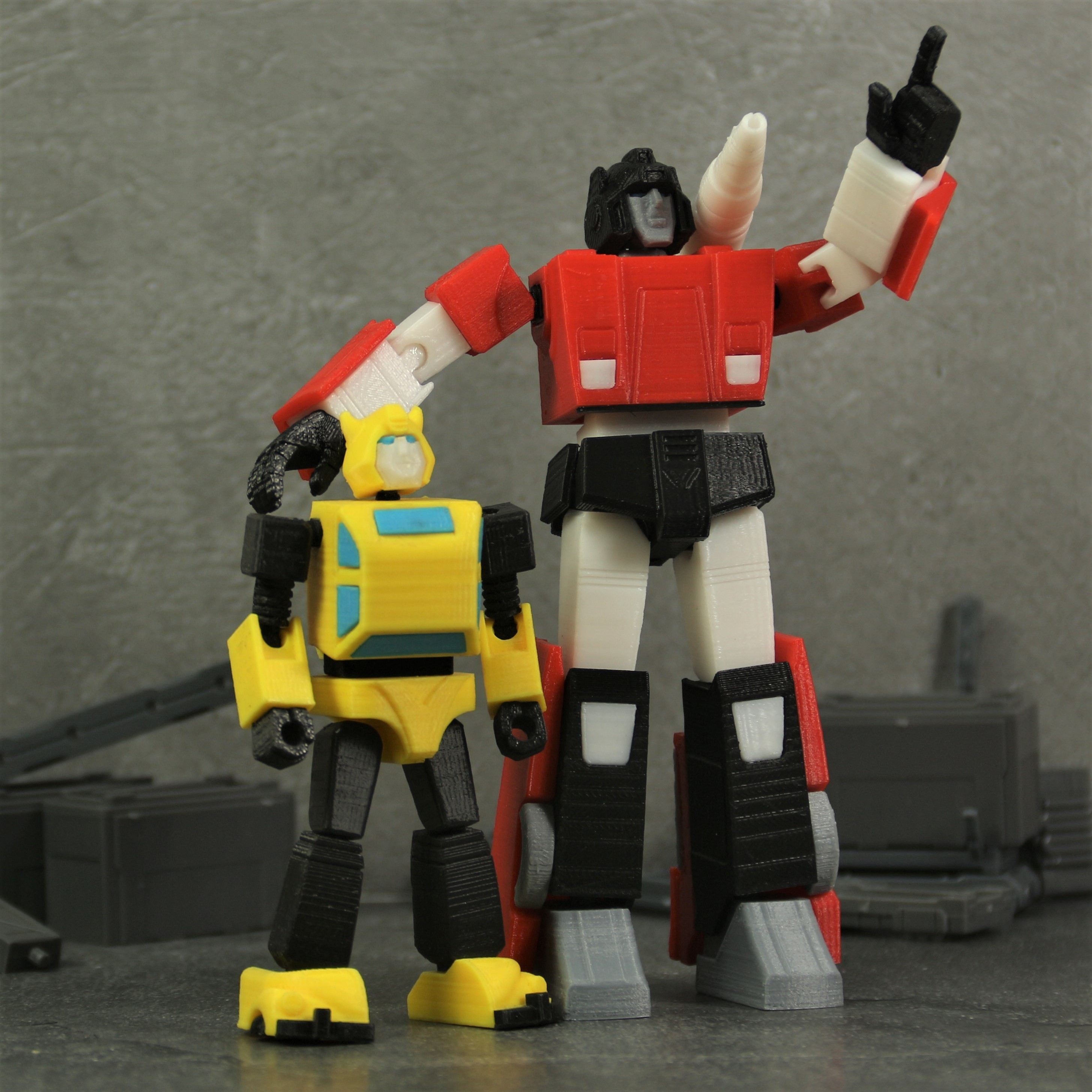

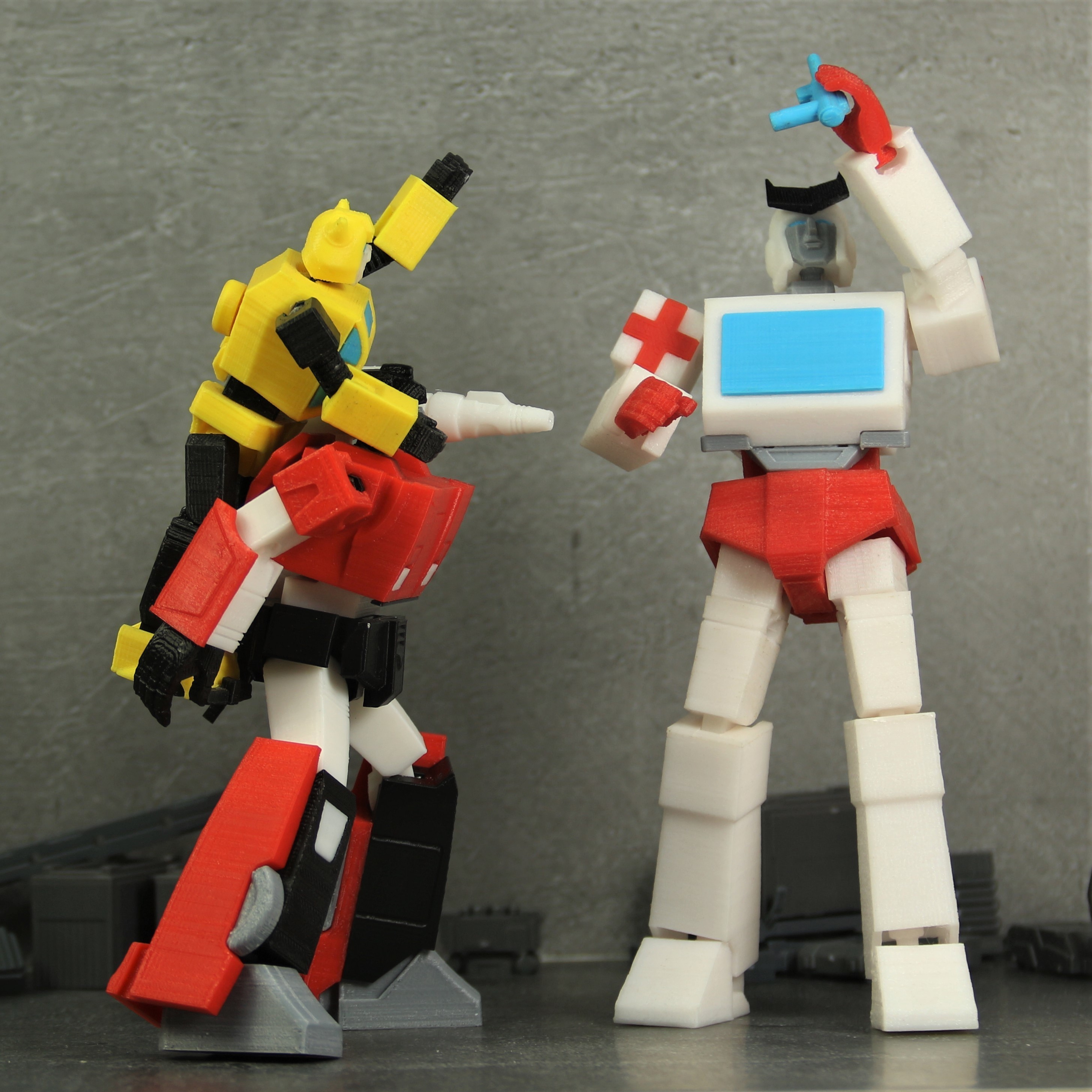

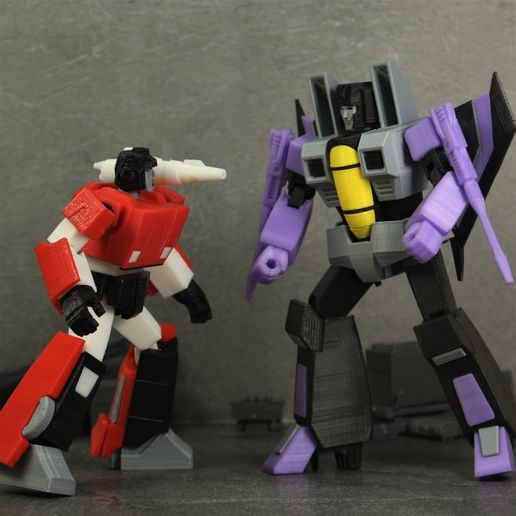

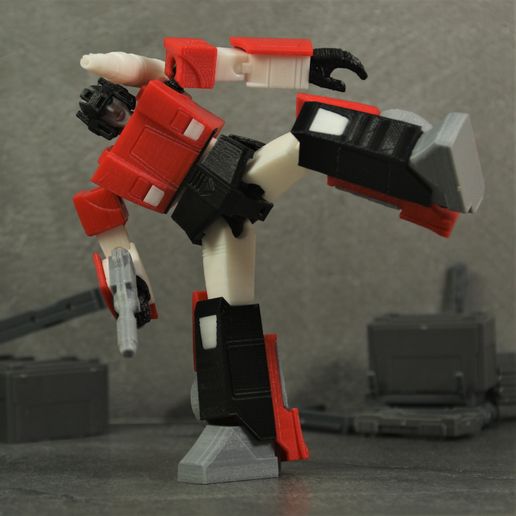

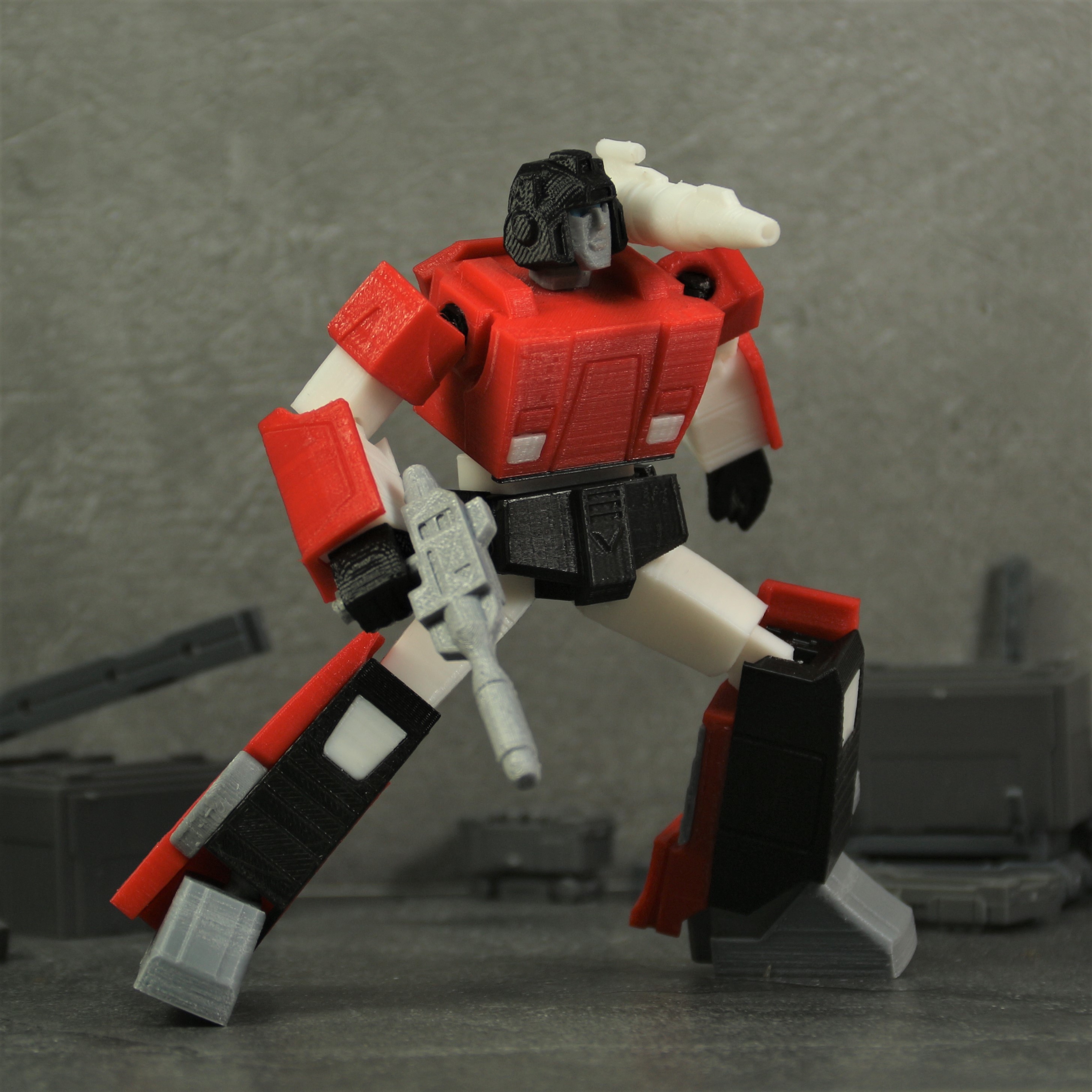

G1 Sideswipe, fully articulated model but not transformable.

  • Scale: 1:30 (14cm)
  • Coloring can be done by using different color of filament (detail on files name)
  • No Support
  • Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.15 peg joint
  • Best print orientation for maximum strength result
  • Easy to print
  • Easy to assemble
  • Easy to rescale

More updates: https://www.instagram.com/toymakr3d/

Point of articulation:
1. Neck ball joint
2. Abdomen ball joint
3. Shoulders ball joint
4. Upper arm swivel joint
5. Elbow ball joint
6. Wrist swivel
7. Waist swivel
8. Hip ball joint
9. Thigh swivel joint
10. Knee ball joint
11. Ankle ball joint

Accesories :
- Gun
- Unknown Weapon

IMPORTANT TIPS:
- Use Nail Polish to fix loose ball joint

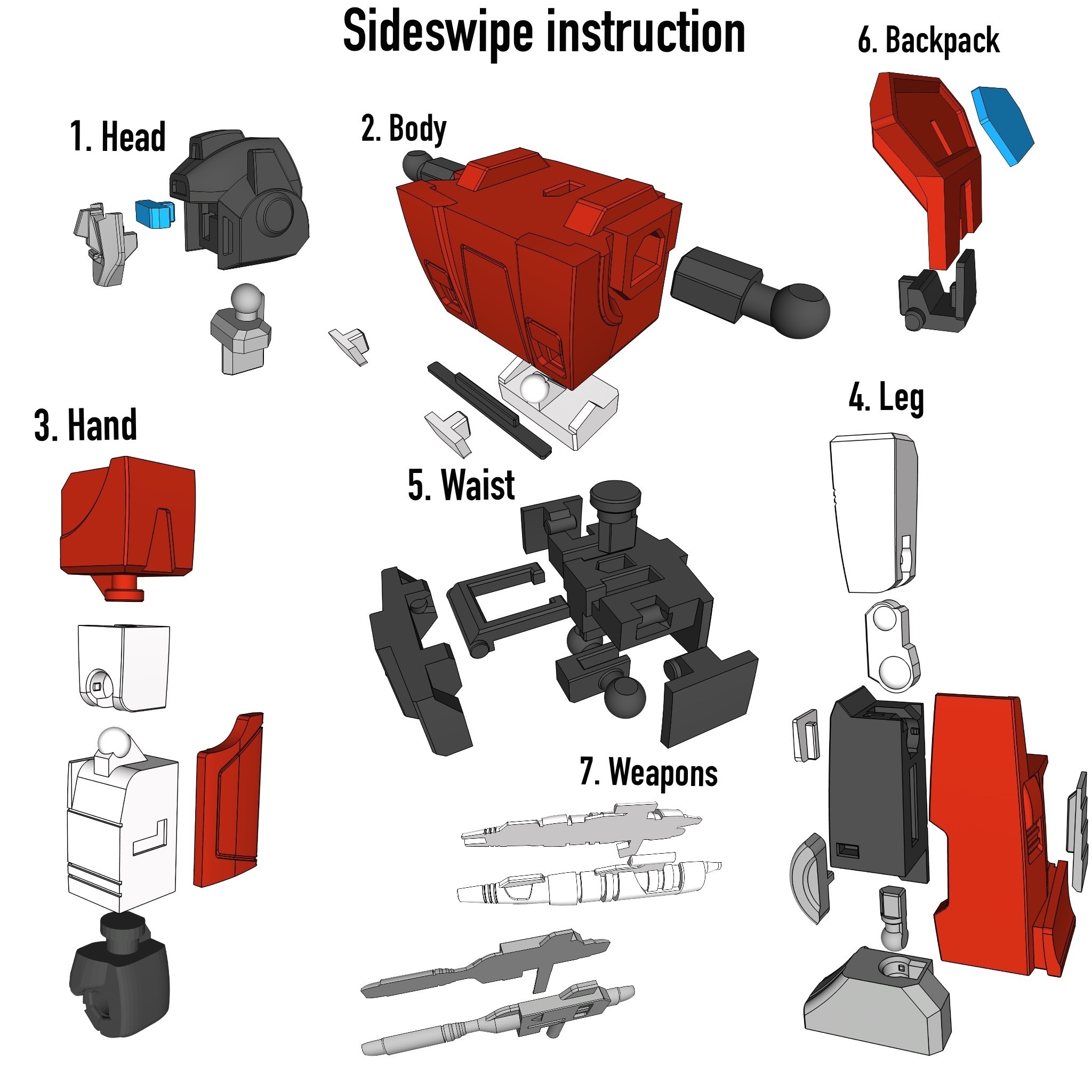

- Cutter or sand paper for tolerance adjustment
- Use super glue for split parts

3D printing settings

Nozzle: 0.4mm
Layer: 0.15mm (0.1mm for the head)
Filamen: PLA
Temperature: 190-200°C
Speed: 40/s
Skin/top/bottom: 0.8mm
Infill: 25%

  • 3D file format: STL and ZIP
