Functional Garage Door scale 1/14 – (24cm or 30cm width and 28cm or 32cm high)

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
33 files (PDF and STL) Close
  • Assembly instructions for the Garage Door V2.pdf
  • Functional garage door V2 - 24cm Beam Back.stl
  • Functional garage door V2 - 24cm Beam Front.stl
  • Functional garage door V2 - 24cm Beam Middle.stl
  • Functional garage door V2 - 24cm Panel Bottom.stl
  • Functional garage door V2 - 24cm Panel Middle Flat.stl
  • Functional garage door V2 - 24cm Panel Middle Window.stl
  • Functional garage door V2 - 24cm Panel Top.stl
  • Functional garage door V2 - 30cm Beam Back.stl
  • Functional garage door V2 - 30cm Beam Front.stl
  • Functional garage door V2 - 30cm Beam Middle.stl
  • Functional garage door V2 - 30cm Panel Bottom.stl
  • Functional garage door V2 - 30cm Panel Middle Flat.stl
  • Functional garage door V2 - 30cm Panel Middle Window.stl
  • Functional garage door V2 - 30cm Panel Top.stl
  • Functional garage door V2 - Bearing cover.stl
  • Functional garage door V2 - Motor Frame extention 28cm.stl
  • Functional garage door V2 - Motor Frame extention 32cm.stl
  • Functional garage door V2 - Motor Frame.stl
  • Functional garage door V2 - Rail 28cm Bottom.stl
  • Functional garage door V2 - Rail 28cm Top Left.stl
  • Functional garage door V2 - Rail 28cm Top Right.stl
  • Functional garage door V2 - Rail 32cm Bottom.stl
  • Functional garage door V2 - Rail 32cm Top Left.stl
  • Functional garage door V2 - Rail 32cm Top Right.stl
  • Functional garage door V2 - Rail Left.stl
  • Functional garage door V2 - Rail Right.stl
  • Functional garage door V2 - Roof support long 1.stl
  • Functional garage door V2 - Roof support long 2.stl
  • Functional garage door V2 - Roof support short 1.stl
  • Functional garage door V2 - Roof support short 2.stl
  • Functional garage door V2 - Sliding Arm.stl
  • Functional garage door V2 - Sliding mechanism.stl

Learn more about the formats
Last update
Publication date
Design number 3281746
Prince3dDesigns

Prince3dDesigns

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

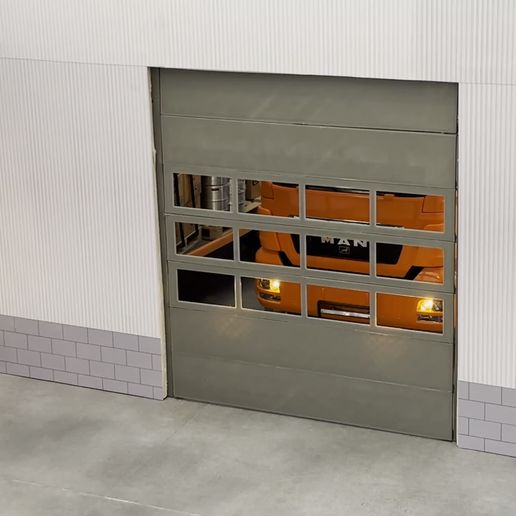

This 1:14 scale functional garage door is a realistic and fully operational model, perfect for any scale RC garage, warehouse, or workshop diorama.
The set includes two door width options 24cm and 30cm and two height options:28cm or 32cm with a smooth-sliding design that can be opened and closed by motor.

Designed for easy assembly, the package includes:
- Printable parts optimized for 3D printing
- Detailed illustrated assembly instructions
- Needed Additional parts list (Also listed below)
- Motor integration option. If no motor is assembled it can also be operated manually.

Whether you're building an RC truck garage or a model warehouse, this door adds an impressive touch of realism. Compatible with RC brands like Tamiya, Lesu, Carson, Bruder, and others in 1:14 scale.

Additional Items Needed (example links provided, but parts can be sourced elsewhere):
Screws Din 912:
- 2x M2 10mm
- 22X M2 12mm (22x for 28cm high, 25x for 32cm high)
- 14x M2 nut (14x for 28cm high, 16x for 32cm high)
- 8x M3 6mm
- 4x M3 8mm
- 12x M3 10mm
- 6x M3 16mm
- 2x M3 20mm

All screws needed are available in these 2 sets.
M2 Set
• https://www.amazon.nl/dp/B0CZNX4KBY/
M3 Set
• https://www.amazon.nl/dp/B0B3MGZ7T2/
Motor:
• 25GA-370 25Mm DC 12V 300 RPM Geared Motor https://www.amazon.nl/dp/B07ZKGPCMP
Rigid Coupler
• 4 to 8 mm for the 25GA-370 https://www.amazon.nl/dp/B07PYFCVH2
Thread Spindle
• For 28 cm height: 350mm Tr8x8 with T8 Brass Nut https://www.amazon.nl/dp/B0C5M7KK94
• For 32 cm height: 400mm Tr8x8 with T8 Brass Nut https://www.amazon.nl/dp/B0C5M77PCN
Bearing
• 608ZZ https://www.amazon.nl/dp/B09PVDDBWF

See my other designs for more accessory.

Update 2025-08-27 - Version 2
• This version can also be printed as a 32cm high door.
• Optimized to be able to print on smaller printbed. 220x220mm for 24cm wide door and 250x250mm for 30cm wide door.
• Frame more rigid, for smoother operation.

3D printing settings

All items are in the correct print orientation. Designs have been optimized for 3D printing and are easy to print. Most items don’t need supports. And default print settings can be used.
For the 24cm wide door, all parts fit on a 220x220mm bed.
For the 30cm wide door, all parts fit on a 250x250mm bed.
