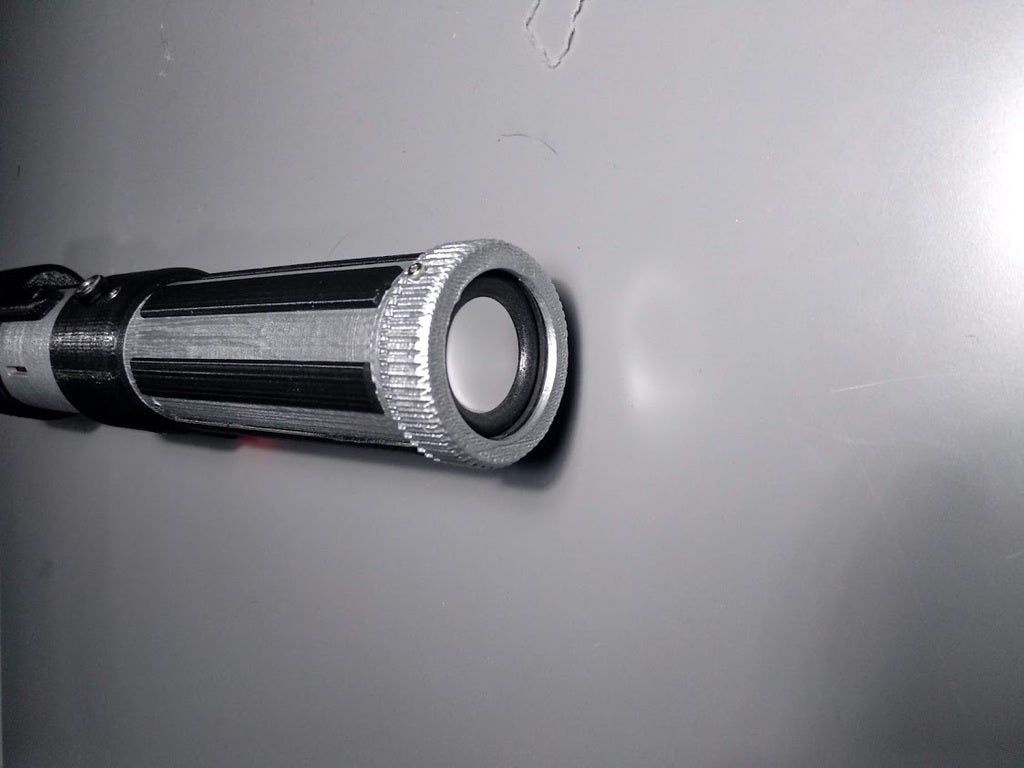

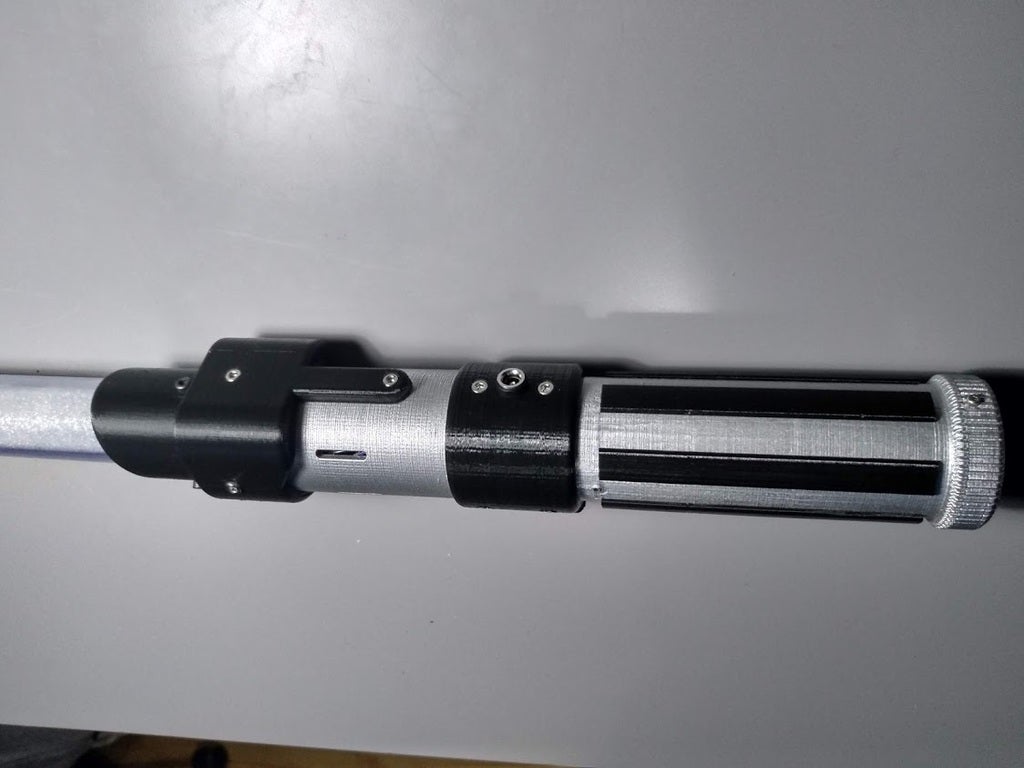

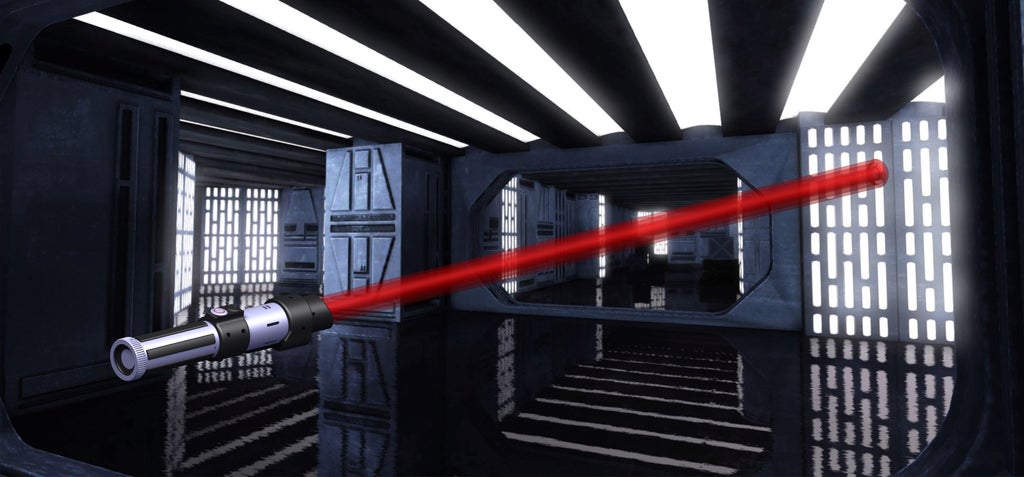

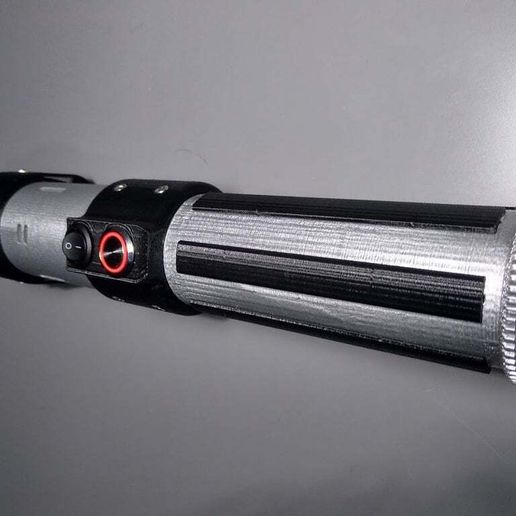

Light saber based on the design of Darth Vader.
LED lights with various colors and sound controlled by arduino.
With accelerometer to change sound depending on the movement of the saber.

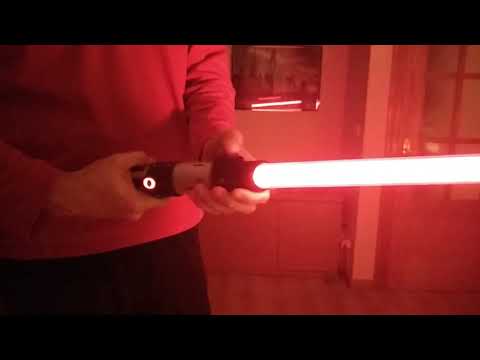

https://www.youtube.com/watch?v=8xss7yZzkCA

BOM:
- 0.85 m Transparent PVC tube 32mm thickness 3.5mm. Better if the thickness is less by the weight.
- Arduino NANO
- 2 meters of Addressable LED strip. WS2811, 12V, white PCB, IP30, 60 LED / meter
- Button with LED 5V
- Accelerometer MPU6050
- MicroSD 8 GB
- MicroSD module mini
- 3 units 3.7v AA size batteries - 900 mAh
- DCDC Step Down XM1584 3A
- Amplifier PAM8403 2x3W - 5V
- Speaker 40mm 3W
- 2 units Resistors 220 Ohms
- Power button
- Charging port
- Battery holder of 4 units AA size
- Prototype board
- Wires
- Bolts M3
- PLA filament 300 grams
