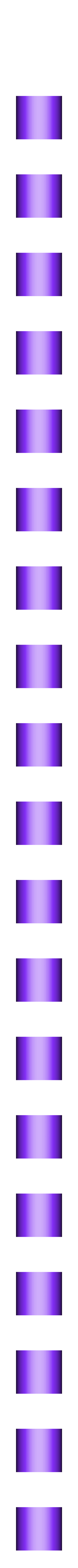

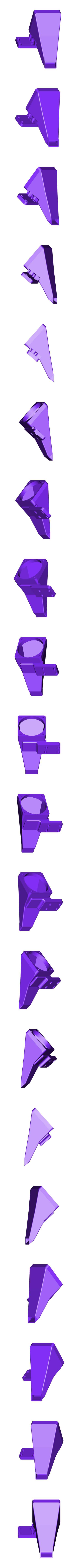

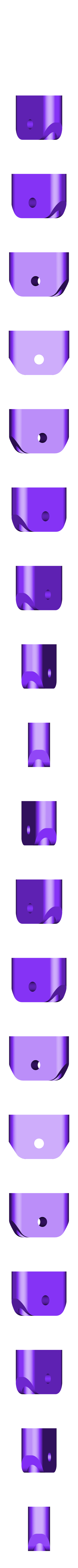

  • Pata_Caja_electrica_rojo.stl 16.0 × 15.0 × 16.0 mm

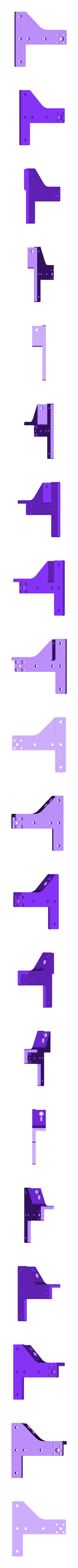

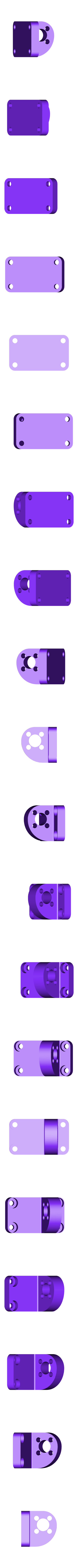

  • Sim_of_Y_01.stl 95.0 × 97.0 × 24.0 mm
  • Sim_of_Y_02.stl 20.0 × 21.0 × 14.0 mm

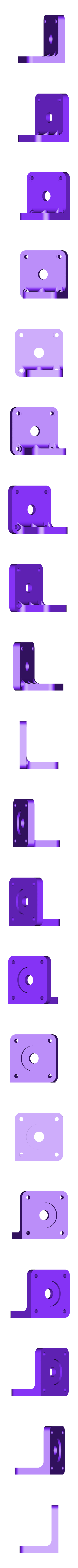

  • Sim_of_Y_04.stl 34.0 × 42.0 × 42.0 mm
  • Tapa_Cables.stl 2.0 × 32.0 × 65.0 mm

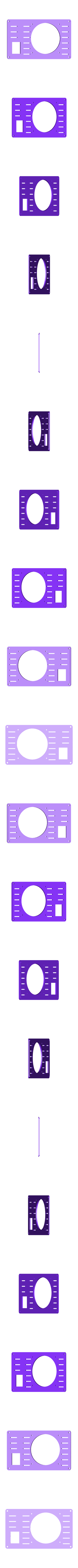

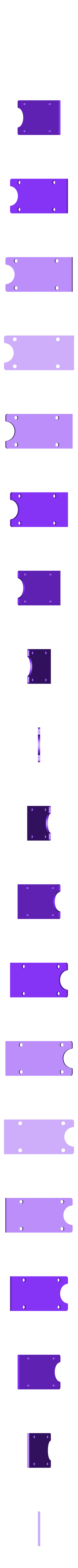

  • Tapa_Caja_electrica_amarillo.stl 170.0 × 100.0 × 3.0 mm

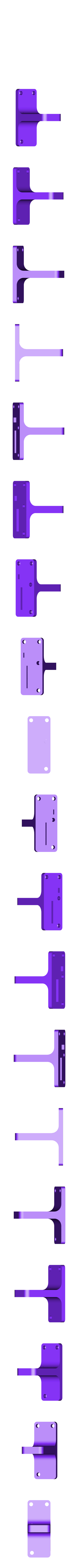

  • Terminal_2.stl 25.0 × 26.5 × 12.6 mm

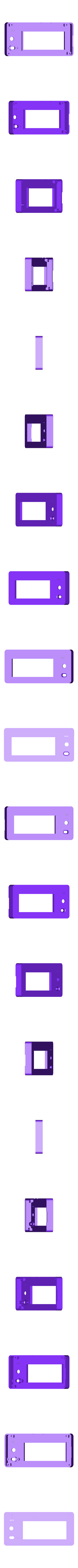

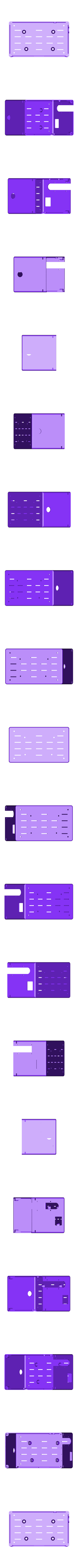

  • Top_Case02_amarillo.stl 157.99998499999998 × 75.5 × 16.0 mm

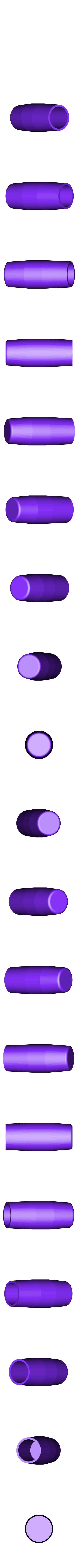

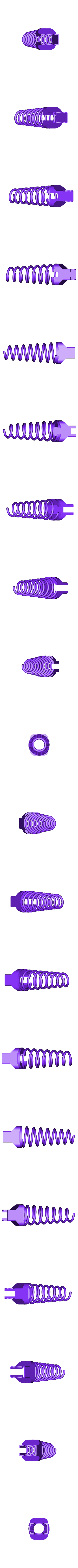

  • Tope_Tubo_18.stl 23.99332 × 23.99332 × 57.0 mm
  • X_01.stl 79.0 × 20.0 × 87.850903 mm
  • X_02.stl 9.999998999999999 × 14.999999999999998 × 20.0 mm
  • X_03.stl 61.0 × 83.53537 × 42.102402 mm

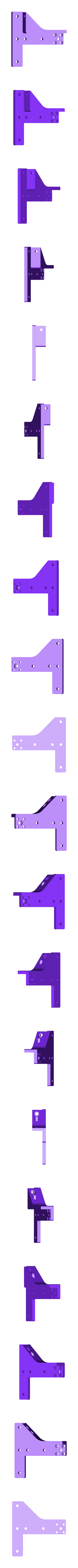

  • X_05.stl 9.0 × 70.0 × 22.0 mm

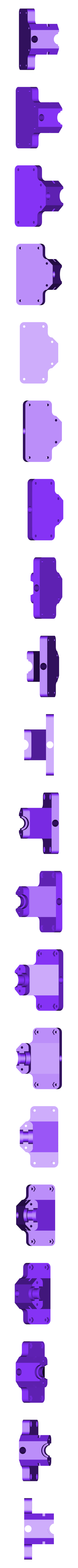

  • X_06.stl 34.0 × 70.0 × 44.0 mm
  • X_07.stl 11.0 × 35.0 × 15.0 mm

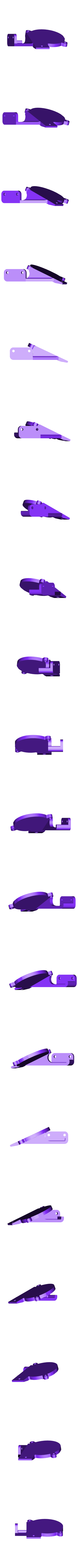

  • X_09.stl 67.0 × 27.506412 × 81.370125 mm

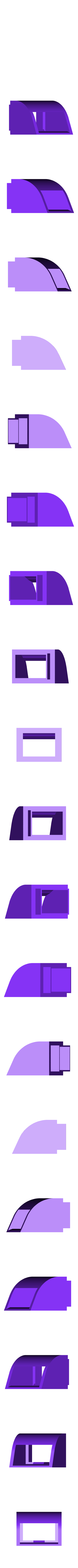

  • X_10.stl 20.0 × 15.0 × 23.95642 mm
  • X_12.stl 20.0 × 17.0 × 21.0 mm

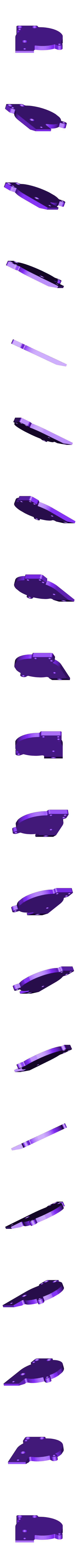

  • X_13.stl 51.0 × 29.162709 × 60.142624 mm

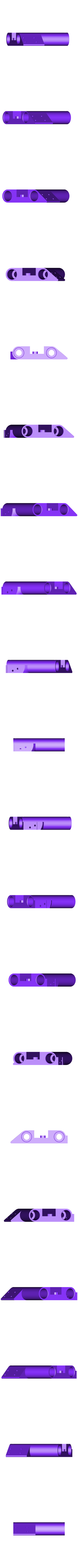

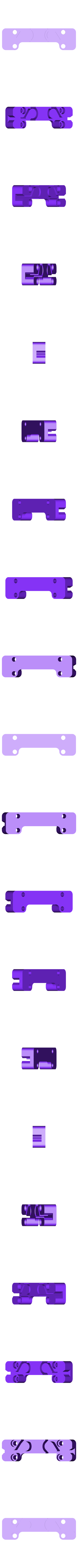

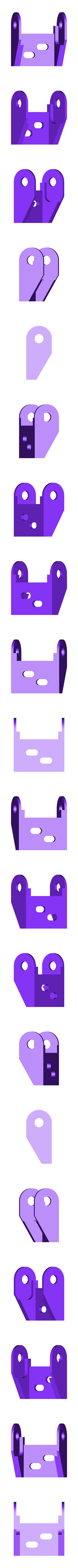

  • X_Belt_holder.stl 58.0 × 17.0 × 10.0 mm
  • Y_01.stl 95.0 × 97.0 × 24.0 mm
  • Y_02.stl 20.0 × 21.0 × 14.0 mm
  • Y_03.stl 16.0 × 40.0 × 33.6 mm

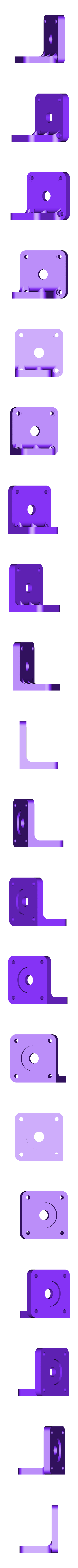

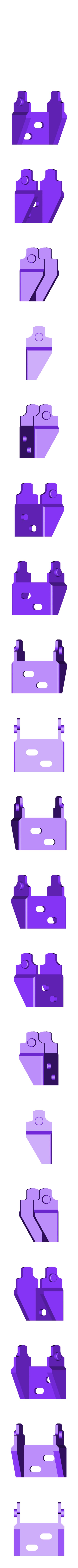

  • Y_04.stl 34.0 × 42.0 × 42.0 mm

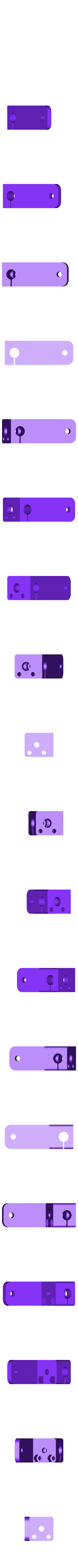

  • Y_05.stl 24.0 × 20.0 × 57.0 mm

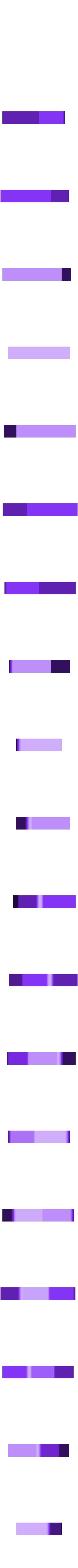

  • Y_06_01.stl 25.5 × 7.0 × 35.0 mm

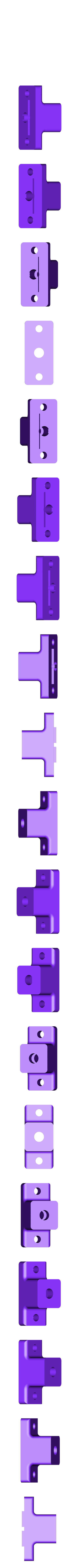

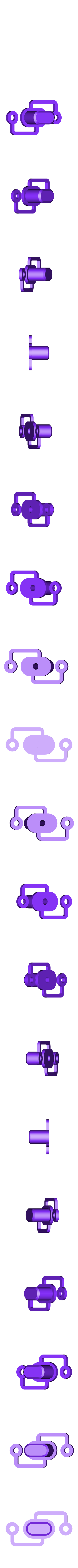

  • Y_07.stl 21.5 × 40.0 × 18.0 mm

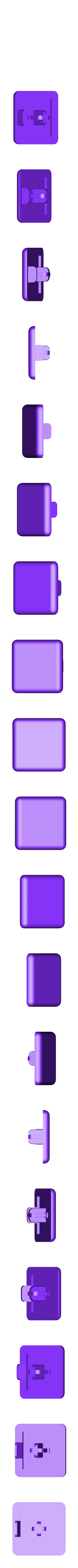

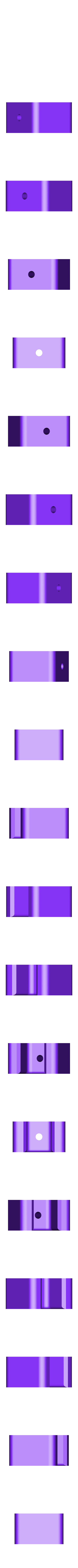

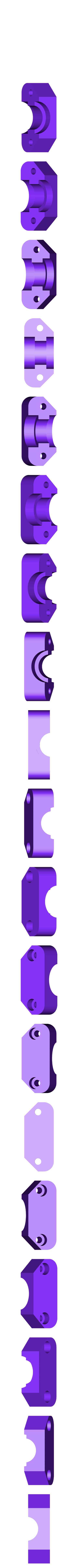

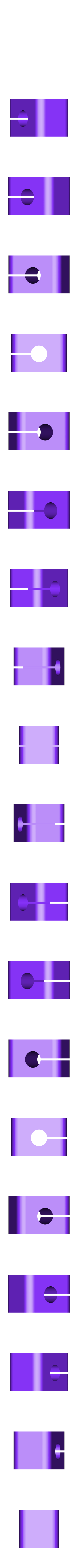

  • Y_09.stl 20.0 × 20.0 × 7.95 mm
  • Y_10.stl 32.0 × 20.0 × 34.5 mm
  • Y_11.stl 20.0 × 19.0 × 28.0 mm

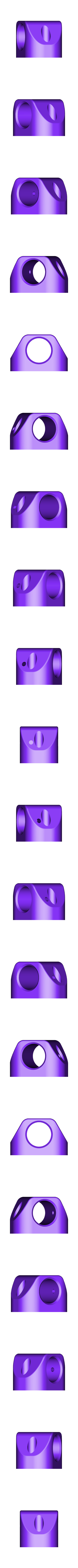

  • Y_13.stl 24.000141 × 23.0 × 36.0 mm

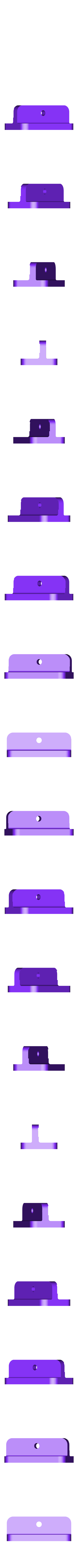

  • Y_14.stl 50.0 × 19.0 × 28.5 mm
  • Y_15.stl 25.5 × 64.0 × 42.0 mm
  • Y_16.stl 10.0 × 20.5 × 20.0 mm

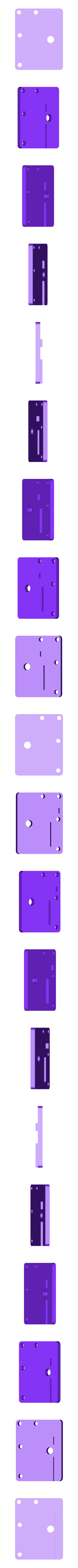

  • Y_17.stl 31.0 × 39.6 × 4.5 mm

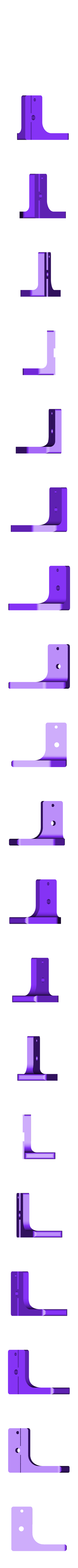

  • Y_18.stl 50.0 × 40.0 × 29.5 mm

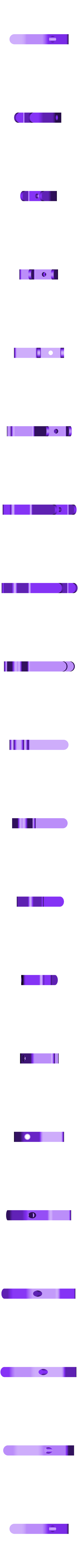

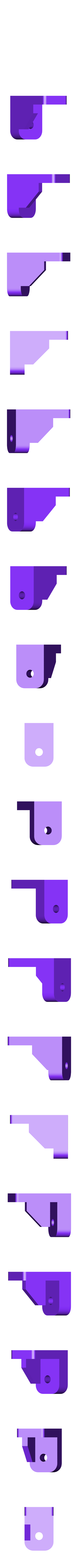

  • Y_21.stl 58.478397 × 10.0 × 49.5 mm

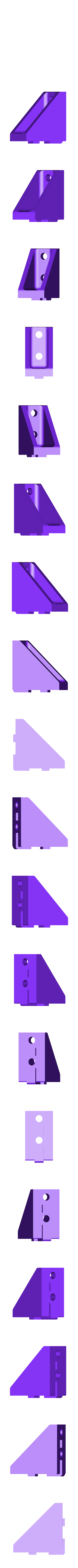

  • Y_22.stl 33.5 × 33.5 × 18.0 mm

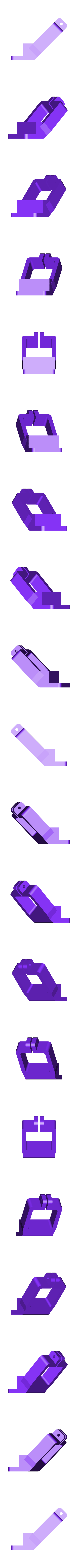

  • Y_27.stl 24.57011 × 25.0 × 83.2285 mm
  • Y_28.stl 90.623817 × 67.567474 × 56.0 mm
  • Y_28.stl 90.623817 × 67.567474 × 56.0 mm

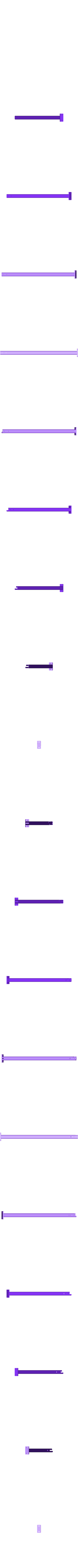

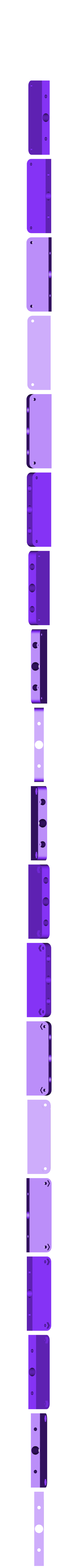

  • Y_29.stl 19.0 × 40.0 × 390.0 mm

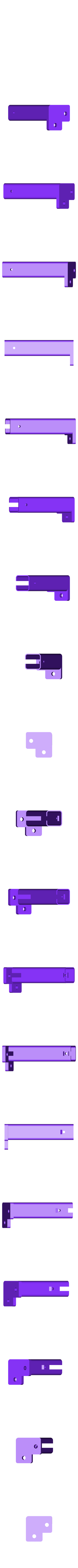

  • Y_30.stl 30.0 × 29.0 × 79.0 mm

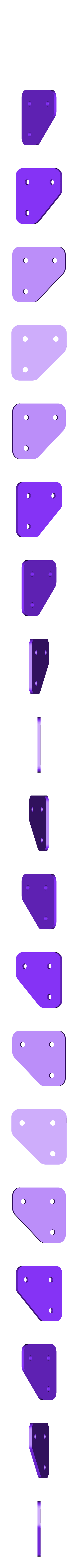

  • Y_31.stl 2.0 × 36.0 × 36.0 mm

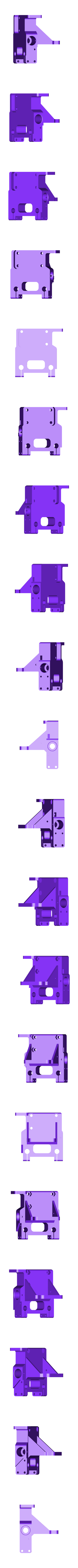

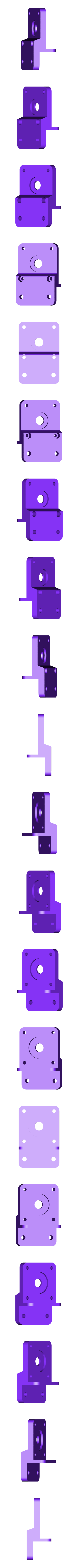

  • Z_01.stl 65.0 × 81.0 × 80.200005 mm

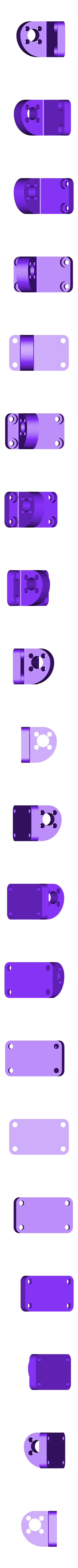

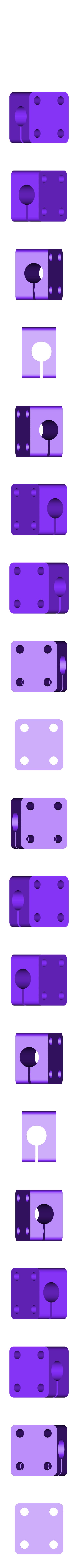

  • Z_02.stl 31.0 × 31.0 × 52.0 mm

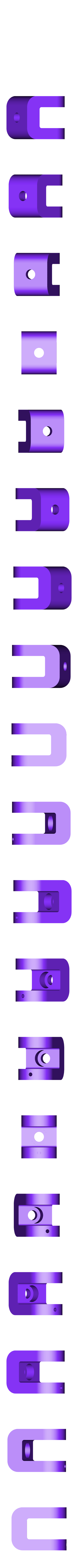

  • Z_05.stl 25.0 × 19.5 × 16.0 mm
  • Z_06.stl 10.0 × 20.050001 × 27.5 mm

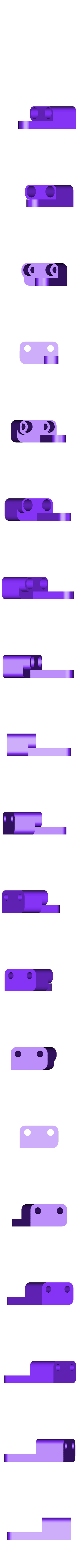

  • Z_07.stl 33.0 × 11.549999 × 20.0 mm

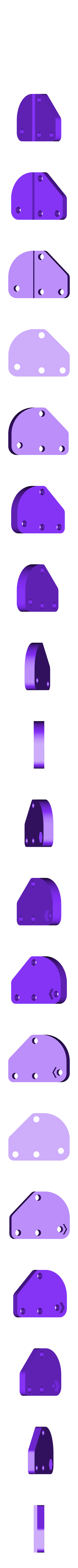

  • Z_08.stl 6.0 × 27.0 × 35.0 mm
  • Z_14.stl 31.0 × 31.0 × 52.0 mm

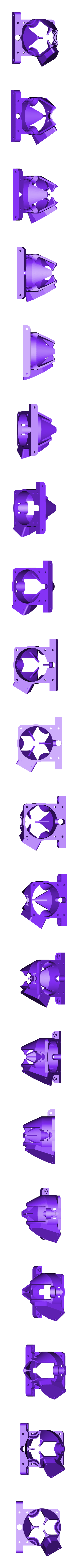

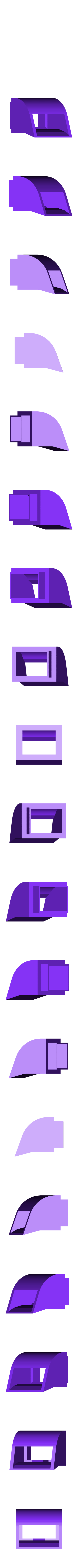

  • diamond_sheld.stl 61.87923 × 74.096218 × 43.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 62550
Design author 3Dadicto
3Dadicto

3Dadicto

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

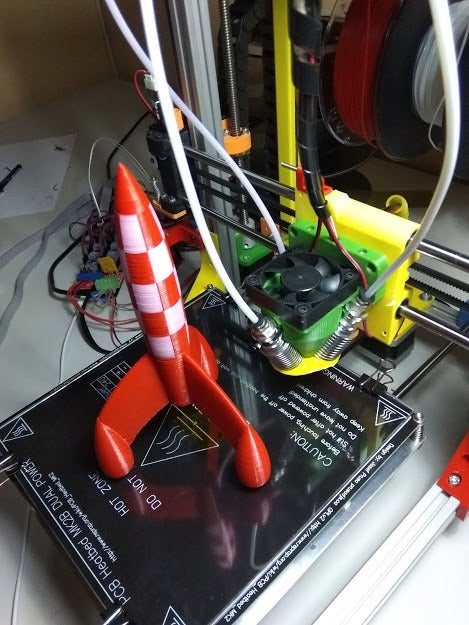

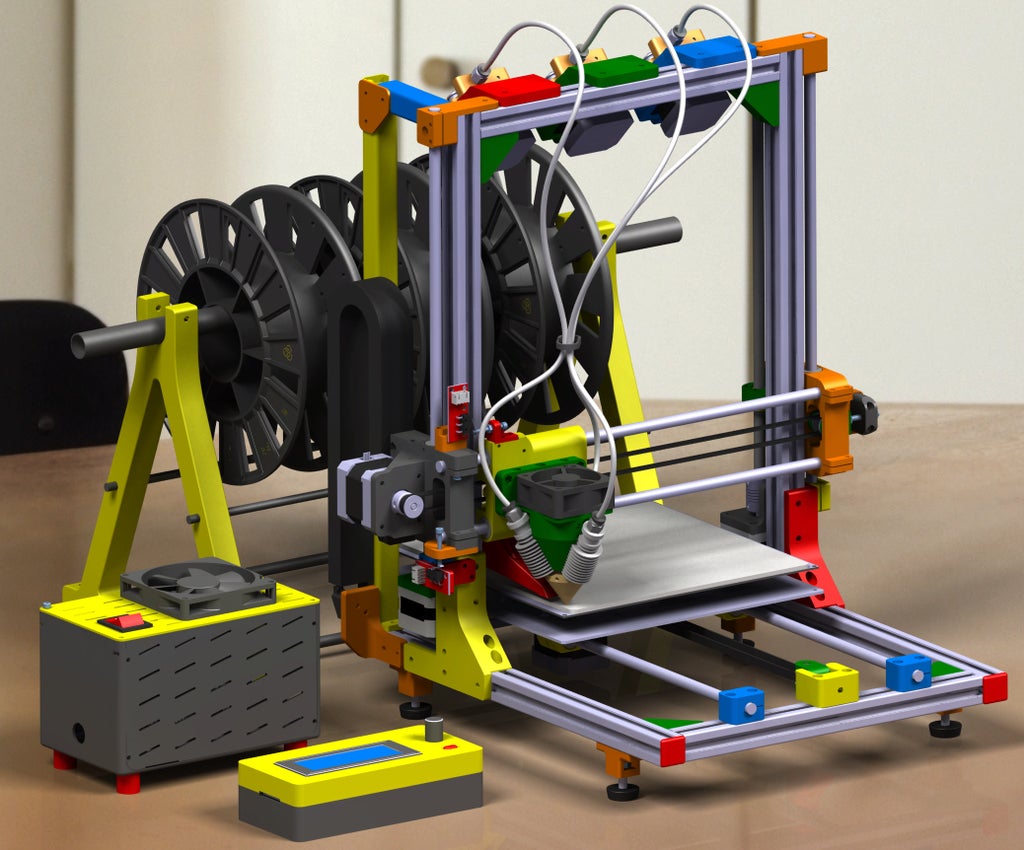

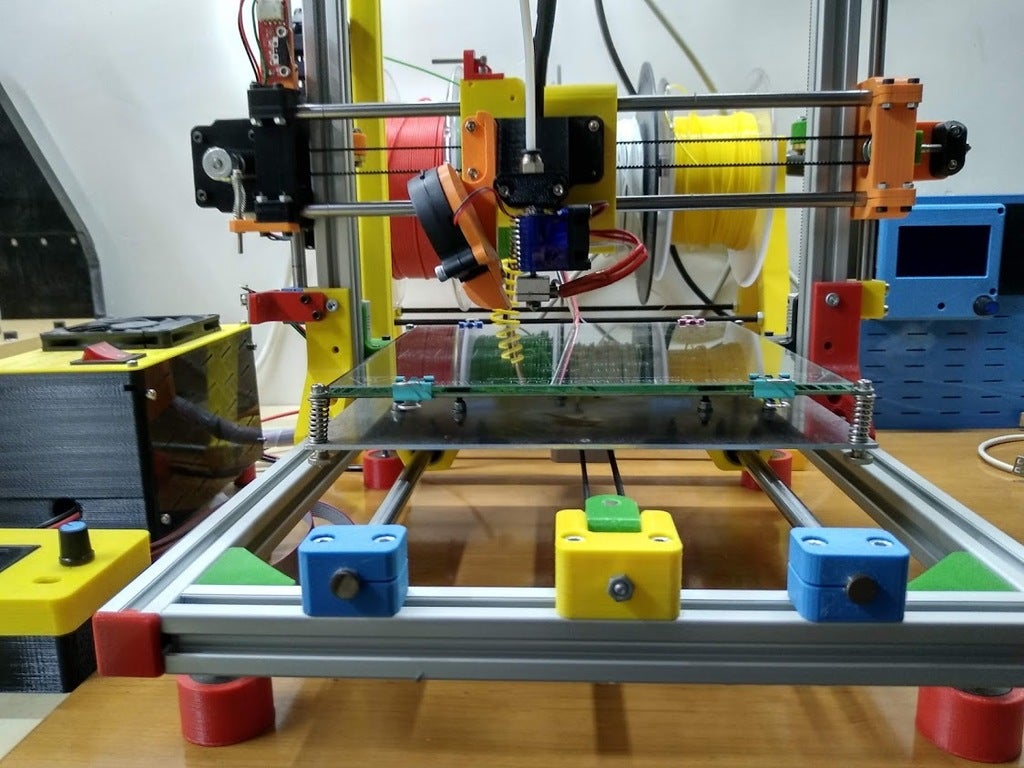

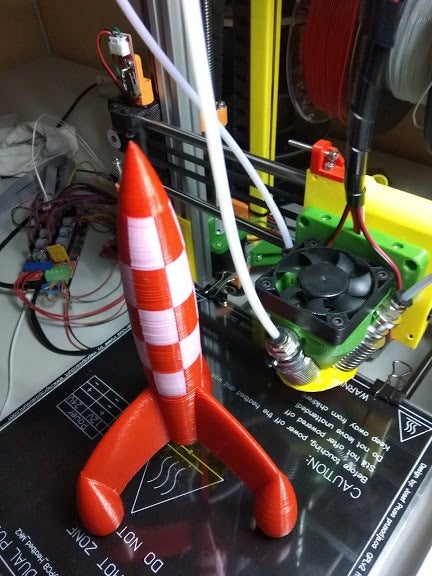

Tricolor 3D printer

Build volume of 200x200x200mm

Built mainly with aluminum 20x20 and printed parts with a optimized and lightweight design.

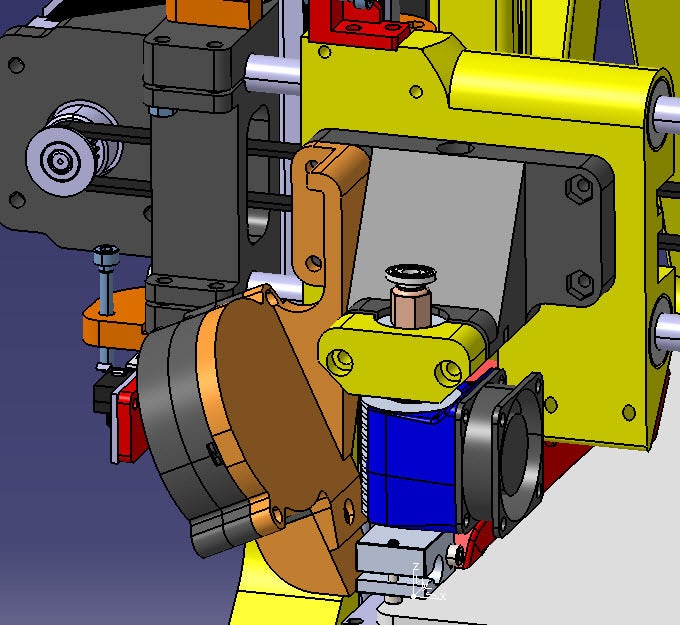

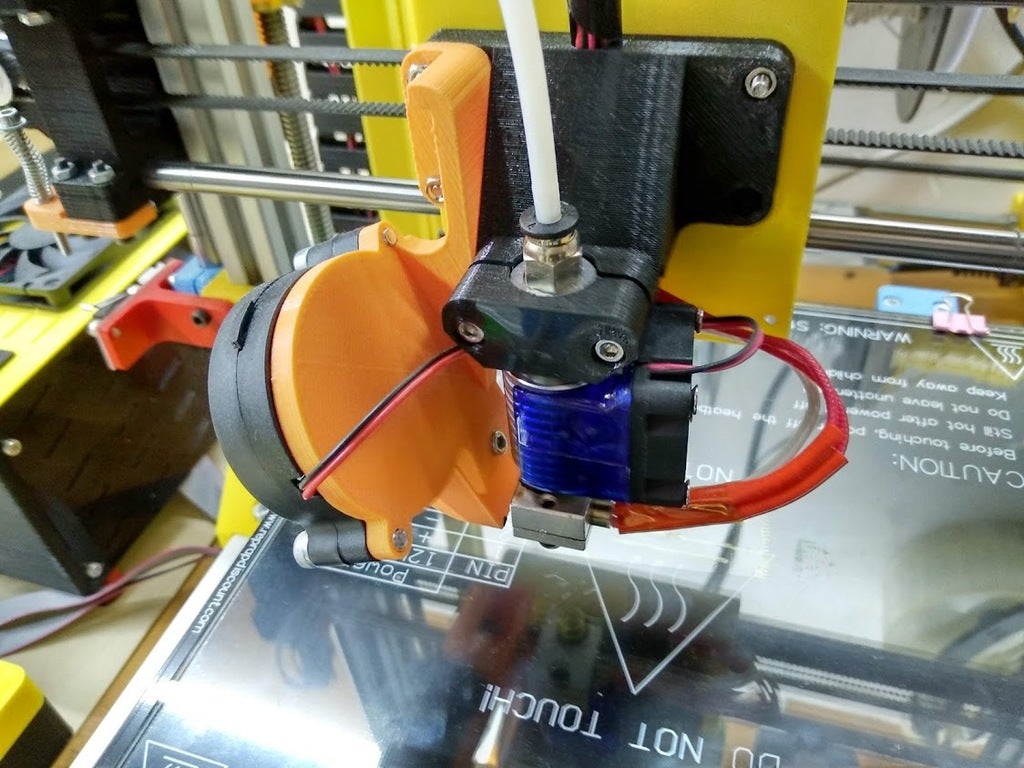

The extruder is a Diamond HotEnd. It is designed to change to HotEnd E3D V6.

You can choose between back or side layer fan, although to me, the side fan has given me the best result.

All the commercial elements except for the aluminum profiles and the chrome bars I have bought them on Aliexpress.

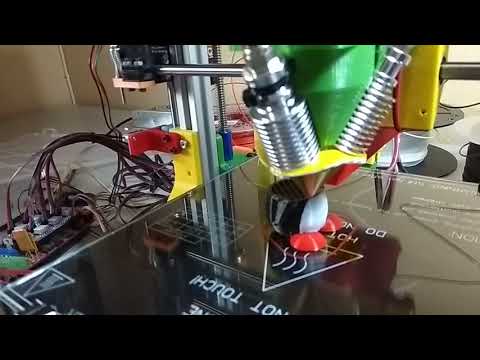

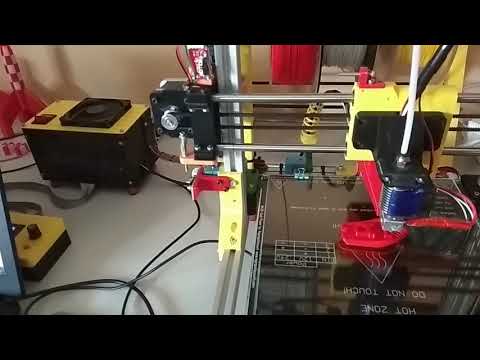

https://www.youtube.com/watch?v=6XgTEaBqE9w
https://www.youtube.com/watch?v=DA-88j96Bhw
https://www.youtube.com/watch?v=UrzVpb-7Zio

BOM:
- 2 Screw and nut THSL-300-8Dx1
- Aluminum Profile 20x20 Type I Slot 5mm 2x370; 3x250; 2x390
- 100 Nut slot 6 [M4]
- 12 Linear Bearing LM8UU 8x15x24

- Shaft 8mm Cf53 TOL.h6 2x375; 4x340
- 2 Coupling 5x8
- 2 Pulley GT2 6mm 20 Dientes eje 5mm
- 2 Free Pulley GT2 6mm 20 Dientes eje 5mm
- 1 M Belt GT2 6mm
- 1 GT2 Timing Belt Fixing 9x40mm
- 1 Hot Bed Support Aluminium 220x220x2
- 1 Hot Bed 214x214x3
- 1 Hot Bed Glass 214x200x3
- 4 Rubber feet
- 3 Extruder
- 1 Hotend Diamond
- 1m Teflon tube
- 3 Fitting tube
- 5 Motor Nema 17 1.7A
- 2 Motor Nema 17 1.3 A (Z axis)
- 4 Driver DRV8825
- 1 Extension Shield Boards for Stepper Motor Driver
- 1 Ramps 1.4 Shield
- 1 Arduino Mega
- 1 RepRap LCD smart controller 2004
- 1 Power Supply 12V 30A
- 1 Fan 80mm 12v
- 1 Fan 40mm 12v
- 1 Switch 250 v 15 A
- 3 Limit switches
- Wires
- 1 Cable Chain 10x20mm L0.5m
- 4 M3 Screw Leveling Spring
- Bolts M4 different lengths
- Nuts M4
- Bolts M3 different lengths
- Nuts M3
- PLA Filament 1 kg
