Pendulum clock printed in 3D

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 6 likes
  • 73 downloads

3D model description

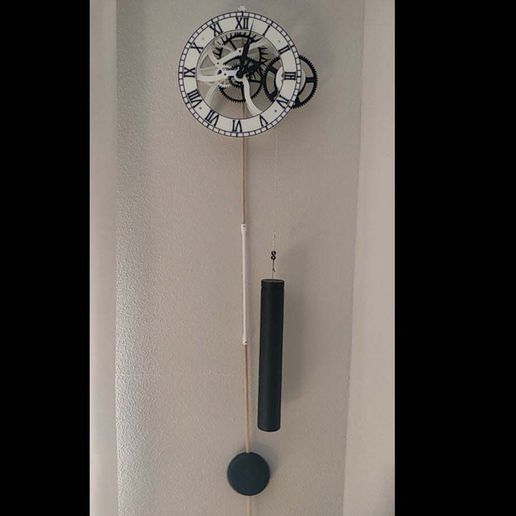

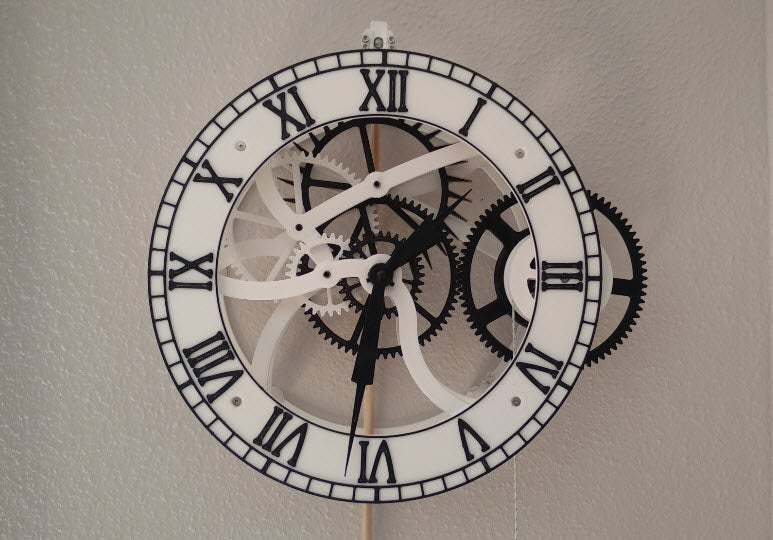

Pendulum clock printed in 3D
Material: PLA
It is quite accurate, it has an error of a few seconds every 12 hours of operation.

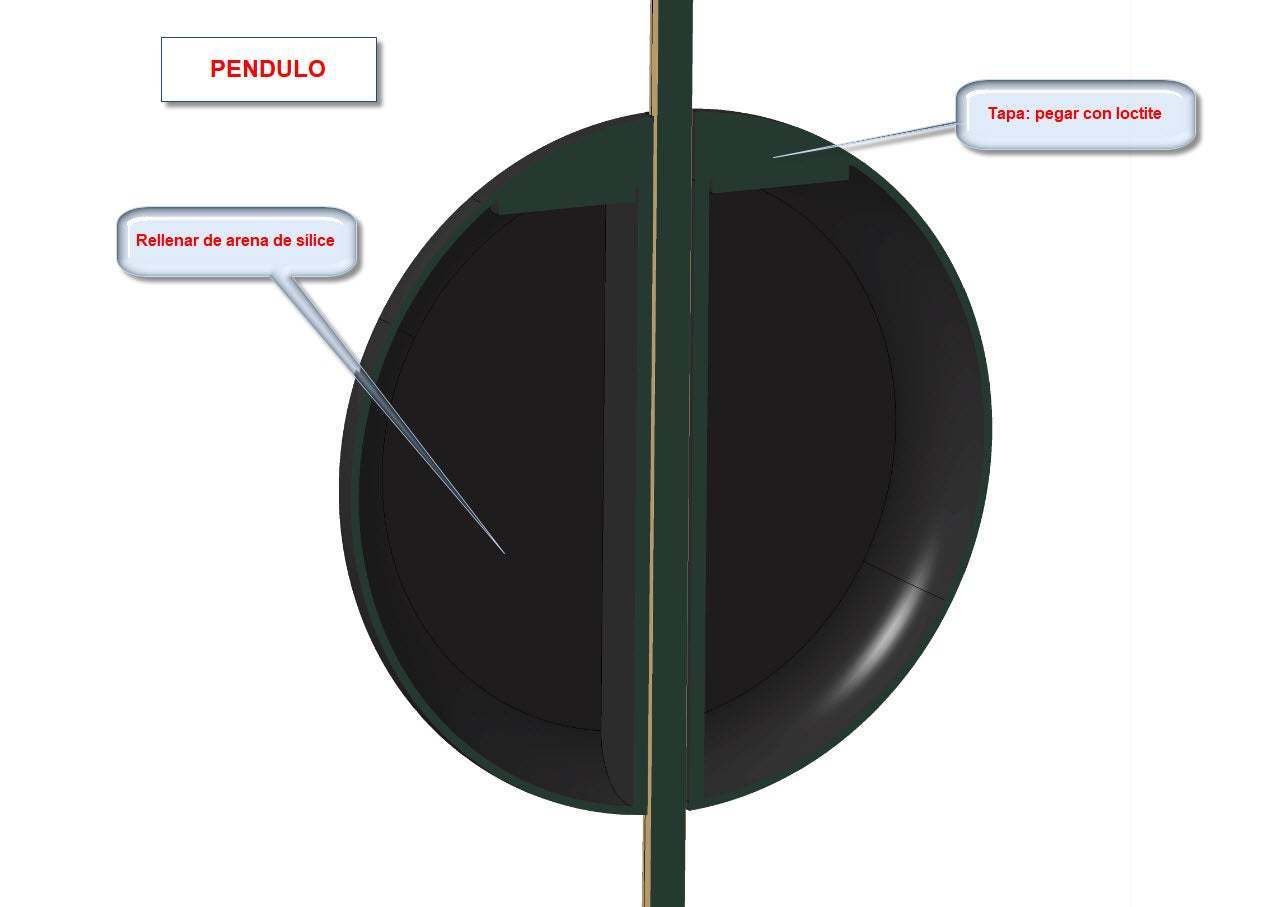

The diameter of the sphere is 250mm.
As I did not have a wooden rod of more than one meter, I had to make a joint between rods.

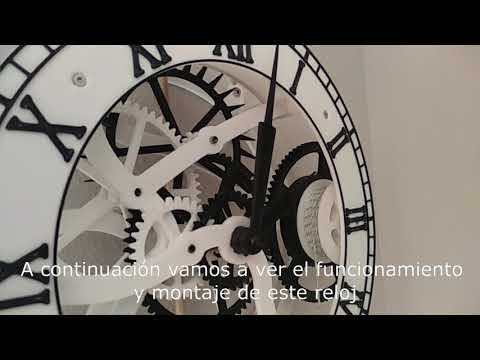

In the following video the operation and assembly of the clock is explained:
https://youtu.be/6EvNqkYFnQo

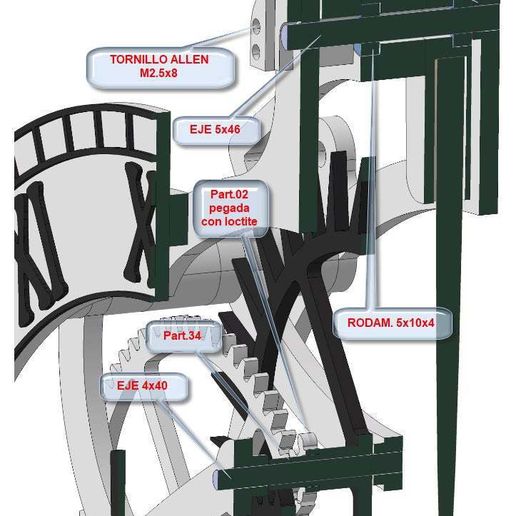

BOM:
Bearing Ø5x10x4 - 5 units
Bearing Ø8x14x4 - 1 unit
Calibrated round Ø5x46 - 2 units
Calibrated round Ø5x50 - 1 unit
Calibrated round Ø4x40 - 1 unit
Calibrated round Ø4x24 - 2 units
Prisoner M3x6 - 15 units
Allen screw M3x16 - 4 units
Allen screw M2.5x8 - 4 units
Countersunk head screw M3x10 - 10 units
Countersunk head screw M2.5x10 - 4 units
Nut M2.5 - 4 units
Wooden rod Ø5x1100 - 1unit
Wire Ø1.5 or Ø2mm, Length 2 meters

  • 3D file format: STL
  • Publication date: 2020/12/08 at 15:16

License

CC BY NC SA
