ARTICULATED G1 TRANSFORMERS IRONHIDE - NO SUPPORT

Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
Licence CC BY-NC-ND
Last update 2020-09-09 at 05:00
Publication date 2020-04-04 at 13:11
Design number 127965
3D design format
STL and ZIP Folder details Close
  • 10_Iron_Body6_Abdomen_Grey.stl
  • 11_Iron_Hand1_Shoulders_BLACK.stl
  • 12_Iron_Hand2_Top_RED.stl
  • 13_Iron_Hand3_Elbowjoint_RED.stl
  • 14_Iron_Hand4_Bottom_RED.stl
  • 15_Iron_Hand5_Fist_BLACK.stl
  • 15_Iron_Hand5_Pointed_BLACK.stl
  • 15_Iron_Hand5_Relax_BLACK.stl
  • 15_Iron_Hand5_Salute_BLACK.stl
  • 16_Iron_Waist1_Main_GREY.stl
  • 17_Iron_Waist2_Side_GREY.stl
  • 18_Iron_Waist3_Front_GREY.stl
  • 19_Iron_Waist4_Hips_GREY.stl
  • 1_Iron_Head1_Helmet_RED.stl
  • 20_Iron_Leg1_Hip_GREY.stl
  • 21_Iron_Leg2_Thigh_GREY.stl
  • 22_Iron_Leg3_Kneejoint_GREY.stl
  • 23_Iron_Leg4_Mainleft_RED.stl
  • 23_Iron_Leg4_Mainright_RED.stl
  • 24_Iron_Leg5_Anklejoint_RED.stl
  • 25_Iron_Leg6_Bottom_RED.stl
  • 26_Iron_Leg7_Bottom2_RED.stl
  • 27_Iron_Gun_GREY.stl
  • 2_Iron_Head2_Face_WHITE.stl
  • 3_Iron_Head3_Eyes_LIGHTBLUE.stl
  • 4_Iron_Head4_Neck_BLACK.stl
  • 5_Iron_Body1_Main_BLACK.stl
  • 6_Iron_Body2_ShoulderJoint_BLACK.stl
  • 7_Iron_Body3_Chest_RED.stl
  • 8_Iron_Body4_Glass_LIGHTBLUE.stl
  • 9_Iron_Body5_Headlight_GREY.stl

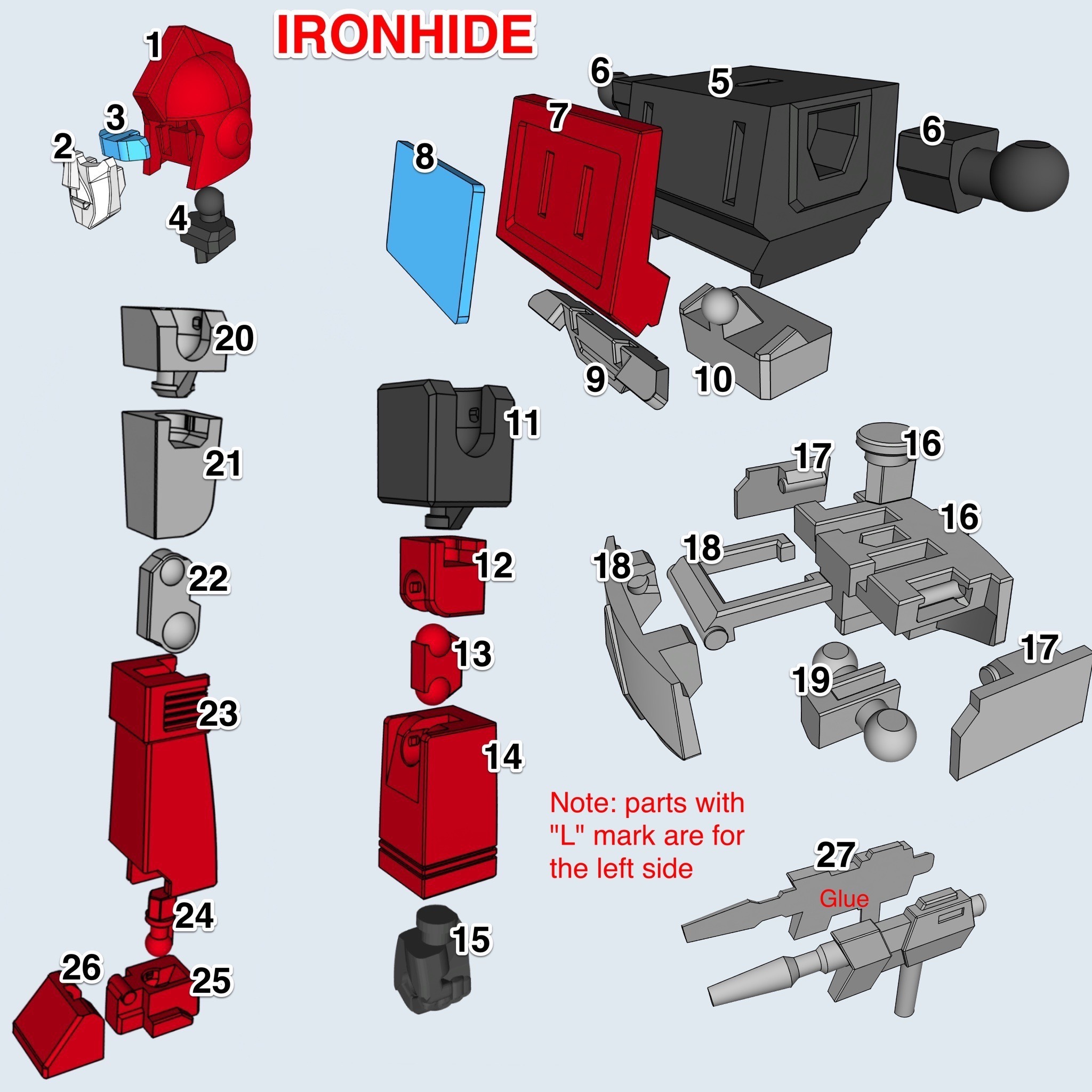

  • Ironhide_Instruction.zip

Learn more about the formats
Toymakr3D

Toymakr3D

3D printer file info

3D model description

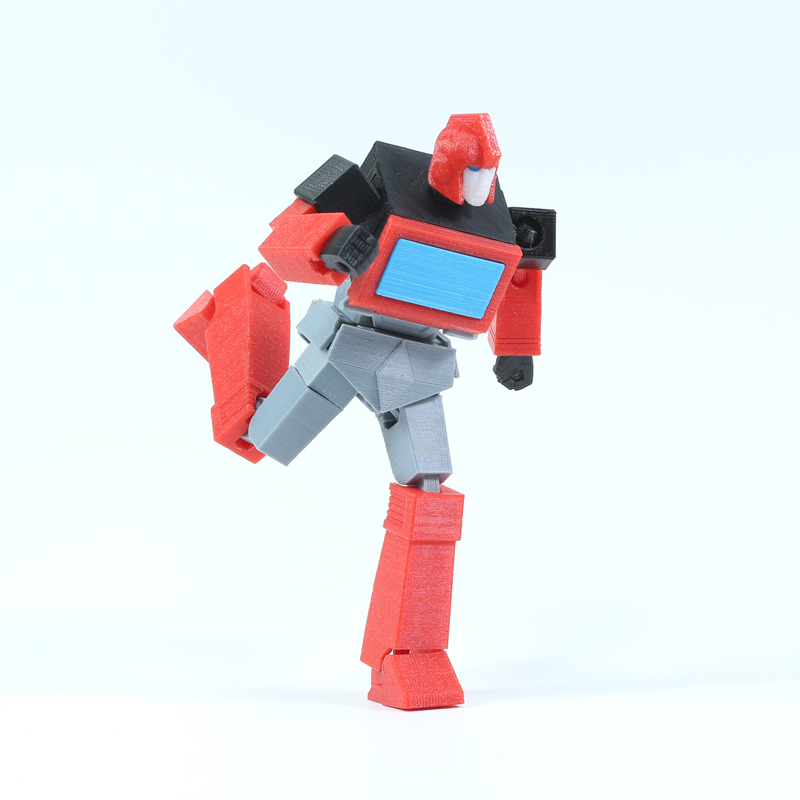

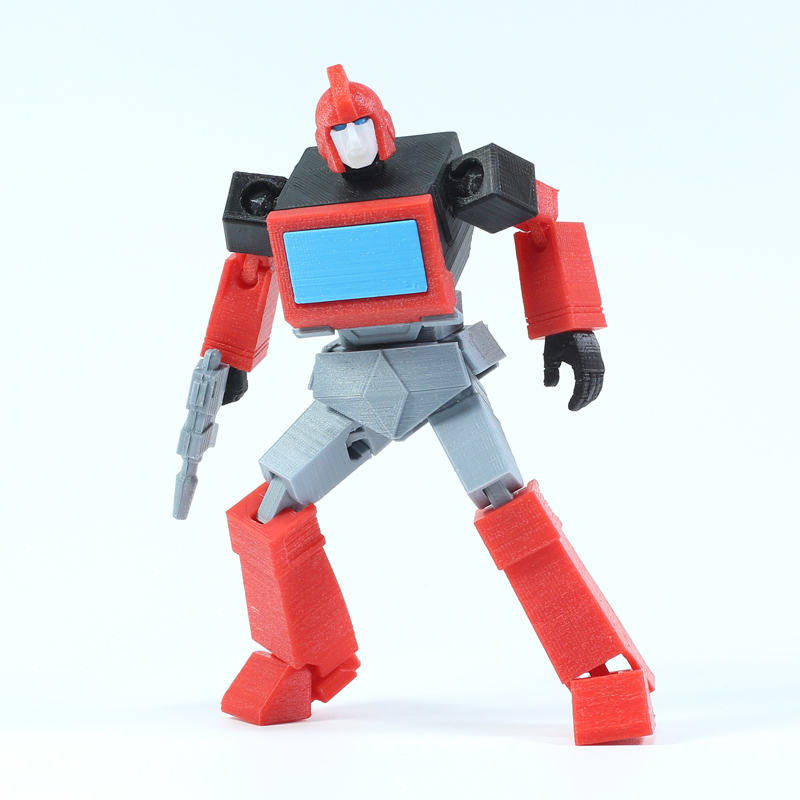

G1 Ironhide base on 1984 Transformers TV Series. This is fully articulated model but not transformable.

DISCLAIMER:
1. Contains small parts and requires high precision. Your printer may need to be properly calibrated for best results.
2. This model is for fan art purposes only. The original Transformers characters are the property of Hasbro/Takara Tomy. The creator is in no way associated with the owners.

Video Preview: https://youtu.be/mf0STZRZ9fI

  • Skale: 1:30 (16.5cm)
  • Coloring can be done by using different color of filament (detail on files name)
  • No Supports
  • Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
  • Best print orientation for maximum strength result
  • Easy to print
  • Easy to assemble
  • Easy to rescale

More updates: https://www.instagram.com/toymakr3d/

Point of articulation:

  • Neck balljoint
  • Abdomen balljoint
  • Shoulders balljoint
  • Upper arm swivel joint
  • Elbow double balljoint
  • Wrist swivel
  • Waist swivel
  • Hip balljoint
  • Thigh swivel joint
  • Knee doble balljoint
  • Ankle balljoint
  • Toe swivel

Accesories:
- Gun

Important Tips:
- Cutter or sand paper for tolerance adjustment
- Super glue for splited parts
- Use nail polish to fix loose ball joint

3D printing settings

Sample Print Setting:
- Nozzle: 0.4mm
- Layer: 0.15mm
- Filamen: PLA
- Temperature: 195°C
- Speed: 40/s
- Skin/top/bottom: 0.8mm
- Infill: 30%
