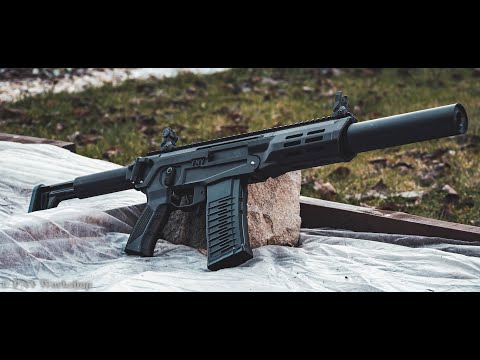

AM-17/AM-17M AEG full build kit

The AM-17 is a 5.45x39mm modern russian carbine, mechanically the successor of the Dragunov MA from the 70's and is meant to replace the AKS-74u series. It has a longer version, the AM-17M with a little different (mostly longer) handguard and a rifle length barrel. There is also a 9x39 suppressed version, the AMB-17.

https://cults3d.com/en/3d-model/game/amb-17-full-build-kit

Real one is almost completely polimer on the outside, so an ideal candidate for 3D printing.

Both the carbine length AM-17 and the rifle length AM-17M is included. There are prototypes IRL chambered in 7.62x39 so theoretically 7.62 mags could also be considered accurate.

Use AK-12/15 mags for a proper look!

Handguard looks like M-lok because IT IS.

Access to the back of the gearbox for spring change is as fast as it gets (with QD spring change gearboxes obviously). Just fold the stock and there you have it!

The replica opens up just like the real steel! To achieve this, you have to remove the spring loaded ballpin from the back, pull the the front forward about 10mm (0.4 inch) to separate the hop-up and the gearbox and then go ahead and pivot open the handguard-upper-stock (also including the barrel and hop-up) from the lower (containing the gearbox obviously). To my knowledge, this takedowm mechanism is unique in the world of airsoft AEGs (with the exclusion of split gearboxes).

ASSEMBLY VIDEO (Assembly is virtually identical to the AMB-17)

https://www.youtube.com/watch?v=4fKA-IsWp0c

You'll need a ver3 AK gearbox and an AK hop-up chamber. To feed this beauty you need AK mags (Cyma is fine).

The outer barrel is compatible with Cyma AKs-74u outer barrels (AM-17) or Cyma full length AK outer barrels (AM-17M). I included my reinforced outer barrel designs as well.

UPDATE

I included a two-piece outer barrel design for easier printing

UPDATE

I added cutouts to the handguard and the upper so that now you can fit through a T-connector (Dean-connector) and thus have the option to put the battery in the handguard.

UPDATE

Added a gasblock for the rifle length AM-17M version to help stabilise the barrel. Mount it with an M3x16mm or slightly shorter knurled pin to the barrel and an M4x25-30mm sunkenhead bolt and hexnut to the top of the handguard.

Stock is length-adjustable and folding.

The fire selector is ambidextrous, as in the left one is connected to the right. It's actually working, not just for show.

Charging handle can be set up to either side.

With the reinforced stock, you need to fold it before you can separate the upper from the lower. The original stock lets you do it with the stock extended, just like the real thing.

The stock has a QD hole.

Standard components:

Ver 3 AK gearbox (Cyma will work just fine)
Ver 3 AK hop-up chamber (full) (Cyma will work just fine)
Ver 3 AK fire control parts (Cyma is once again just fine)
220 mm AEG inner barrel
250 mm long 2mm diameter steel wire

Bolts

• 4 pcs M2x20mm sunkenhead bolts (only for two-piece outer barrel)
• 2 pcs M4x6-8 ball head grub screw (fire selector levers)
• 2 pcs M4x10mm grub screw (charging handle, stock extension limiter)
• 3 pcs M4x20mm grub screw (magazine release, stock setting lever, stock folding button)
• 2 pcs M4x30mm grub screw (fire selector levers)
• 2 pcs M3x10mm round head cap bolt (hopup chamber fixture)
• 1 pc M4x8-10mm round head cap bolt (pistol grip-motor cage connection)
• 2 pc M4x10-12mm round head cap bolt (spring retainer, motor cage mount)
• 1 pc M4x20mm round head cap bolt (rubber backpad)
• 1 pc M4x30mm round head cap bolt (rubber backpad)
• 1 pc M4x25-30mm sunkenheab bolt (gasblock, only for AM-17M)
• 2 pcs M5x25mm socket head / round head cap bolt (forend-upper receiver connection)
• 4 pcs M2 hexnut (only for two-piece outer barrel)
• 3 pcs M4 hexnut
• 2 pcs M5 hexnut

Pins
- 1 pc M6x35mm knurled pin (barrel attachment)
- 1 pc M5x45mm flathead clevis pin w/c-clip (folding stock hinge)
- 2 pcs M6 quick release ball lock pin (VCN114-6, M6, as in 6 mm diameter, grip length 20mm)
- 1 pc M3x16mm knurled pin (gasblock, only for AM-17M)

Springs
- 1 pc 3mm OD compression spring (cut to size, about 150-160mm, I recommend 0.3mm wire)
- 1 pc compression spring 30-35 mm long 7-8 mm OD (You can find such springs in various soap, dishwashing gel, shampoo etc dispensers) (stock folding button)
- 1 pc 6-7 mm OD torsion spring 180-270 degrees 2-3 laps (0.9-1.2 mm wire)
- 1 pc torsion spring 11-12mm OD right rotation 0 degrees 1-2 laps
(I recommend 1 mm wire) (stock setting button)

Some of these components are hard to find, contact me and I'll send you every standard component that is needed (for a small fee).

The longest part is the upper receiver 276mm (10.87 inches). I recommend printing both the upper, lower, and the handguard upside down (rail downwards). Print the suppressor with the front down, so that it's almost support free (because of the shape of the baffles)
