737 Throttle Quadrant

?
Creation's quality: 5.0/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 14.7k views
  • 23 likes
  • 40 downloads

3D model description

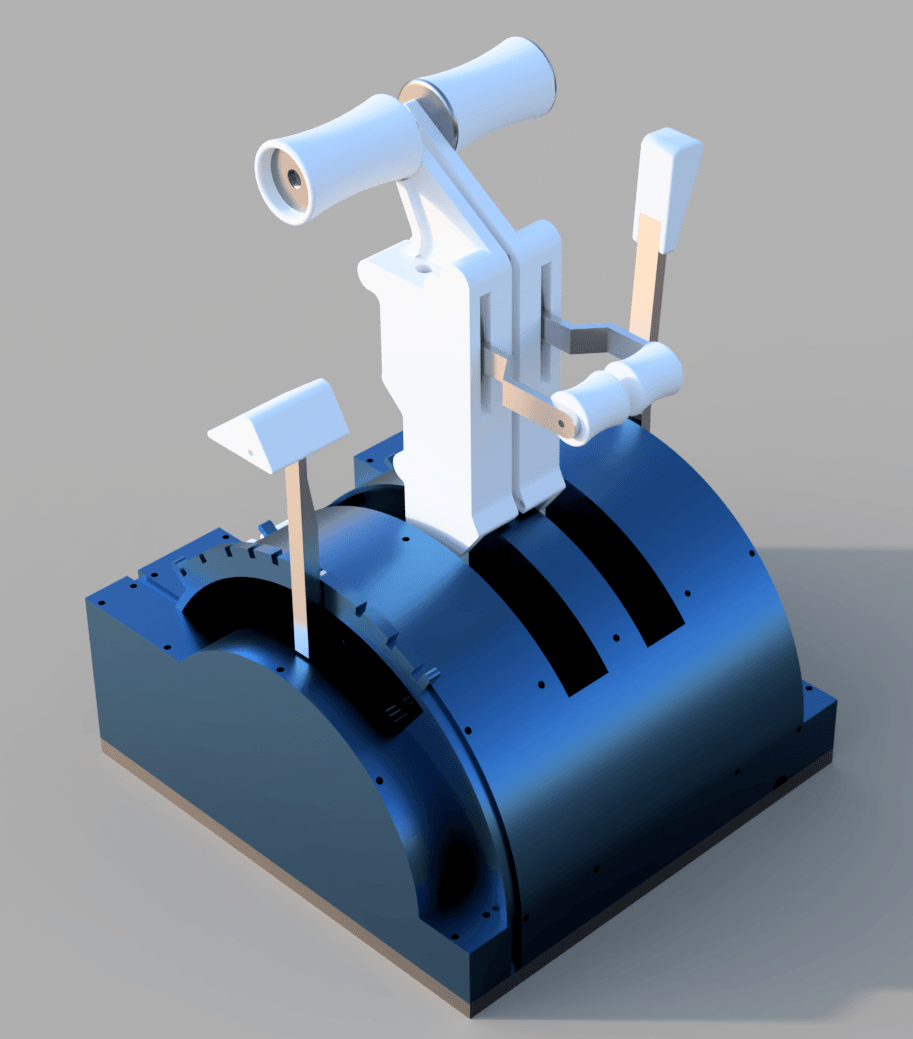

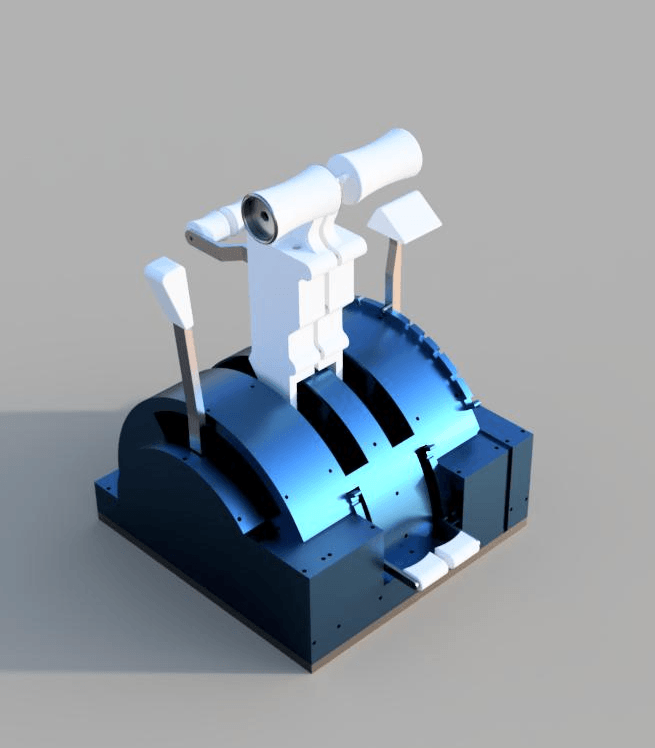

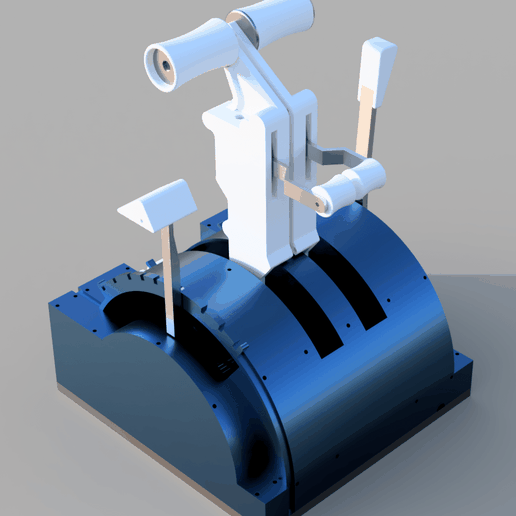

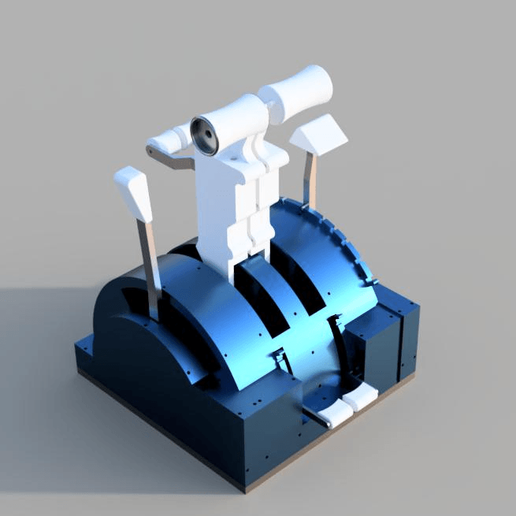

The first fully working and printable 737 Throttle Quadrant, for your favourite simulator!

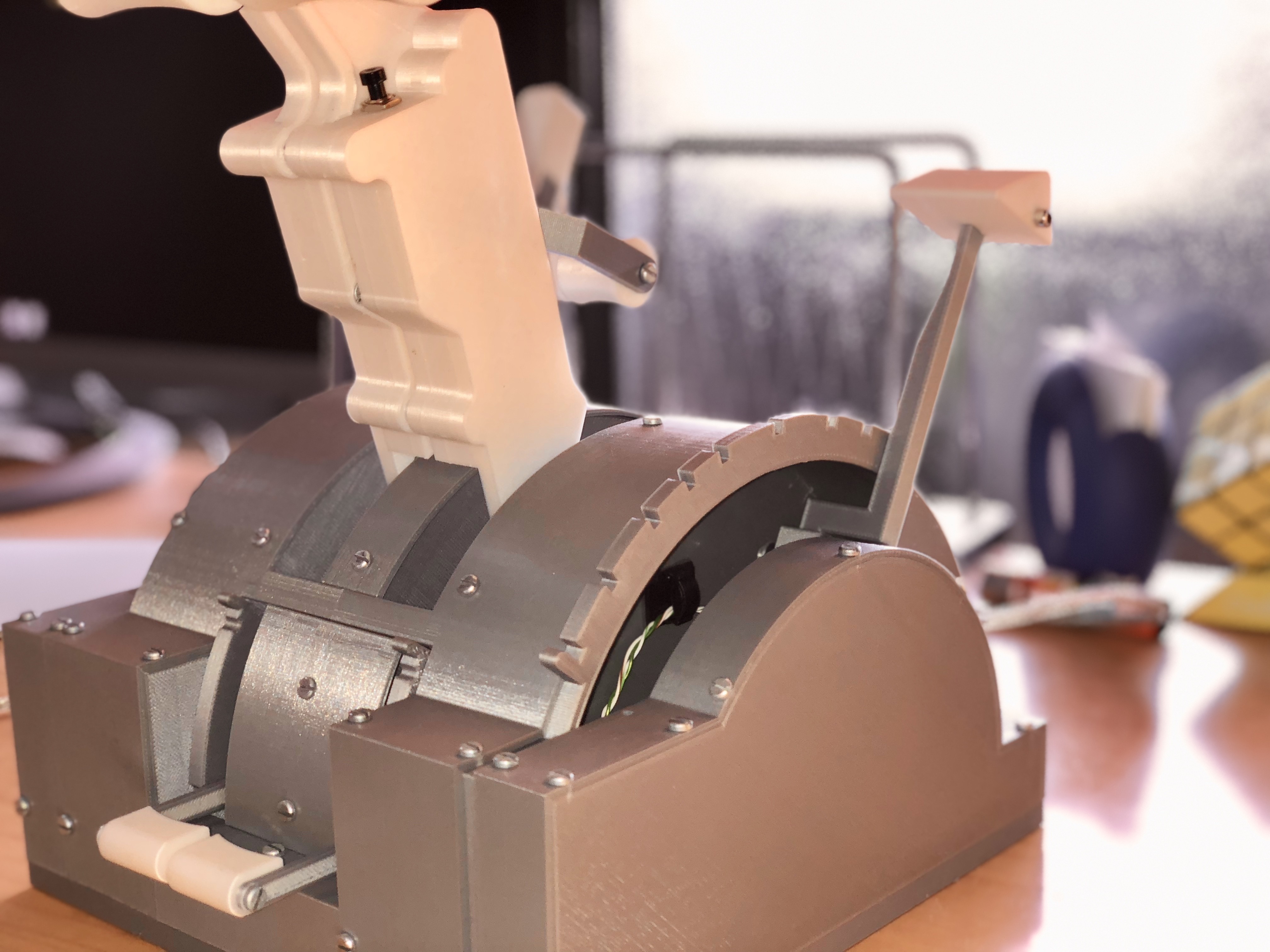

This model can be easily printed with any 3D printer that has a build plate of, at least, 220X200mm. All the buttons and the levels you see in the photos are actually working.
Assembly is super easy too, with the instruction provided, all you have to do is: print all the files, follow very carefully the instruction, connect the potentiometer and buttons and fly!
You will need:
·4x Linear Rotational Potentiometer
·4x Button
·4x Mini Roller Lever Actuator Micro Switch
·1x Joystick USB Interface
·8x Ball bearing 608
·A lot of M3 screws...

Please note that, in order to be easily printable, this model is not in 1:1 scale to the original Boeing TQ. (204X195X272 WXLXH)


3D printing settings

·Layer Height: 0.2mm-0.16mm (It's really up to you).
·Infill: 20%-100% (Follow the attached BOM.pdf file in order to get the right percentage for each file).

3D printer file information

  • 3D design format: ZIP Folder details Close
    • 737 Radisce TQ.zip

    Learn more about the formats

  • Last update: 2019/03/19 at 01:36
  • Publication date: 2018/05/24 at 20:48

Copyright

©

Tags

Creator

Designs 5
Downloads 186
Sales US$4,525
Followers 40
Issue with this design? Report a problem

Best sellers of the category Game


Add a comment

4 comments

Hi. Wat i need for a Joystick USB Interface? Can you give me a tipp? Thanks...

very good, i like the model

Would it be possible to scale up the parts ? My printer can handle it. When scaled up by 135 % it is much more 1:1 with the real thing

Hi Radisce, I build model 737 quadrants out of wood. I do not needle the 3d files, but I am interested in the instructions you have. Can you send them to me? Throttlequad@yahoo.com
