1/8.5 scale 5th Wheel Dump Trailer

1000006329.jpg 1/8.5 scale 5th Wheel Dump Trailer
20231203_142027.jpg 1/8.5 scale 5th Wheel Dump Trailer
1000012064.jpg 1/8.5 scale 5th Wheel Dump Trailer
1000012063.jpg 1/8.5 scale 5th Wheel Dump Trailer
1000012062.jpg 1/8.5 scale 5th Wheel Dump Trailer
1000006318.jpg 1/8.5 scale 5th Wheel Dump Trailer
20231203_142016.jpg 1/8.5 scale 5th Wheel Dump Trailer
20231203_142139.jpg 1/8.5 scale 5th Wheel Dump Trailer
1000005701.jpg 1/8.5 scale 5th Wheel Dump Trailer
Capture.png 1/8.5 scale 5th Wheel Dump Trailer
Capture-7.png 1/8.5 scale 5th Wheel Dump Trailer
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
1 file (ZIP) Close
  • 5th Wheel Dump Trailer.zip
    • 5th Wheel Hitch/BASE.stl
    • 5th Wheel Hitch/HANDLE.stl
    • 5th Wheel Hitch/PIVOT BASE.stl
    • 5th Wheel Hitch/PIVOT.stl
    • 5th Wheel Hitch/PLATE.stl
    • Box/1st Left Wall ( mirror for right side ).stl
    • Box/2nd Left Wall ( mirror for right side ).stl
    • Box/3rd Left Wall ( Mirror for right side ).stl
    • Box/4th Left Wall ( mirror for right side ).stl
    • Box/End Gate ( Left Side ).stl
    • Box/End Gate ( Right Side ).stl
    • Box/End Gate Handle.stl
    • Box/Floor 1st Section.stl
    • Box/Floor 2nd Section.stl
    • Box/Floor 3rd Section.stl
    • Box/Floor 4th Section.stl
    • Box/Front Wall.stl
    • Box/Left Fender ( mirror for right side ).stl
    • Box/Rear Light Housing.stl
    • Fame/Cross Member.stl
    • Fame/Front Bulkhead ( Updated ).stl
    • Fame/Front Bulkhead.stl
    • Fame/Front Frame Section ( Updated ).stl
    • Fame/Hitch Frame (Front Left) Mirror for right side.stl
    • Fame/Hitch Frame (Rear Left) Mirror for right side.stl
    • Fame/Hitch Receiver.stl
    • Fame/Hitch.stl
    • Fame/Mid Frame Section.stl
    • Fame/Ramp Bottom.stl
    • Fame/Ramp Top.stl
    • Fame/Rear Frame Section.stl
    • Fame/Storage Box Lid.stl
    • Fame/tire carrier ( mesh ).stl
    • Fame/tire carrier ( solid ).stl
    • Hoist/Hoist Lower Left ( mirror for right side ).stl
    • Hoist/Lower Hoist Spacer.stl
    • Hoist/Upper Hoist .stl
    • Hoist/Upper hoist spacer.stl
    • Light Lenses/Clearance Light Trim.stl
    • Light Lenses/Fender Light Trim .stl
    • Light Lenses/Fender Light.stl
    • Light Lenses/Left Tail Light Lens.stl
    • Light Lenses/Rear Clearance Light .stl
    • Light Lenses/Right Tail Light Lens.stl
    • Light Lenses/Side Clearance Light.stl
    • Light Lenses/Tail Light Trim.stl
    • Misc/D ring mount.stl
    • Misc/D ring.stl
    • Misc/Jack Handle.stl
    • Misc/Jack Leg.stl
    • Misc/Left Jack Body.stl
    • Misc/Left Logo.stl
    • Misc/Licence Plate.stl
    • Misc/Reflective stripes.stl
    • Misc/Right Jack Body.stl
    • Misc/Right Logo.stl
    • Misc/Storage Latch.stl
    • Rollup Tarp Assembly/Group/Bars.stl
    • Rollup Tarp Assembly/Group/Crank Handle.stl
    • Rollup Tarp Assembly/Group/Main Bodys.stl
    • Rollup Tarp Assembly/Group/Steak Pocket Mounts.stl
    • Rollup Tarp Assembly/Group/Wood Boards.stl
    • Rollup Tarp Assembly/Individual Parts/Crank Handle Grip.stl
    • Rollup Tarp Assembly/Individual Parts/Crank.stl
    • Rollup Tarp Assembly/Individual Parts/FL Board.stl
    • Rollup Tarp Assembly/Individual Parts/FR Board.stl
    • Rollup Tarp Assembly/Individual Parts/Front Main Bar.stl
    • Rollup Tarp Assembly/Individual Parts/Gear Tab.stl
    • Rollup Tarp Assembly/Individual Parts/Gear.stl
    • Rollup Tarp Assembly/Individual Parts/Left Front Bar Collar.stl
    • Rollup Tarp Assembly/Individual Parts/Main Body.stl
    • Rollup Tarp Assembly/Individual Parts/Main Rear Bar.stl
    • Rollup Tarp Assembly/Individual Parts/Rear Bar End Collar.stl
    • Rollup Tarp Assembly/Individual Parts/Rear Left Body.stl
    • Rollup Tarp Assembly/Individual Parts/Rear Right Body.stl
    • Rollup Tarp Assembly/Individual Parts/Right Front Bar Collar.stl
    • Rollup Tarp Assembly/Individual Parts/RL Board.stl
    • Rollup Tarp Assembly/Individual Parts/RR Board.stl
    • Rollup Tarp Assembly/Individual Parts/Thick Steak Pocket Mount.stl
    • Rollup Tarp Assembly/Individual Parts/Thin Steak Pocket Mount.stl
    • Rollup Tarp Assembly/Individual Parts/Top Front Bar.stl
    • Rollup Tarp Assembly/Individual Parts/Top Rear Bar.stl
    • Suspension and Axles/Axle Cap.stl
    • Suspension and Axles/Axle Shaft ( Updated for M4 insert ).stl
    • Suspension and Axles/Axle.stl
    • Suspension and Axles/Left Axle Housing ( mirror for right side ).stl
    • Suspension and Axles/Shock Spacer.stl
    • Suspension and Axles/Suspension Mount Spacer.stl
    • Suspension and Axles/Suspension Mount.stl
    • Updated Jack Assembly/Jack Assembly.pdf
    • Updated Jack Assembly/Jack Assmebley.3mf
    • Updated Jack Assembly/Left Drill Guide.stl
    • Updated Jack Assembly/Right Drill Guide .stl
    • Updated Jack Assembly/Tool.stl
    • V2 Jack Assembly/Groups/Group Plate.stl
    • V2 Jack Assembly/Individual Parts/Coupling.stl
    • V2 Jack Assembly/Individual Parts/Cross Shaft.stl
    • V2 Jack Assembly/Individual Parts/Grip.stl
    • V2 Jack Assembly/Individual Parts/handle.stl
    • V2 Jack Assembly/Individual Parts/Jack Leg .stl
    • V2 Jack Assembly/Individual Parts/Left Bottom Gear.stl
    • V2 Jack Assembly/Individual Parts/Left Jack Body .stl
    • V2 Jack Assembly/Individual Parts/Left Jack Shaft.stl
    • V2 Jack Assembly/Individual Parts/Left Screw.stl
    • V2 Jack Assembly/Individual Parts/Left Top Gear.stl
    • V2 Jack Assembly/Individual Parts/Right Bottom Gear .stl
    • V2 Jack Assembly/Individual Parts/Right Jack Body (1).stl
    • V2 Jack Assembly/Individual Parts/Right Jack Shaft.stl
    • V2 Jack Assembly/Individual Parts/Right Top Gear .stl
    • V2 Jack Assembly/Individual Parts/Spacer.stl
    • V2 Jack Assembly/Individual Parts/Top Cap.stl
    • V2 Jack Assembly/Tools/Left Drill Guide.stl
    • V2 Jack Assembly/Tools/Right Drill Guide (1).stl
    • V2 Jack Assembly/Tools/Tool.stl
    • Wheels/1.55 Wheel/1.55 inner wheel .stl
    • Wheels/1.55 Wheel/1.55 outer wheel .stl
    • Wheels/1.55 Wheel/1.55 Wheel Hub Cap .stl
    • Wheels/1.55 Wheel/Foamless Tire Insert for 90mm 1.55 Tire.stl
    • Wheels/1.55 Wheel/inner ring .stl
    • Wheels/1.9 Tire.stl
    • Wheels/1.9 Wheel/1.9 inner ring.stl
    • Wheels/1.9 Wheel/1.9 inner wheel.stl
    • Wheels/1.9 Wheel/1.9 outer wheel.stl
    • Wheels/1.9 Wheel/1.9 Wheel Hub Cap.stl
    • Wheels/1.9 Wheel/1.9 Wheel v2.3mf
    • Wheels/1.9 Wheel/1.9 Wheel v2.stl

Learn more about the formats
Last update
Publication date
Design number 1641765
DVScaleDesign

DVScaleDesign

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

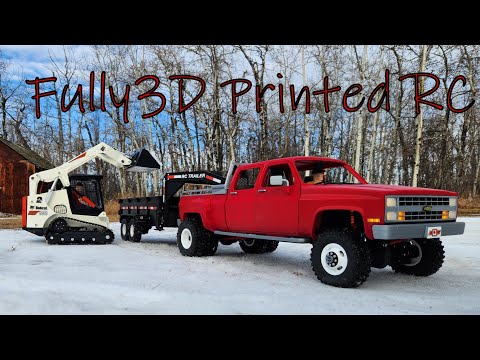

1/8.5 scale 5th Wheel dump trailer designed to haul a 8.5 scale RC Skid Steer from AN3DRC. Uses two electric micro Linear Actuators for the dump bed hoist. Capable of lifting 3kgs.
