3D model description

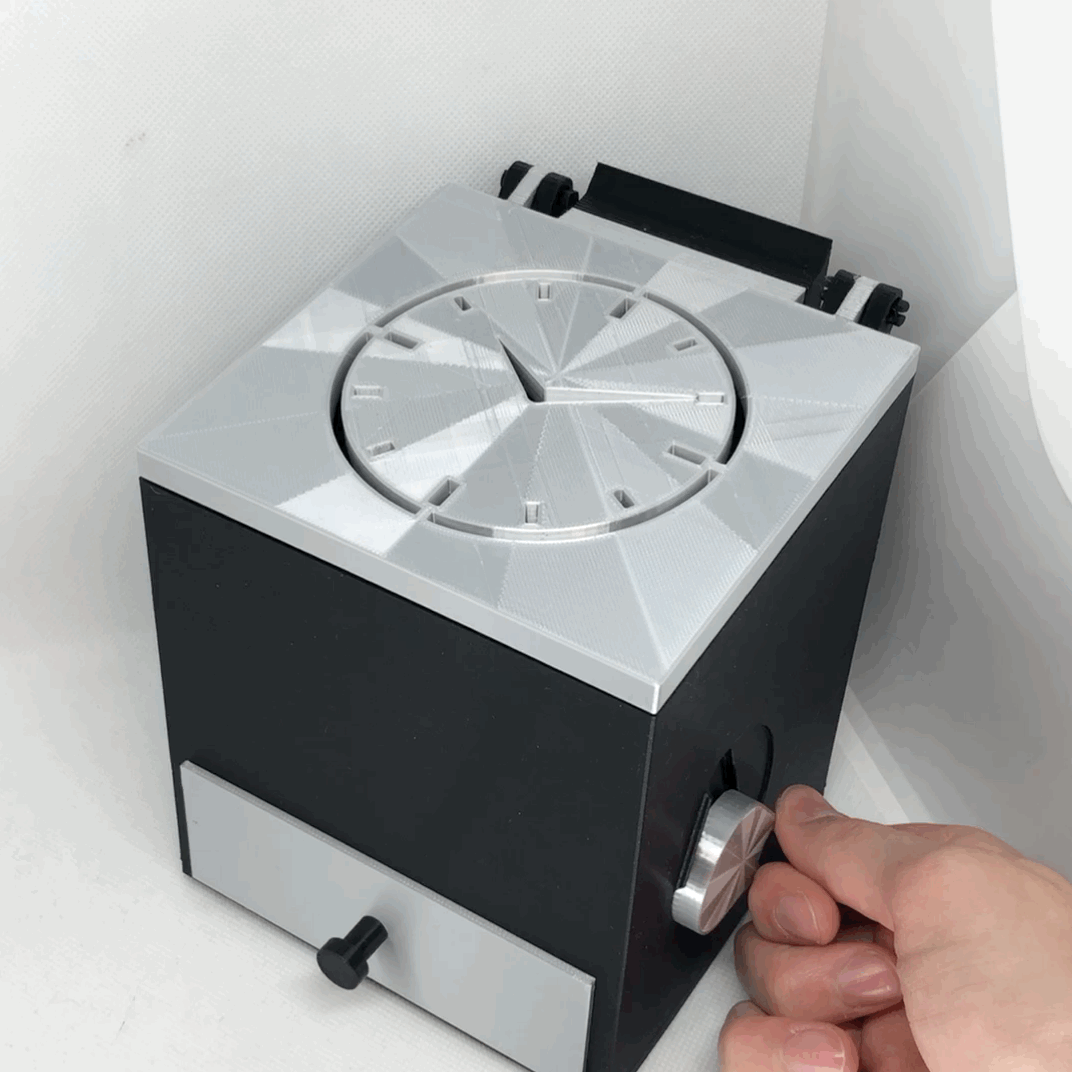

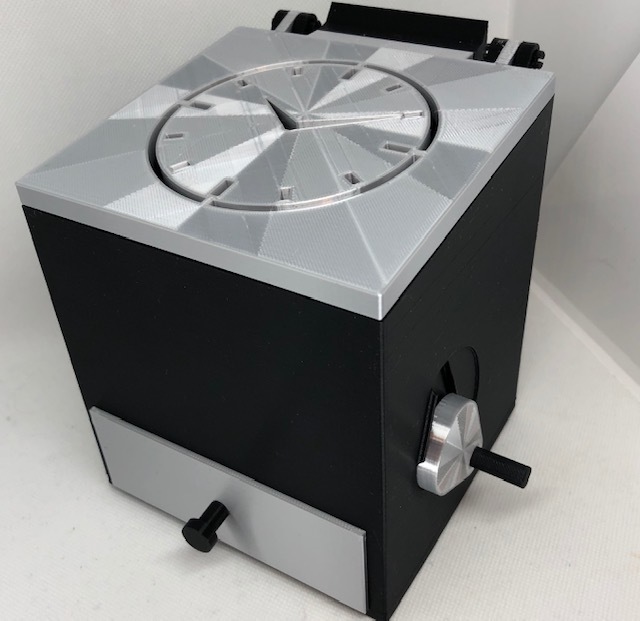

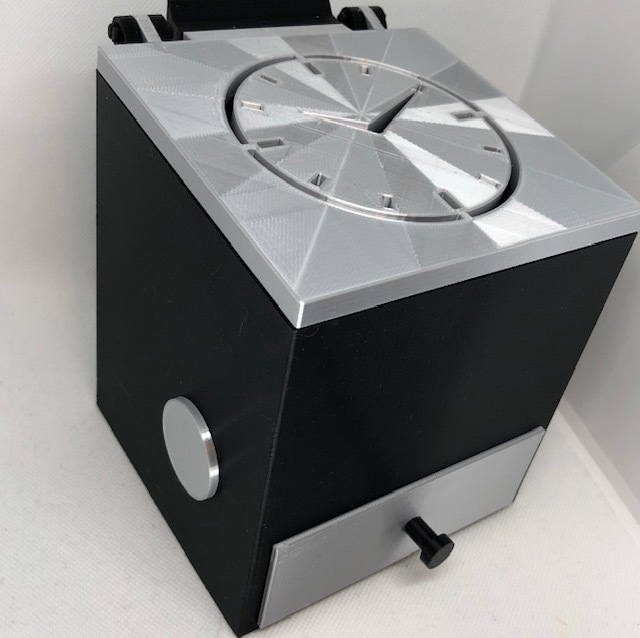

This 100% 3D printable watch box is suitable for both smart watches and mechanical watches. By turning the crank on the right hand side of the box, your watch will rise up, opening up the lid and presenting itself to you!

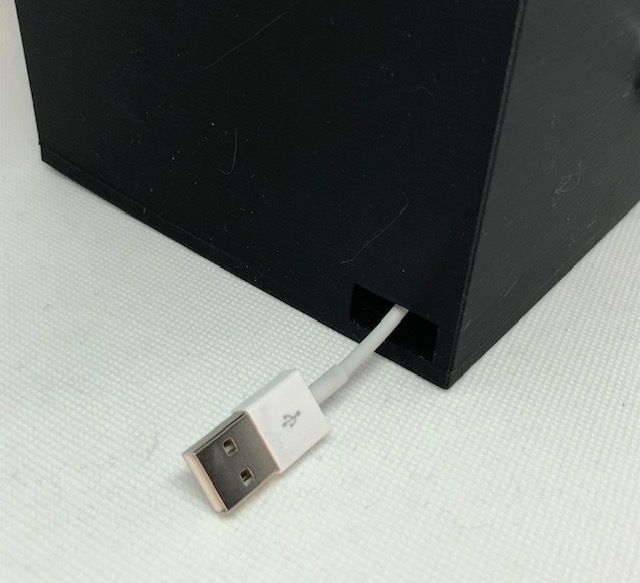

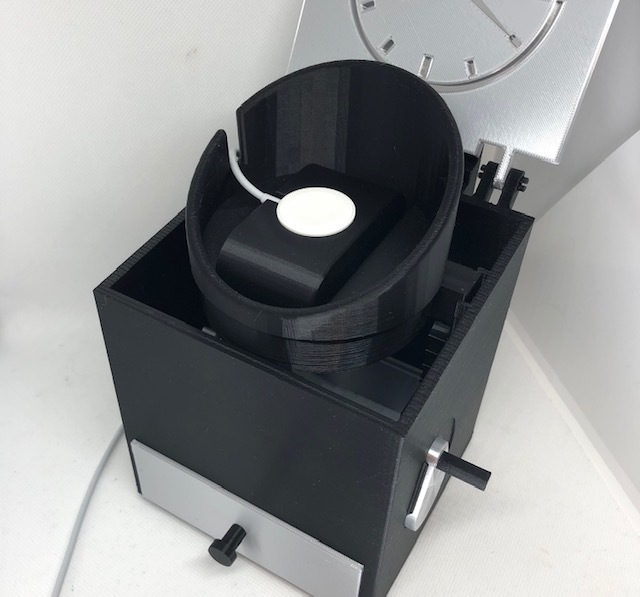

The watch box features a slot in the back to feed a smart watch cable through along with a spot embedded in the watch pillow to insert a smart watch charger!

Push the crank toward the box when the crank is fully turned to lock the mechanism in the "open" position, and push the left side of the crank to release the mechanism and guide the watch back down into the closed position.

This download includes assembly instructions and BOTH the smart watch and mechanical version of this watch box!

All parts are 3D printable, no sanding required, no glue required! Just print, build and use!

3D printing settings

Printer: Prusa i3mks

Box Base: Layer Height: 0.2mm, Infill: 15%
Lid: Layer Height: 0.2mm, Infill: 15%
Drawer: Layer Height: 0.2mm, Infill: 15%
Watch Holder: Layer Height: 0.2mm, Infill: 15%
Shaft Pin Cover: Layer Height: 0.2mm, Infill: 15%
Crank: Layer Height: 0.2mm, Infill: 100%
Watch Pillow: Layer Height: 0.2mm, Infill: 15%
Gears & Racks: Layer Height: 0.2mm, Infill: 50%
Drawer Knob: Layer Height: 0.2mm, Infill: 15%
Lid Pins: Layer Height: 0.2mm, Infill: 15%
Crank Handle Layer Height: 0.2mm, Infill: 15%
Shaft: Layer Height: 0.2mm, Infill: 30%
